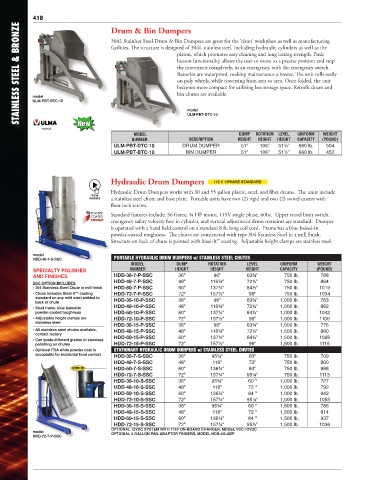

418 Drum & Bin Dumpers
STAINLESS STEEL & BRONZE model facilities. The structure is designed of 304L stainless steel, including hydraulic cylinders as well as the

304L Stainless Steel Drum & Bin Dumpers are great for the 'clean' workplace as well as manufacturing
piston, which promotes easy cleaning and long lasting strength. Push
button functionality allows the user to move to a precise position and stop
the movement completely, in an emergency, with the emergency switch.
Batteries are waterproof, making maintenance a breeze. The unit rolls easily
on poly wheels, while traversing from area to area. Once folded, the unit
becomes more compact for utilizing less storage space. Retrofit drum and
bin chutes are available.
ULM-PBT-BTC-10

ULM-PBT-DTC-10
New

MODEL model DUMP ROTATION LEVEL UNIFORM WEIGHT
NUMBER DESCRIPTION HEIGHT HEIGHT HEIGHT CAPACITY (POUND)
ULM-PBT-DTC-10 DRUM DUMPER 51" 106" 51 /8" 660 lb. 504
1
ULM-PBT-BTC-10 BIN DUMPER 51" 106" 51 /8" 660 lb. 452
1

Hydraulic Drum Dumpers 115 V 1-PHASE STANDARD
Hydraulic Drum Dumpers works with 30 and 55 gallon plastic, steel, and fiber drums. The units include
a stainless steel chute and base plate. Portable units have two (2) rigid and two (2) swivel casters with
floor lock screws.
Standard features include: 56 frame, ¾ HP motor, 115V single phase, 60hz. Upper travel limit switch,
emergency safety velocity fuse in cylinder, and vertical adjustment drum restraints are standard. Dumper
is operated with a hand held control on a standard 8 ft. long coil cord. Frame has a blue baked-in
powder-coated toughness. The chutes are constructed with type 304 Stainless Steel in a mill finish.
Structure on back of chute is painted with Steel-It™ coating. Adjustable height clamps are stainless steel.

model
HDD-48-7-S-SSC PORTABLE HYDRAULIC DRUM DUMPERS w/ STAINLESS STEEL CHUTES
MODEL DUMP ROTATION LEVEL UNIFORM WEIGHT
SPECIALTY POLISHES NUMBER HEIGHT HEIGHT HEIGHT CAPACITY (POUND)
AND FINISHES HDD-36-7-P-SSC 36" 96" 63¾" 750 lb. 788
SSC OPTION INCLUDES HDD-48-7-P-SSC 48" 116¾" 72½" 750 lb. 864
• 304 Stainless Steel Chute in mill finish HDD-60-7-P-SSC 60" 137¼" 84½" 750 lb. 1019
• Chute includes Steel-It™ coating HDD-72-7-P-SSC 72" 157½" 96" 750 lb. 1034
standard on any mild steel welded to
back of chute HDD-36-10-P-SSC 36" 96" 63¾" 1,000 lb. 763
• Steel frame, blue baked-in HDD-48-10-P-SSC 48" 116¾" 72½" 1,000 lb. 862
powder-coated toughness HDD-60-10-P-SSC 60" 137¼" 84½" 1,000 lb. 1042
• Adjustable height clamps are HDD-72-10-P-SSC 72" 157½" 96" 1,000 lb. 1100
stainless steel
HDD-36-15-P-SSC 36" 96" 63¾" 1,500 lb. 776
• All stainless steel chutes available, HDD-48-15-P-SSC 48" 116¾" 72½" 1,500 lb. 880
contact factory
• Can quote different grades of stainless HDD-60-15-P-SSC 60" 137¼" 84½" 1,500 lb. 1026
polishing on chutes HDD-72-15-P-SSC 72" 157½" 96" 1,500 lb. 1115
• Optional FDA white powder coat is STATIONARY HYDRAULIC DRUM DUMPERS w/ STAINLESS STEEL CHUTES
acceptable for incidental food contact HDD-36-7-S-SSC 36" 95¾" 60" 750 lb. 709
HDD-48-7-S-SSC 48" 116" 72" 750 lb. 800
HDD-60-7-S-SSC 60" 136¾" 84" 750 lb. 988
HDD-72-7-S-SSC 72" 157¼" 95¼" 750 lb. 1113
HDD-36-10-S-SSC 36" 95¾" 60 " 1,000 lb. 727
HDD-48-10-S-SSC 48" 116" 72 " 1,000 lb. 792
HDD-60-10-S-SSC 60" 136¾" 84 " 1,000 lb. 942
HDD-72-10-S-SSC 72" 157¼" 95¼" 1,000 lb. 1055
HDD-36-15-S-SSC 36" 95¾" 60 " 1,500 lb. 786
HDD-48-15-S-SSC 48" 116" 72 " 1,500 lb. 814
HDD-60-15-S-SSC 60" 136¾" 84 " 1,500 lb. 937
HDD-72-15-S-SSC 72" 157¼" 95½" 1,500 lb. 1036
OPTIONAL 12VDC SYSTEM WITH 115V ON-BOARD CHARGER, MODEL VCC-12VDC
model OPTIONAL 5 GALLON PAIL ADAPTOR FINGERS, MODEL HDD-5G-ADP
HDD-72-7-P-SSC
