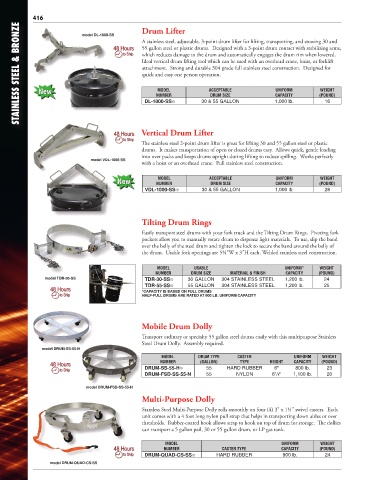

Page 410 - Vestil Catalog 112

416 model DL-1000-SS Drum Lifter
STAINLESS STEEL & BRONZE New 55 gallon steel or plastic drums. Designed with a 3-point drum contact with stabilizing arms,

A stainless steel, adjustable, 3-point drum lifter for lifting, transporting, and stowing 30 and
which reduces damage to the drum and automatically engages the drum rim when lowered.
Ideal vertical drum lifting tool which can be used with an overhead crane, hoist, or forklift
attachment. Strong and durable 304 grade full stainless steel construction. Designed for
quick and easy one person operation.

MODEL
UNIFORM
WEIGHT
ACCEPTABLE
CAPACITY
DRUM SIZE
NUMBER
(POUND)
30 & 55 GALLON
16
1,000 lb.
DL-1000-SS
Vertical Drum Lifter
The stainless steel 2-point drum lifter is great for lifting 30 and 55 gallon steel or plastic
drums. It makes transportation of open or closed drums easy. Allows quick, gentle loading
into over packs and keeps drums upright during lifting to reduce spilling. Works perfectly
model VDL-1000-SS
with a hoist or an overhead crane. Full stainless steel construction.
UNIFORM
MODEL
WEIGHT
New NUMBER ACCEPTABLE CAPACITY (POUND)
DRUM SIZE
VDL-1000-SS 30 & 55 GALLON 1,000 lb. 28

Tilting Drum Rings

Easily transport steel drums with your fork truck and the Tilting Drum Rings. Pivoting fork
pockets allow you to manually rotate drum to dispense light materials. To use, slip the band
over the belly of the steel drum and tighten the lock to secure the band around the belly of
the drum. Usable fork openings are 5¾"W x 3"H each. Welded stainless steel construction.

MODEL USABLE UNIFORM* WEIGHT
NUMBER DRUM SIZE MATERIAL & FINISH CAPACITY (POUND)
model TDR-30-SS TDR-30-SS 30 GALLON 304 STAINLESS STEEL 1,200 lb. 24
TDR-55-SS 55 GALLON 304 STAINLESS STEEL 1,200 lb. 25
*CAPACITY IS BASED ON FULL DRUMS
HALF-FULL DRUMS ARE RATED AT 600 LB. UNIFORM CAPACITY

Mobile Drum Dolly
Transport ordinary or specialty 55 gallon steel drums easily with this multipurpose Stainless
Steel Drum Dolly. Assembly required.
model DRUM-SS-55-H
MODEL DRUM TYPE CASTER UNIFORM WEIGHT
NUMBER (GALLON) TYPE HEIGHT CAPACITY (POUND)
DRUM-SS-55-H 55 HARD RUBBER 6" 800 lb. 23
DRUM-FSD-SS-55-N 55 NYLON 6 /8" 1,100 lb. 20
7
model DRUM-FSD-SS-55-N
Multi-Purpose Dolly

Stainless Steel Multi-Purpose Dolly rolls smoothly on four (4) 3" x 1¼" swivel casters. Each
unit comes with a 4 foot long nylon pull strap that helps in transporting down aisles or over
thresholds. Rubber-coated hook allows strap to hook on top of drum for storage. The dollies
can transport a 5 gallon pail, 30 or 55 gallon drum, or LP gas tank.

MODEL UNIFORM WEIGHT
NUMBER CASTER TYPE CAPACITY (POUND)
DRUM-QUAD-CS-SS HARD RUBBER 900 lb. 24
model DRUM-QUAD-CS-SS
