VDKR-P101

Cast Steel Single Socket For Pipe Safety Railing Silver

Cast steel single socket option for pipe safety railing. Accepts wood when a toe board is required.
Available QuickShip
Key Features
  • Single socket design makes installing railing easy
  • Design accepts wood when toe board is required
  • Heavy-duty cast steel provides durable use
  • Pre drilled lag down bolts make installing easy
Product Image

Visual Reference

VDKR-P101
VDKR-P101
VDKR-P101
VDKR-P101
VDKR-P101
VDKR-P101
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 6 lbs

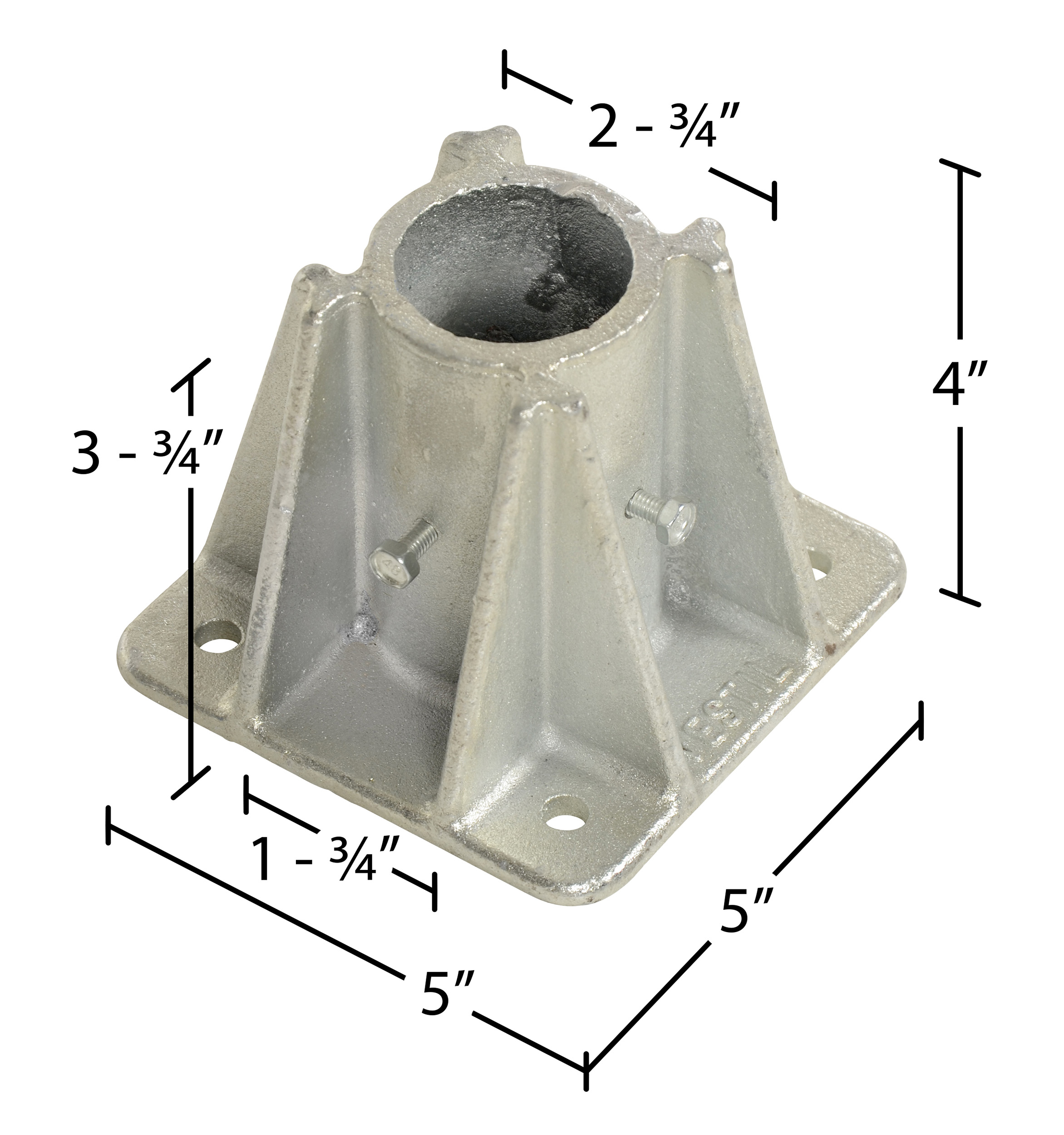

Assembled Size 5"W x 5"L x 4"H
Total Ship Weight 6 lbs
Package 1 Size 7"W x 7"D x 6"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Bolt Hole (qty.) 4
Bolt Hole Diameter (in.) 3/8
Toe Board Slot Width/Height (in.) 1-3/4 x 3-3/4
Bottom Plate Thickness (in.) 1/4
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: VDKR-P101

VDKR-P101

Cast Steel Single Socket For Pipe Safety Railing Silver

Cast steel single socket option for pipe safety railing. Accepts wood when a toe board is required.

  • Single socket design makes installing railing easy
  • Design accepts wood when toe board is required
  • Heavy-duty cast steel provides durable use
  • Pre drilled lag down bolts make installing easy

Core Data

Assembled Weight: 6 Assembled Size: 5"W x 5"L x 4"H Color: Silver
Total Ship Weight: 6 Package 1 Size: 7"W x 7"D x 6"H Freight: Parcel

Specifications

Bolt Hole (qty.): 4
Bolt Hole Diameter (in.): 3/8
Toe Board Slot Width/Height (in.): 1-3/4 x 3-3/4
Bottom Plate Thickness (in.): 1/4
