Model Details

PEL-100S-D3-AHI

Not Yet Available, Coming Soon, Contact Vestil for Specifics

PEL-100S-D3-AHI

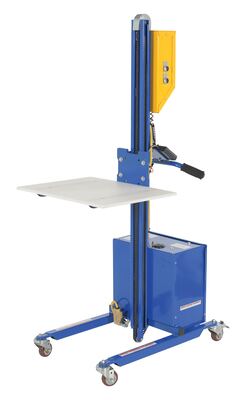

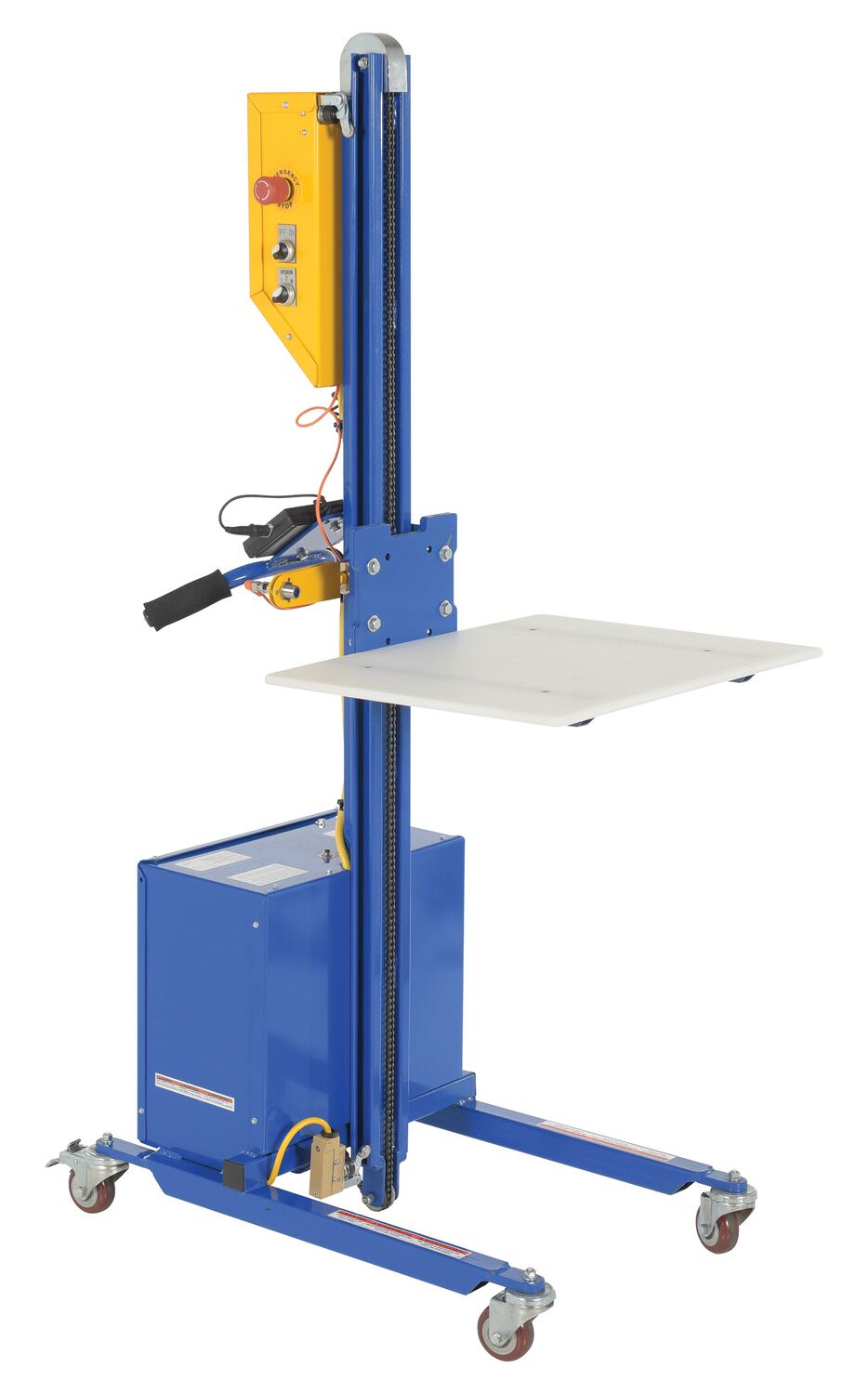

Steel DC Powered Quick Lift with Auto Height Indexer 175lb Capacity Blue

Powered quick lift units transport and position loads quickly and efficiently. Featuring a low profile design with dual push handles for maneuvering in narrow aisles and confined spaces. The auto height indexer lets the platform be unadjusted to the most suitable height. When unloading many boxes, as one box is taken off of the platform, the height of the platform automatically re-adjusts back to the set proper height. This minimizes bending and keeps the user in a more ergonomic position throughout the process. Unit is powder coated for baked in added toughness.

  • Durable platform secures items large and small
  • Automatic platform height adjustment

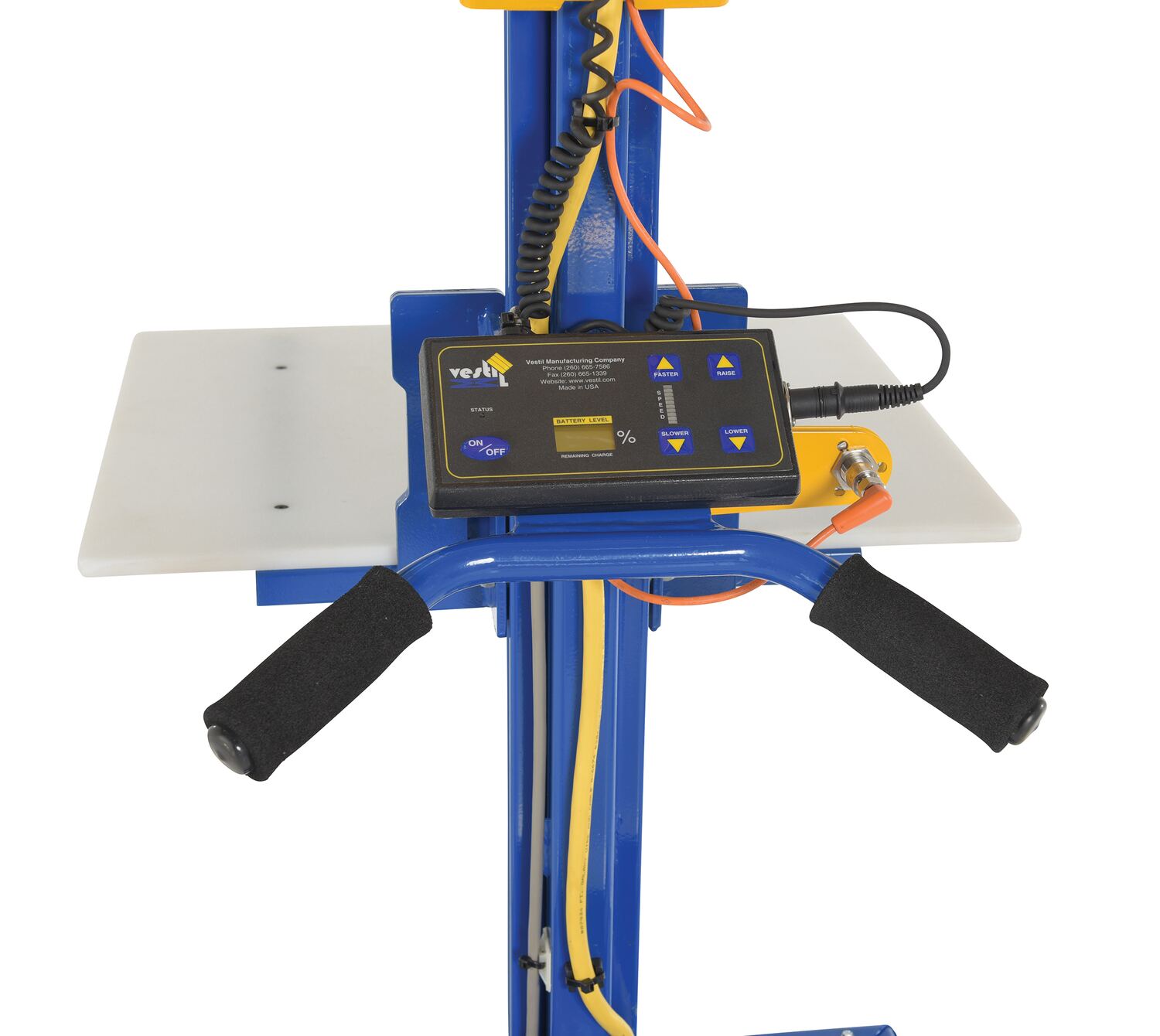

  • Touch-pad control allows for easy operation
  • DC powered battery is fast and quite
Total Ship Wt.(lbs.): 245 (only 1 package) Size: 23.5"W x 37.5625"L x 80.3125"H Color: BLUE Non-Returnable

Uniform Capacity (lbs): 175 Lowered Height (in.): 5.625 Raised Height (in.): 70

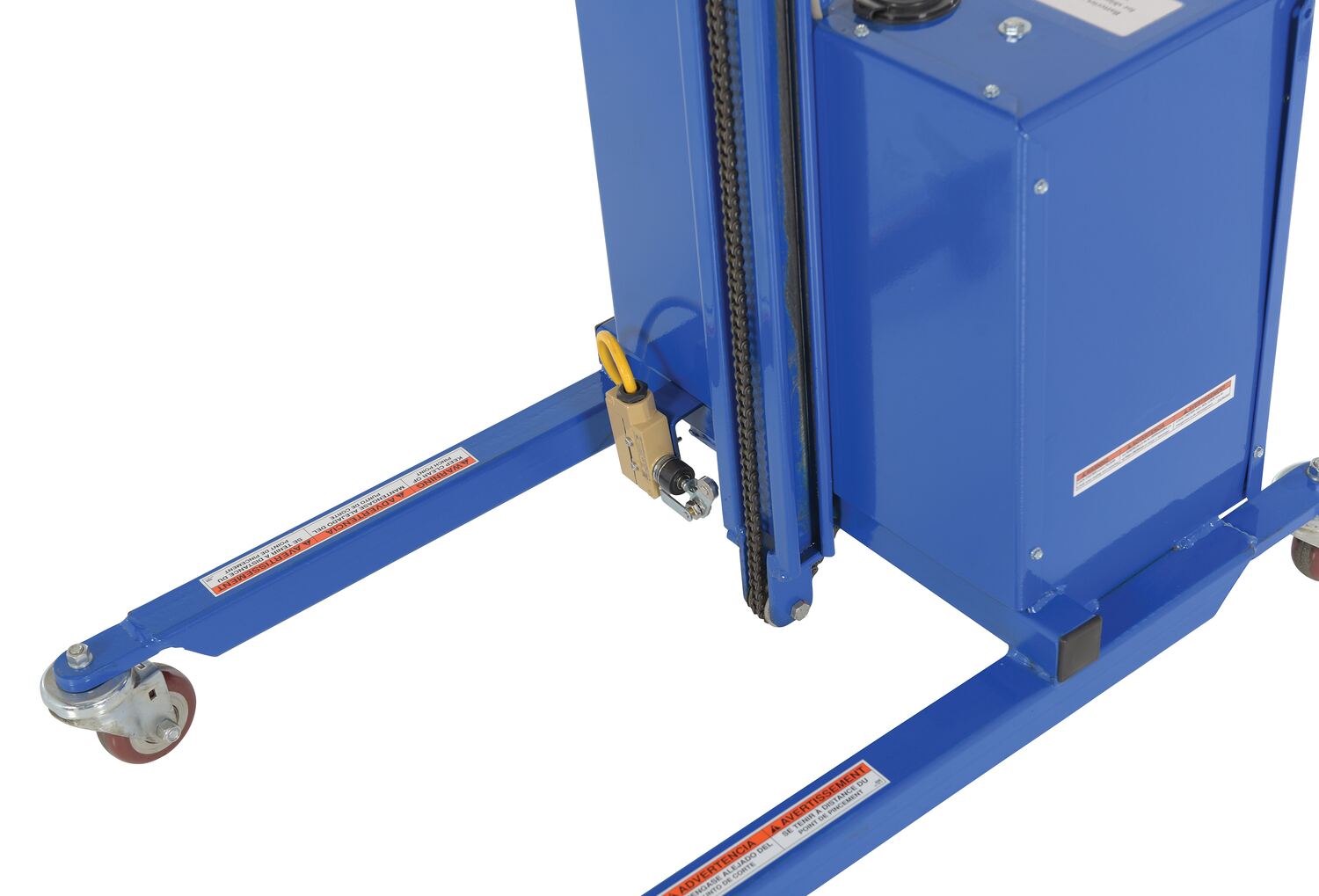

Swivel Caster Quantity/Diameter/Width: (2) 3 x 1.25 Caster Color: Red Caster Material: Polyurethane
DC Power: (2) 24V Rigid Caster Quantity/Diameter/Width: (2) 3 x 1.25 Push Handle Height (in.): 38
Handle Diameter (in.): 1 Hardware Included: No Battery Type: Lead Acid
Batteries (Qty): 2 Platform Width (in.): 23.5 Platform Length (in.): 18.5
Overall Length (in.): 37.5625 Overall Width (in.): 23.5 Overall Height (in.): 80.3125

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PEL-100S-D3-AHI


PEL-100S-D3-AHI

Steel DC Powered Quick Lift with Auto Height Indexer 175lb Capacity Blue

Powered quick lift units transport and position loads quickly and efficiently. Featuring a low profile design with dual push handles for maneuvering in narrow aisles and confined spaces. The auto height indexer lets the platform be unadjusted to the most suitable height. When unloading many boxes, as one box is taken off of the platform, the height of the platform automatically re-adjusts back to the set proper height. This minimizes bending and keeps the user in a more ergonomic position throughout the process. Unit is powder coated for baked in added toughness.

  • Durable platform secures items large and small
  • Automatic platform height adjustment
  • Touch-pad control allows for easy operation
  • DC powered battery is fast and quite
Dimensions: 23.5"W x 37.5625"L x 80.3125"H Sell UOM: EA-Each Color: BLUE
Material: STEEL UPC: 691215364973 GTIN: 00691215364973
Warranty: -- Shipping Weight: 245 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lbs): 175 Lowered Height (in.): 5.625 Raised Height (in.): 70
Swivel Caster Quantity/Diameter/Width: (2) 3 x 1.25 Caster Color: Red Caster Material: Polyurethane
DC Power: (2) 24V Rigid Caster Quantity/Diameter/Width: (2) 3 x 1.25 Push Handle Height (in.): 38
Handle Diameter (in.): 1 Hardware Included: No Battery Type: Lead Acid
Batteries (Qty): 2 Platform Width (in.): 23.5 Platform Length (in.): 18.5
Overall Length (in.): 37.5625 Overall Width (in.): 23.5 Overall Height (in.): 80.3125
