LM-1T-8-24-HBE-TP

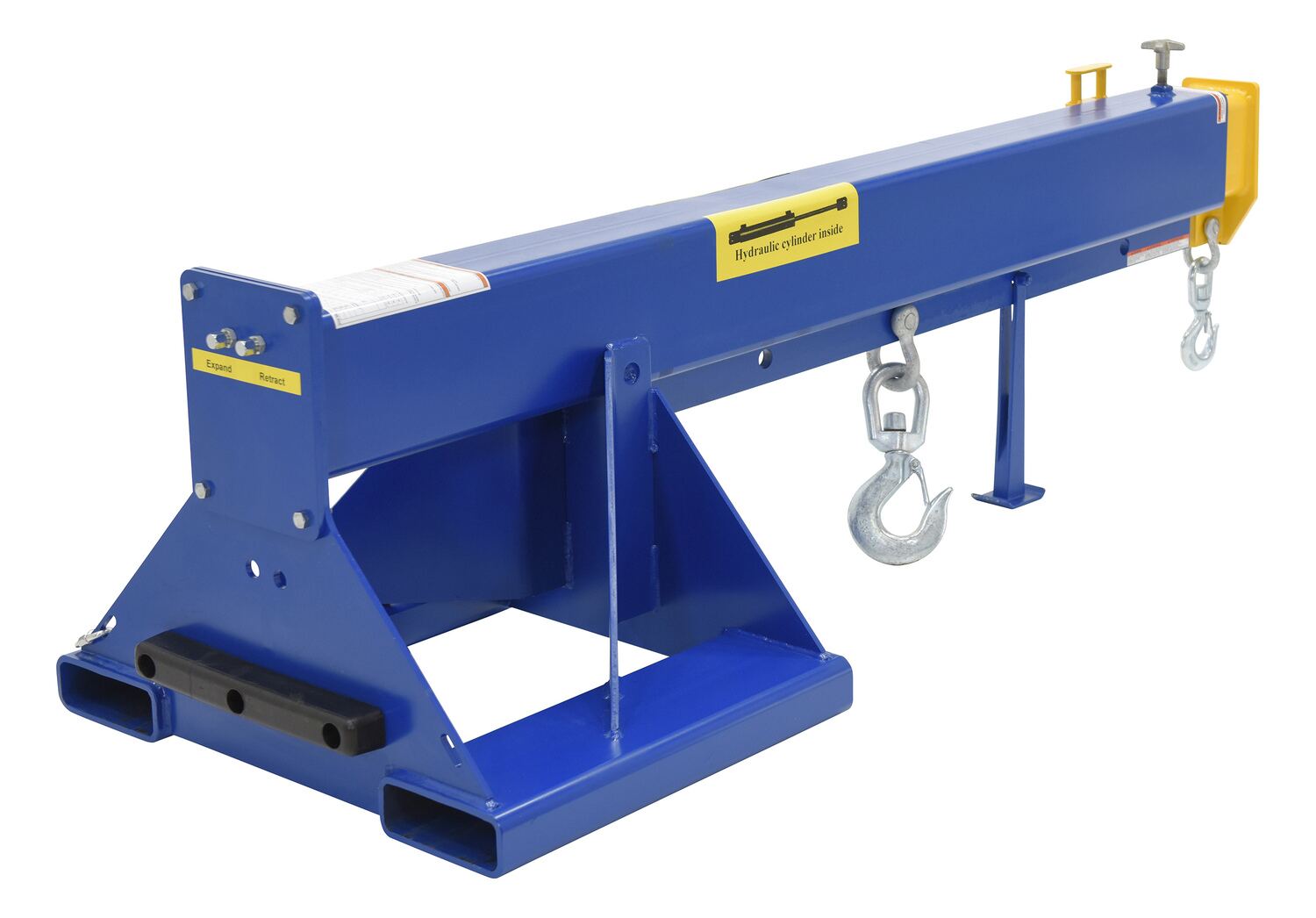

Steel Hydraulic Telescoping Boom 24 In. Fork Pocket Center 8,000 Lb. Capacity

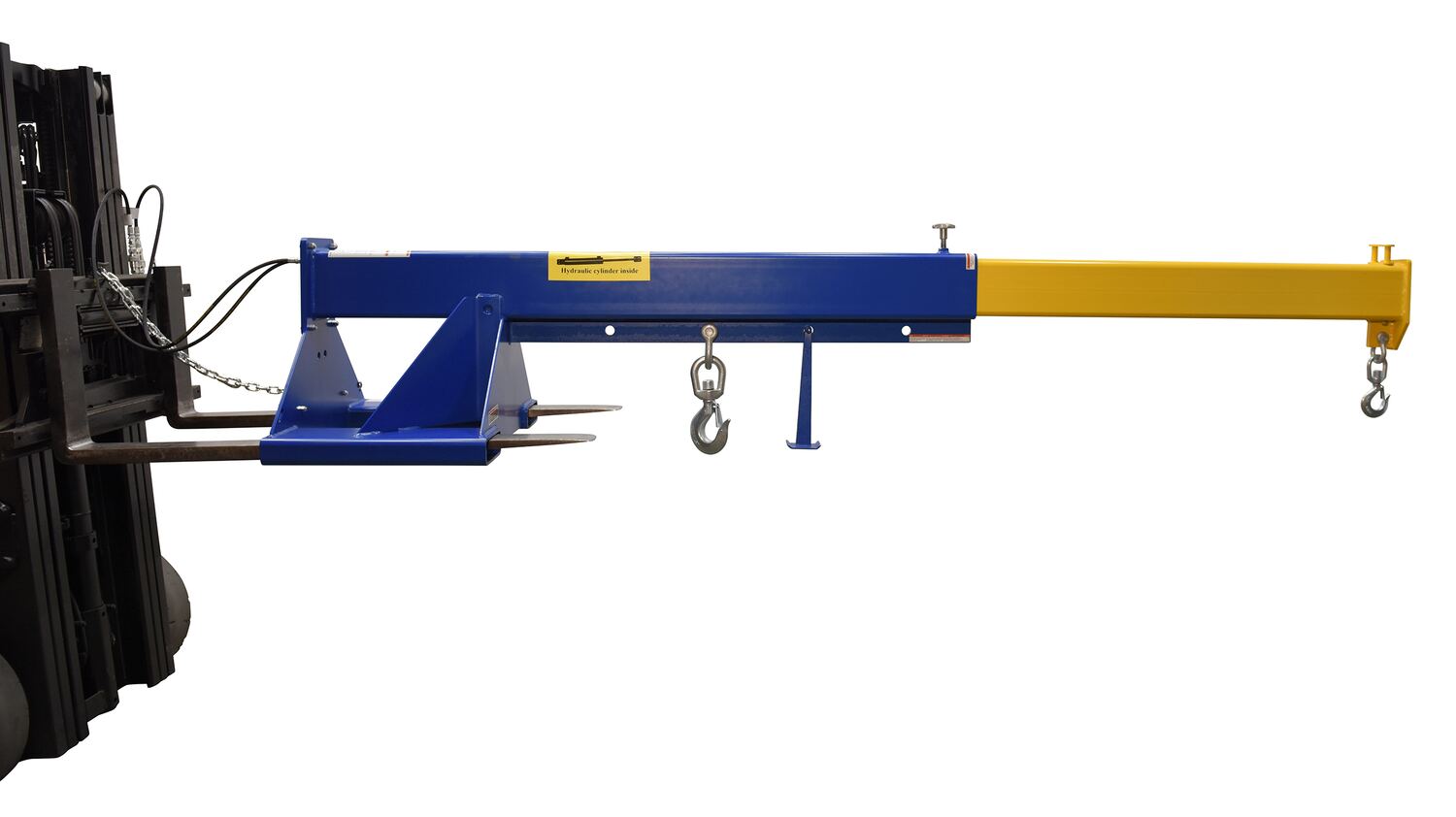

The fork truck powered (TP) telescoping boom has all the benefits of the standard lifting boom, except now it has the option to be powered. This boom can be powered by utilizing your fork trucks hydraulic system. By connecting hydraulic hose between the boom and your forklift, the boom can then be extended or retracted. These features allow personnel to maneuver the length of the boom automatically, reducing manual labor. Includes two (2) lifting hooks and a painted finish.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Promotes workplace efficiency
Total Ship Wt.(lbs.): 720 (only 1 package) Size: 32"W x 83.75"L x 24.5"H Color: Blue (Base Frame)/Yellow (Extension) Non-Returnable

Movable Load (lbs.): 2000 Lost Load (lbs.): 715 Extended Length (in.): 144-3/4
Min/Max Hook Point (in.): 36 - 142 Usable Fork Pockets (in.): 7-1/4 x 2-1/4 Fork Pocket Center (in.): 24
Fork Truck Required Rating (lbs): 8000

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LM-1T-8-24-HBE-TP
LM-1T-8-24-HBE-TP

Steel Hydraulic Telescoping Boom 24 In. Fork Pocket Center 8,000 Lb. Capacity

The fork truck powered (TP) telescoping boom has all the benefits of the standard lifting boom, except now it has the option to be powered. This boom can be powered by utilizing your fork trucks hydraulic system. By connecting hydraulic hose between the boom and your forklift, the boom can then be extended or retracted. These features allow personnel to maneuver the length of the boom automatically, reducing manual labor. Includes two (2) lifting hooks and a painted finish.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Promotes workplace efficiency
Dimensions: 32"W x 83.75"L x 24.5"H Sell UOM: EA-Each Color: Blue (Base Frame)/Yellow (Extension)
Material: Steel UPC: 691215325646 GTIN: 00691215325646
Warranty: -- Shipping Weight: 720 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Movable Load (lbs.): 2000 Lost Load (lbs.): 715 Extended Length (in.): 144-3/4
Min/Max Hook Point (in.): 36 - 142 Usable Fork Pockets (in.): 7-1/4 x 2-1/4 Fork Pocket Center (in.): 24
Fork Truck Required Rating (lbs): 8000
