LM-1T-8-24-HBE-DC

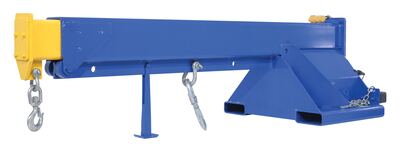

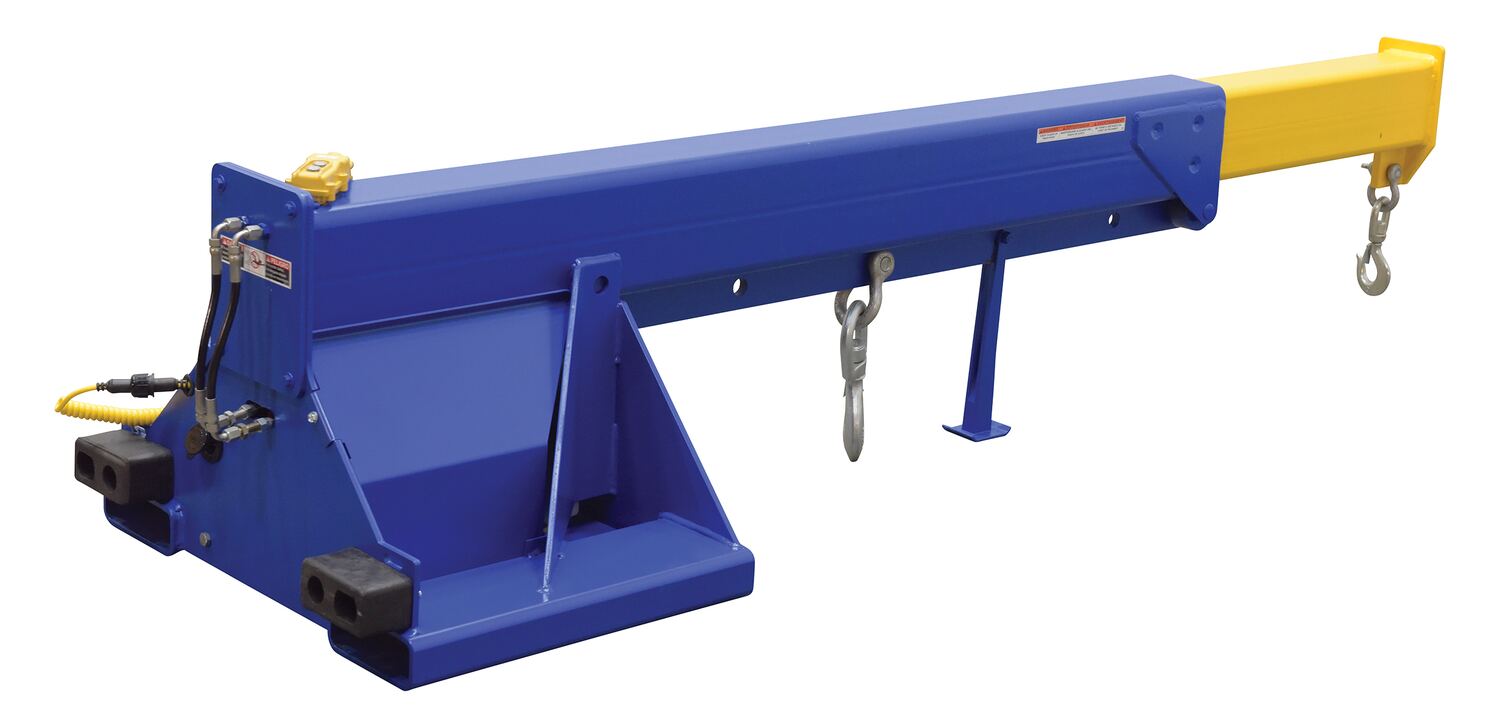

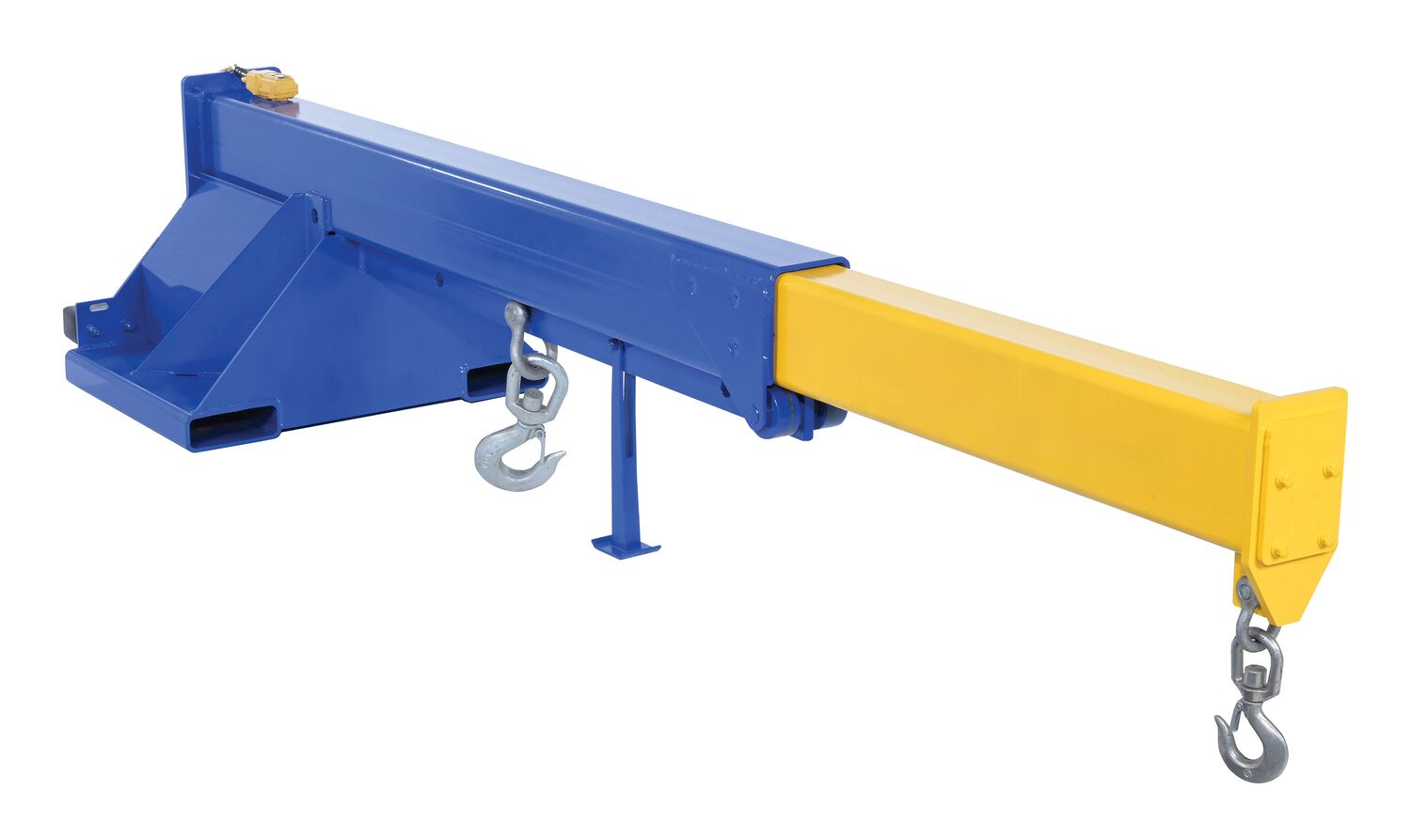

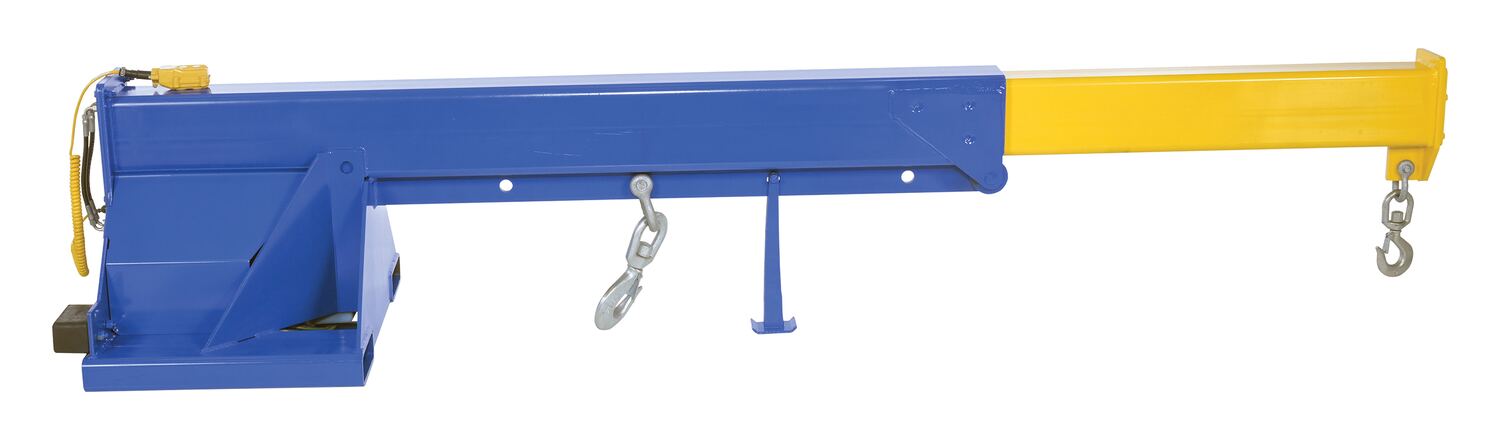

Steel Hydraulic Telescoping Boom 12 Volt DC 24 In. Fork Pocket Center 8,000 Lb. Capacity

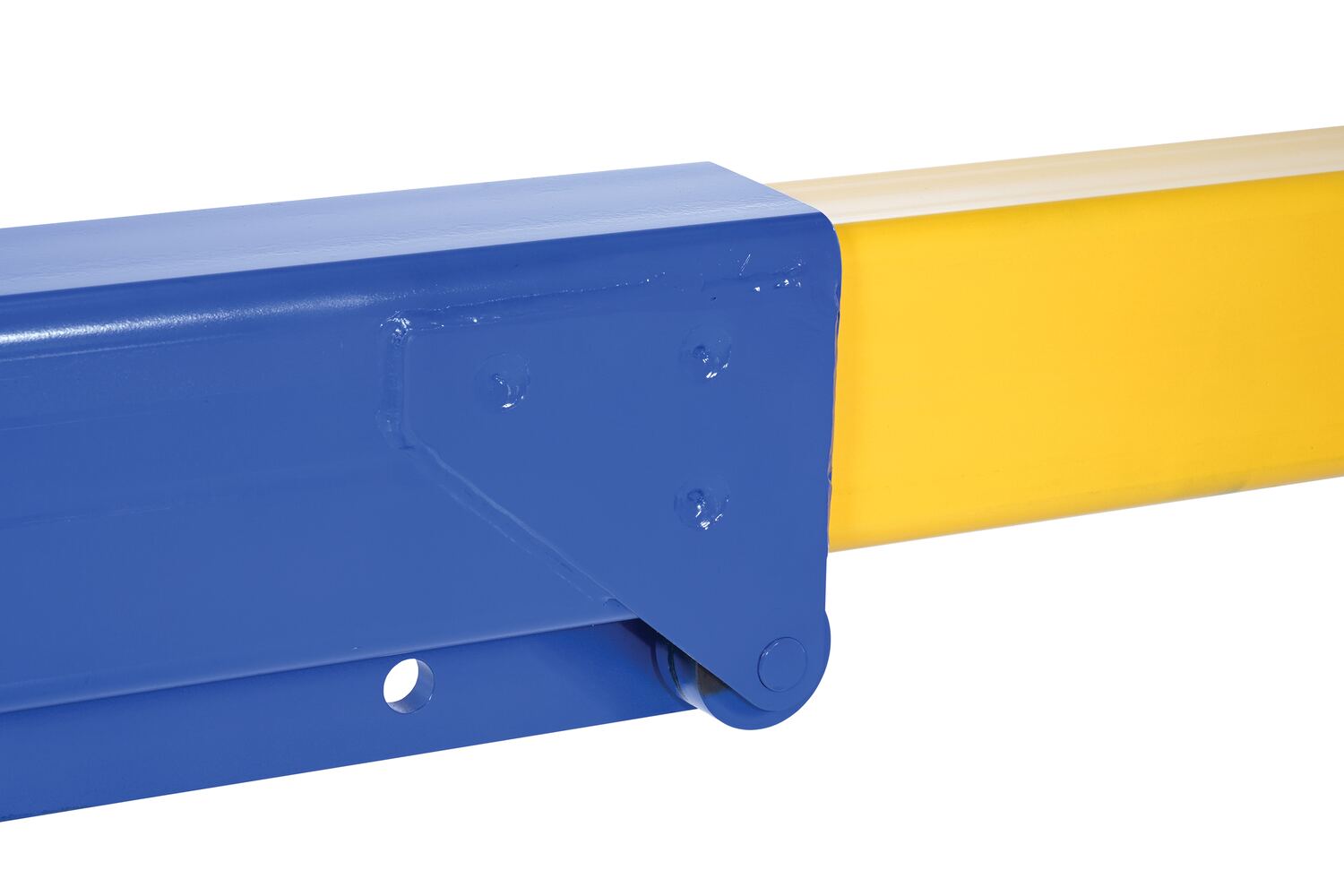

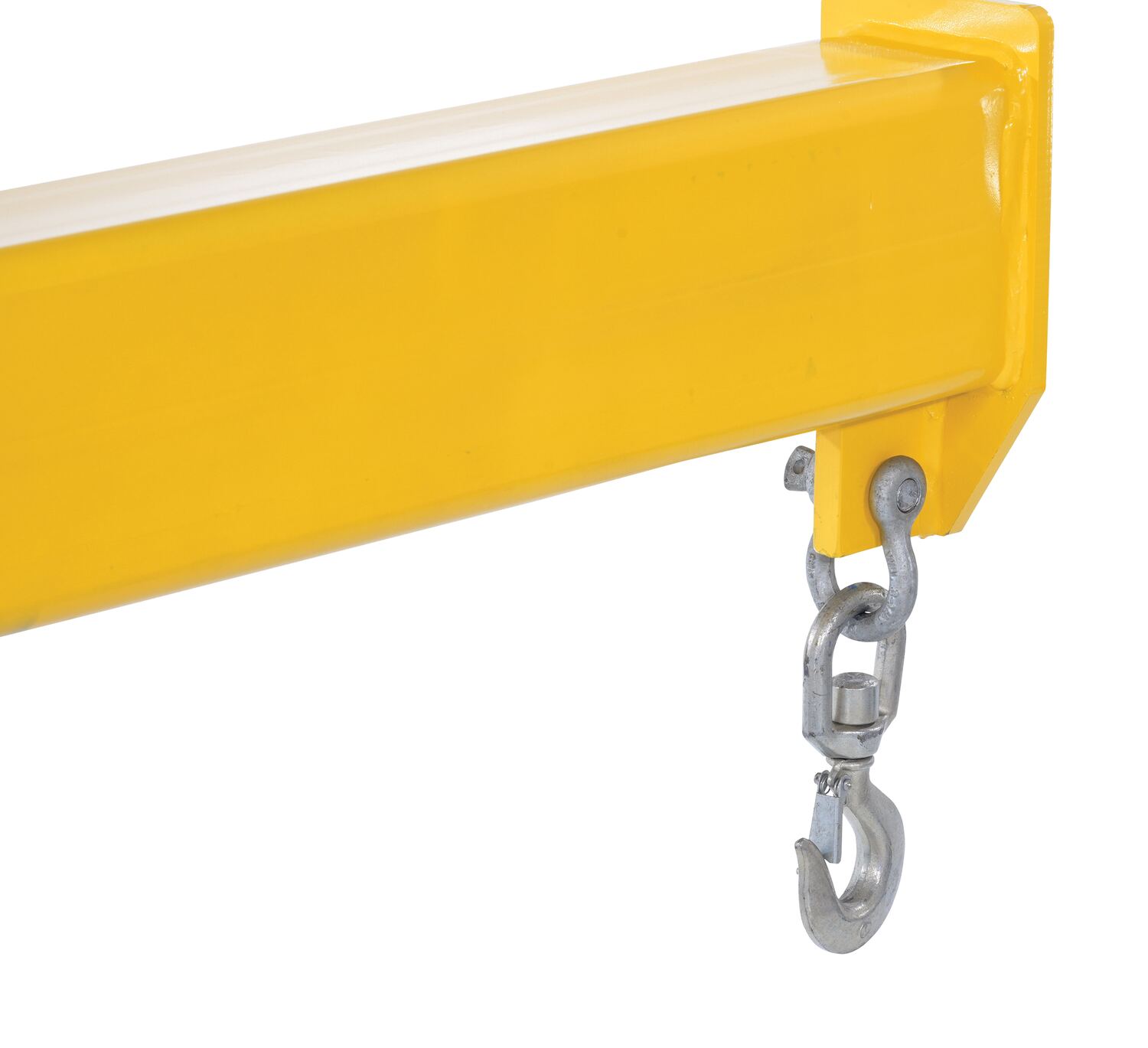

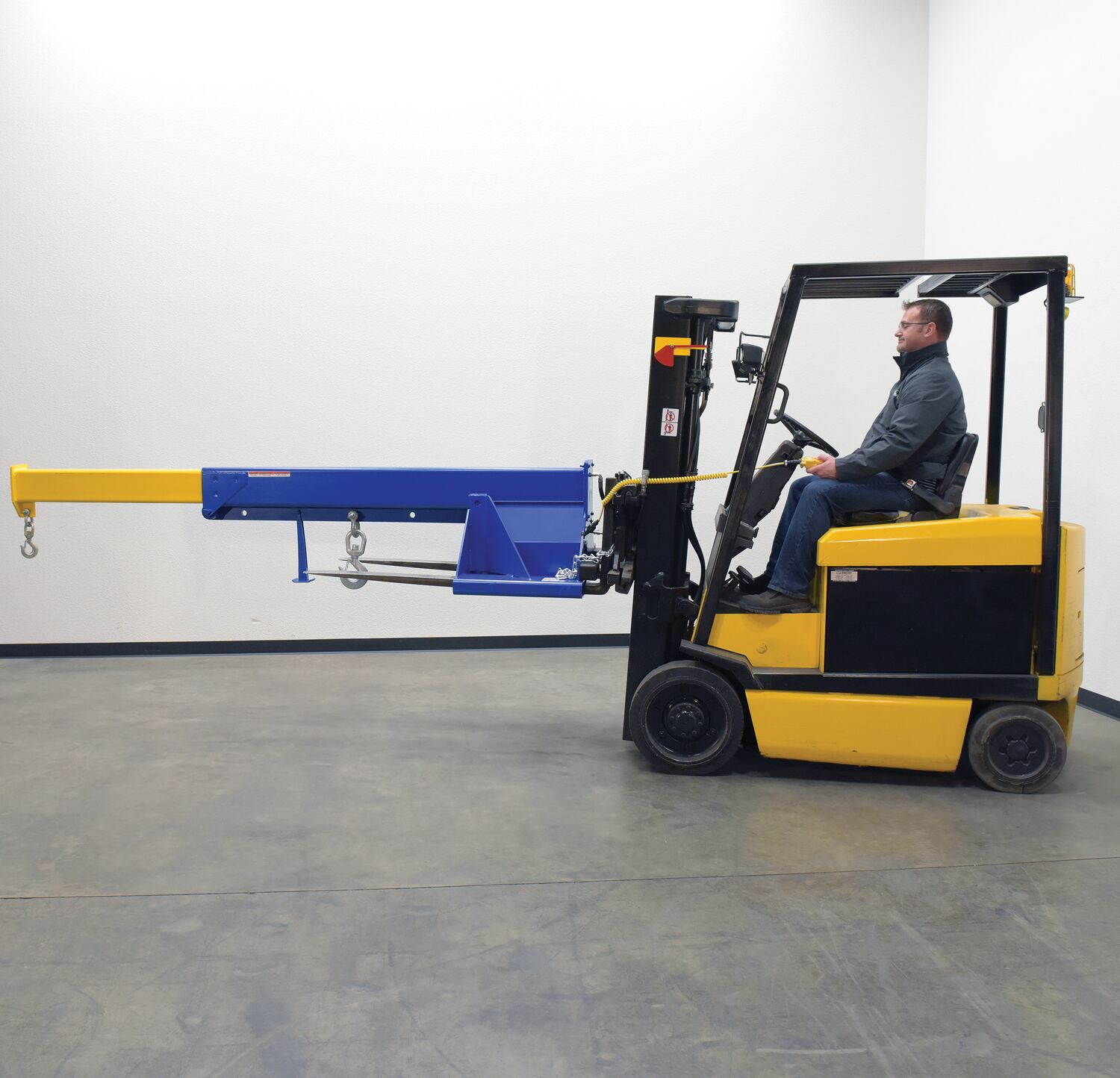

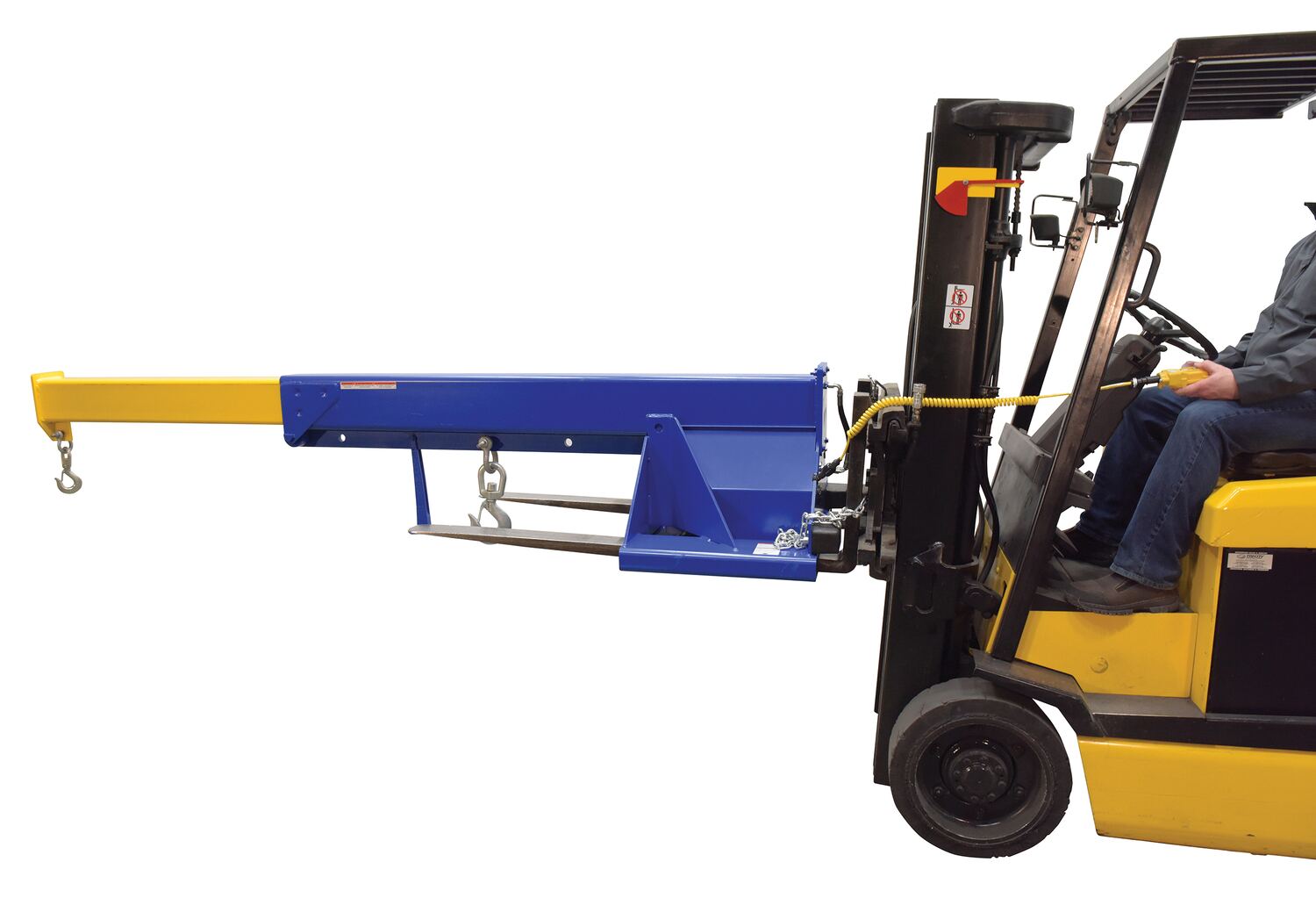

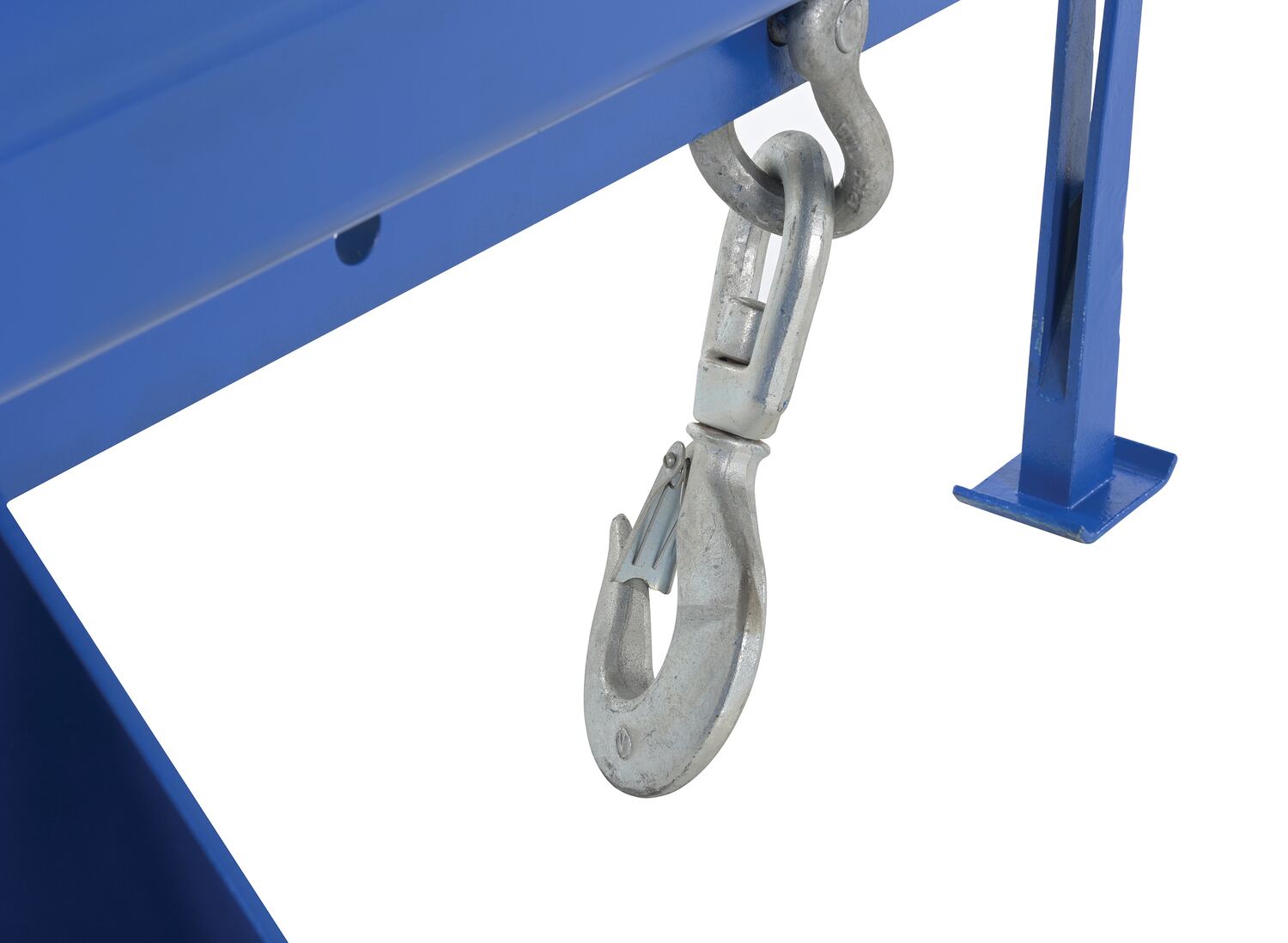

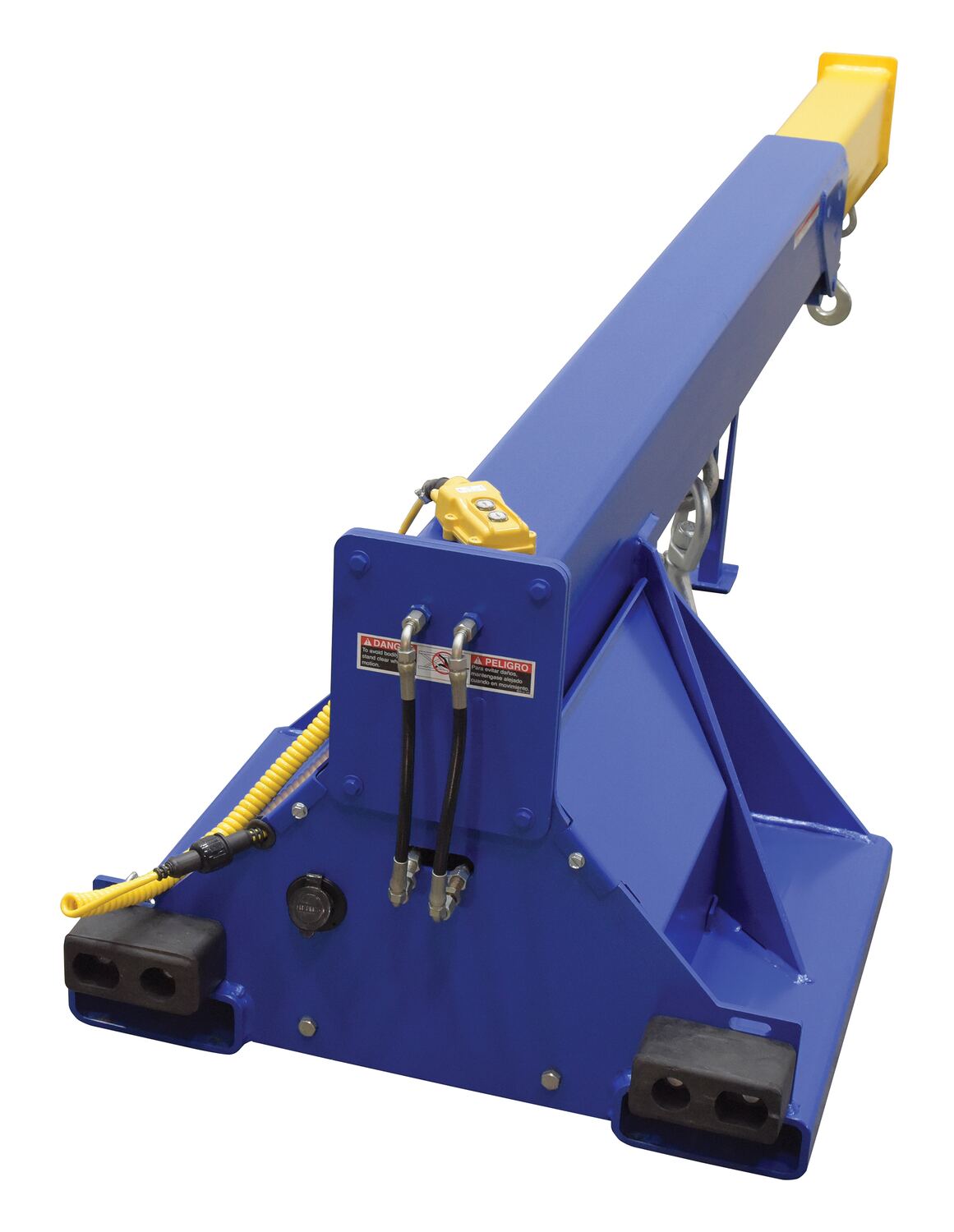

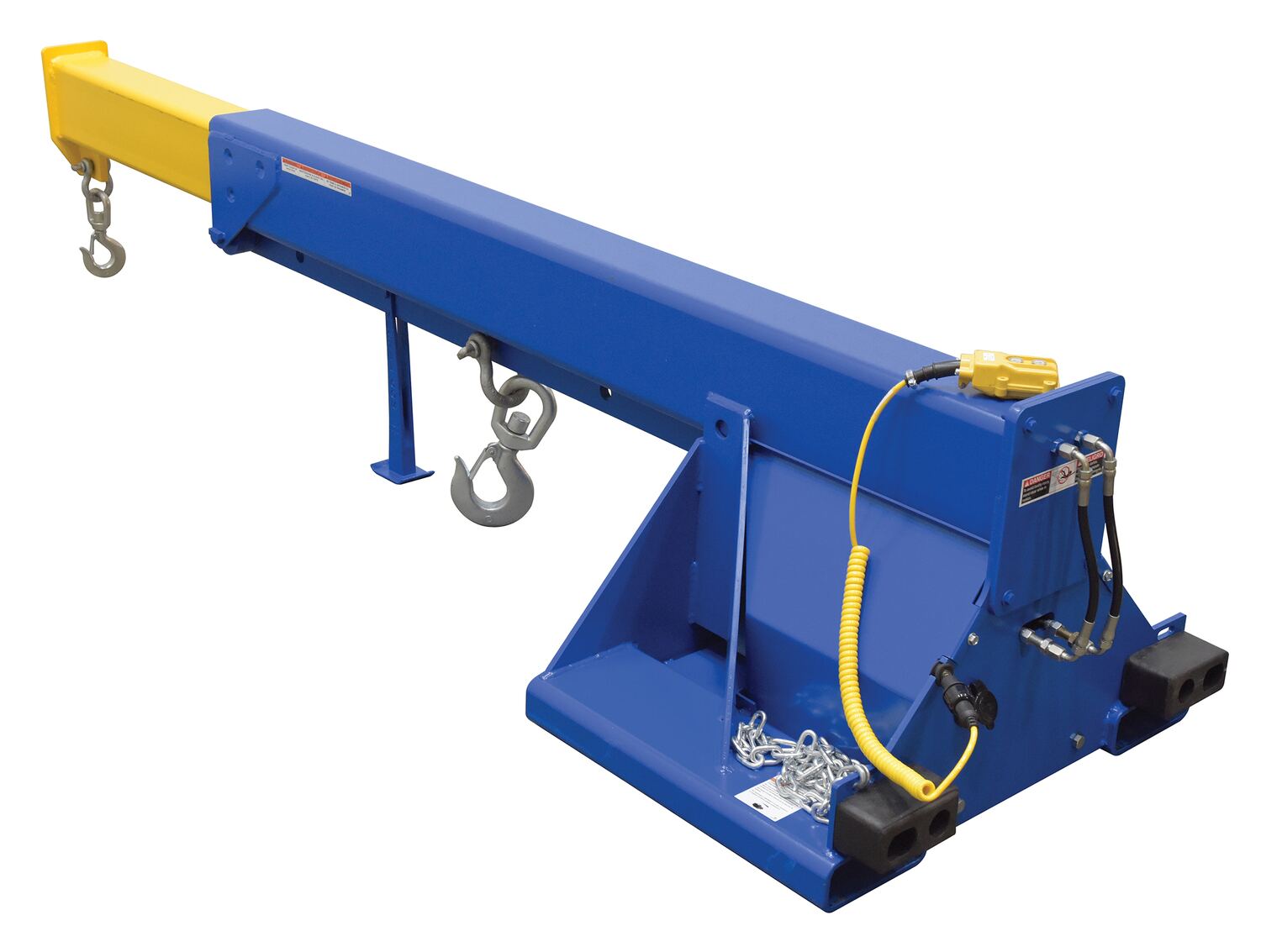

The DC powered telescoping boom has all the benefits of the standard lifting boom, except now it has the capability of being powered. The DC powered design includes a power unit housed between the fork tubes and the outer boom. By using the handheld controller the boom can be extended or retracted. The hand held controller connects to the power unit via a pigtail cord. Painted for a smooth finish and to limit abrasion. Includes two (2) lifting hooks.

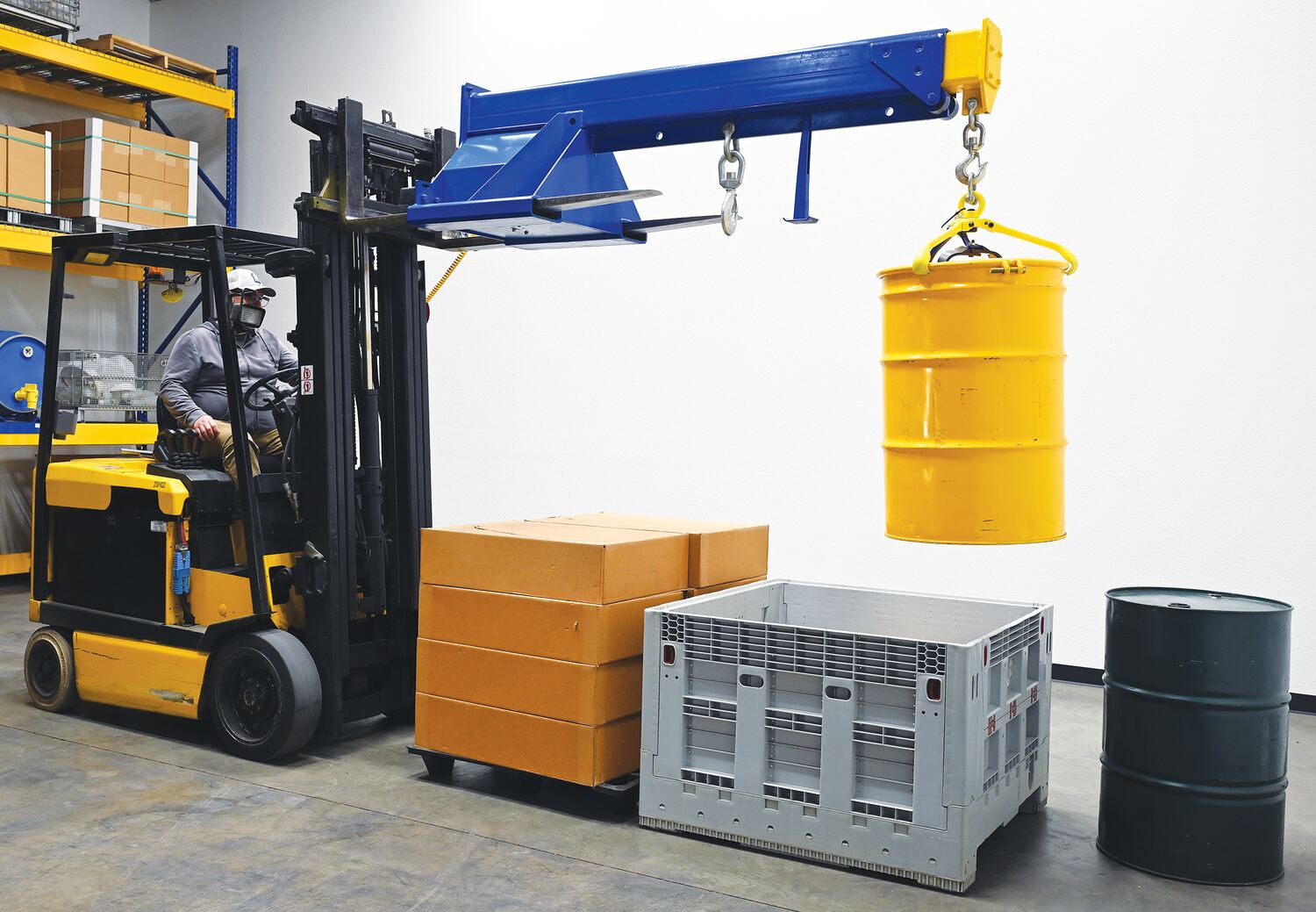

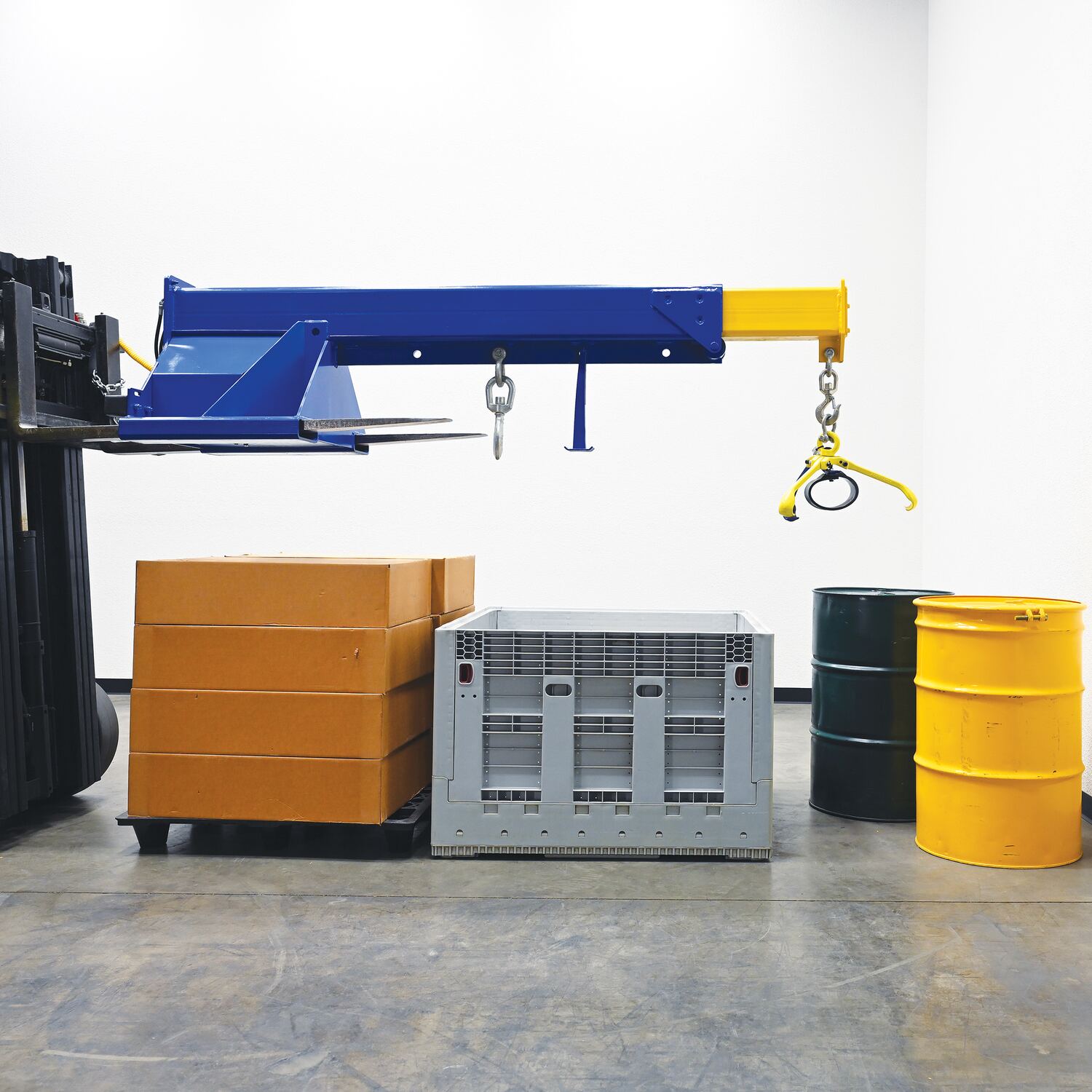

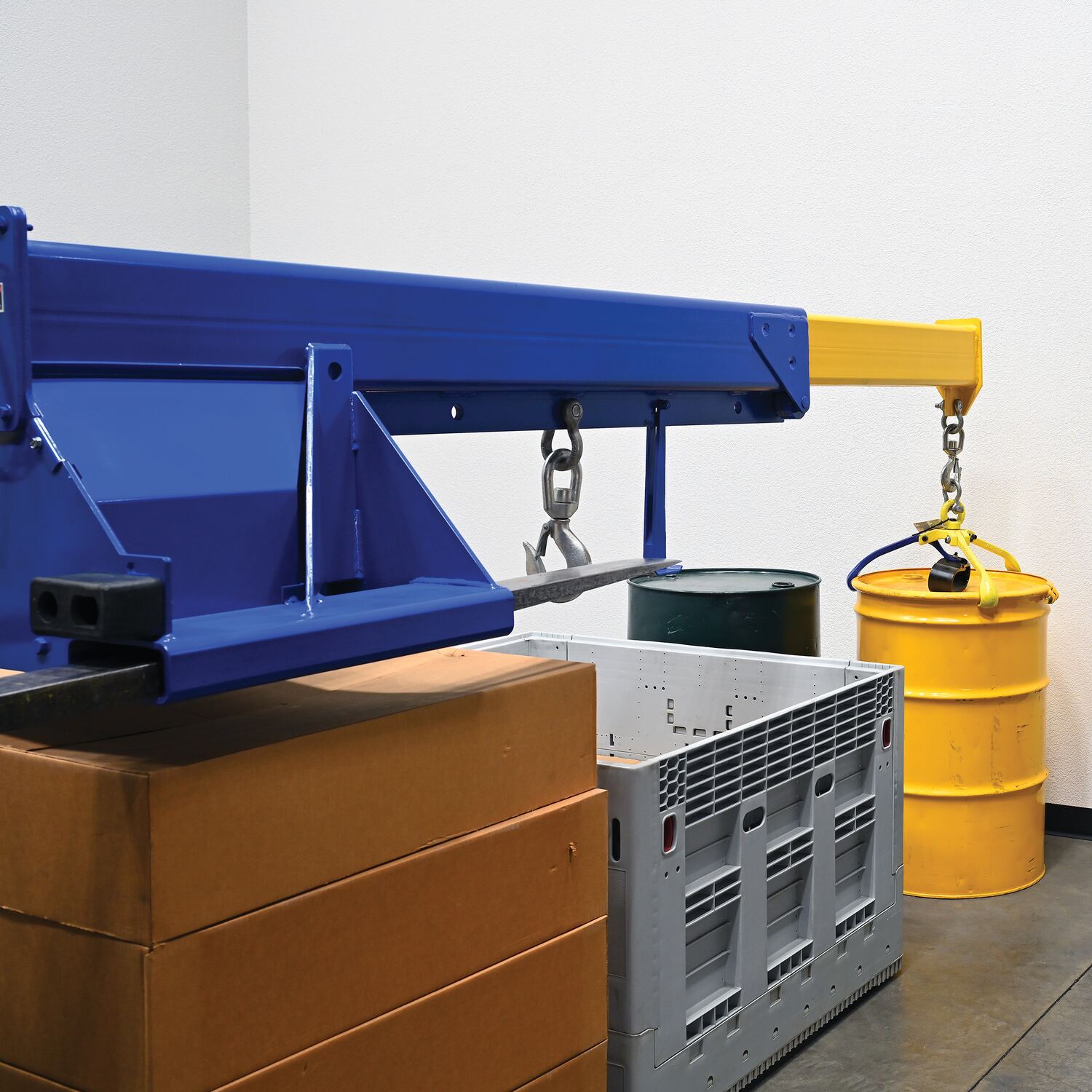

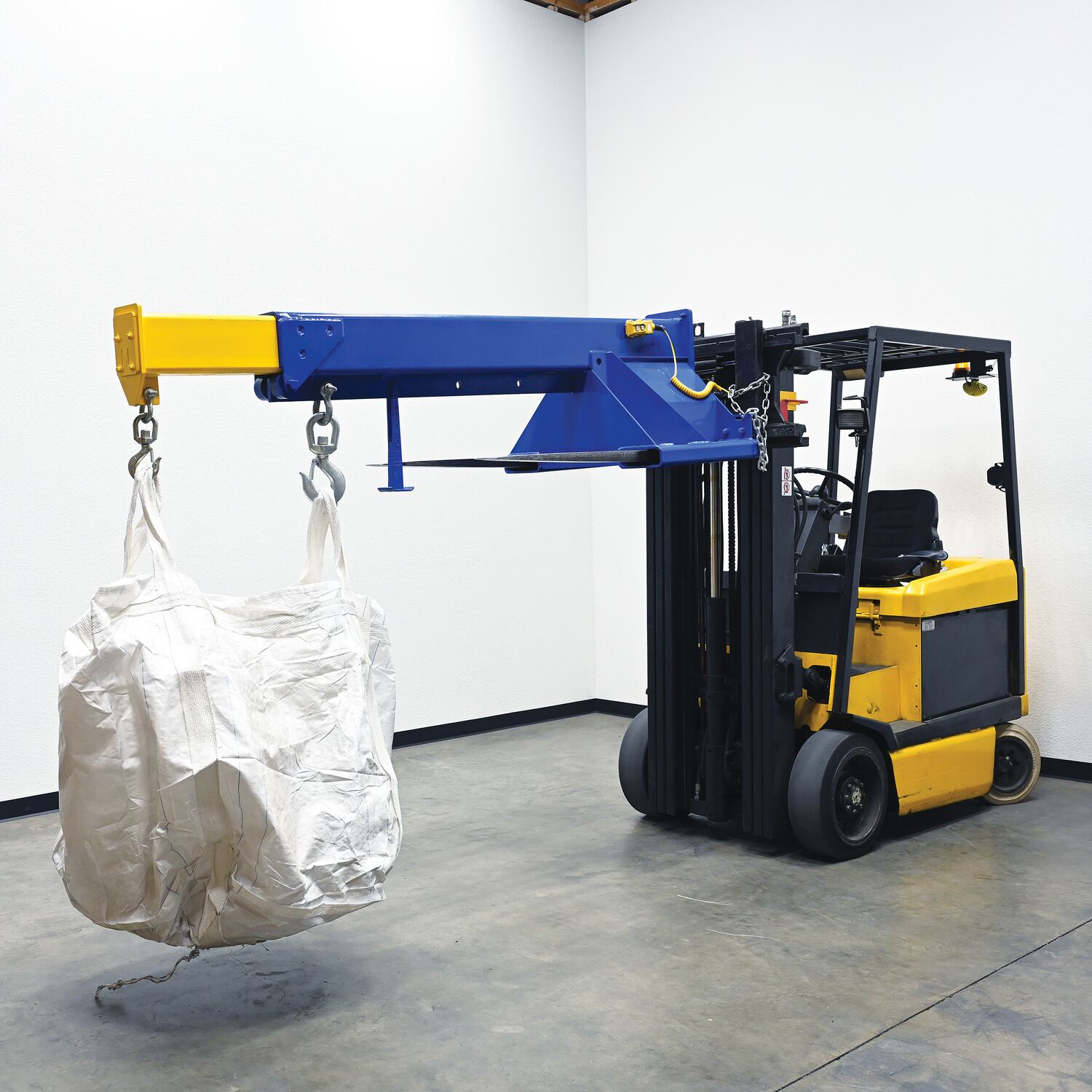

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Promotes workplace efficiency
Total Ship Wt.(lbs.): 810 (only 1 package) Size: 32"W x 83.75"L x 24.5"H Color: Blue (Base Frame)/Yellow (Extension) Non-Returnable

Movable Load (lbs.): 2000 Lost Load (lbs.): 815 Extended Length (in.): 144-3/4
Min/Max Hook Point (in.): 36 - 142 Power: 12V DC Usable Fork Pockets (in.): 7-1/4 x 2-1/4
Fork Pocket Center (in.): 24 Fork Truck Required Rating (lbs): 8000

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LM-1T-8-24-HBE-DC
LM-1T-8-24-HBE-DC

Steel Hydraulic Telescoping Boom 12 Volt DC 24 In. Fork Pocket Center 8,000 Lb. Capacity

The DC powered telescoping boom has all the benefits of the standard lifting boom, except now it has the capability of being powered. The DC powered design includes a power unit housed between the fork tubes and the outer boom. By using the handheld controller the boom can be extended or retracted. The hand held controller connects to the power unit via a pigtail cord. Painted for a smooth finish and to limit abrasion. Includes two (2) lifting hooks.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Promotes workplace efficiency
Dimensions: 32"W x 83.75"L x 24.5"H Sell UOM: EA-Each Color: Blue (Base Frame)/Yellow (Extension)
Material: Steel UPC: 691215325653 GTIN: 00691215325653
Warranty: -- Shipping Weight: 810 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Movable Load (lbs.): 2000 Lost Load (lbs.): 815 Extended Length (in.): 144-3/4
Min/Max Hook Point (in.): 36 - 142 Power: 12V DC Usable Fork Pockets (in.): 7-1/4 x 2-1/4
Fork Pocket Center (in.): 24 Fork Truck Required Rating (lbs): 8000
