HBD-GATE-60

Printer Friendly
Available
HBD-GATE-60
HBD-GATE-60 HBD-GATE-60

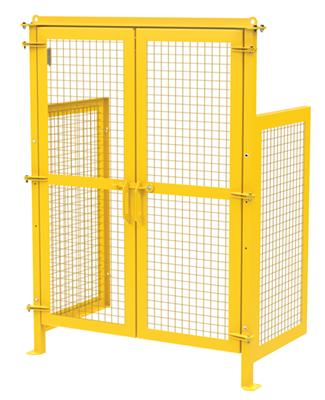

Steel Hydraulic Box Dumper Gate 41-1/2 In Length x 92 In Height Yellow

A great addition to the hydraulic box dumper, this gate promotes safety while maneuvering heavy objects. With a tall structure and a strong construction the gate must be closed to allow functionality of the box dumper. Once the gate is latched the unit will function normally. The mesh design lets the user be shielded from possible falling objects, while still maintaining visibility on all on board items.

  • Mesh design for clear visibility
  • Diminish the chances of unwanted use
  • Simple magnetic interlock switch
  • Open gate make the unit inoperable
Assembled Wt.(lbs.): 384 Assembled Size: 72.25"W x 41.5"L x 95.75"H

Total Ship Wt.(lbs.): 550 (only 1 package) Package 1 Size: 74"W x 96"D x 14"H Color: Yellow Non-Returnable

Usable Width (in.): 63-1/4 Usable Height (in.): 92

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: HBD-GATE-60
Available
HBD-GATE-60

Steel Hydraulic Box Dumper Gate 41-1/2 In Length x 92 In Height Yellow

A great addition to the hydraulic box dumper, this gate promotes safety while maneuvering heavy objects. With a tall structure and a strong construction the gate must be closed to allow functionality of the box dumper. Once the gate is latched the unit will function normally. The mesh design lets the user be shielded from possible falling objects, while still maintaining visibility on all on board items.

  • Mesh design for clear visibility
  • Diminish the chances of unwanted use
  • Simple magnetic interlock switch
  • Open gate make the unit inoperable
Dimensions: 72.25"W x 41.5"L x 95.75"H Sell UOM: -- Color: Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 550 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Usable Width (in.): 63-1/4 Usable Height (in.): 92
