Model Details

ELH-10-5

- Temporarily Unavailable - Please Contact Sales

ELH-10-5

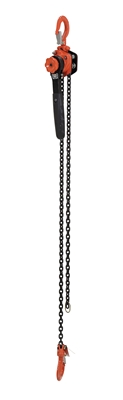

Steel Mighty Mini Lever Hoist 5 Ft. Chain Length 1000 Lb. Capacity Orange

Lightweight mini lever hoists are durable and easy to operate. Single-hand "free chaining" is simple, allowing for trouble-free operation in the vertical or horizontal position. This hoist has long life brake discs and a short lever handle that can rotate in a complete 360 degree circle.

  • Tested to 150% of rated capacity
  • Main parts are made of alloy steel and heat treated
  • High strength grade 80 chain provides strength and long product life
  • Meets applicable ASME B30.21 specifications
Total Ship Wt.(lbs.): 8 (only 1 package) Size: 4"W x 14"L x 3"H Color: Orange

Uniform Capacity (lb.): 1,000 Standard Lift (ft.): 5 Minimum Distance Between Hooks (in.): 10
Handle Length (in.): 8-1/2 Rotation (degrees): 360

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: ELH-10-5


ELH-10-5

Steel Mighty Mini Lever Hoist 5 Ft. Chain Length 1000 Lb. Capacity Orange

Lightweight mini lever hoists are durable and easy to operate. Single-hand "free chaining" is simple, allowing for trouble-free operation in the vertical or horizontal position. This hoist has long life brake discs and a short lever handle that can rotate in a complete 360 degree circle.

  • Tested to 150% of rated capacity
  • Main parts are made of alloy steel and heat treated
  • High strength grade 80 chain provides strength and long product life
  • Meets applicable ASME B30.21 specifications
Dimensions: 4"W x 14"L x 3"H Sell UOM: EA-Each Color: Orange
Material: Steel UPC: 691215112475 GTIN: 00691215112475
Warranty: -- Shipping Weight: 8 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,000 Standard Lift (ft.): 5 Minimum Distance Between Hooks (in.): 10
Handle Length (in.): 8-1/2 Rotation (degrees): 360
