CTD-H-TP-3000

Printer Friendly
Available
CTD-H-TP-3000
CTD-H-TP-3000 CTD-H-TP-3000 CTD-H-TP-3000 CTD-H-TP-3000 CTD-H-TP-3000 CTD-H-TP-3000 CTD-H-TP-3000 CTD-H-TP-3000 CTD-H-TP-3000 CTD-H-TP-3000 CTD-H-TP-3000 CTD-H-TP-3000 CTD-H-TP-3000 CTD-H-TP-3000 CTD-H-TP-3000 CTD-H-TP-3000 CTD-H-TP-3000 CTD-H-TP-3000 CTD-H-TP-3000

Steel Hydraulic Powered Fork Truck Crate Turner/Dumper 67-1/4 In. x 30-1/4 In. x 34-15/16 In. 3,000 Lb. Capacity Yellow

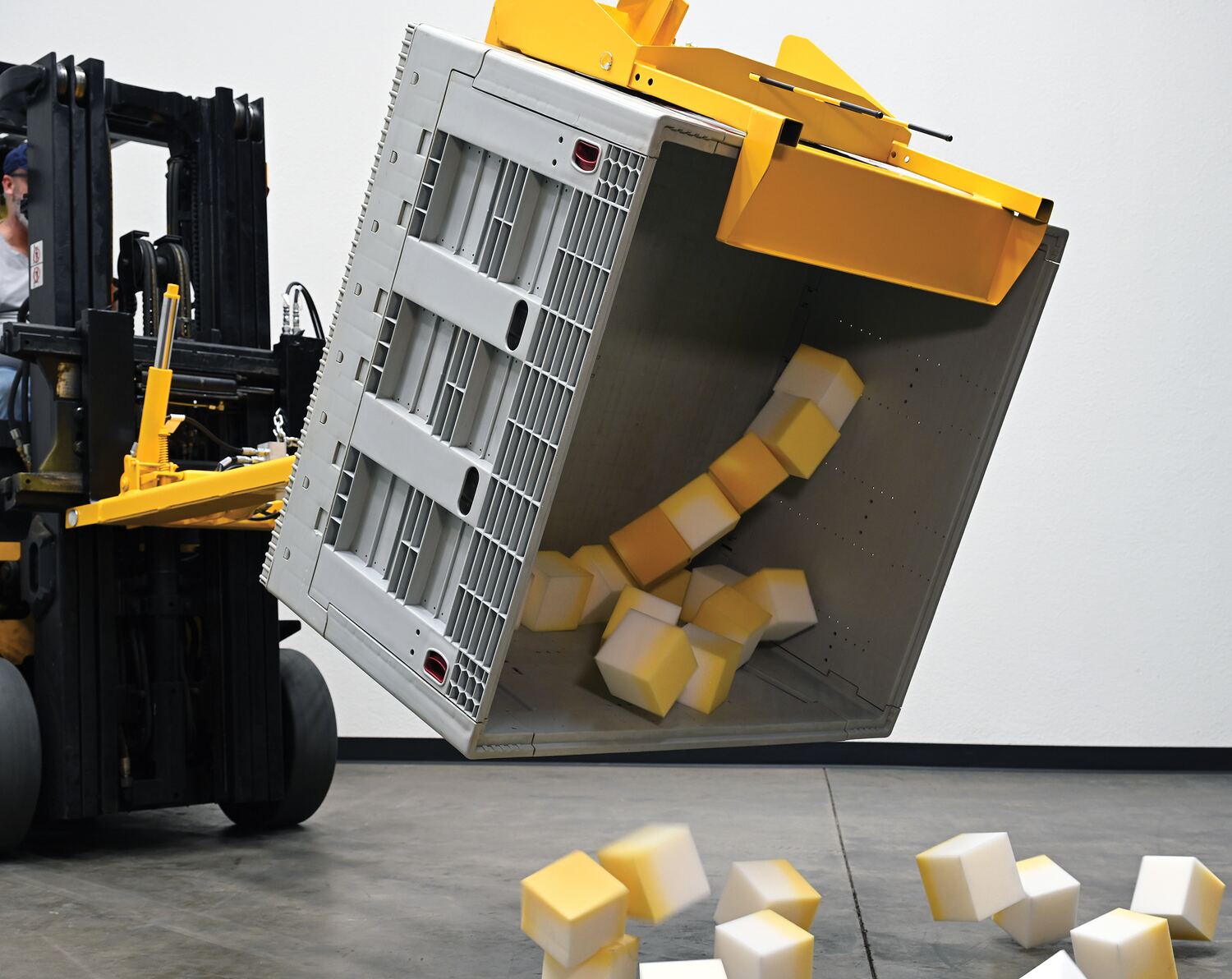

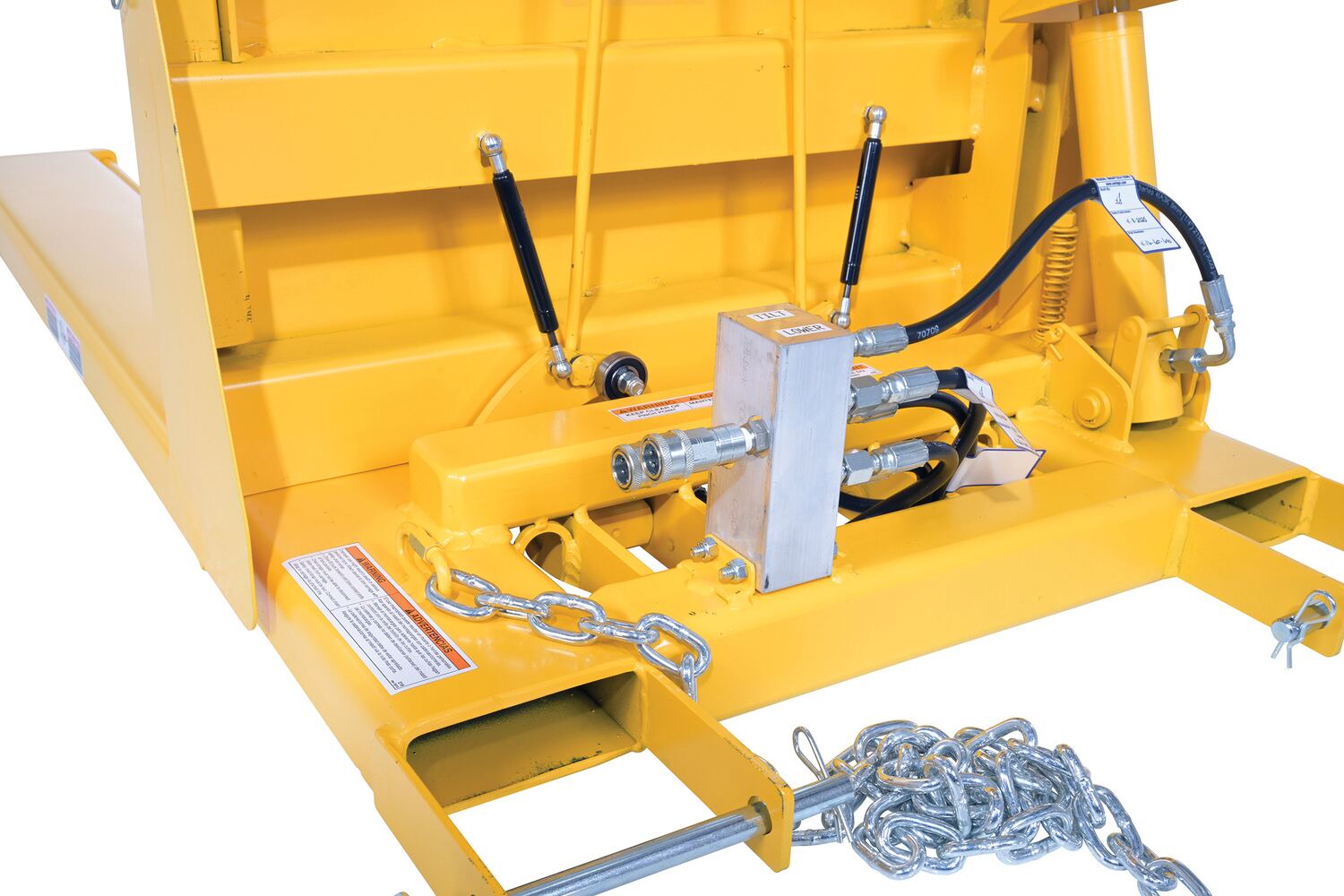

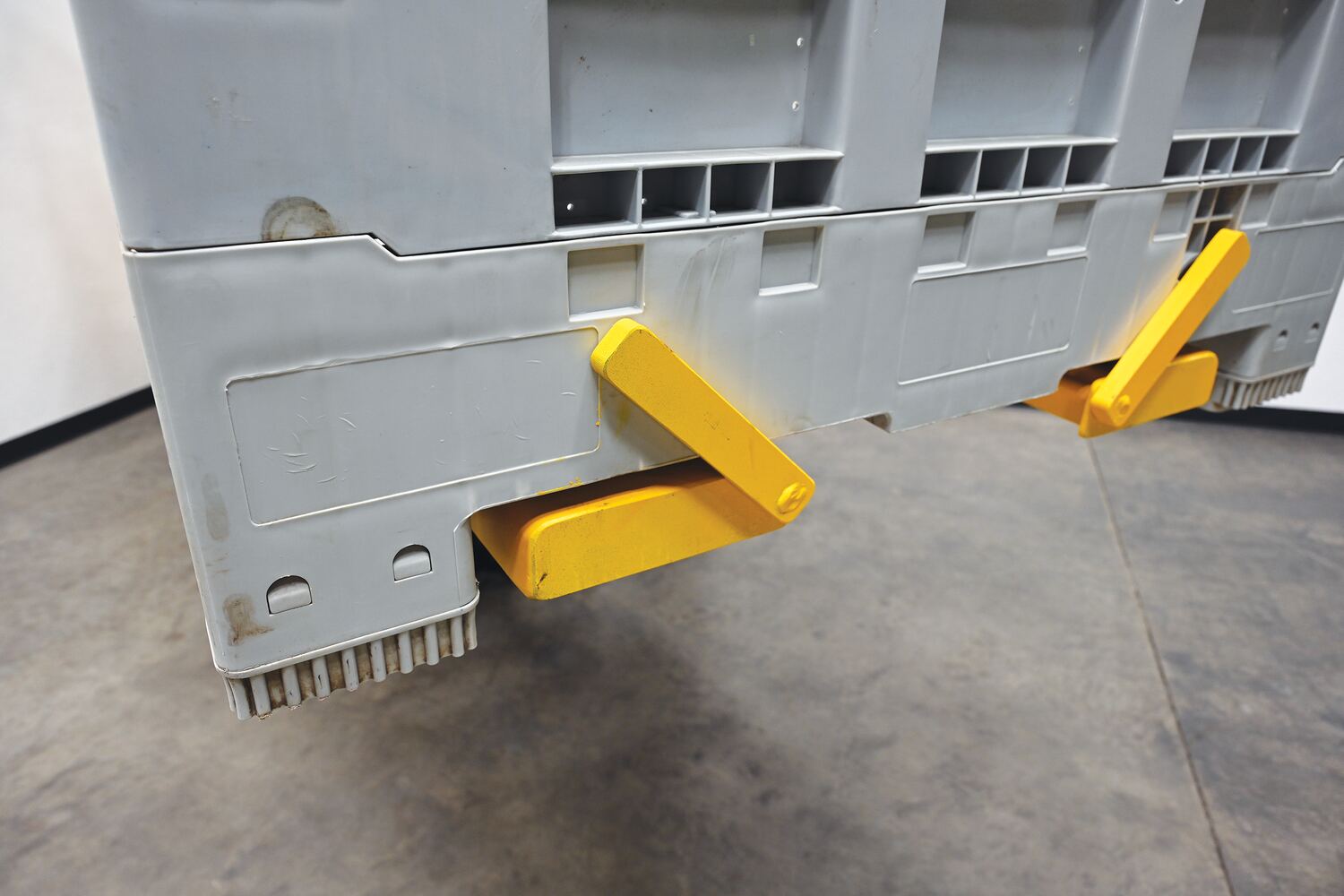

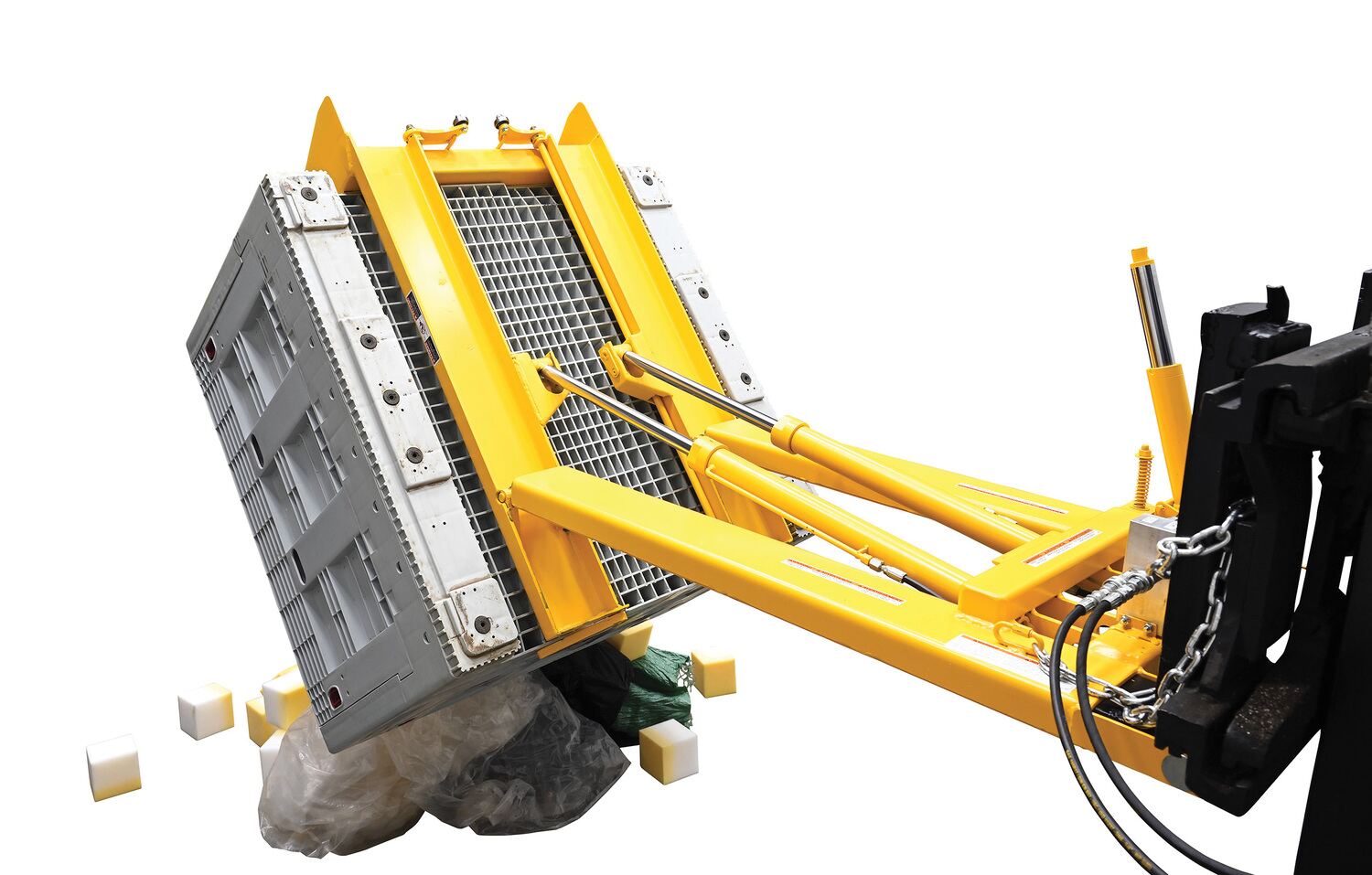

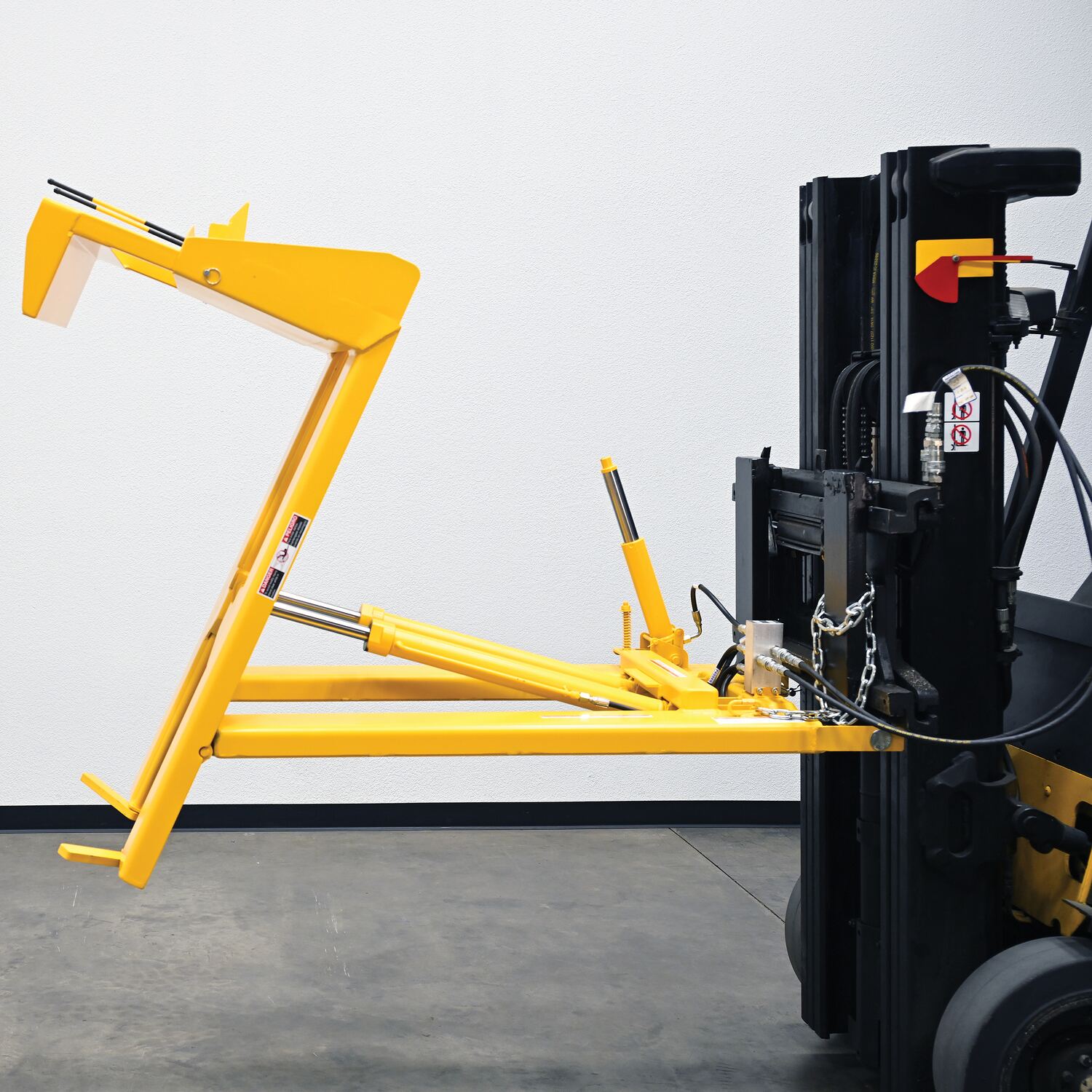

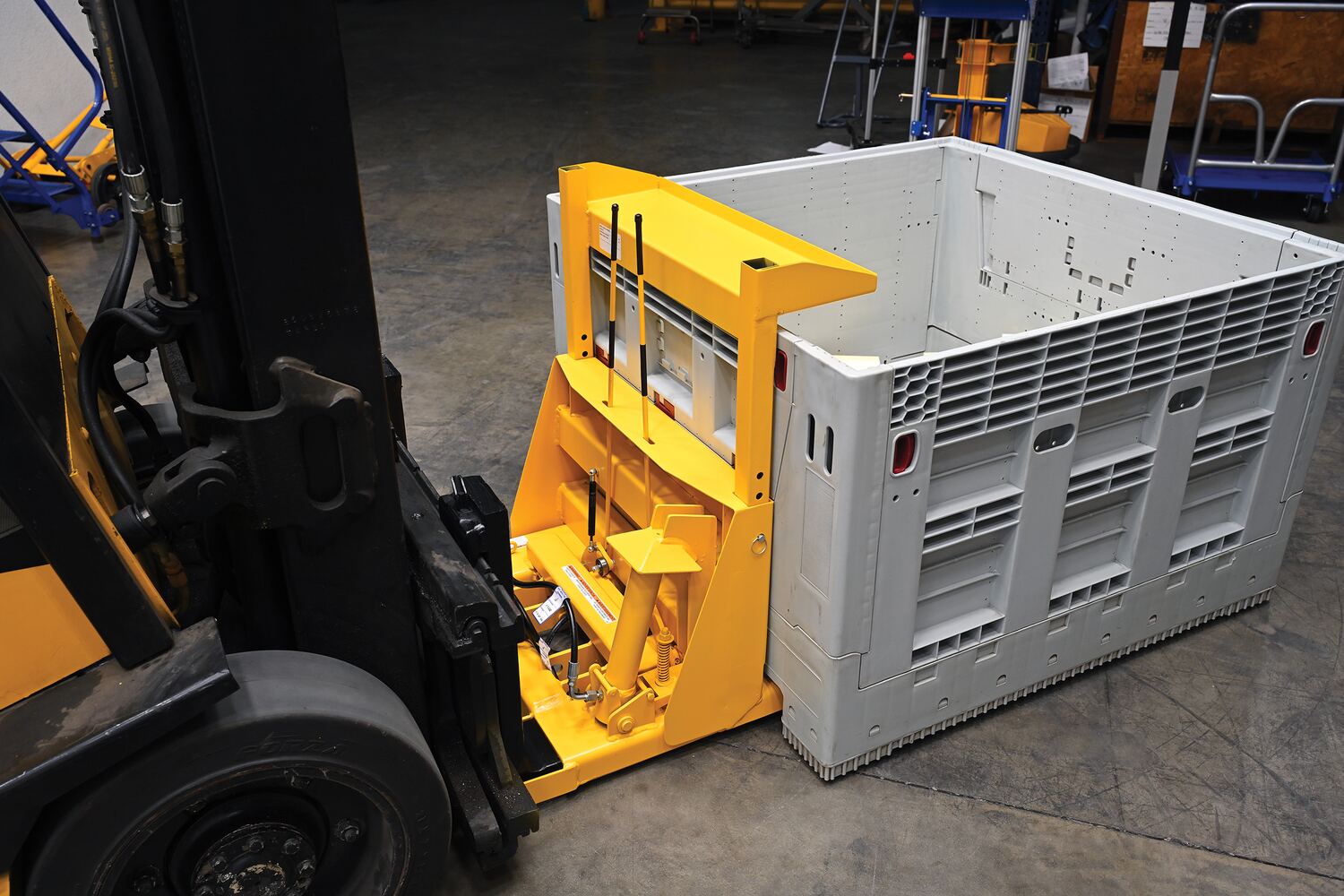

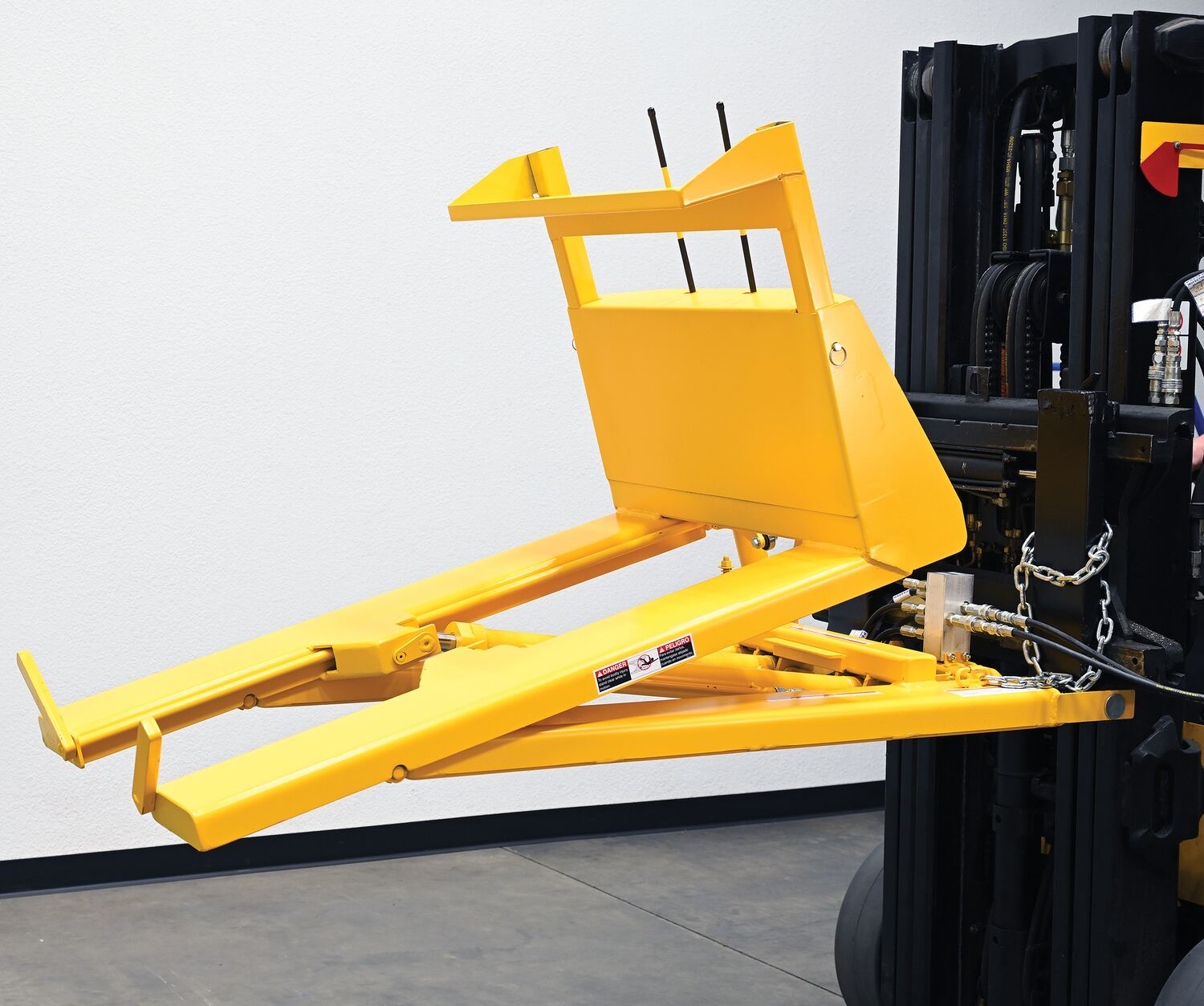

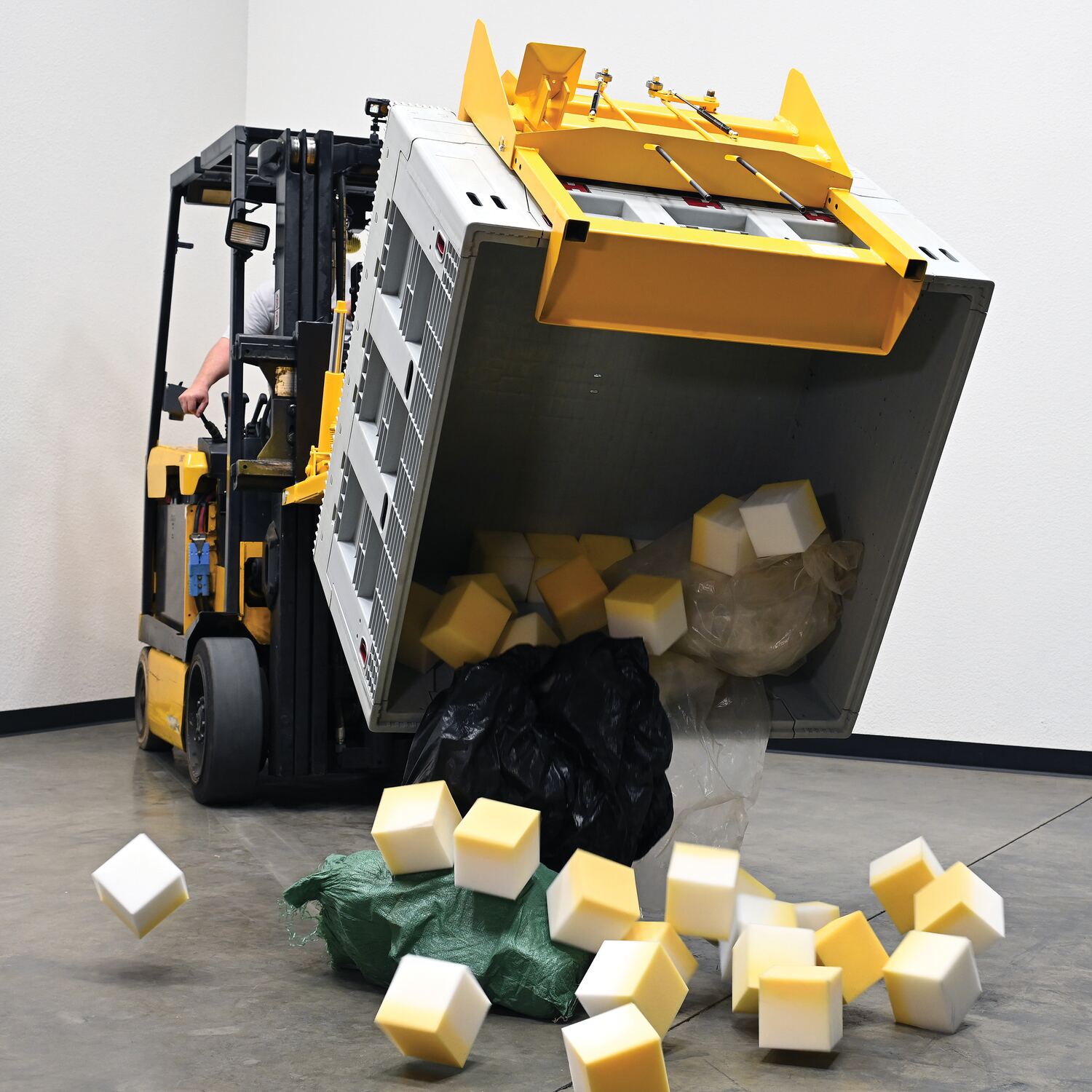

When a crate needs turned, look no further than the hydraulic crate turner. With two easily accessible fork pockets, the unit can be simply attached to a fork lift or other lifting device. During the attachment process, an upper top lip fits tightly against the crate creating a secure connection during movement. The turner is constructed of steel for strength and dependability over consistent use. A painted finish adds a smooth surface to limit abrasions.

  • Durable construction throughout daily use
  • Painted finish
  • Tightly secures crate in place
  • Simple and safe connection to a fork lift or other lifting device
Assembled Wt.(lbs.): 406 Assembled Size: 30.25"W x 67.25"L x 34.9375"H

Total Ship Wt.(lbs.): 528 (only 1 package) Package 1 Size: 48"W x 88"D x 41"H Color: Yellow Non-Returnable

Uniform Capacity (lbs.): 3,000 Overall Tilt: 121 Degrees Fork Width/Length (in.): 8-1/4 x 45-7/8
Fork Centers (in.): 22 Usable Fork Pockets (in.): 5 x 1-3/4 Fork Pocket Center (in.): 23-1/8
Minimum PSI: 2,400 Maximum PSI: 3,000 Minimum Compatible Crate Height (in.): 23-7/8
Maximum Compatible Crate Height (in.): 30 Maximum Compatible Crate Length (in.): 45-7/8 Height Lock Increments (in.): 24-1/8, 25-9/16, 27-1/16, 28-9/16, 30-1/8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

30 Days Limited Warranty

Details For Model: CTD-H-TP-3000
Available
CTD-H-TP-3000

Steel Hydraulic Powered Fork Truck Crate Turner/Dumper 67-1/4 In. x 30-1/4 In. x 34-15/16 In. 3,000 Lb. Capacity Yellow

When a crate needs turned, look no further than the hydraulic crate turner. With two easily accessible fork pockets, the unit can be simply attached to a fork lift or other lifting device. During the attachment process, an upper top lip fits tightly against the crate creating a secure connection during movement. The turner is constructed of steel for strength and dependability over consistent use. A painted finish adds a smooth surface to limit abrasions.

  • Durable construction throughout daily use
  • Painted finish
  • Tightly secures crate in place
  • Simple and safe connection to a fork lift or other lifting device
Dimensions: 30.25"W x 67.25"L x 34.9375"H Sell UOM: -- Color: Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 528 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lbs.): 3,000 Overall Tilt: 121 Degrees Fork Width/Length (in.): 8-1/4 x 45-7/8
Fork Centers (in.): 22 Usable Fork Pockets (in.): 5 x 1-3/4 Fork Pocket Center (in.): 23-1/8
Minimum PSI: 2,400 Maximum PSI: 3,000 Minimum Compatible Crate Height (in.): 23-7/8
Maximum Compatible Crate Height (in.): 30 Maximum Compatible Crate Length (in.): 45-7/8 Height Lock Increments (in.): 24-1/8, 25-9/16, 27-1/16, 28-9/16, 30-1/8
