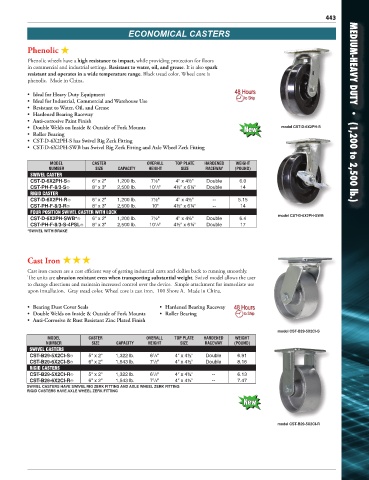

Page 437 - Vestil Catalog 112

443

ECONOMICAL CASTERS

Phenolic 

Phenolic wheels have a high resistance to impact, while providing protection for floors
in commercial and industrial settings. Resistant to water, oil, and grease. It is also spark
resistant and operates in a wide temperature range. Black tread color. Wheel core is
phenolic. Made in China.

• Ideal for Heavy Duty Equipment
• Ideal for Industrial, Commercial and Warehouse Use
• Resistant to Water, Oil, and Grease
• Hardened Bearing Raceway MEDIUM-HEAVY DUTY • (1,200 to 2,500 lb.)
• Anti-corrosive Paint Finish
• Double Welds on Inside & Outside of Fork Mounts New model CST-D-6X2PH-S
• Roller Bearing
• CST-D-6X2PH-S has Swivel Rig Zerk Fitting
• CST-D-6X2PH-SWB has Swivel Rig Zerk Fitting and Axle Wheel Zerk Fitting

MODEL CASTER OVERALL TOP PLATE HARDENED WEIGHT
NUMBER SIZE CAPACITY HEIGHT SIZE RACEWAY (POUND)
SWIVEL CASTER
CST-D-6X2PH-S 6" x 2" 1,200 lb. 7½" 4" x 4½" Double 6.0
1
CST-PH-F-8/3-S 8" x 3" 2,500 lb. 10 /2" 4½" x 6¼" Double 14
RIGID CASTER
CST-D-6X2PH-R 6" x 2" 1,200 lb. 7½" 4" x 4½" -- 5.15
CST-PH-F-8/3-R 8" x 3" 2,500 lb. 10" 4½" x 6¼" -- 14
FOUR POSITION SWIVEL CASTER WITH LOCK
CST-D-6X2PH-SWB* 6" x 2" 1,200 lb. 7½" 4" x 4½" Double 6.4 model CST-D-6X2PH-SWB
1
CST-PH-F-8/3-S-4PSL 8" x 3" 2,500 lb. 10 /2" 4½" x 6¼" Double 17
*SWIVEL WITH BRAKE

Cast Iron 

Cast iron casters are a cost efficient way of getting industrial carts and dollies back to running smoothly.
The units are abrasion resistant even when transporting substantial weight. Swivel model allows the user
to change directions and maintain increased control over the device. Simple attachment for immediate use
upon installation. Gray tread color. Wheel core is cast iron. 100 Shore A. Made in China.

• Bearing Dust Cover Seals • Hardened Bearing Raceway
• Double Welds on Inside & Outside of Fork Mounts • Roller Bearing
• Anti-Corrosive & Rust Resistant Zinc Plated Finish
model CST-B29-5X2CI-S
MODEL CASTER OVERALL TOP PLATE HARDENED WEIGHT
NUMBER SIZE CAPACITY HEIGHT SIZE RACEWAY (POUND)
SWIVEL CASTERS
1
CST-B29-5X2CI-S 5" x 2" 1,322 lb. 6 /2" 4" x 4½" Double 6.91
1
CST-B29-6X2CI-S 6" x 2" 1,543 lb. 7 /2" 4" x 4½" Double 8.16
RIGID CASTERS
1
CST-B29-5X2CI-R 5" x 2" 1,322 lb. 6 /2" 4" x 4½" -- 6.13
1
CST-B29-6X2CI-R 6" x 2" 1,543 lb. 7 /2" 4" x 4½" -- 7.47
SWIVEL CASTERS HAVE SWIVEL RIG ZERK FITTING AND AXLE WHEEL ZERK FITTING
RIGID CASTERS HAVE AXLE WHEEL ZERK FITTING
New

model CST-B29-5X2CI-R
