Mezzanine Ladders (face mounted/retractable)

Print Friendly

Model Chart
PDF's
Videos
Image Gallery
FEATURED Mezzanine Ladders (face mounted/retractable)

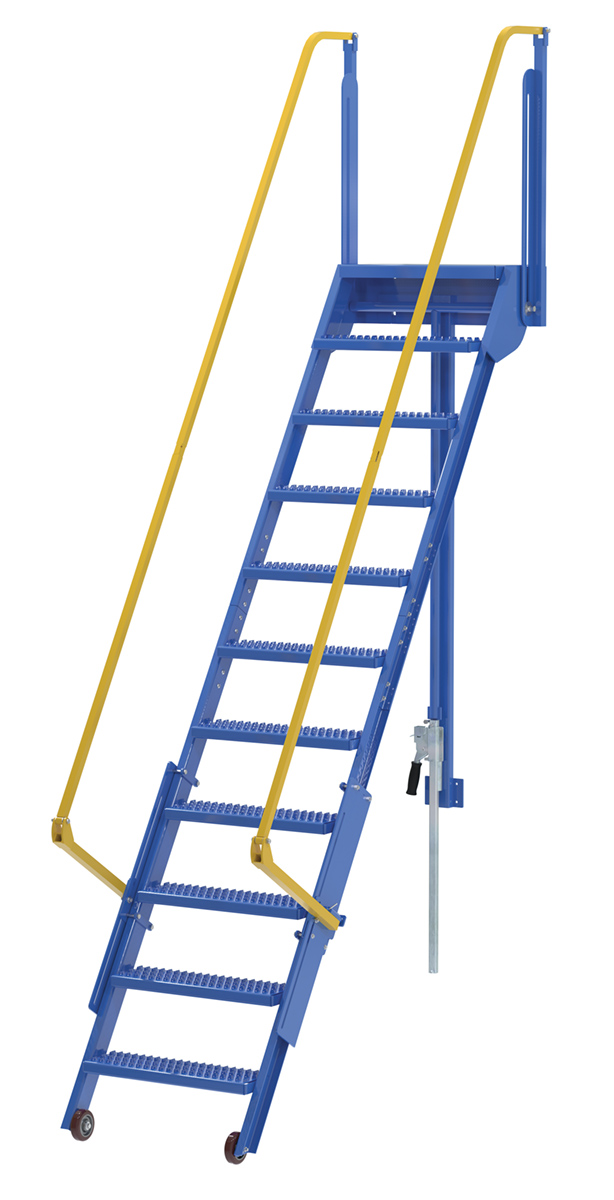

model: LAD-FM-108

LAD-FM-108_A.jpg More Images +
Mezzanine Ladders (face mounted/retractable)
SERIES: LAD-FM   12Products
Powder Coat Quick Ship Custom Fabrication

Retractable Face-Mount Mezzanine Ladders for Compact Elevated Access

Retractable face-mount mezzanine ladders provide secure, space-saving access to mezzanines, platforms, and elevated storage areas where ladder use is occasional but dependable access is still required. Designed for condensed work areas, these ladders extend into a fixed climbing angle when needed and retract close to the wall when not in use, helping preserve floor space in warehouses, stockrooms, distribution centers, and industrial facilities.

Retractable Access and Storage

Manual models ratchet into climbing position and back into storage position, while powered storage models extend and retract with a handheld pendant. Ground-contact wheels roll during movement, and the handrails mechanically rise into position when the ladder locks into its climbing angle.

Stable Climbing Design

Models feature a 58 degree incline angle, 24-1/4 inch usable step width, serrated steel steps, and collapsible handrails for confident access during use. Uniform capacity is 350 lb., making the ladders suitable for routine elevated access tasks in industrial and commercial settings.

Height Range and Installation

This family includes models for mezzanine heights from 60 inches to 120 inches, with customer mezzanine height required at time of purchase. A mounting bracket is provided for bolt-on or welded installation. The blue and yellow baked-in powder coat finish adds durability and visibility, and the ladder meets or exceeds OSHA requirements.

Mezzanine Ladders (face mounted/retractable)

model: LAD-FM-108

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

LAD-FM-108
LAD-FM-108-PSO
LAD-FM-120
LAD-FM-120-PSO
LAD-FM-60
LAD-FM-60-PSO
LAD-FM-72
LAD-FM-72-PSO
LAD-FM-84
LAD-FM-84-PSO
LAD-FM-96
LAD-FM-96-PSO
PDFs will open in a new window when clicked.

Owner's Manuals

2
LAD-FM, MANUAL
Open Manual
LAD-FM-PSO, MANUAL
Open Manual

Survey Sheets

1
LAD-FM
Open Survey

Approval Drawings

12
LAD-FM-108
Open Drawing
LAD-FM-108-PSO
Open Drawing
LAD-FM-120
Open Drawing
LAD-FM-120-PSO
Open Drawing
LAD-FM-60
Open Drawing
LAD-FM-60-PSO
Open Drawing
LAD-FM-72
Open Drawing
LAD-FM-72-PSO
Open Drawing
LAD-FM-84
Open Drawing
LAD-FM-84-PSO
Open Drawing
LAD-FM-96
Open Drawing
LAD-FM-96-PSO
Open Drawing

Testing Certificates

12
LAD-FM-108
Open Certificate
LAD-FM-108-PSO
Open Certificate
LAD-FM-120
Open Certificate
LAD-FM-120-PSO
Open Certificate
LAD-FM-60
Open Certificate
LAD-FM-60-PSO
Open Certificate
LAD-FM-72
Open Certificate
LAD-FM-72-PSO
Open Certificate
LAD-FM-84
Open Certificate
LAD-FM-84-PSO
Open Certificate
LAD-FM-96
Open Certificate
LAD-FM-96-PSO
Open Certificate

SDS Sheets

0
No SDS sheets for this product family.

Other PDFs

1

Mezzanine Ladder Mailing Brochure







Visit Our Youtube Channel For All Available Videos For All Products
Reference #: CF-6003 Wall Mounted Stair Platform
 Reference #: CF-6003 Wall Mounted Stair Platform
Reference #: CF-6003 Wall Mounted Stair Platform
Special Wall Mounted Stair Platform
For more Specialty Designs similar to these... Click Here

Related or Similar Products:

More From Ladders





Mezzanine Ladders (face mounte...




Retractable Face-Mount Mezzanine Ladders for Compact Elevated Access

Retractable face-mount mezzanine ladders provide secure, space-saving access to mezzanines, platforms, and elevated storage areas where ladder use is occasional but dependable access is still required. Designed for condensed work areas, these ladders extend into a fixed climbing angle when needed and retract close to the wall when not in use, helping preserve floor space in warehouses, stockrooms, distribution centers, and industrial facilities.

Retractable Access and Storage

Manual models ratchet into climbing position and back into storage position, while powered storage models extend and retract with a handheld pendant. Ground-contact wheels roll during movement, and the handrails mechanically rise into position when the ladder locks into its climbing angle.

Stable Climbing Design

Models feature a 58 degree incline angle, 24-1/4 inch usable step width, serrated steel steps, and collapsible handrails for confident access during use. Uniform capacity is 350 lb., making the ladders suitable for routine elevated access tasks in industrial and commercial settings.

Height Range and Installation

This family includes models for mezzanine heights from 60 inches to 120 inches, with customer mezzanine height required at time of purchase. A mounting bracket is provided for bolt-on or welded installation. The blue and yellow baked-in powder coat finish adds durability and visibility, and the ladder meets or exceeds OSHA requirements.


Model # Description Attributes Net Wt.
(lbs)
LAD-FM-108 LAD-FM-108Steel Folding Mezzanine Ladder 108 In. Mezzanine Height 24-1/4 In. Step Width 350 Lb. Capacity BlueUniform Capacity (lb.): 350
Incline Angle (degree): 58		375

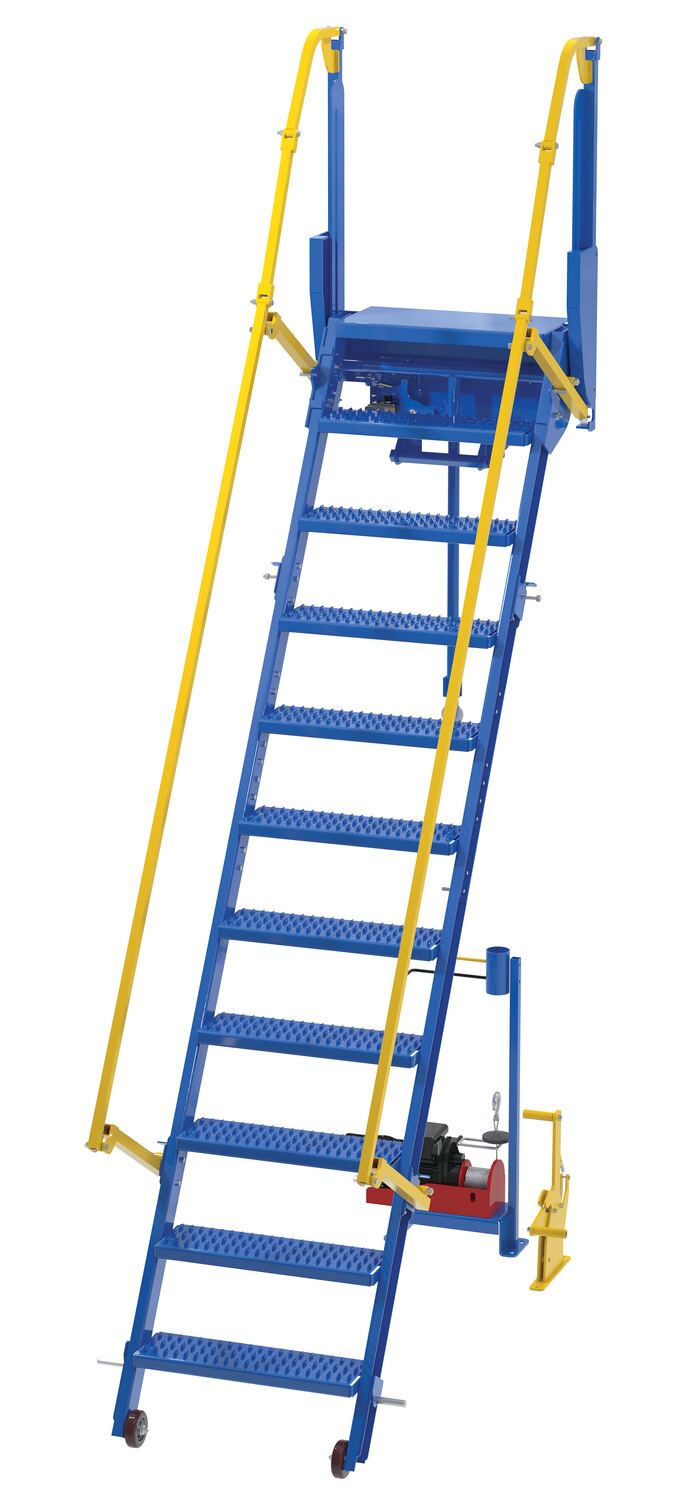

LAD-FM-108-PSO LAD-FM-108-PSOSteel Folding Mezzanine Ladder with 115V Power Storage 108 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity Blue & YellowBase Length (in): 73.5625
Base Width (in): 34.125		485

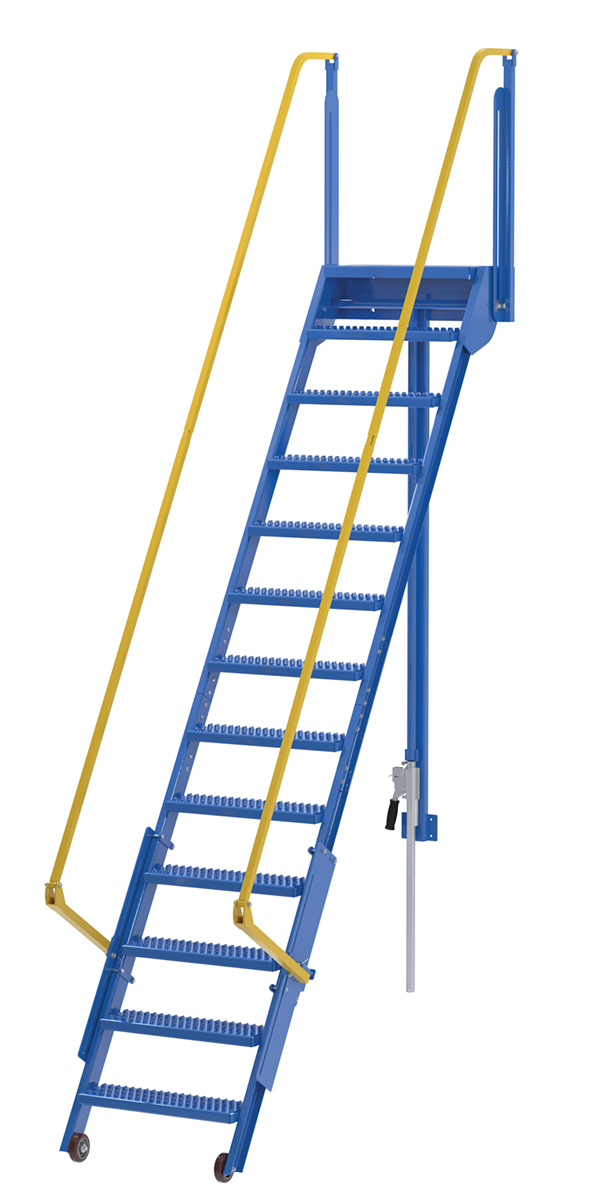

LAD-FM-120 LAD-FM-120Steel Folding Mezzanine Ladder 120 In. Mezzanine Height 24-1/4 In. Step Width 350 Lb. Capacity BlueUniform Capacity (lb.): 350
Incline Angle (degree): 58		410

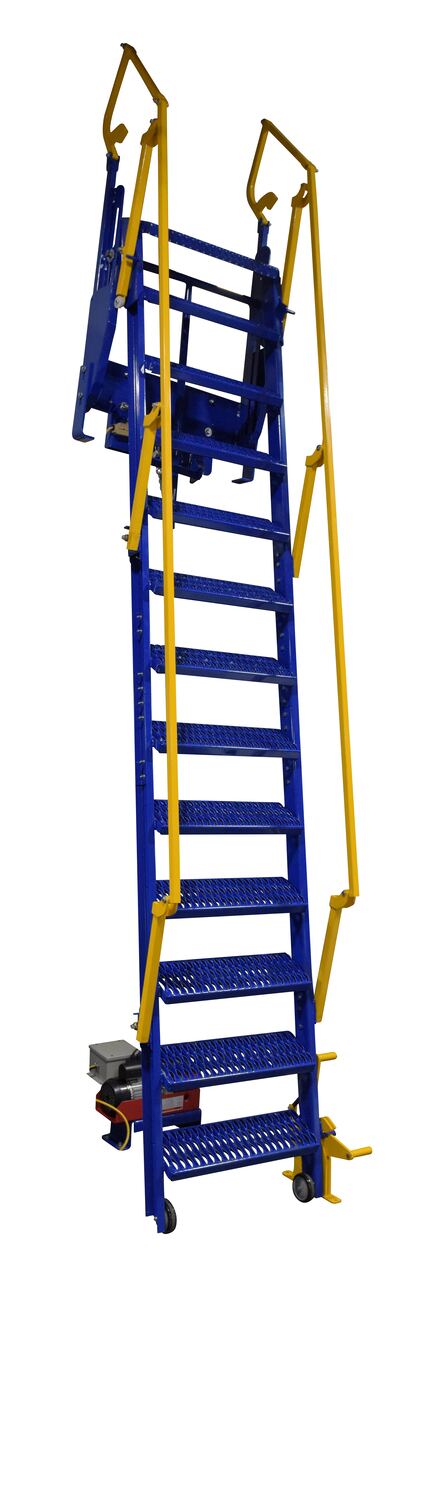

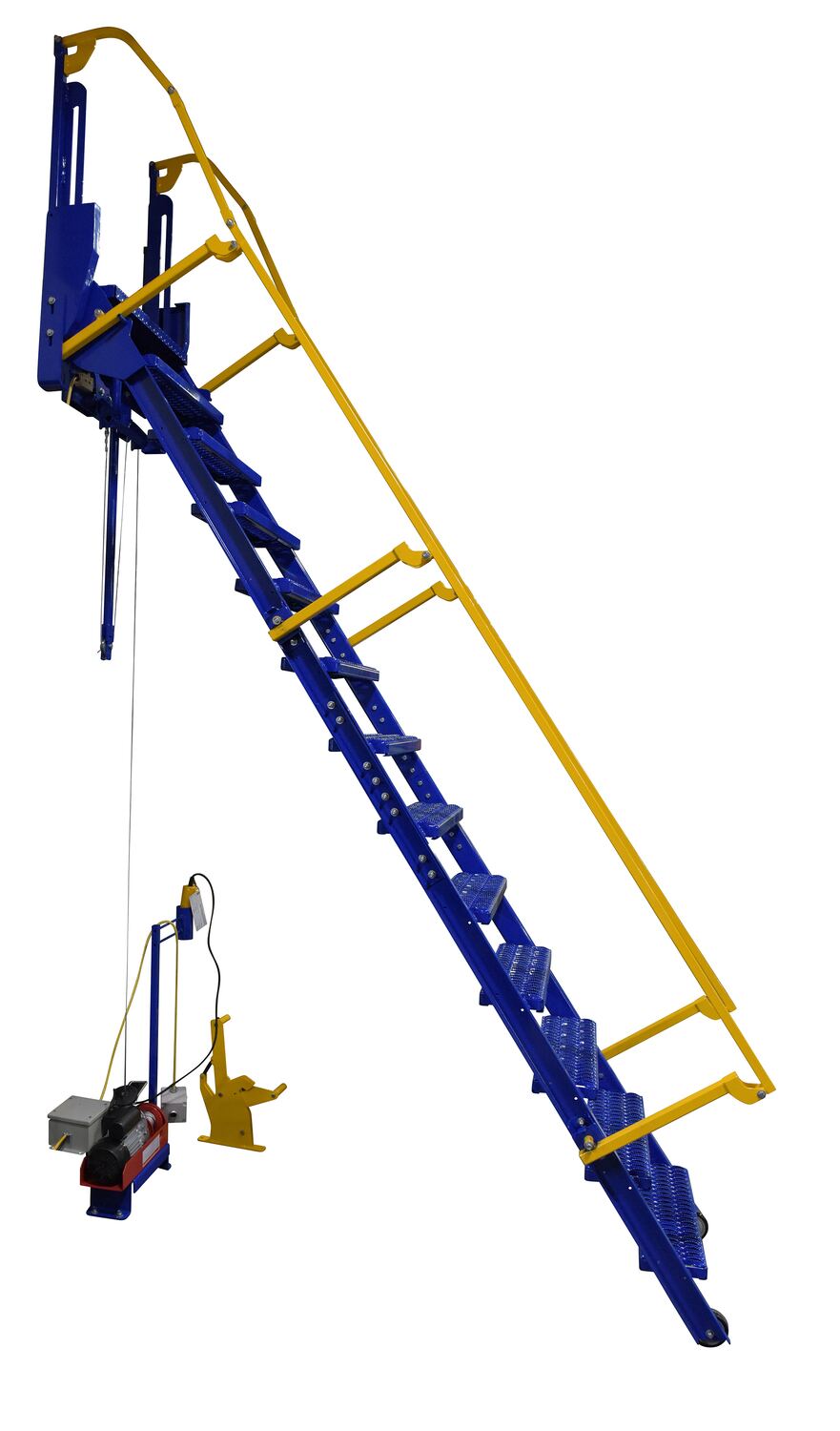

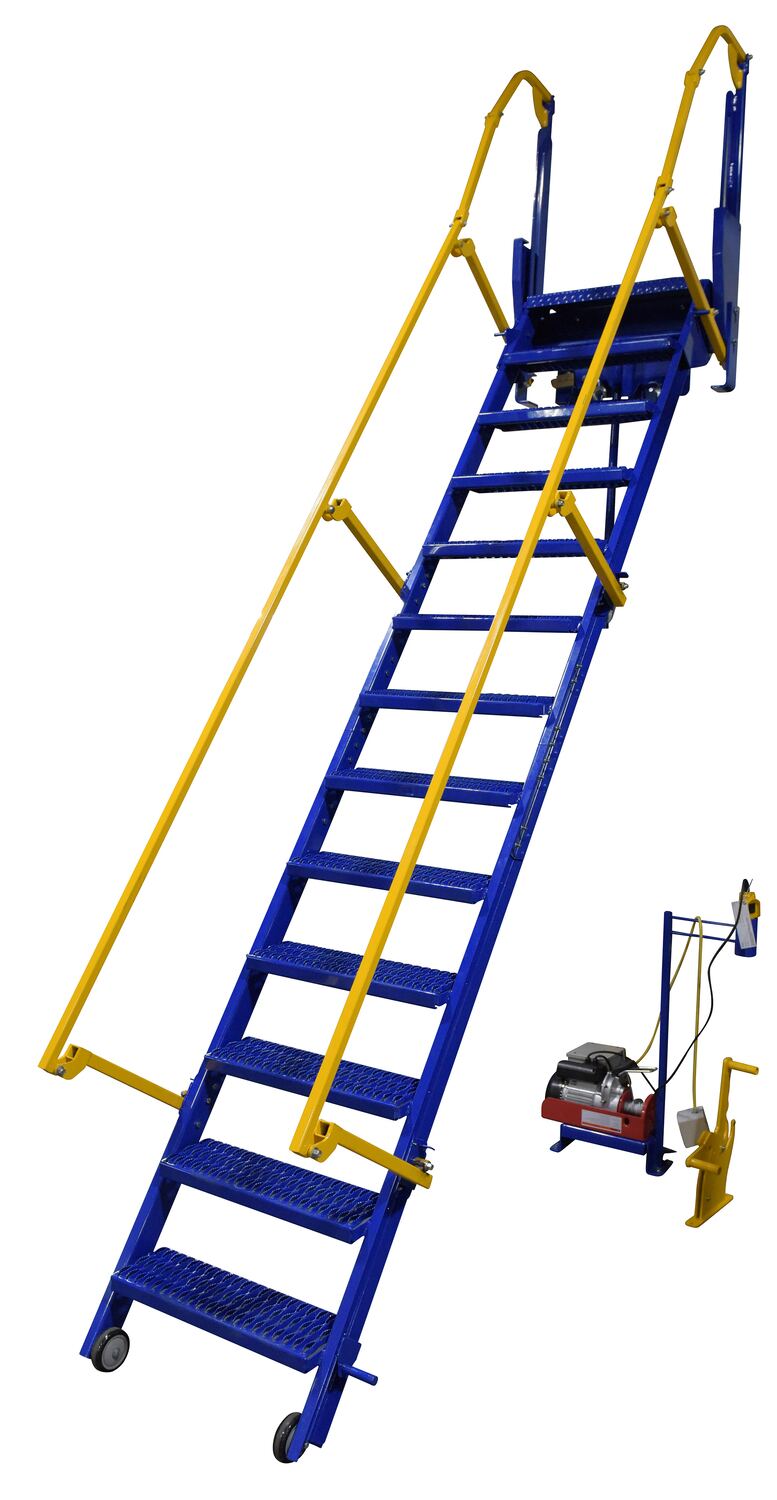

LAD-FM-120-PSO LAD-FM-120-PSOSteel Folding Mezzanine Ladder with 115V Power Storage 120 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity Blue & YellowBase Length (in): 83.6875
Base Width (in): 34.125		514

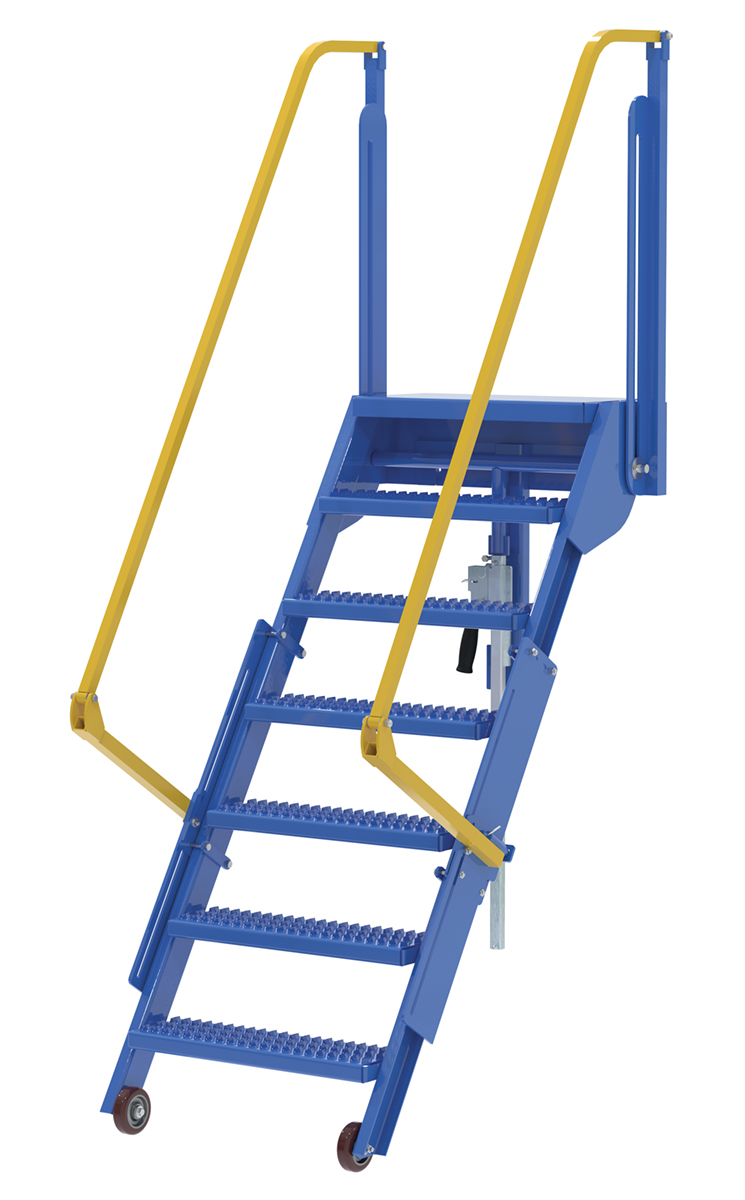

LAD-FM-60 LAD-FM-60Steel Folding Mezzanine Ladder 60 In. Mezzanine Height 24-1/4 In. Step Width 350 Lb. Capacity BlueUniform Capacity (lb.): 350
Incline Angle (degree): 58		274

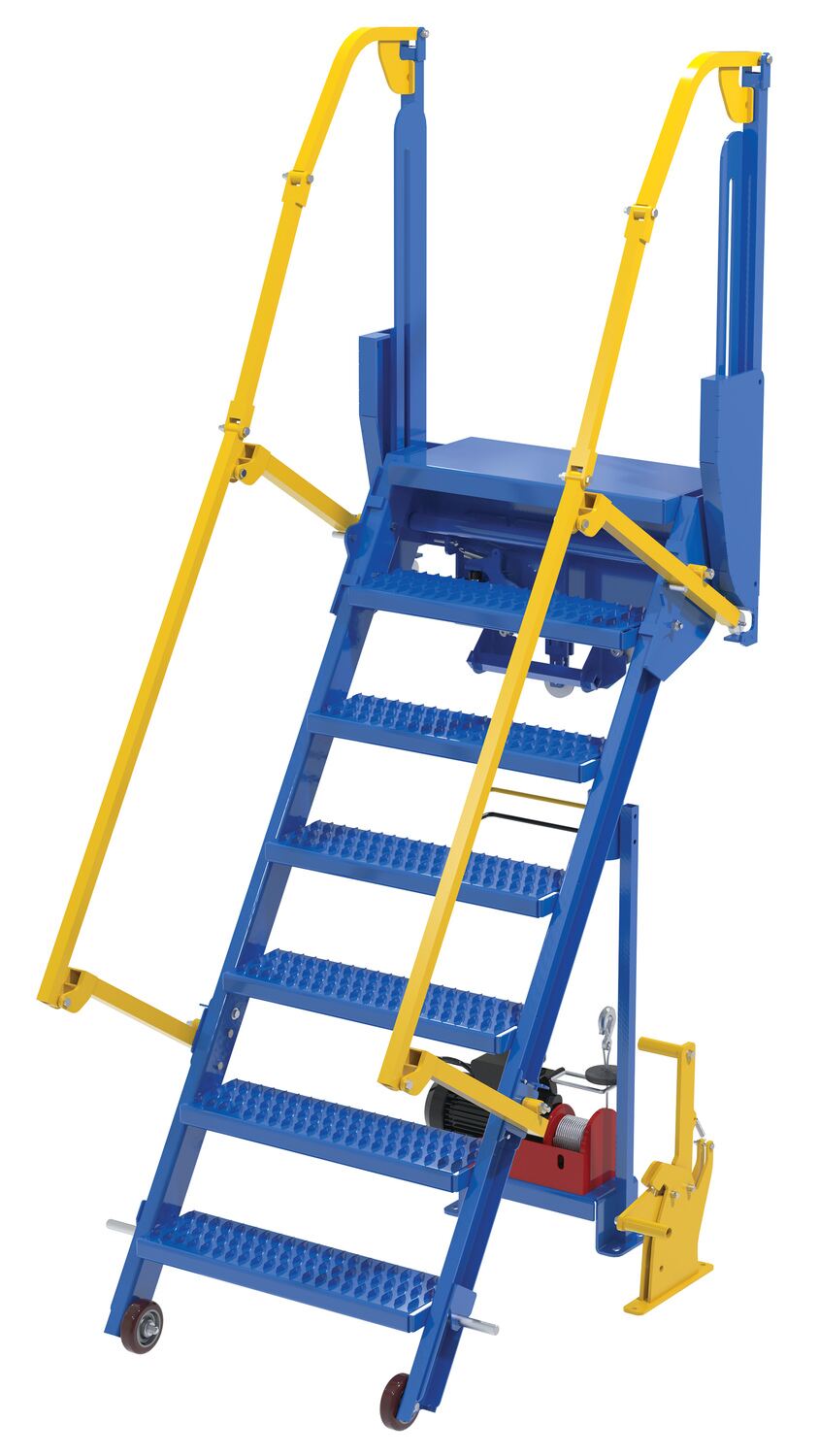

LAD-FM-60-PSO LAD-FM-60-PSOSteel Folding Mezzanine Ladder with 115V Power Storage 60 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity Blue & YellowBase Length (in: 47.25
Base Width (in): 34.125		374

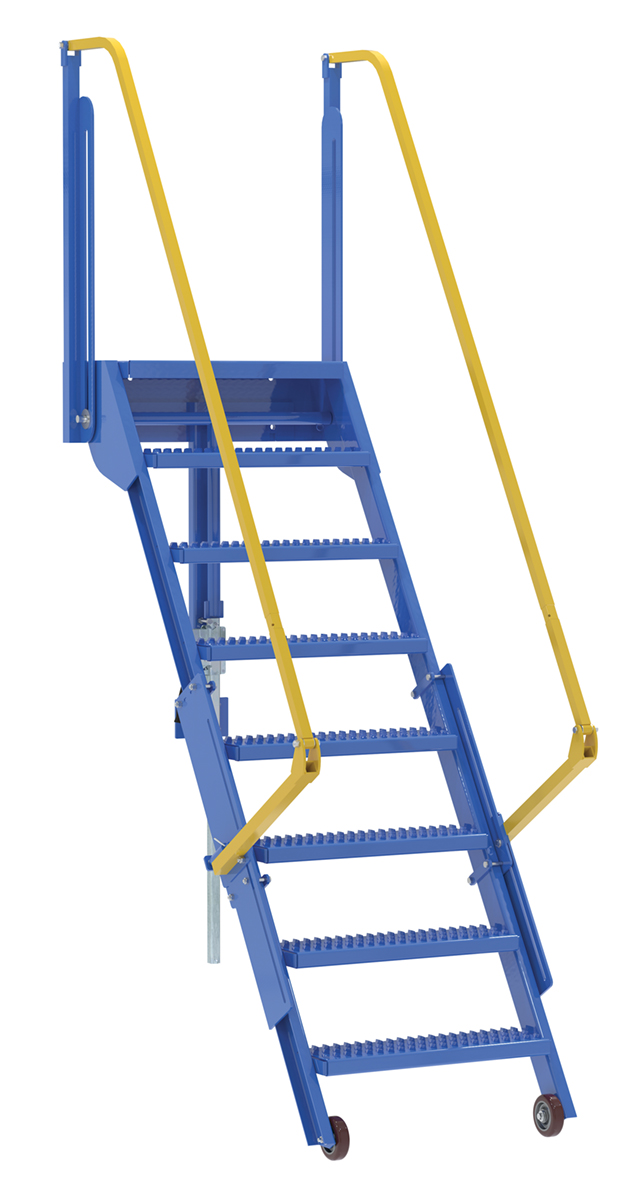

LAD-FM-72 LAD-FM-72Steel Folding Mezzanine Ladder 72 In. Mezzanine Height 24-1/4 In. Step Width 350 Lb. Capacity BlueUniform Capacity (lb.): 350
Incline Angle (degree): 58		282

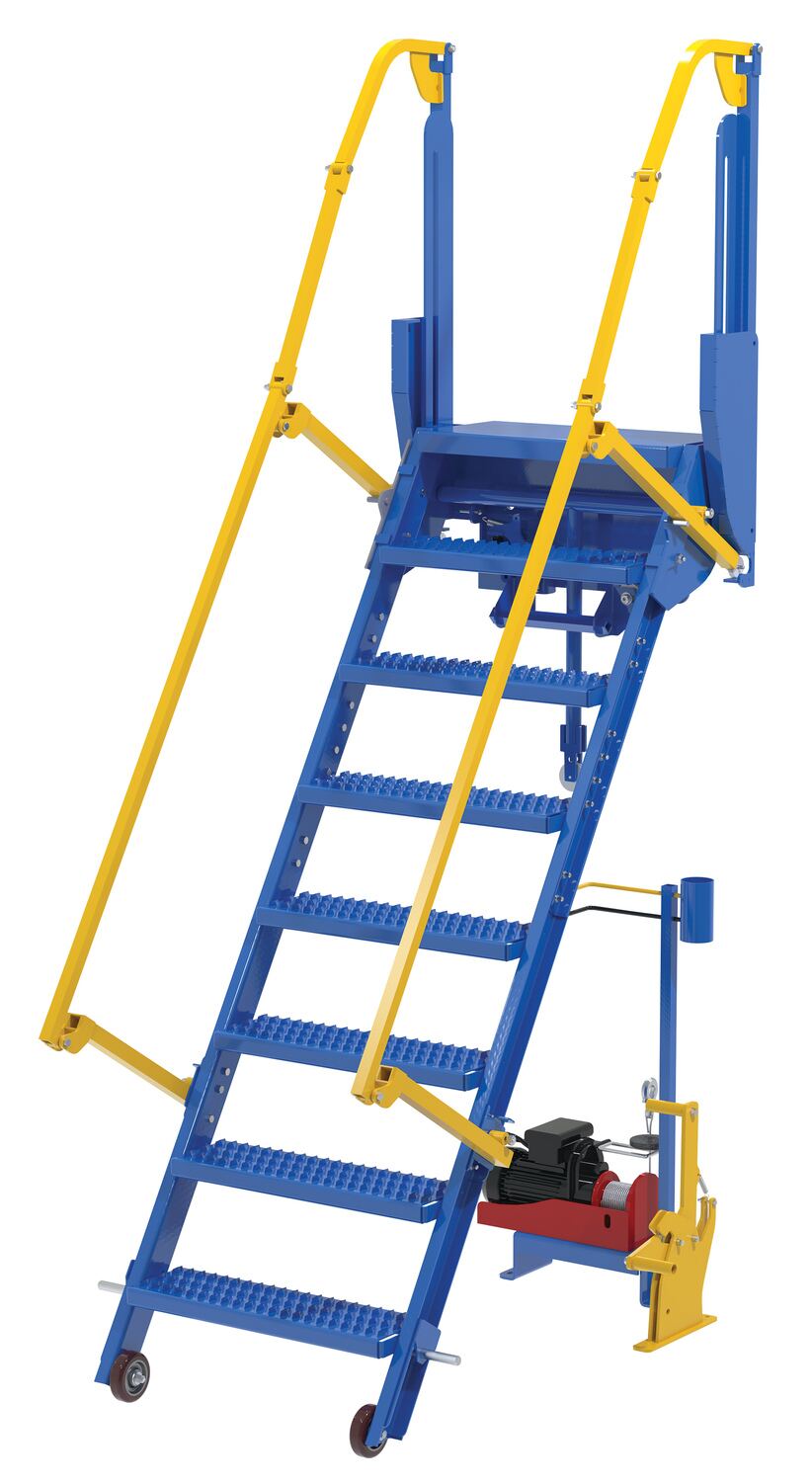

LAD-FM-72-PSO LAD-FM-72-PSOSteel Folding Mezzanine Ladder with 115V Power Storage 72 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity BlueBase Length (in): 53.25
Base Width (in): 32.25		398

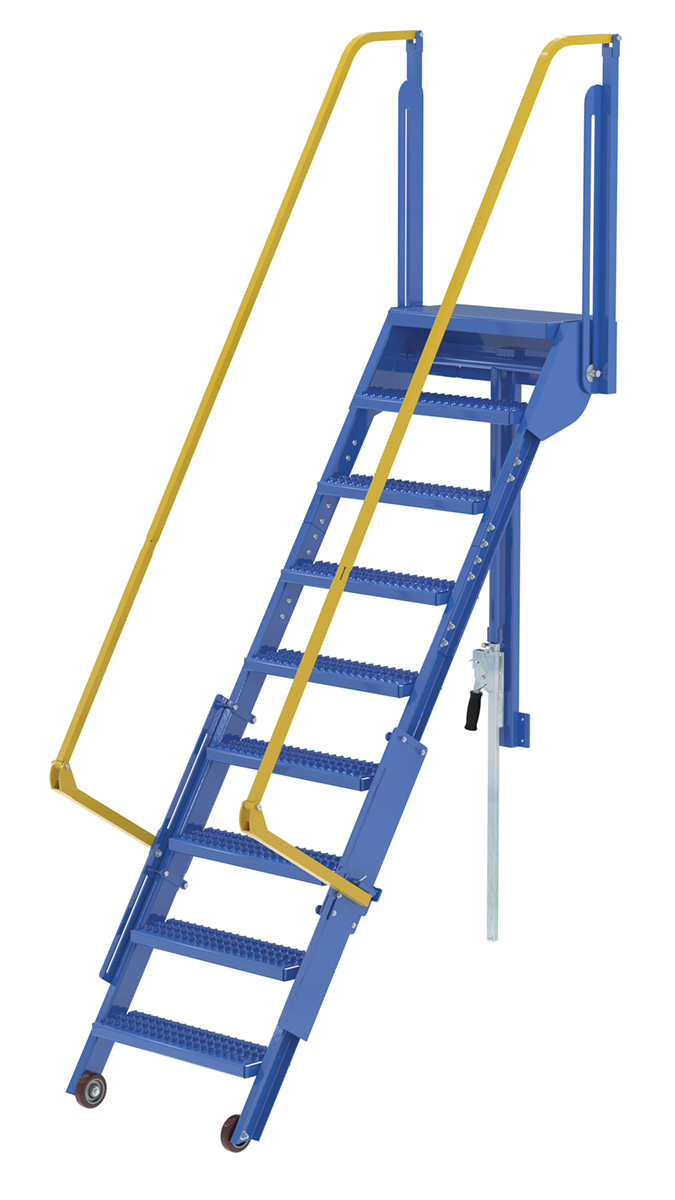

LAD-FM-84 LAD-FM-84Steel Folding Mezzanine Ladder 84 In. Mezzanine Height 24-1/4 In. Step Width 350 Lb. Capacity BlueUniform Capacity (lb.): 350
Incline Angle (degree): 58		360

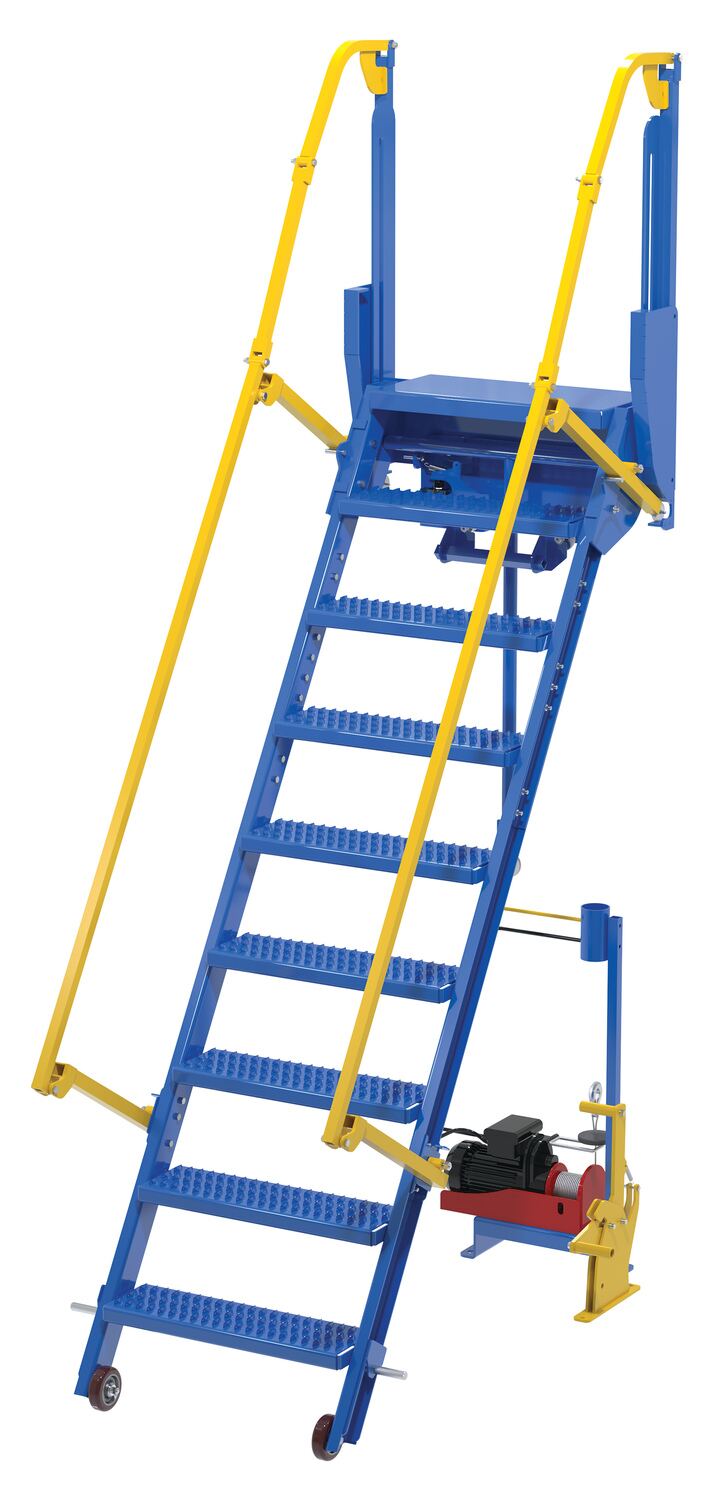

LAD-FM-84-PSO LAD-FM-84-PSOSteel Folding Mezzanine Ladder with 115V Power Storage 84 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity Blue & YellowBase Length (in): 60.75
Base Width (in): 34.125		434

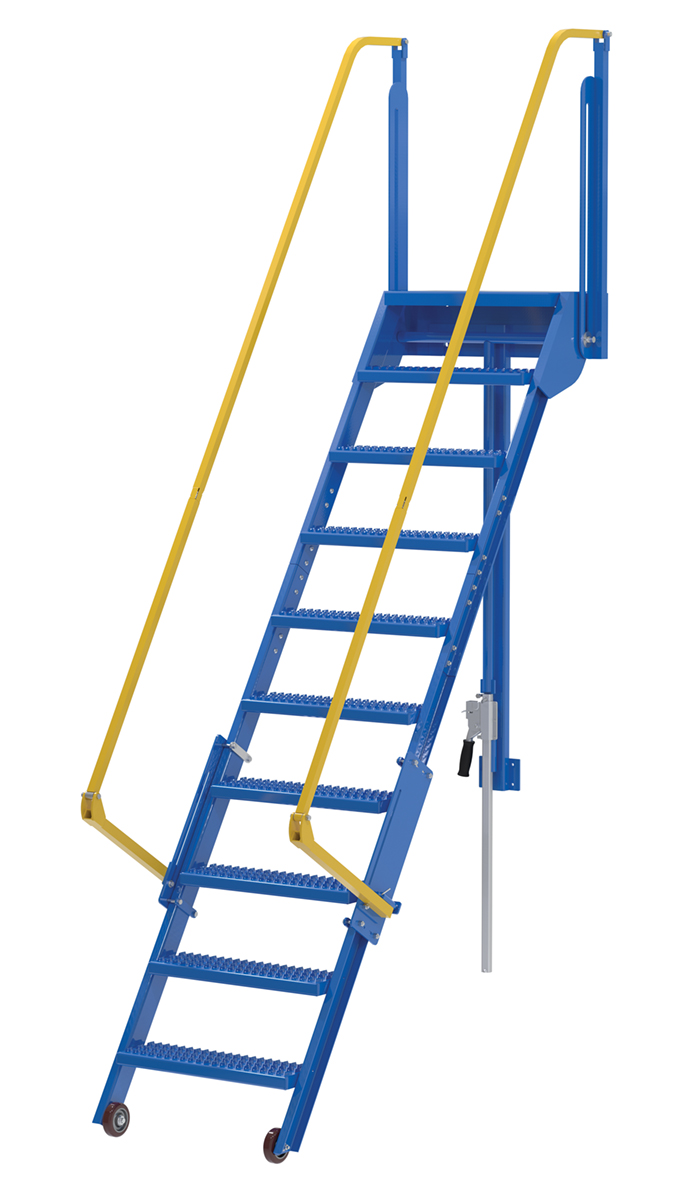

LAD-FM-96 LAD-FM-96Steel Folding Mezzanine Ladder 96 In. Mezzanine Height 24-1/4 In. Step Width 350 Lb. Capacity BlueUniform Capacity (lb.): 350
Incline Angle (degree): 58		365

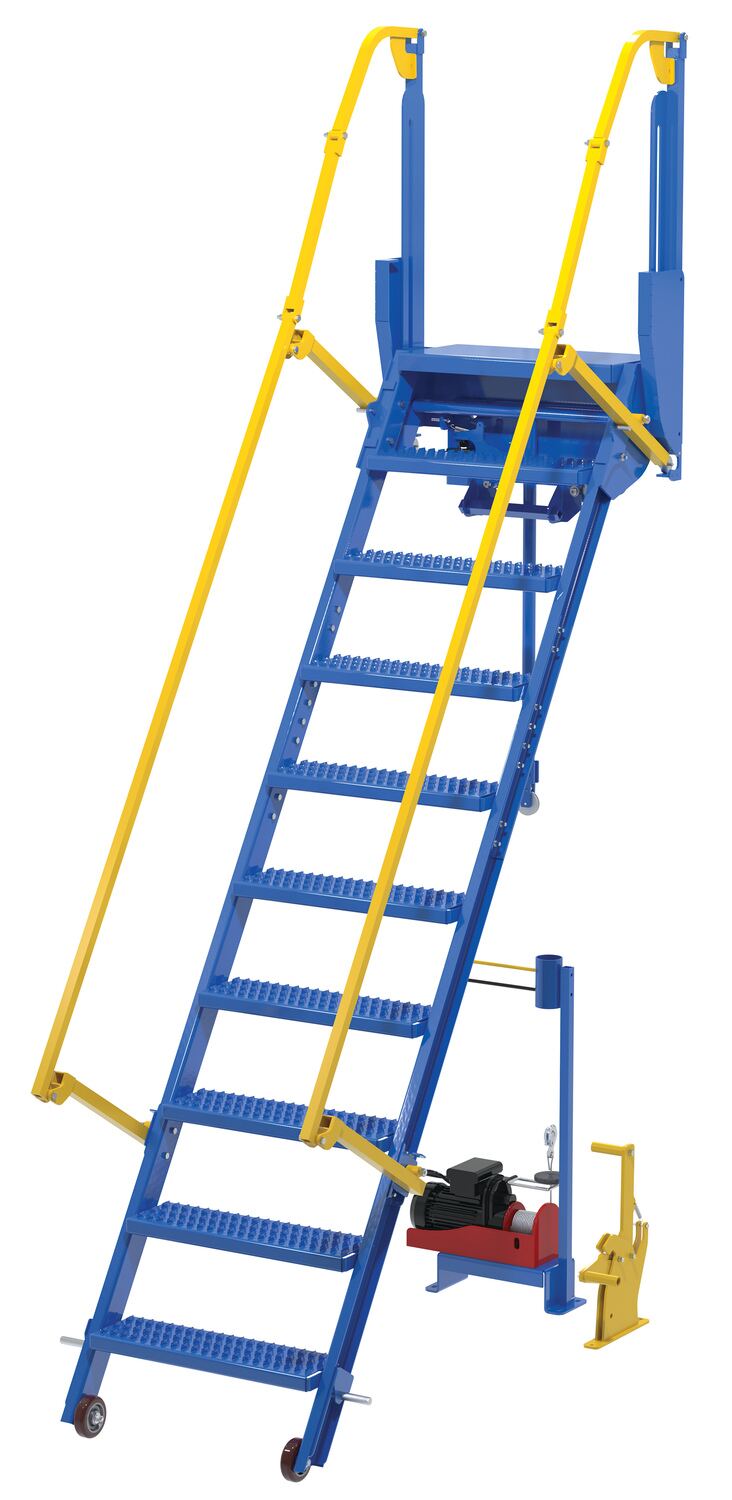

LAD-FM-96-PSO LAD-FM-96-PSOSteel Folding Mezzanine Ladder with 115V Power Storage 96 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity Blue & YellowBase Length (in): 66.625
Base Width (in): 34.125		465
