Stacker with Powered Lift

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
SL-118-AA_H.jpg SL-118-AA_A.jpg SL-118-AA_B.jpg SL-118-AA_C.jpg
SL-118-AA_D.jpg SL-118-AA_E.jpg SL-118-AA_F.jpg SL-118-AA_G.jpg

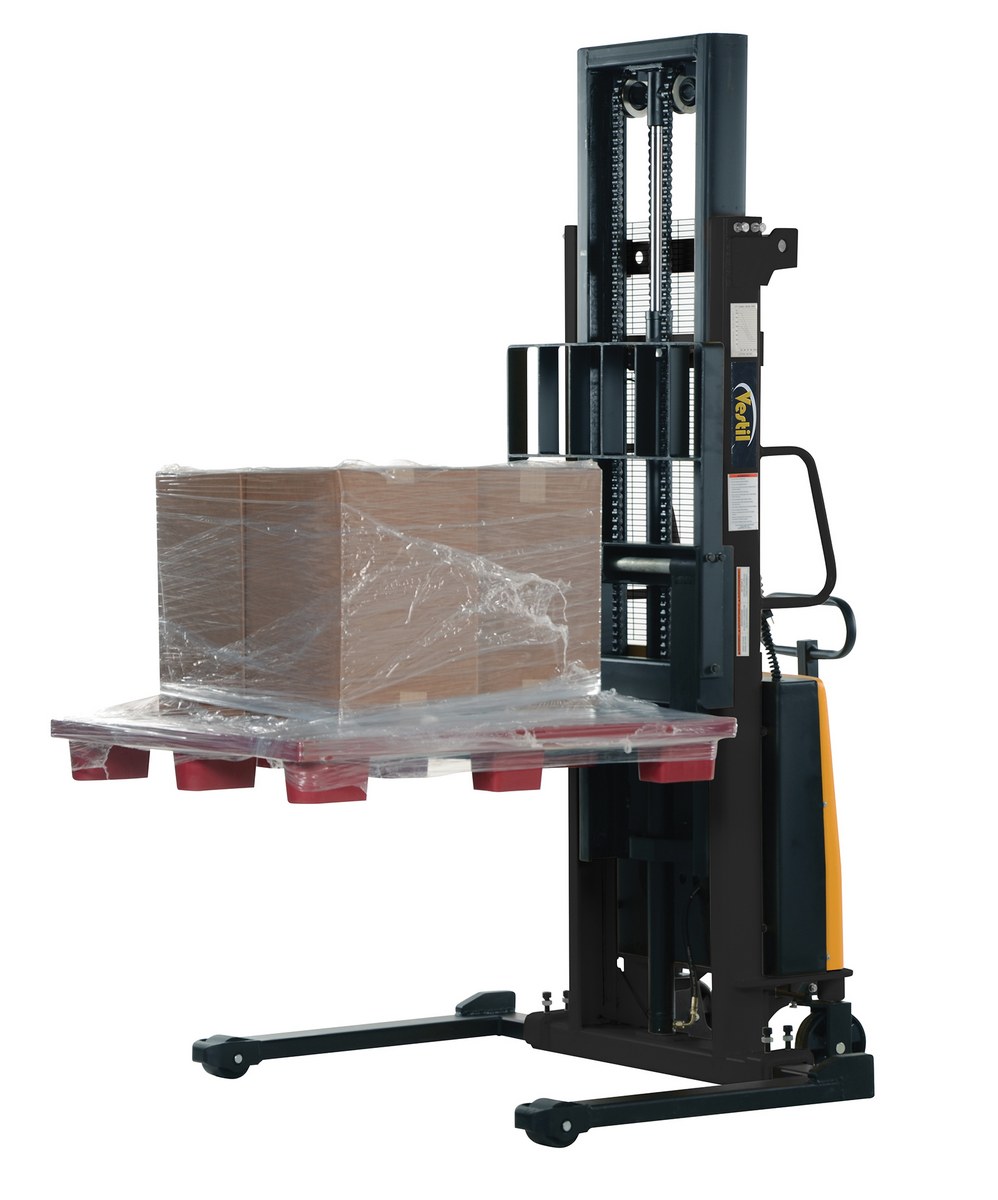

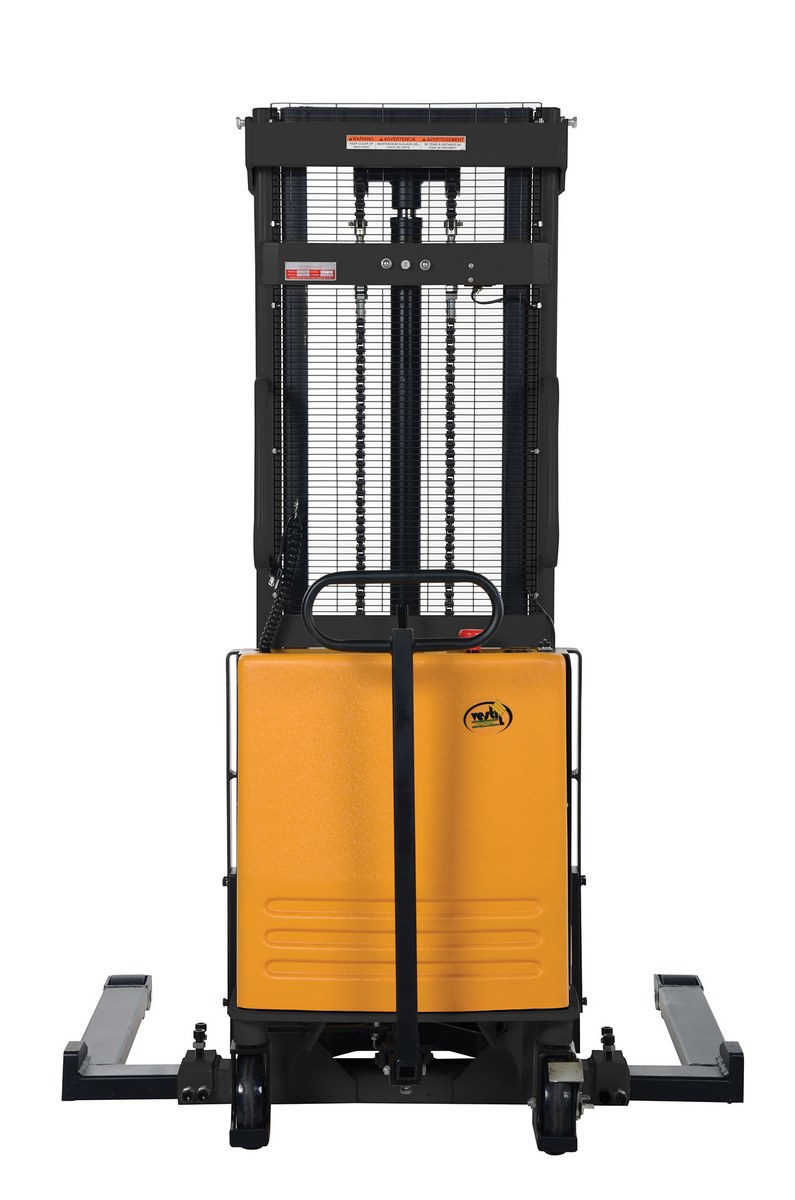

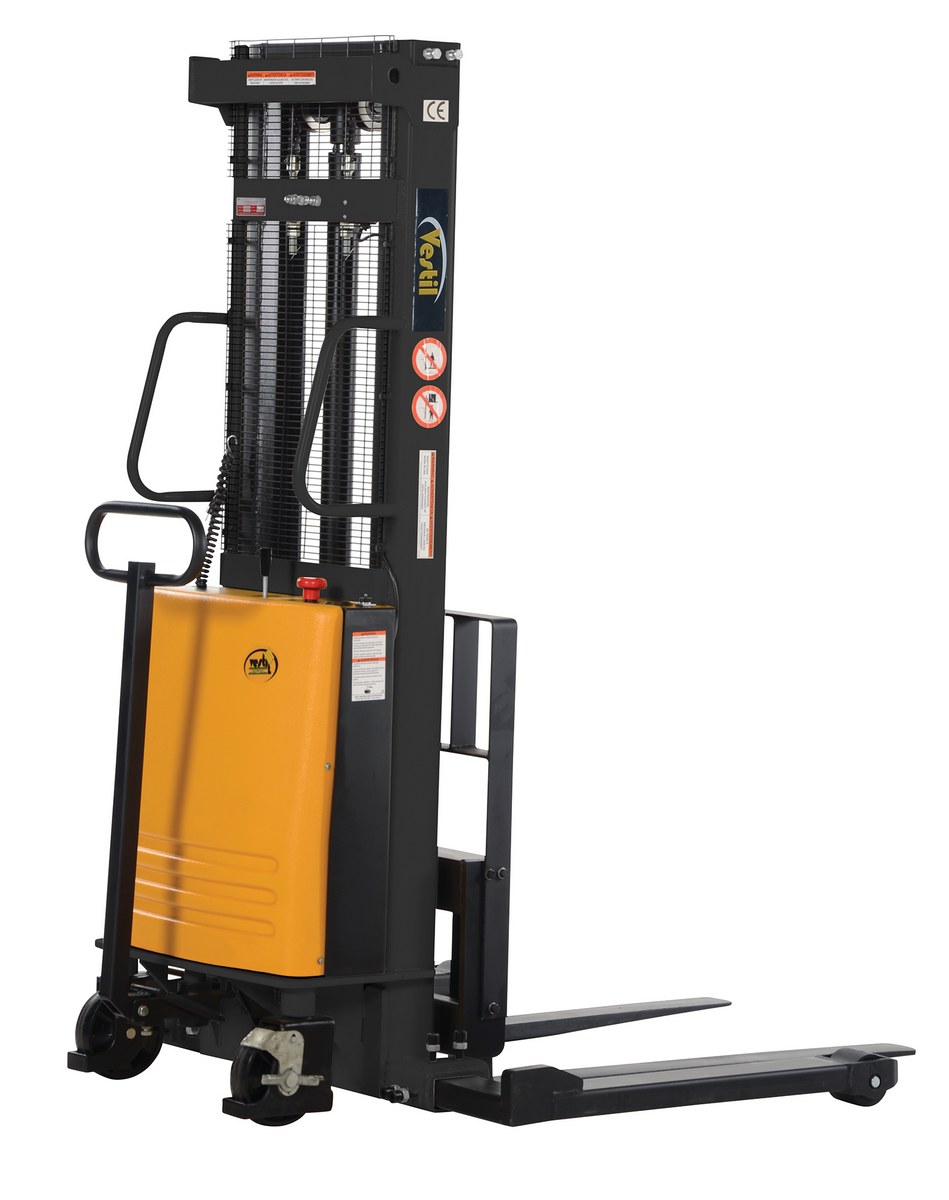

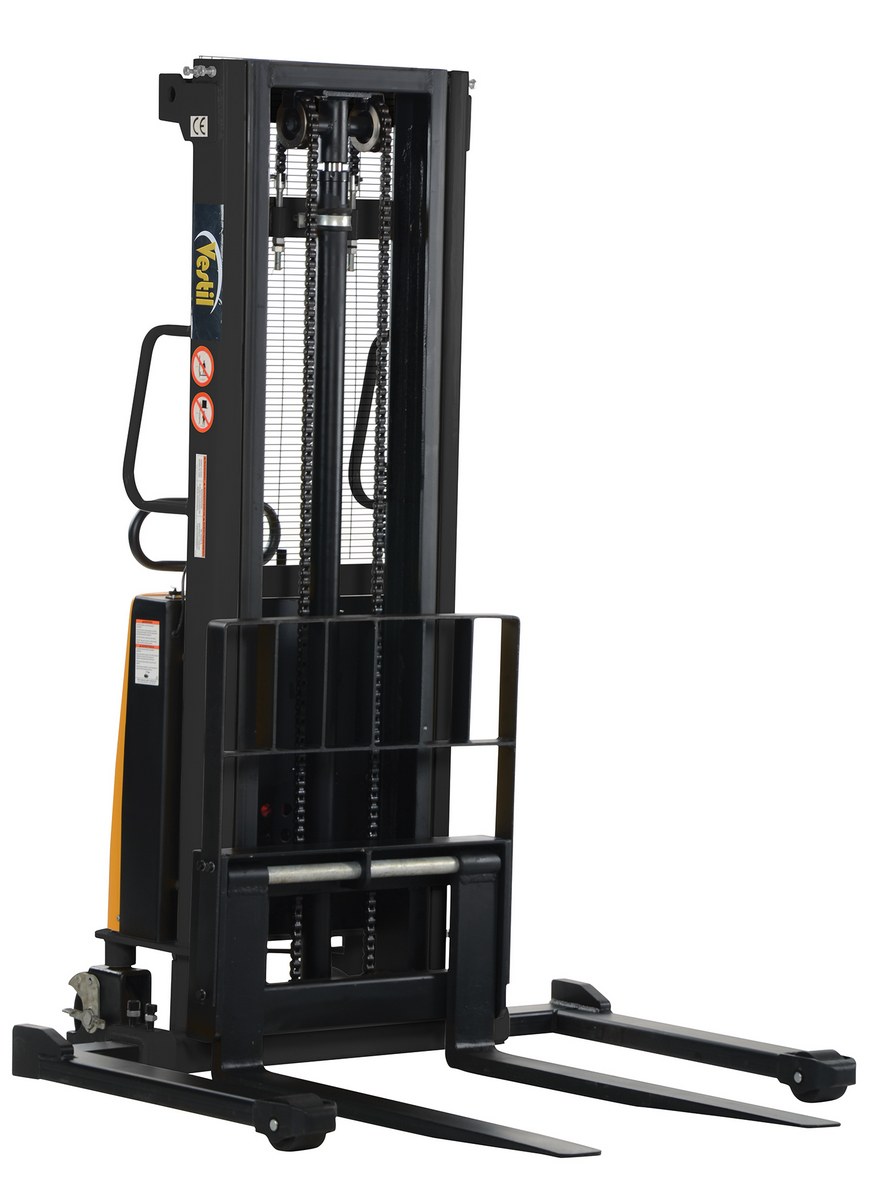

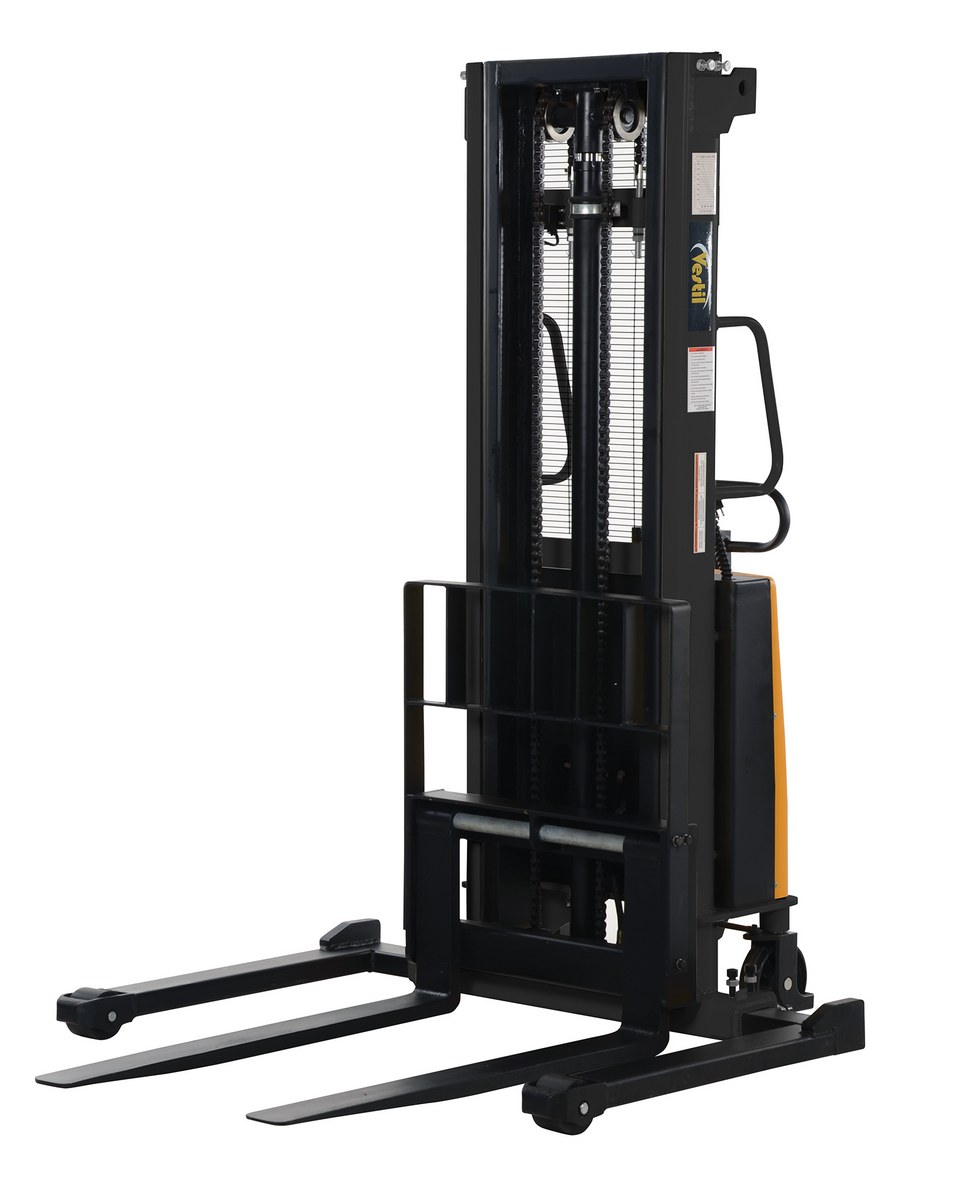

Stacker with Powered Lift

model: SL-118-AA



Featured Ergonomic Solutions


Electric Powered Rough Terrain Pallet Trucks
All Terrain Pallet Trucks
Worker Platforms
Mechanical Post Tables
Powered Drive and Powered Lift Hydraulic Scissor Carts
Hinge & Sliding Tilt Tables
Air Corner Tilter
Conveyor with Retractable End Stops
Hydraulic Work Positioner
model chart

Product Family Overview

Print Friendly
Stacker with Powered Lift
SERIES: SL

Semi-Electric Stackers with Powered Lift will raise and lower loads quickly and easily. Manual push operation stackers are made using high quality material and parts. All models are easily maneuverable using the standard pulling handle. Stackers are highly efficient and durable. Semi-electric stackers use (1) 12V. Integral battery charger and battery level gauge. Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h. PTDS includes: Combination throttle / direction butterfly style controller, An adjustable steering yoke, An auto reverse emergency "belly switch", (1) 12V battery.


Drum Roll Reel Forks

Check Out Vestil's Other Stackers:
Stackers with Powered Drive and Powered Lift | Specialty Stackers | Pallet Master/Servers | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)

Semi-Electric Stackers with Powered Lift will raise and lower loads quickly and easily. Manual push operation stackers are made using high quality material and parts. All models are easily maneuverable using the standard pulling handle. Stackers are highly efficient and durable. Semi-electric stackers use (1) 12V. Integral battery charger and battery level gauge. Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h. PTDS includes: Combination throttle / direction butterfly style controller, An adjustable steering yoke, An auto reverse emergency "belly switch", (1) 12V battery.


Drum Roll Reel Forks

Check Out Vestil's Other Stackers:
Stackers with Powered Drive and Powered Lift | Specialty Stackers | Pallet Master/Servers | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)

Other Stackers

 Narrow Mast Stackers with Powered Lift Powered All Terrain Stackers and Pallet Trucks Combination Hand Pump and Electric Stackers Manual & Electric Stackers

Additional Models In This Family
view entire Image Gallery

SL-HC

SL-HC

SL-63-AA

SL-63-AA

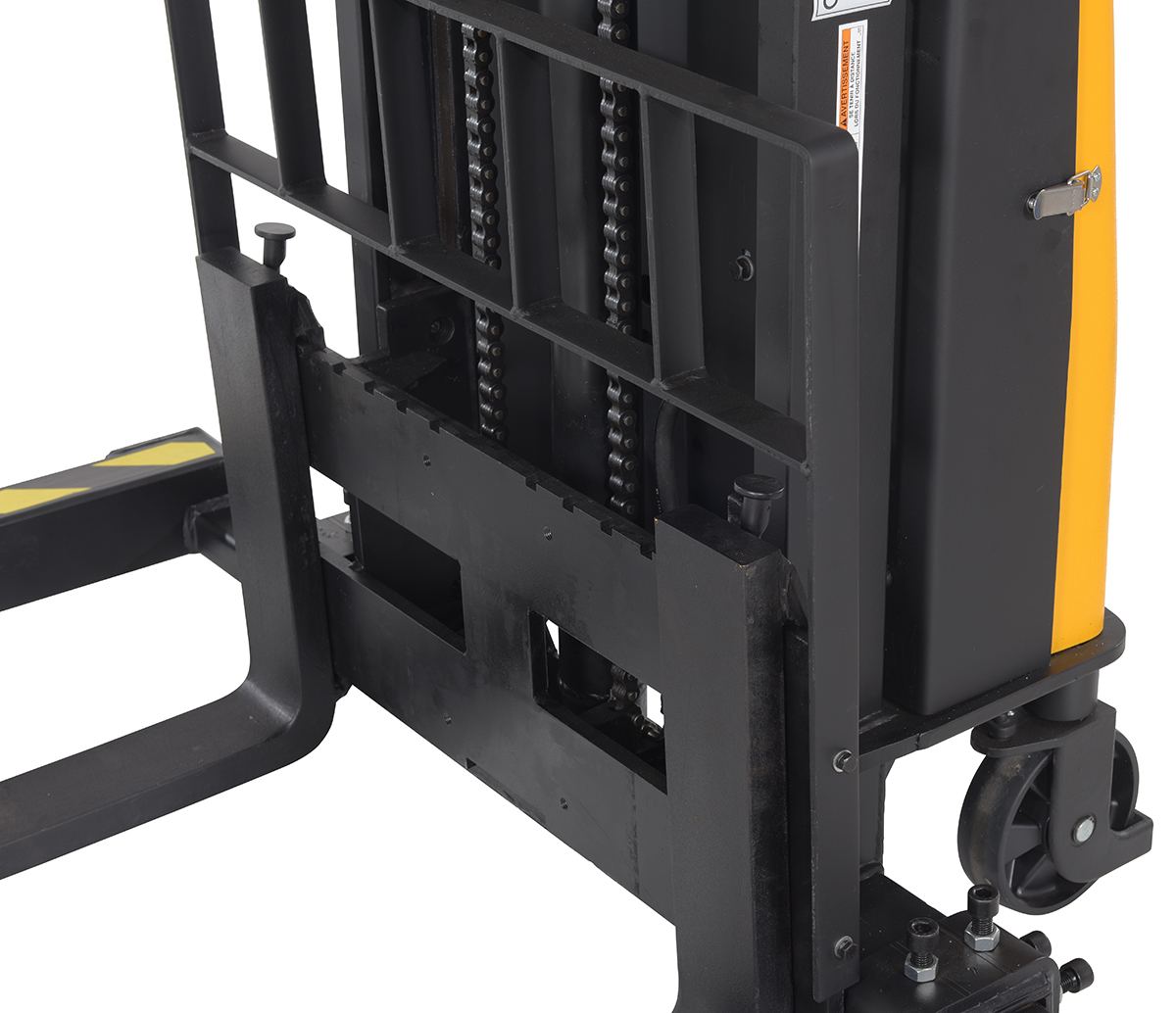

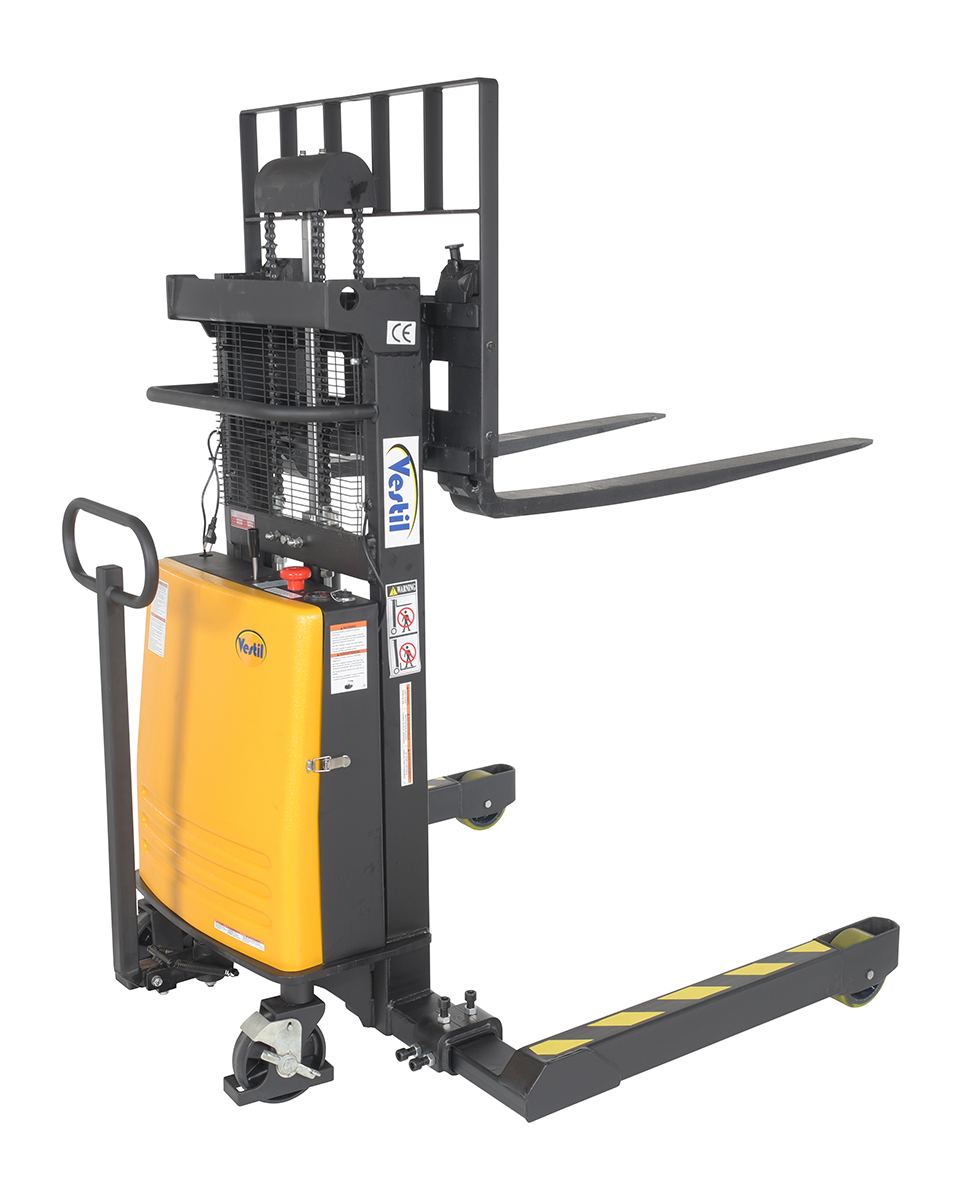

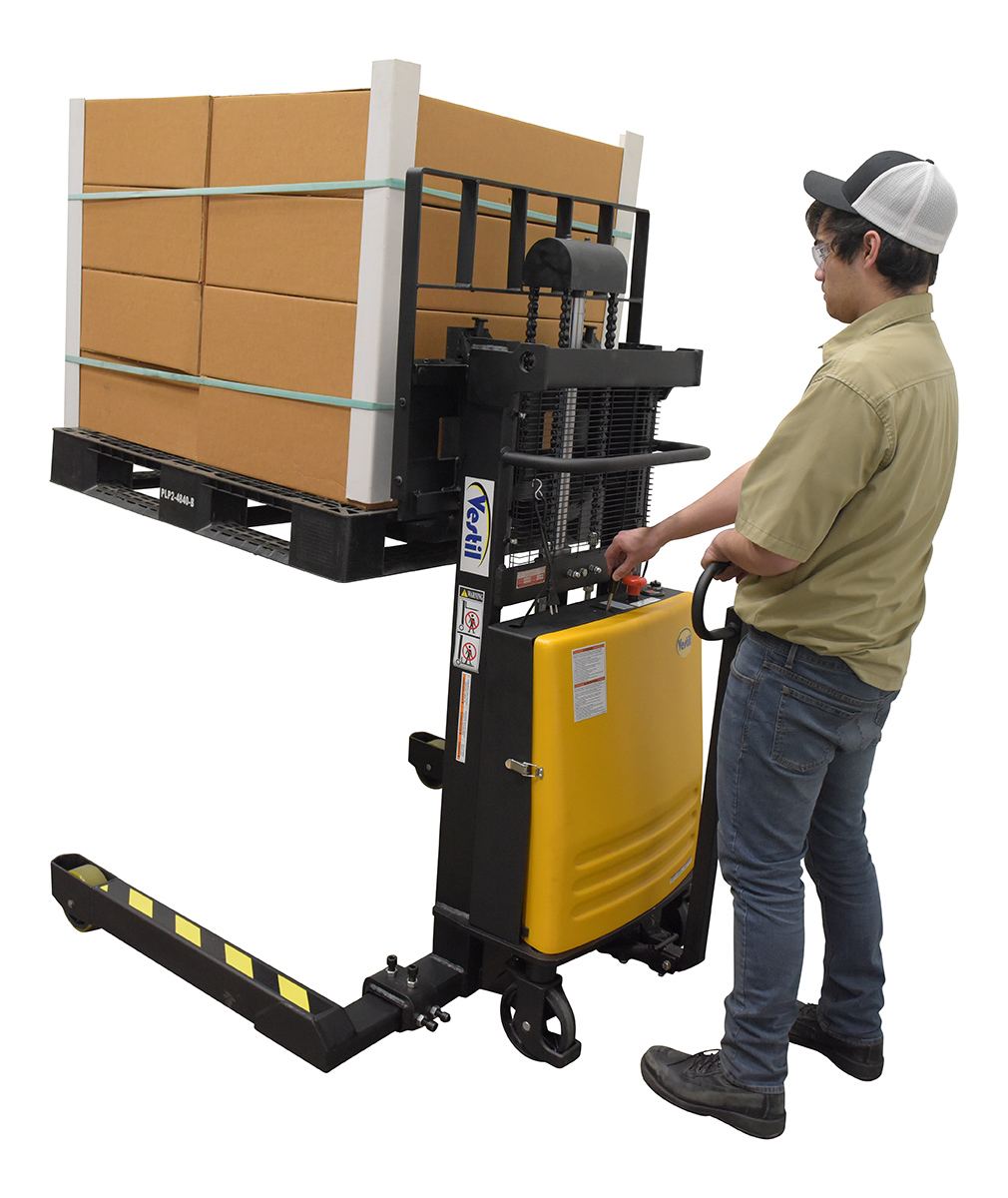

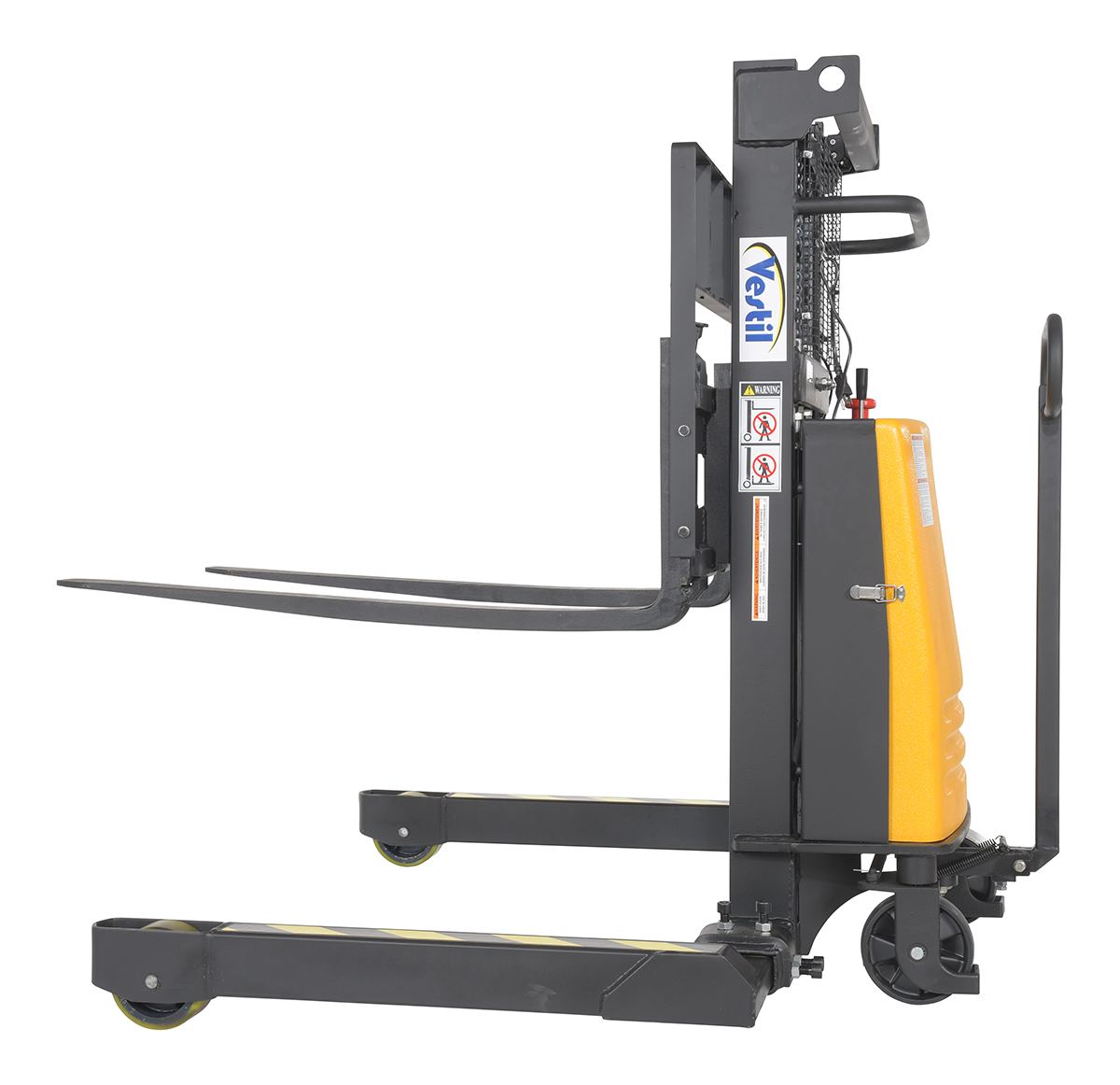

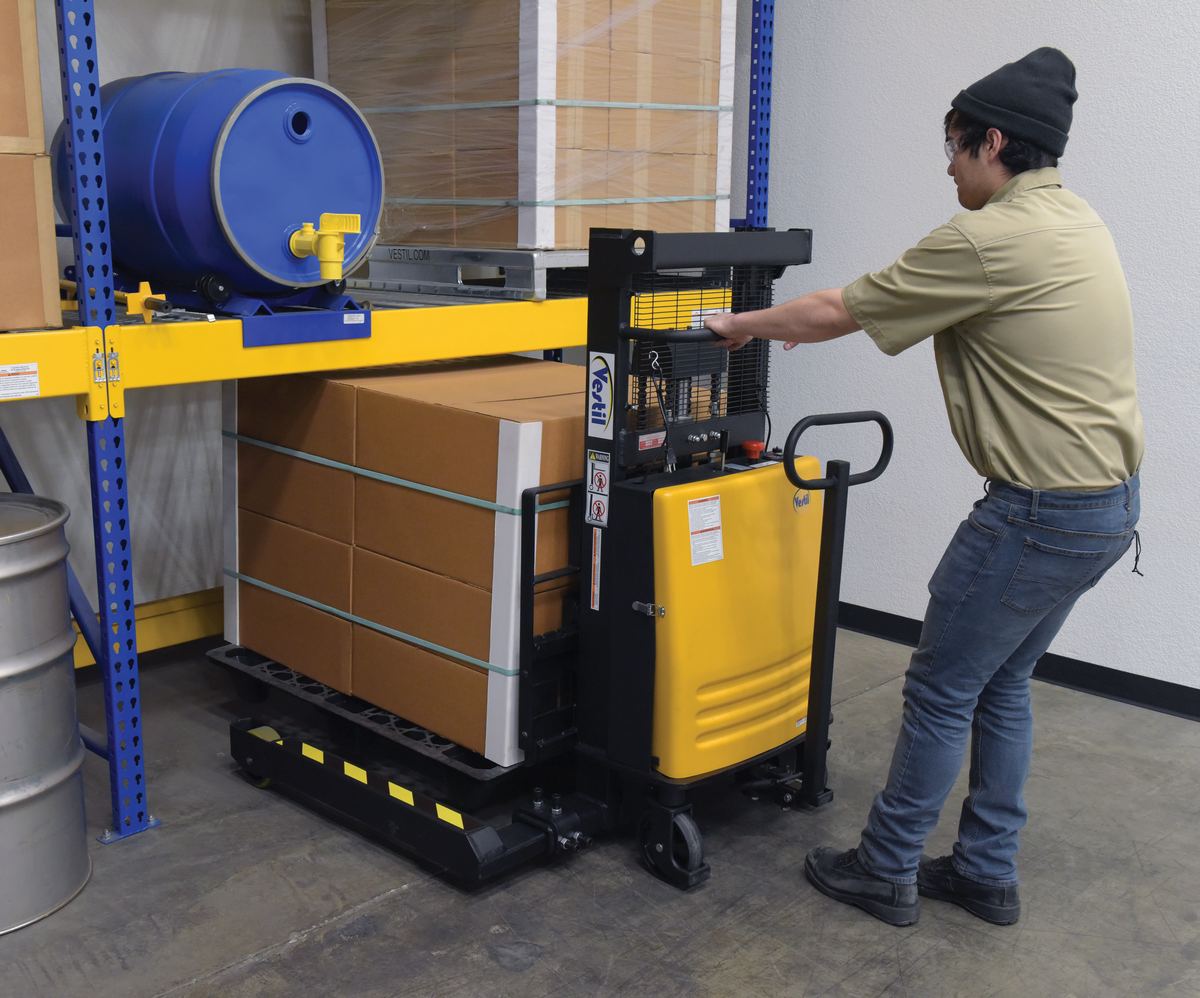

SL3-36-AA

SL3-36-AA

SL-63-AA

SL-63-AA

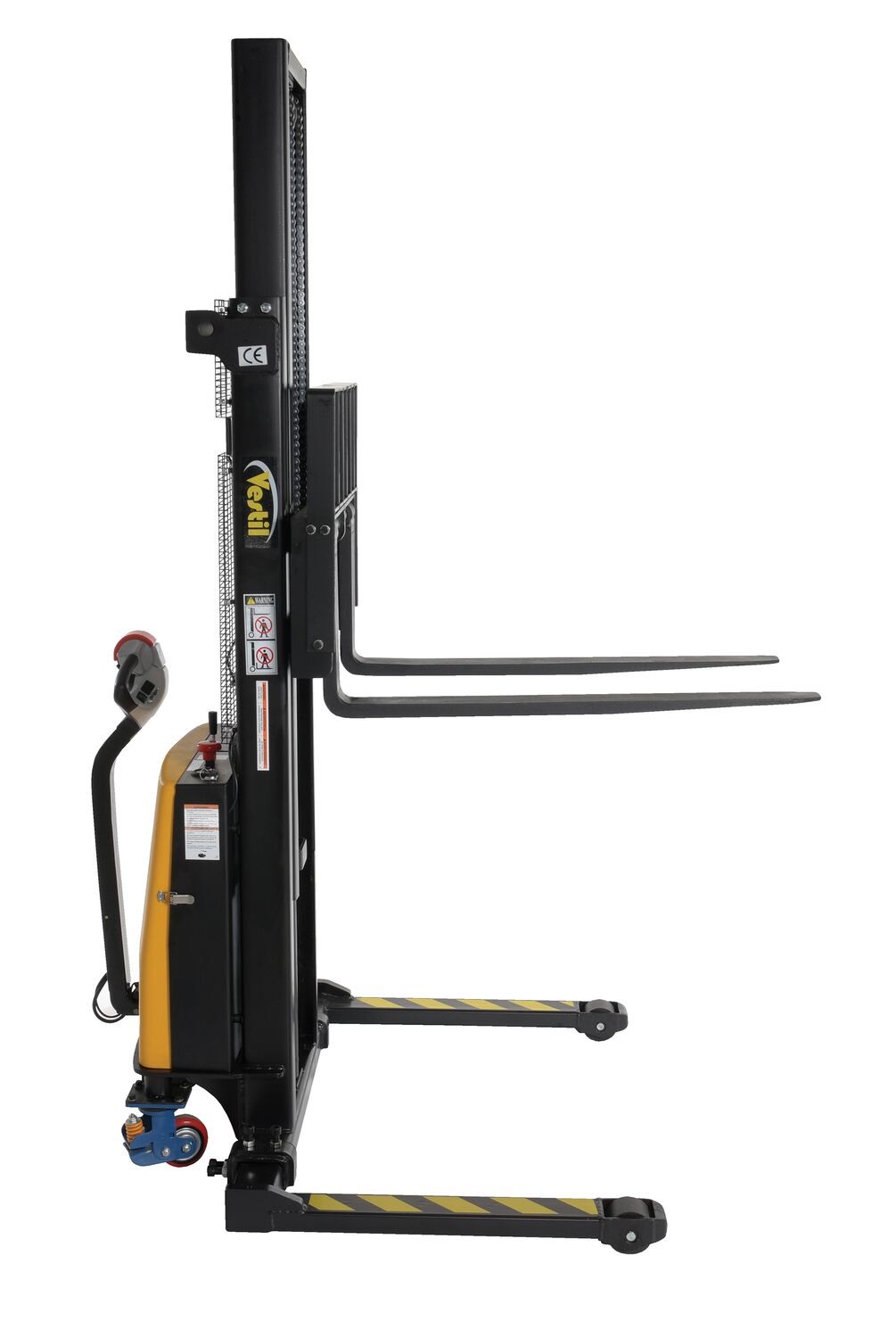

SL-137-AA-PTDS

SL-137-AA-PTDS

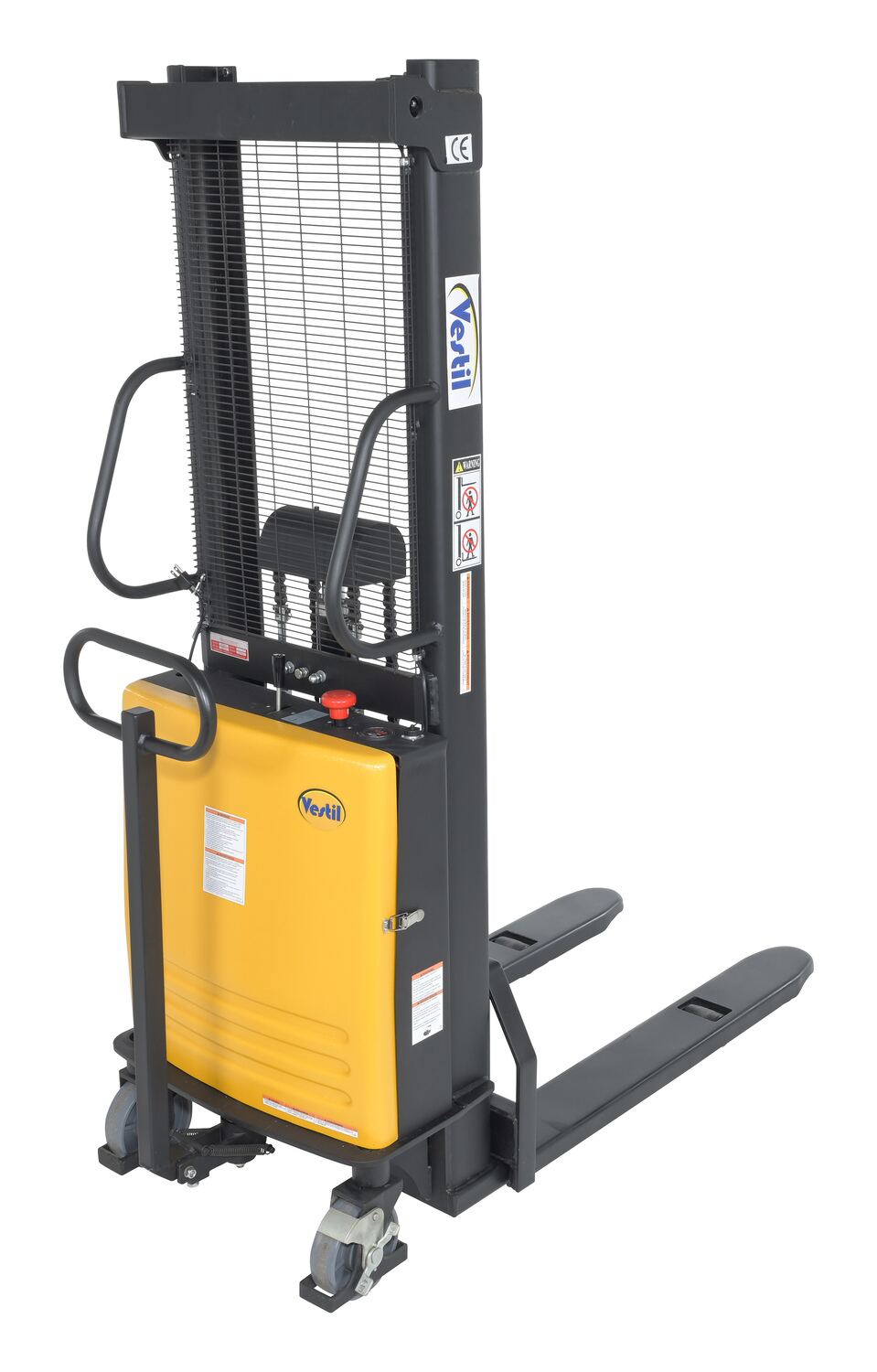

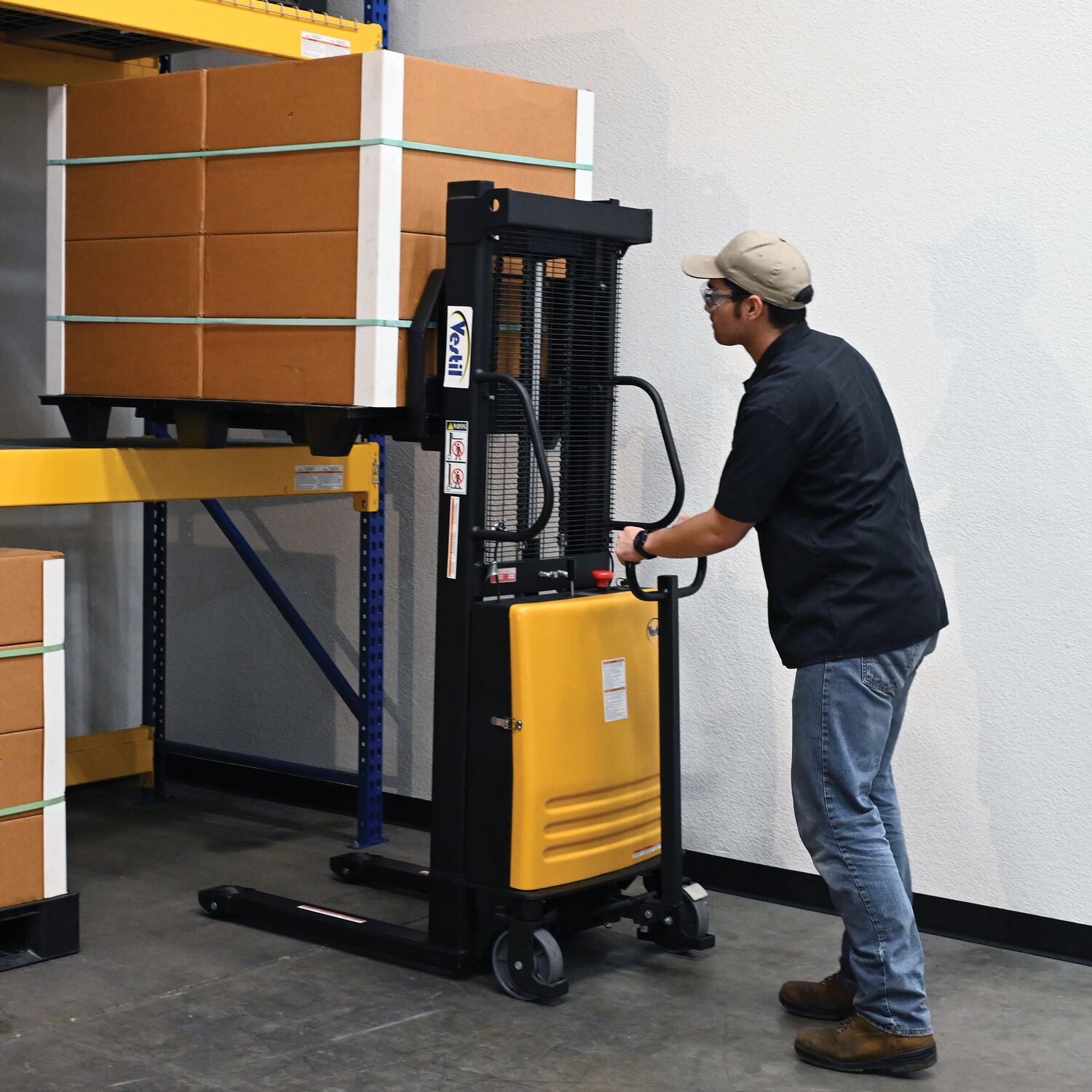

SL-63-FF

SL-63-FF

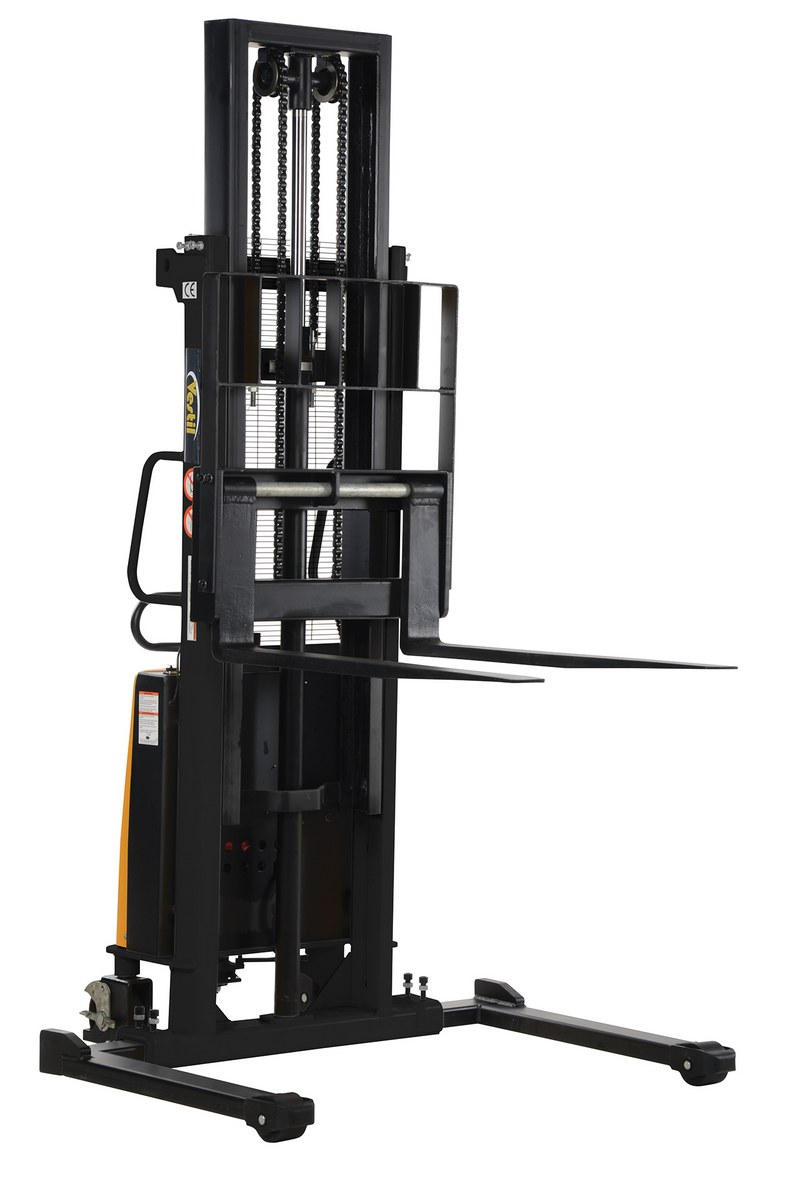

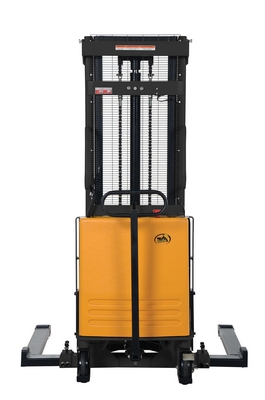

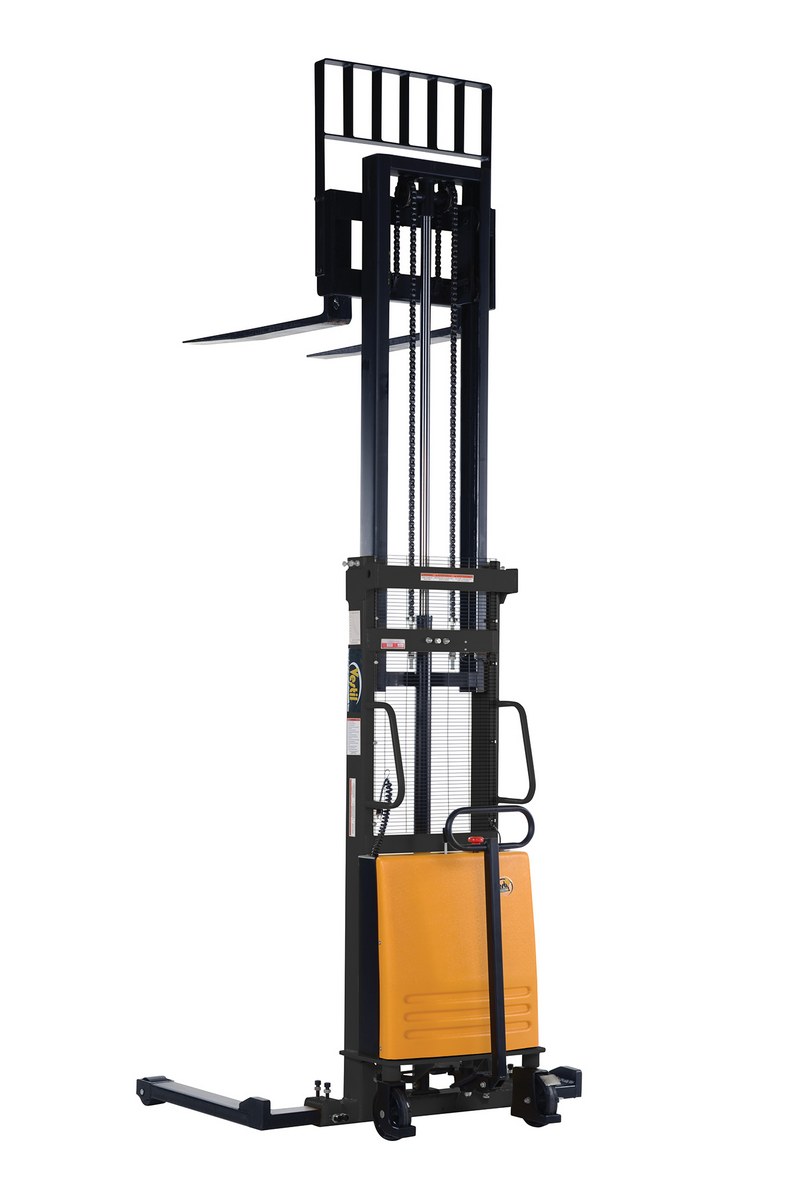

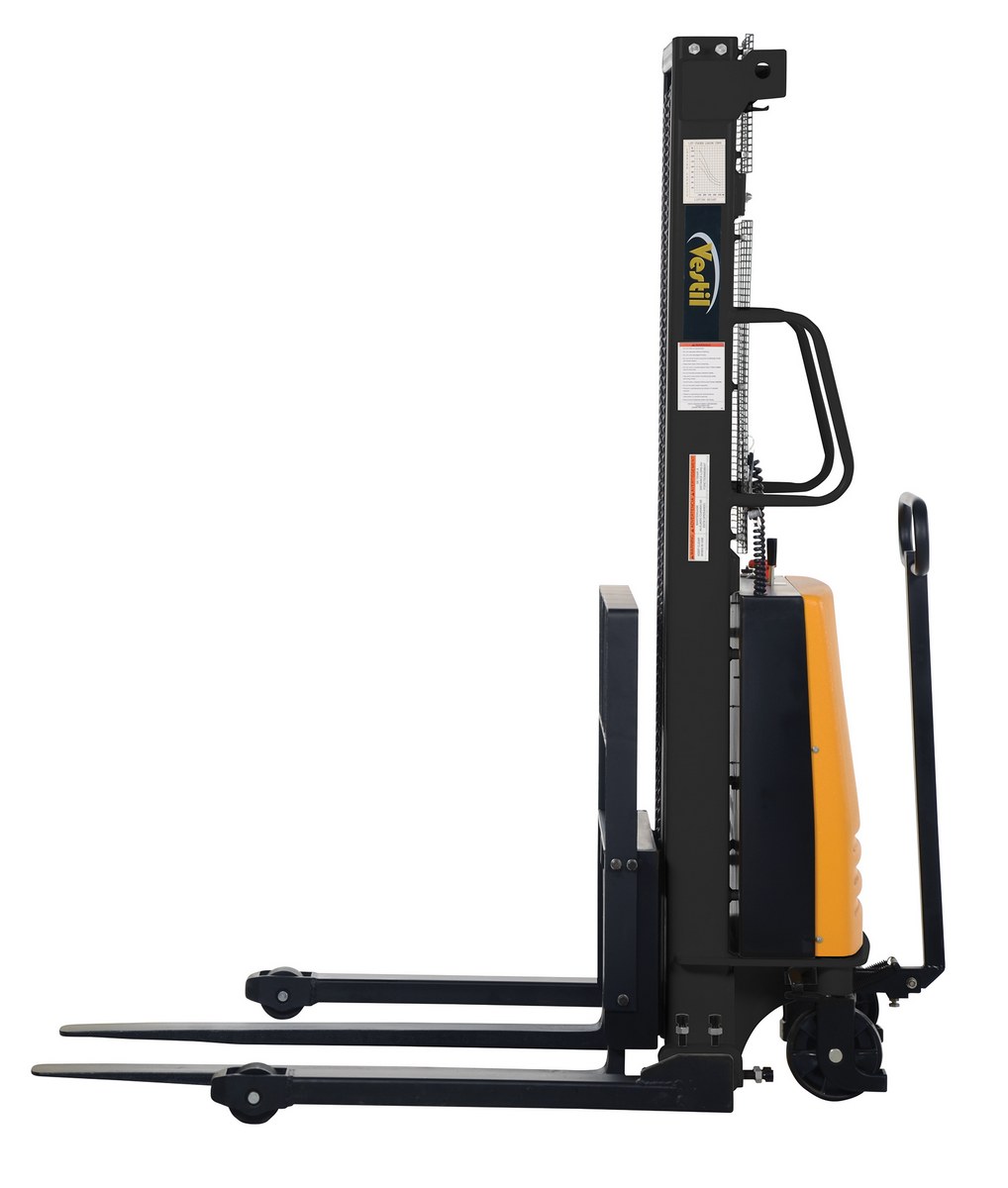

SL-118-AA

SL-118-AA

SL-63-FF

SL-63-FF

SL-63-AA-PTDS

SL-63-AA-PTDS

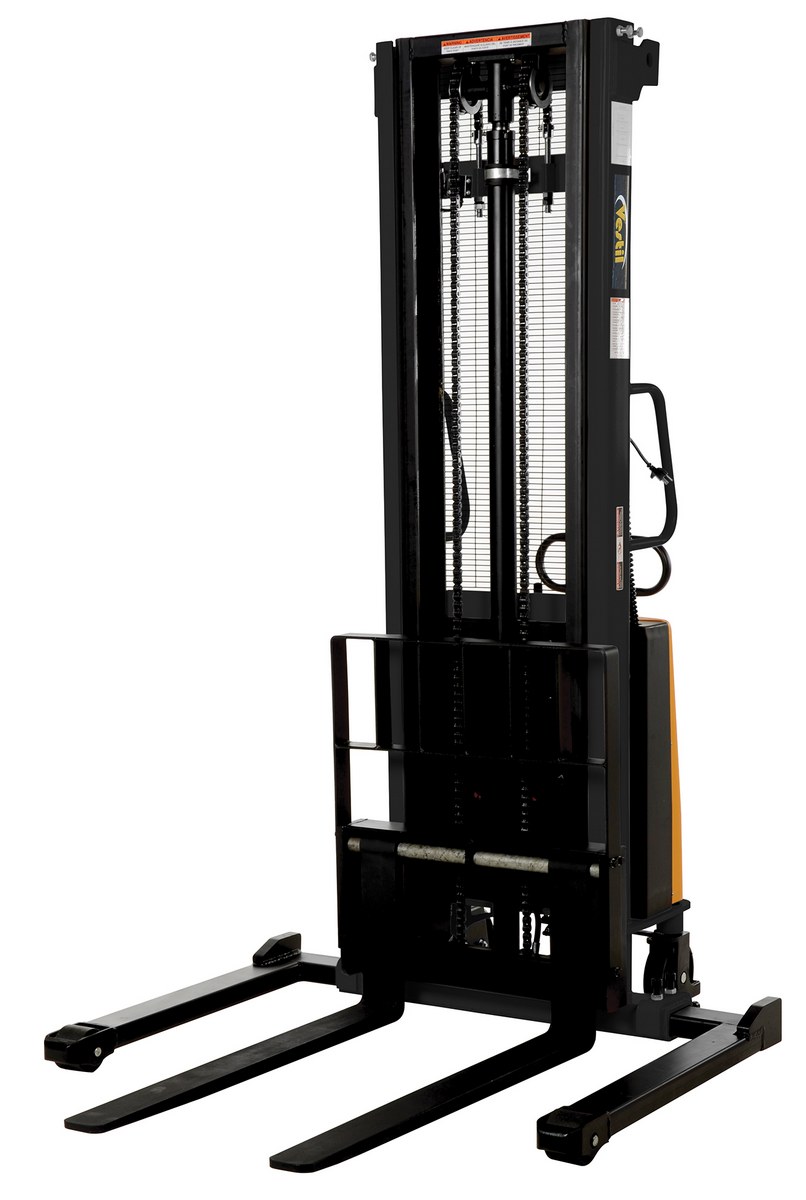

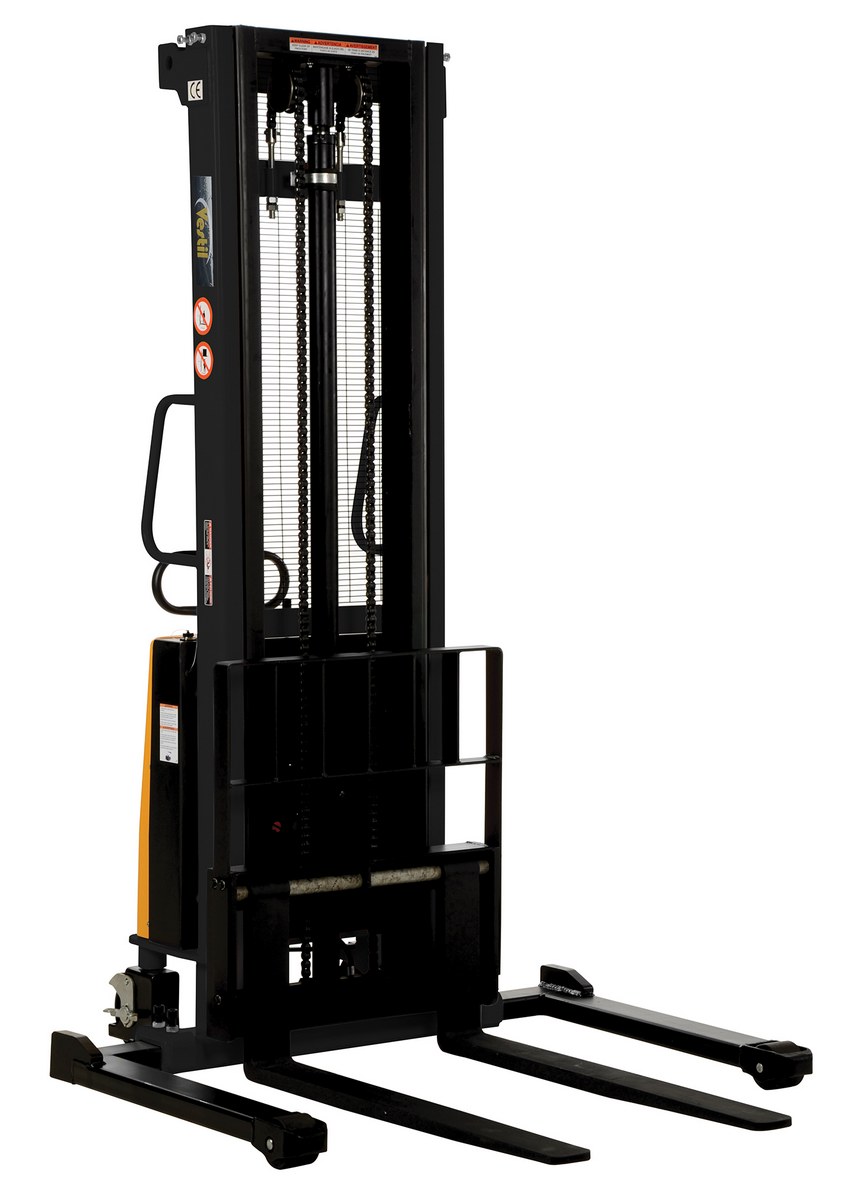

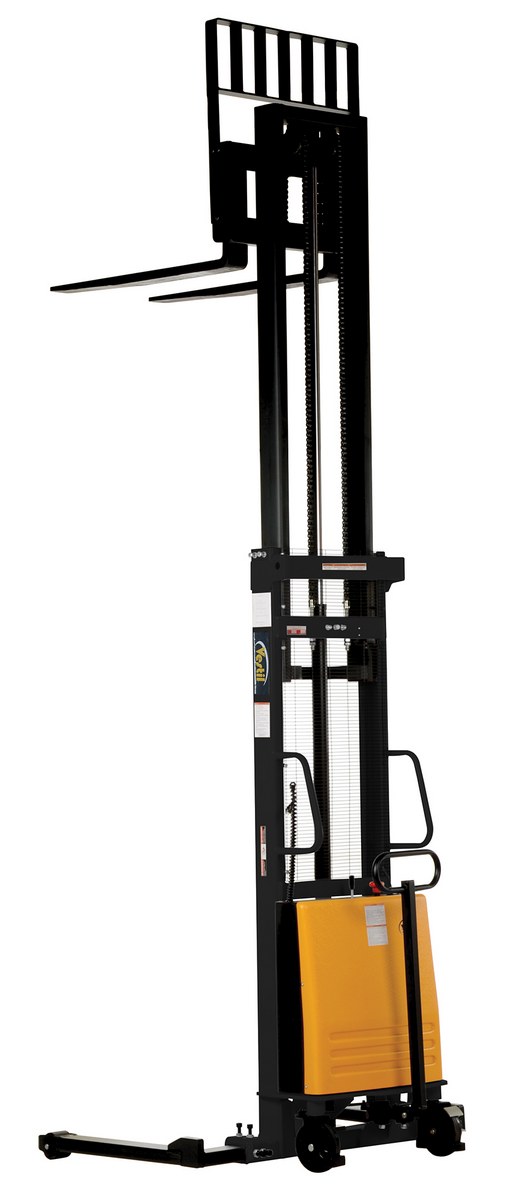

SL-137-AA

SL-137-AA

SL-118-AA-PTDS

SL-118-AA-PTDS

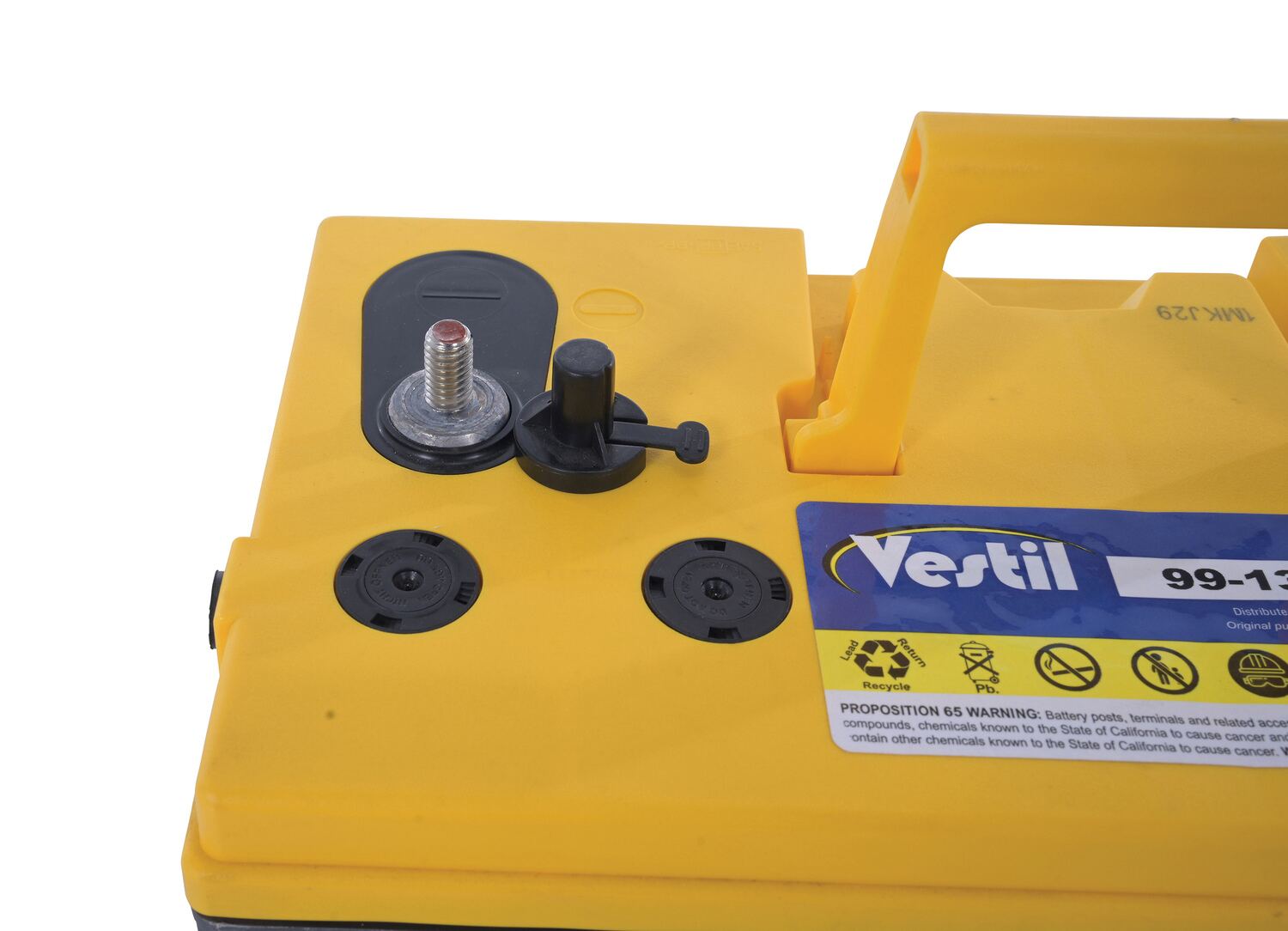

AGM-UPG-SL

AGM-UPG-SL

SL-63-FF

SL-63-FF

SL-137-AA

SL-137-AA

SL3-36-AA

SL3-36-AA

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
SL-118-AA POPULAR SL-118-AA1 Year Limited WarrantySteel Adjustable Stacker with Powered Lift 118 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500		1174
SL-118-AA-PTDS
SL-118-AA-PTDS90 days Limited WarrantySteel Adjustable Stacker with Power Traction Drive System 118 In. Raised Height 2,000 Lb. Capacity Black / YellowPower Source: Electric - Corded
Weight Capacity (lbs): 2000		1252

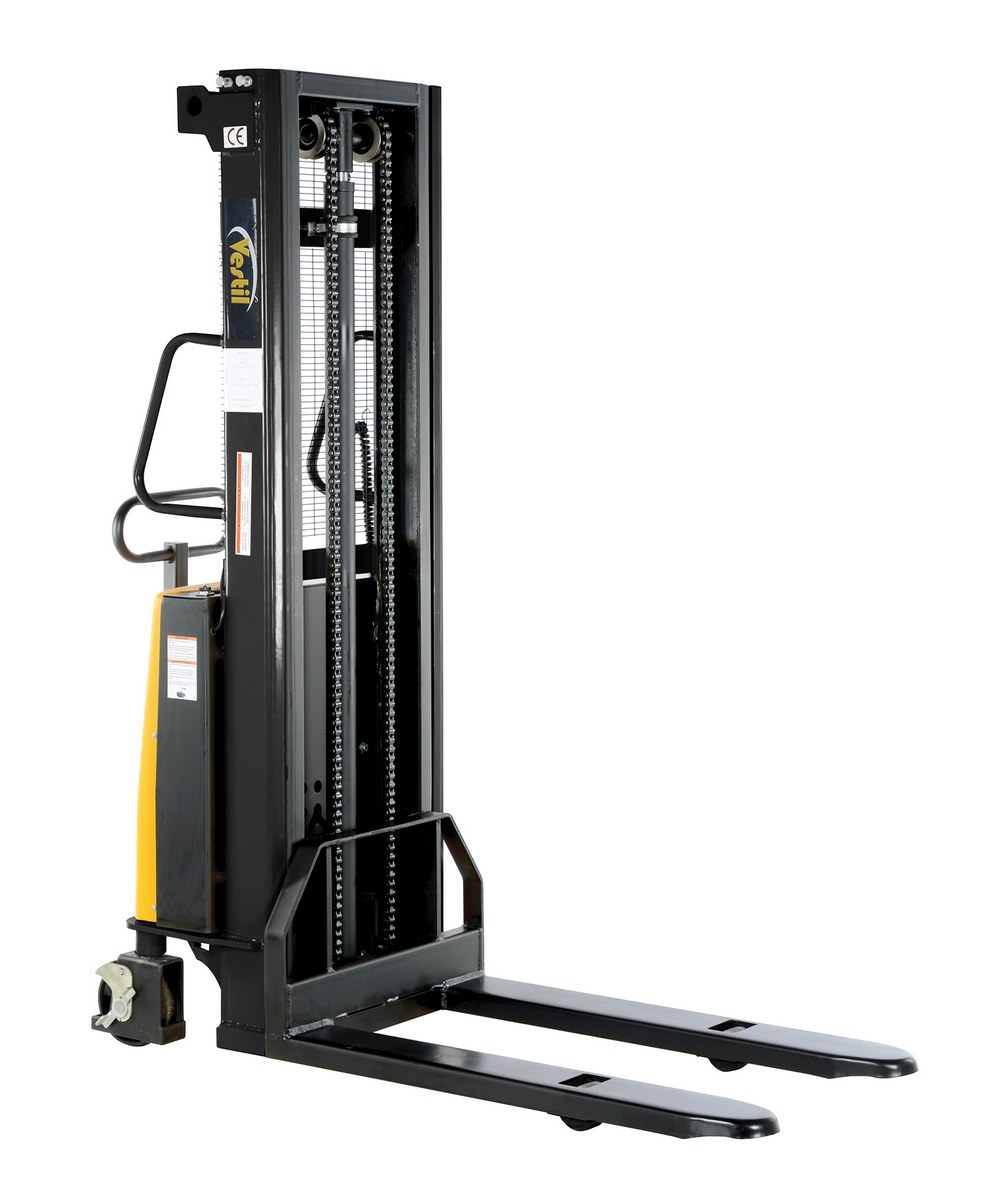

SL-118-FF

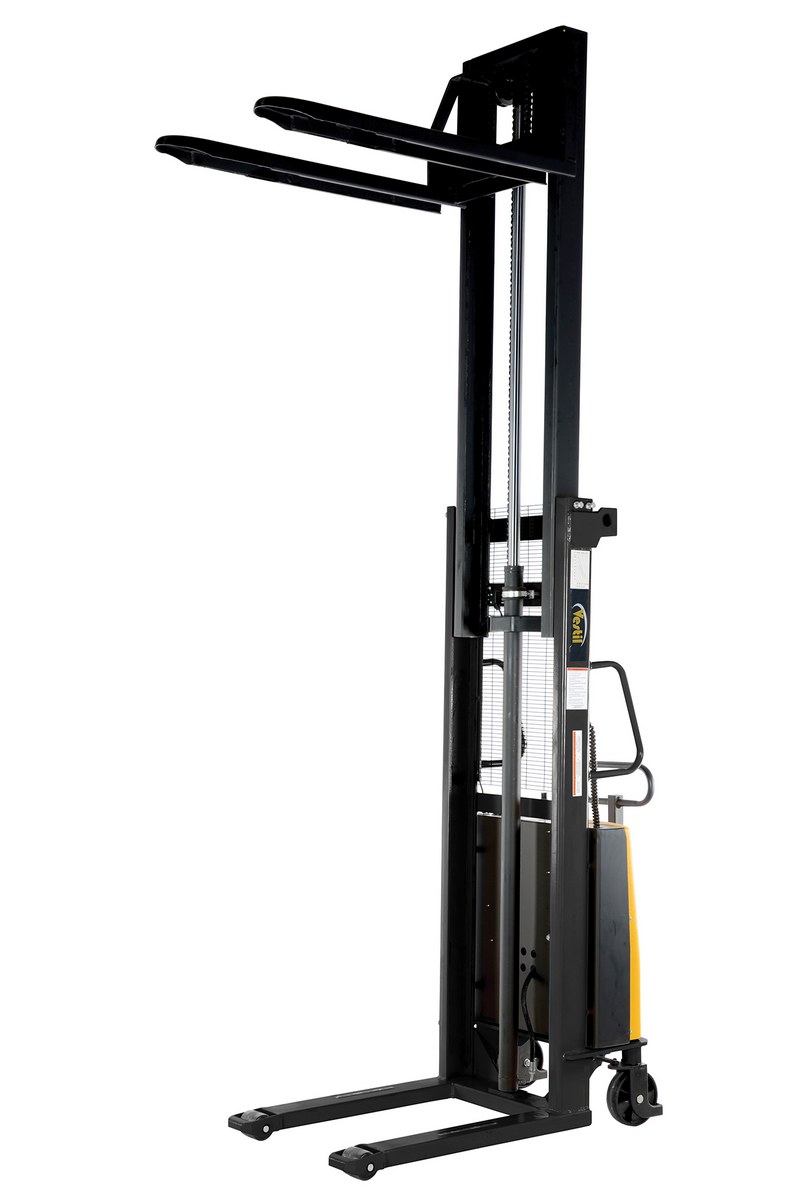

SL-118-FF1 Year Limited WarrantySteel Fixed Stacker with Powered Lift 118 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500		954
SL-137-AA SL-137-AA1 Year Limited WarrantySteel Adjustable Stacker with Powered Lift 137 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.) at 0-62 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500		1265
SL-137-AA-PTDS

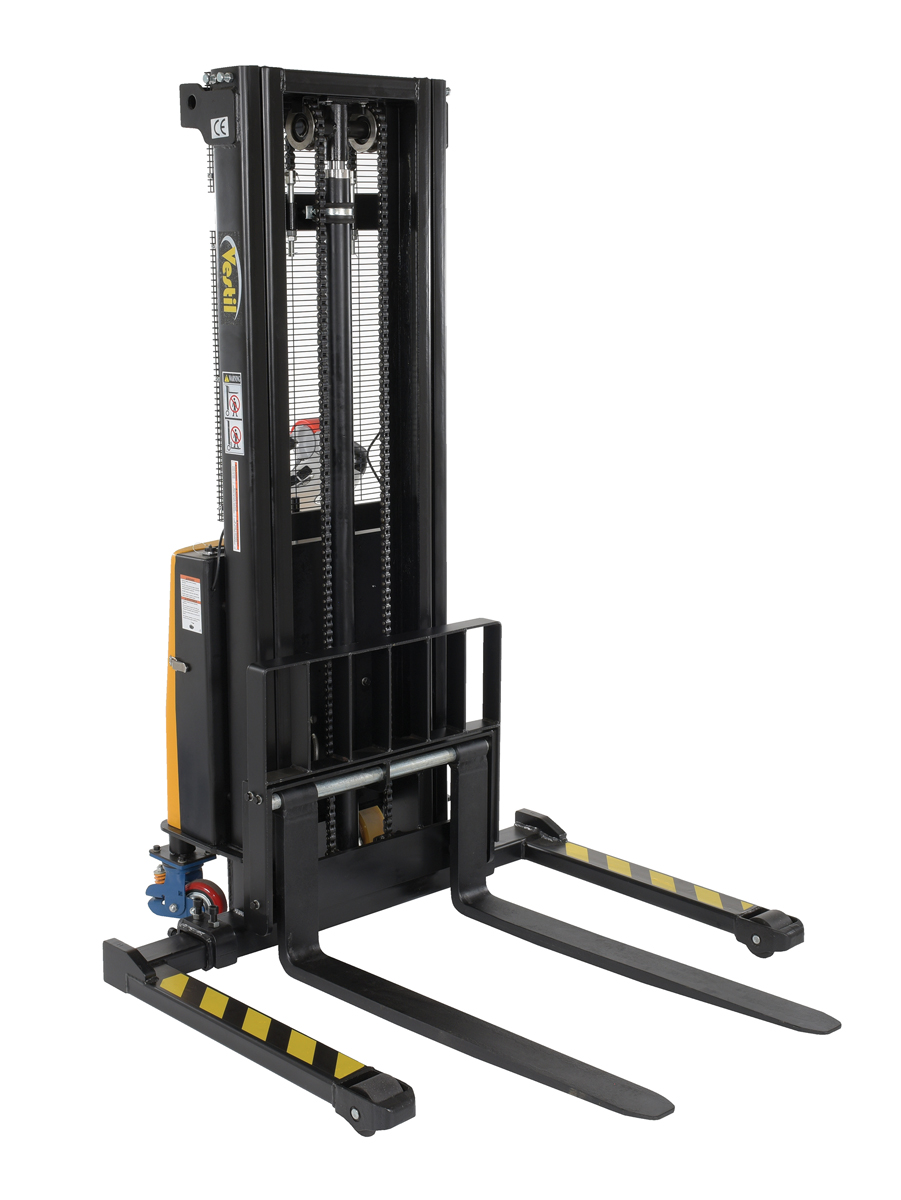

SL-137-AA-PTDS90 days Limited WarrantySteel Adjustable Stacker with Power Traction Drive System 137 In. Raised Height 2,000 Lb. Capacity Black / YellowPower Source: Electric - Corded
Weight Capacity (lbs): 2000		1378

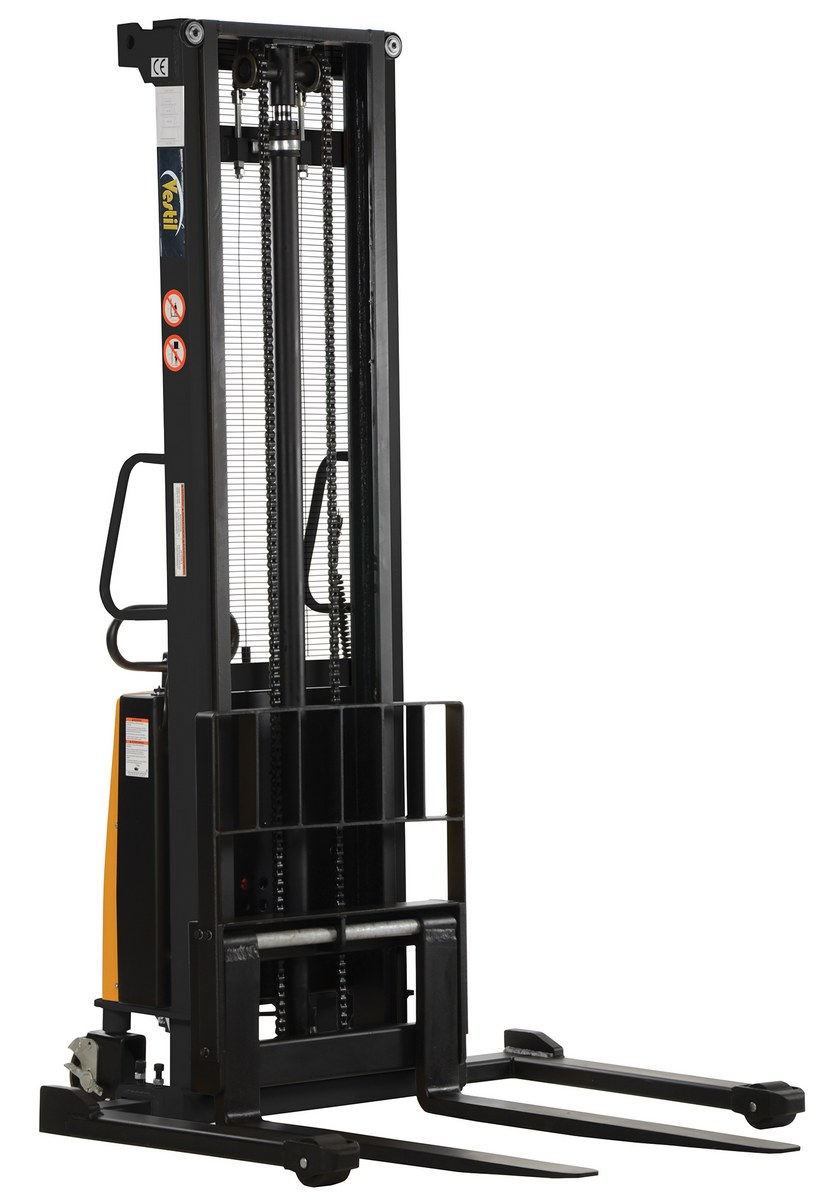

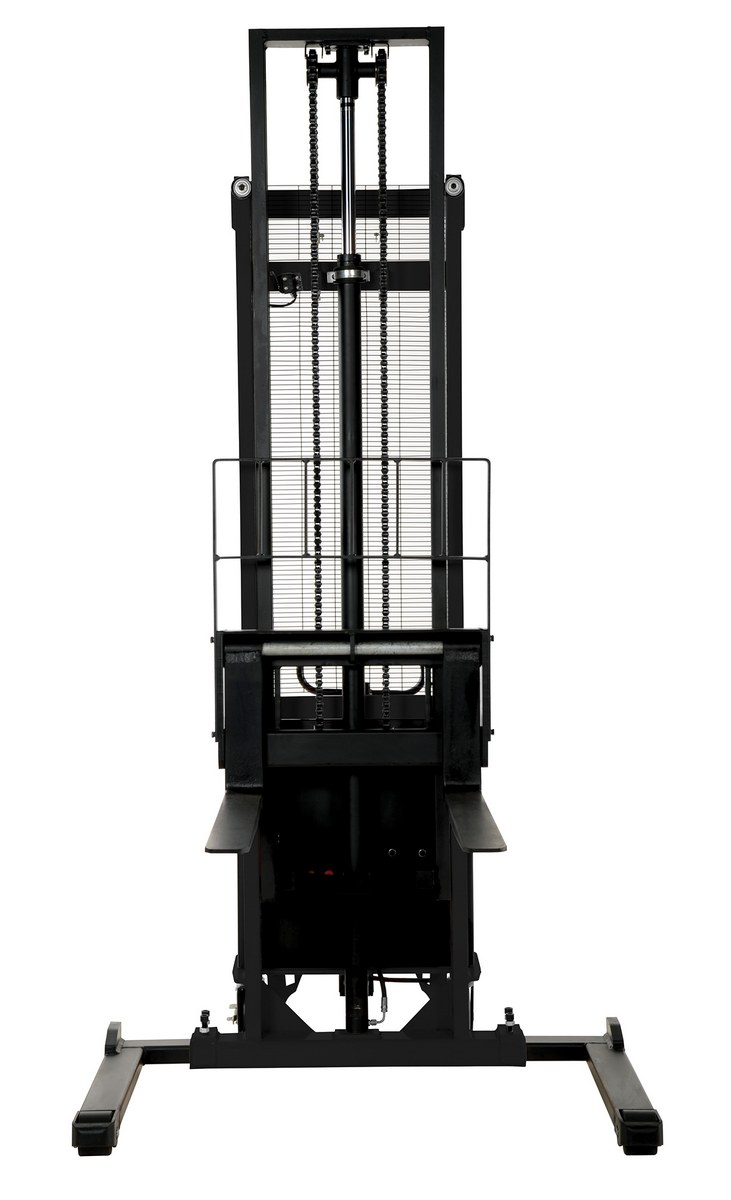

SL-150-AA SL-150-AA1 Year Limited WarrantySteel Adjustable Stacker with Powered Lift 150 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500		1266

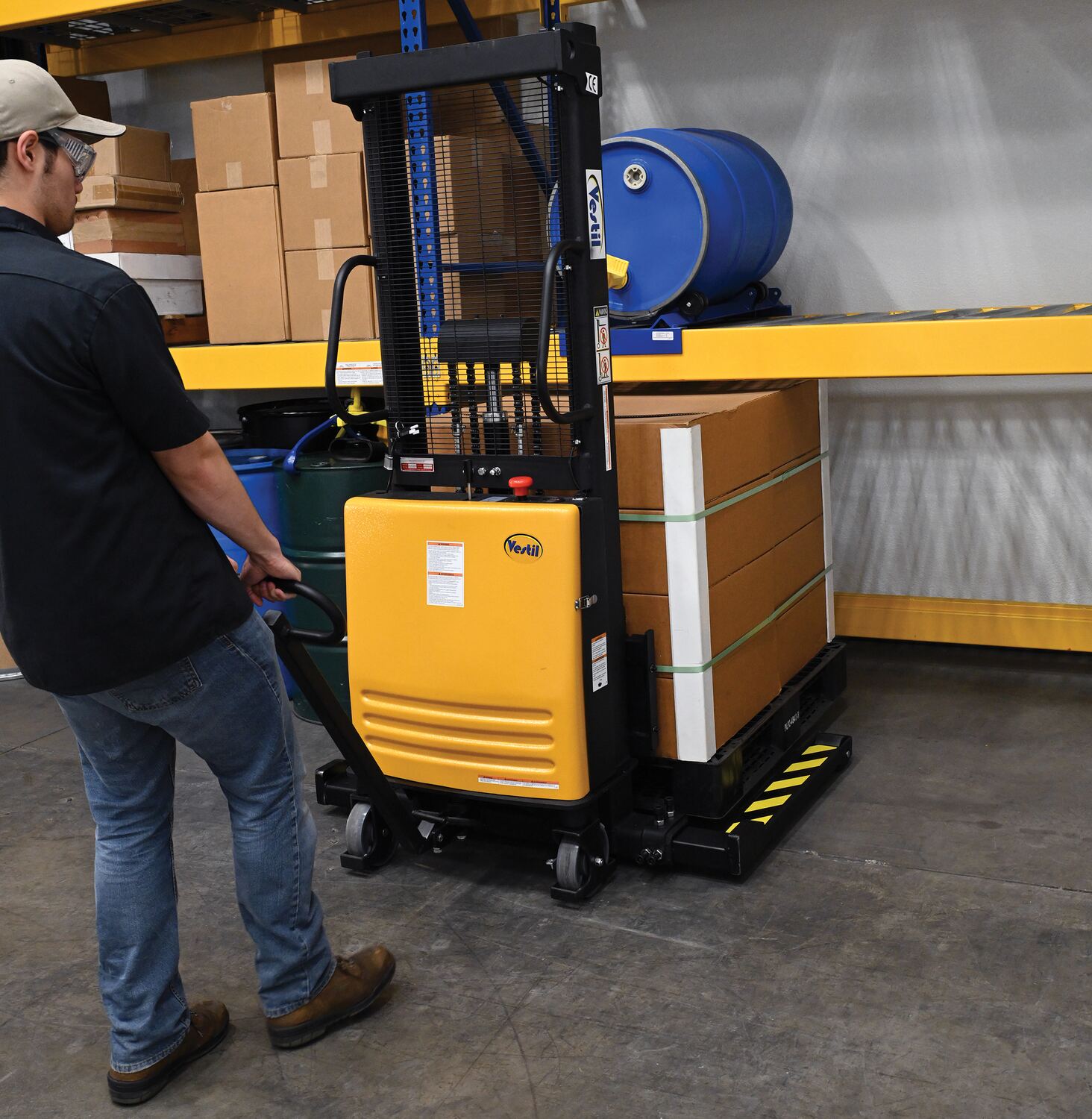

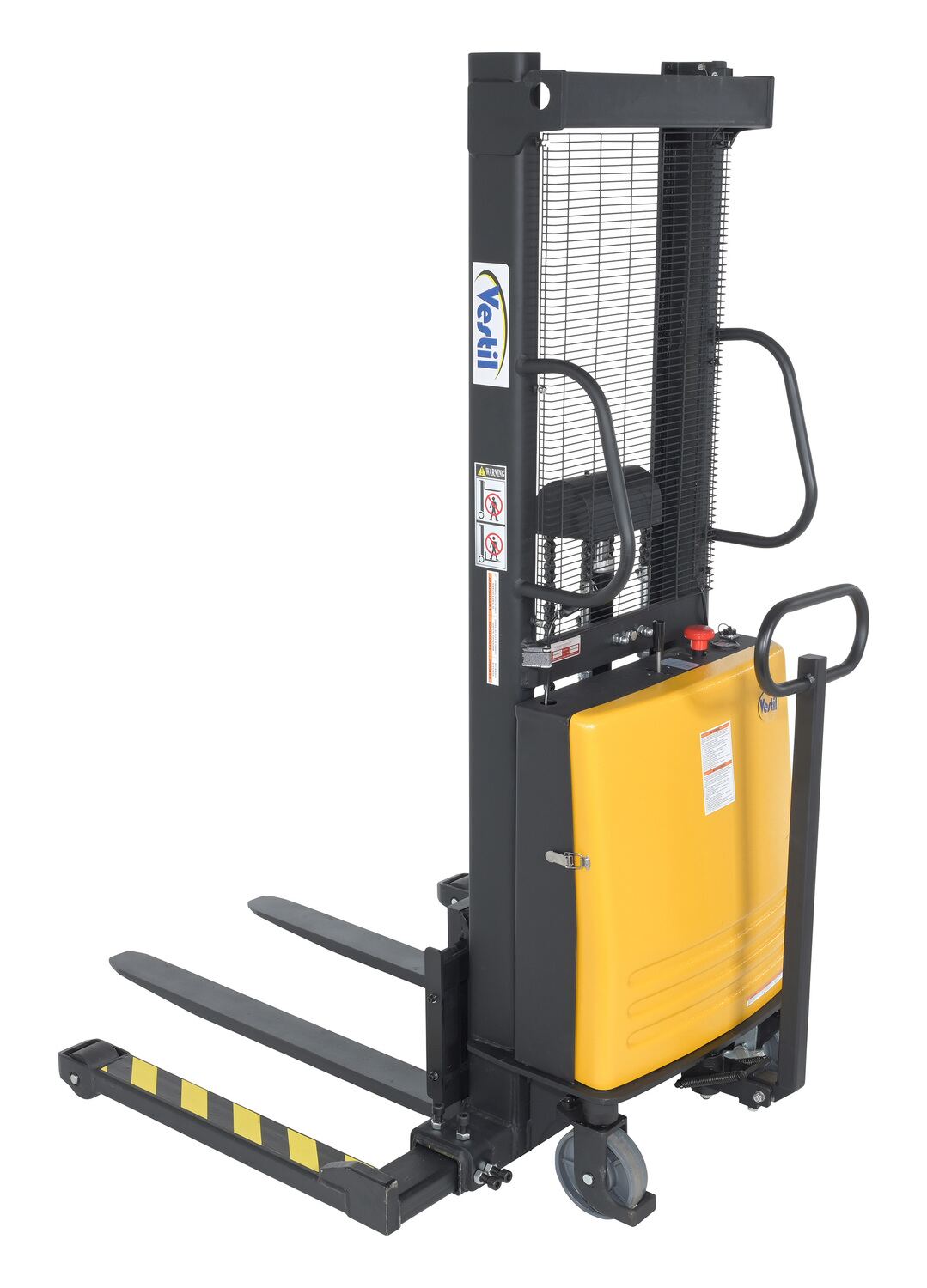

SL-63-AA SL-63-AA1 Year Limited WarrantySteel Adjustable Stacker with Powered Lift 63 In. Raised Height 2,000 Lb. Capacity Black/YellowUniform Capacity (lb.) at 0-63 (in.): 2,000
Raised Height (in.): 63		990
SL-63-AA-PTDS
SL-63-AA-PTDS90 days Limited WarrantySteel Adjustable Stacker with Power Traction Drive System 63 In. Raised Height 2,000 Lb. Capacity Black/YellowPower Source: Electric - Corded
Weight Capacity (lbs): 2000		1094
SL-63-FF

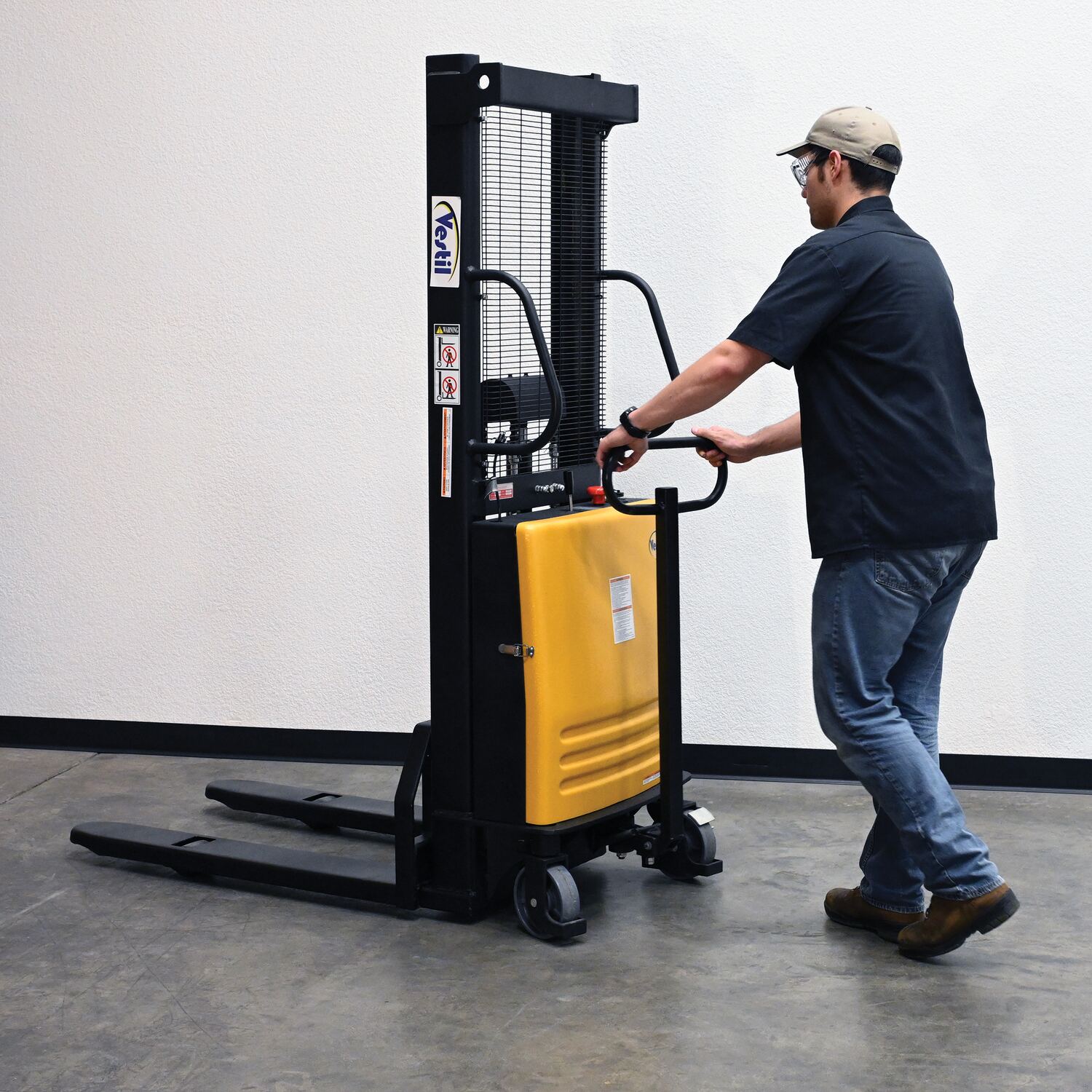

SL-63-FF1 Year Limited WarrantySteel Fixed Stacker with Powered Lift 63 In. Raised Height 2,000 Lb. Capacity YellowUniform Capacity (lb.) at 0-63 (in.): 2,000
Raised Height (in.): 63		668

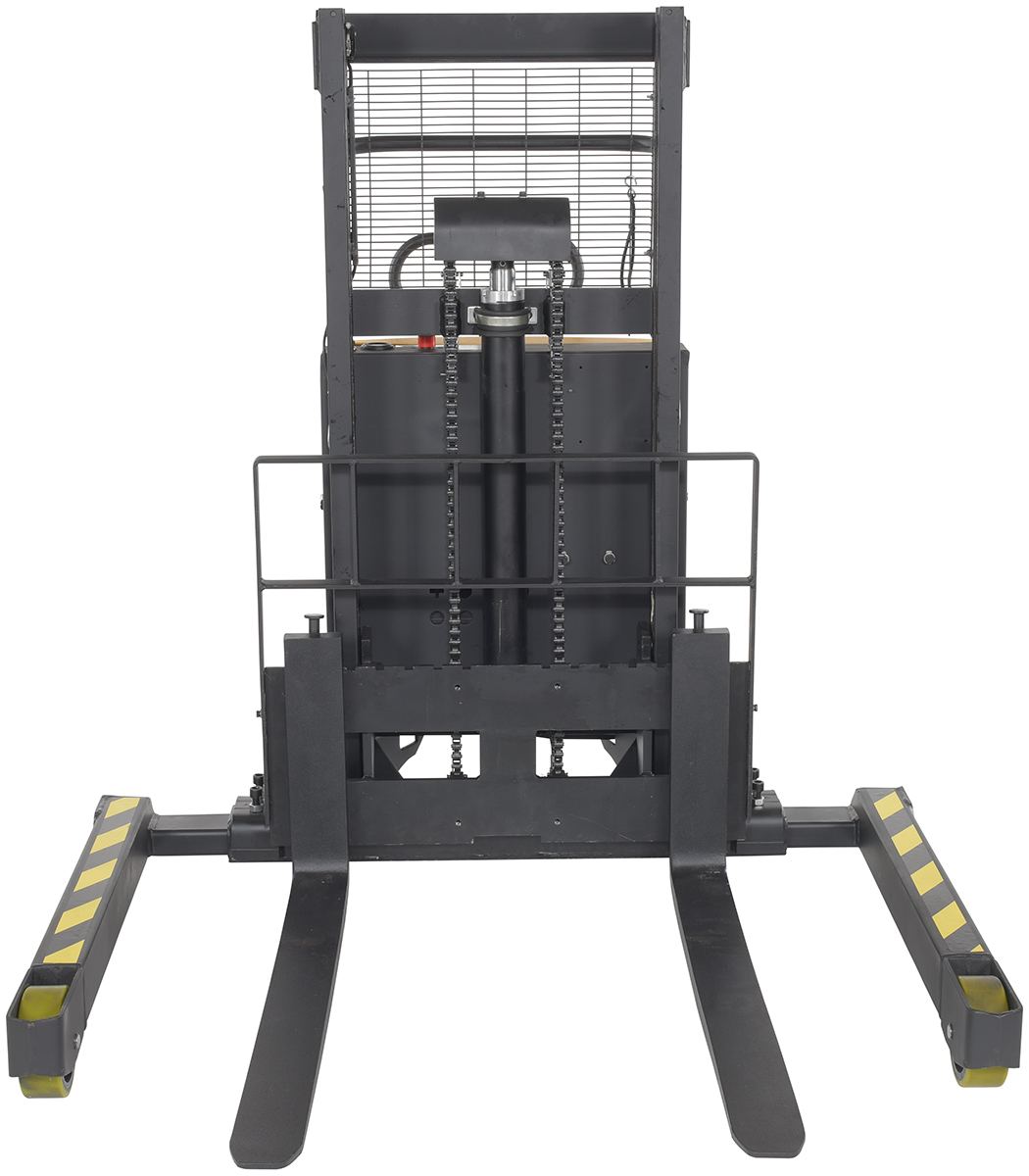

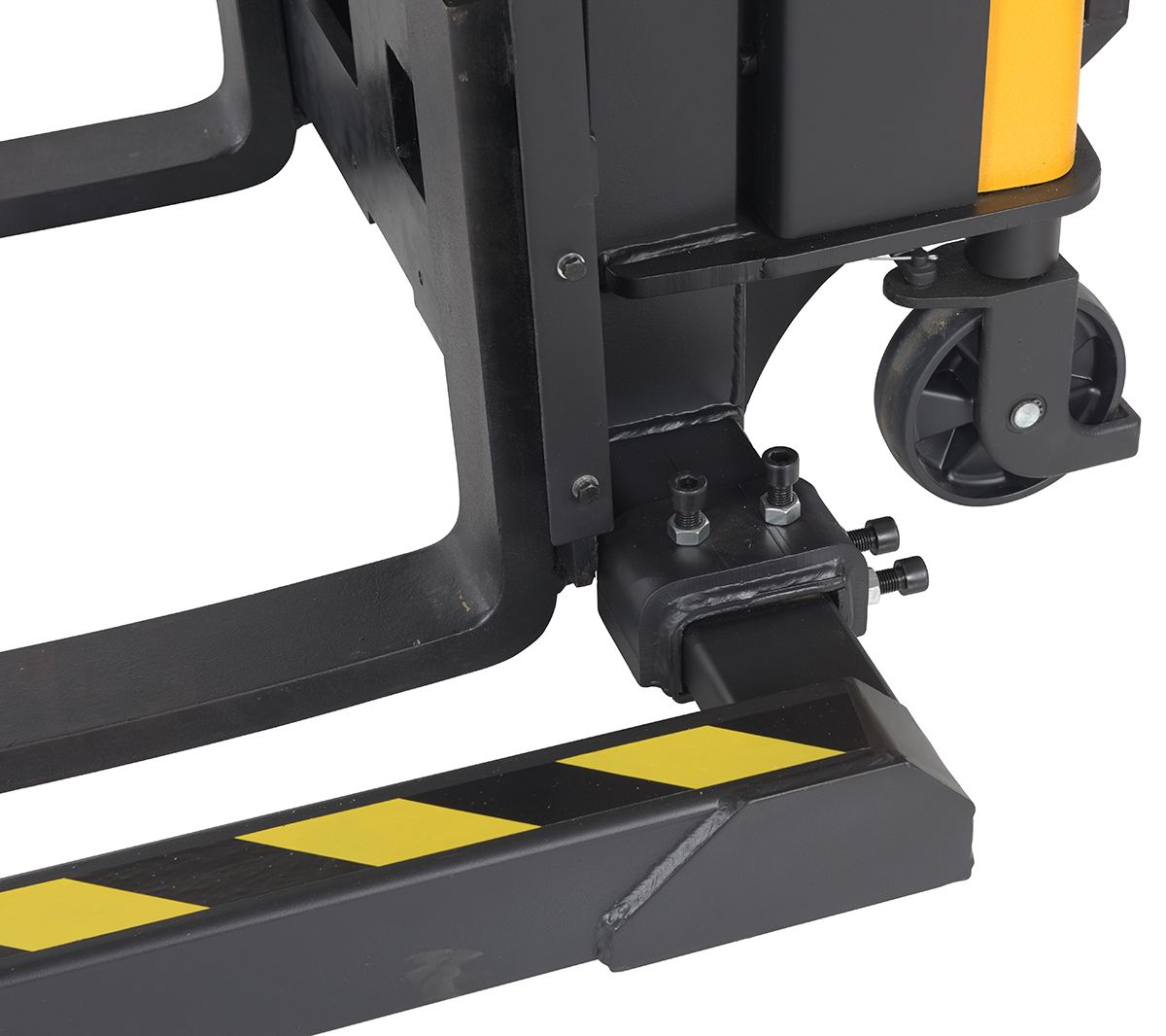

SL3-36-AA SL3-36-AA1 Year Limited WarrantySteel Adjustable Stacker with Powered Lift 36 In. Raised Height 3,000 Lb. Capacity BlackUniform Capacity (lb.): 3000
Lowered Height (in.): 2.125"		786

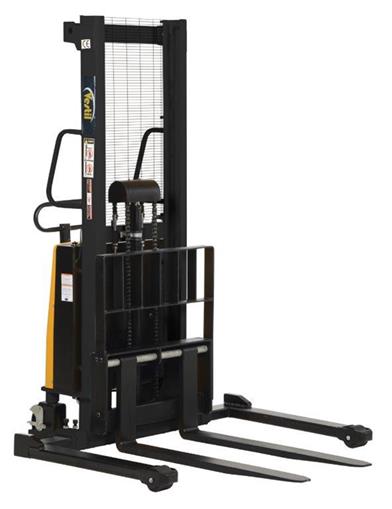

SL3-63-AA SL3-63-AA1 Year Limited WarrantySteel Adjustable Stacker with Powered Lift 63 In. Raised Height 3,000 Lb. Capacity BlackUniform Capacity (lb.): 3000
Lowered Height (in.): 2.125"		786

* Uniform Capacity at specific raised height

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

SL-118-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500

SL-118-AA-PTDS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Power Source: Electric - Corded
Weight Capacity (lbs): 2000
Power Source: Electric - Corded
Weight Capacity (lbs): 2000

SL-118-FF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500

SL-137-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-62 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500
Uniform Capacity (lb.) at 0-62 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500

SL-137-AA-PTDS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Power Source: Electric - Corded
Weight Capacity (lbs): 2000
Power Source: Electric - Corded
Weight Capacity (lbs): 2000

SL-150-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500

SL-63-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Raised Height (in.): 63
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Raised Height (in.): 63

SL-63-AA-PTDS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Power Source: Electric - Corded
Weight Capacity (lbs): 2000
Power Source: Electric - Corded
Weight Capacity (lbs): 2000

SL-63-FF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Raised Height (in.): 63
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Raised Height (in.): 63

SL3-36-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Lowered Height (in.): 2.125"
Uniform Capacity (lb.): 3000
Lowered Height (in.): 2.125"

SL3-63-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Lowered Height (in.): 2.125"
Uniform Capacity (lb.): 3000
Lowered Height (in.): 2.125"
For More Details of the Option Click the Red Model Button

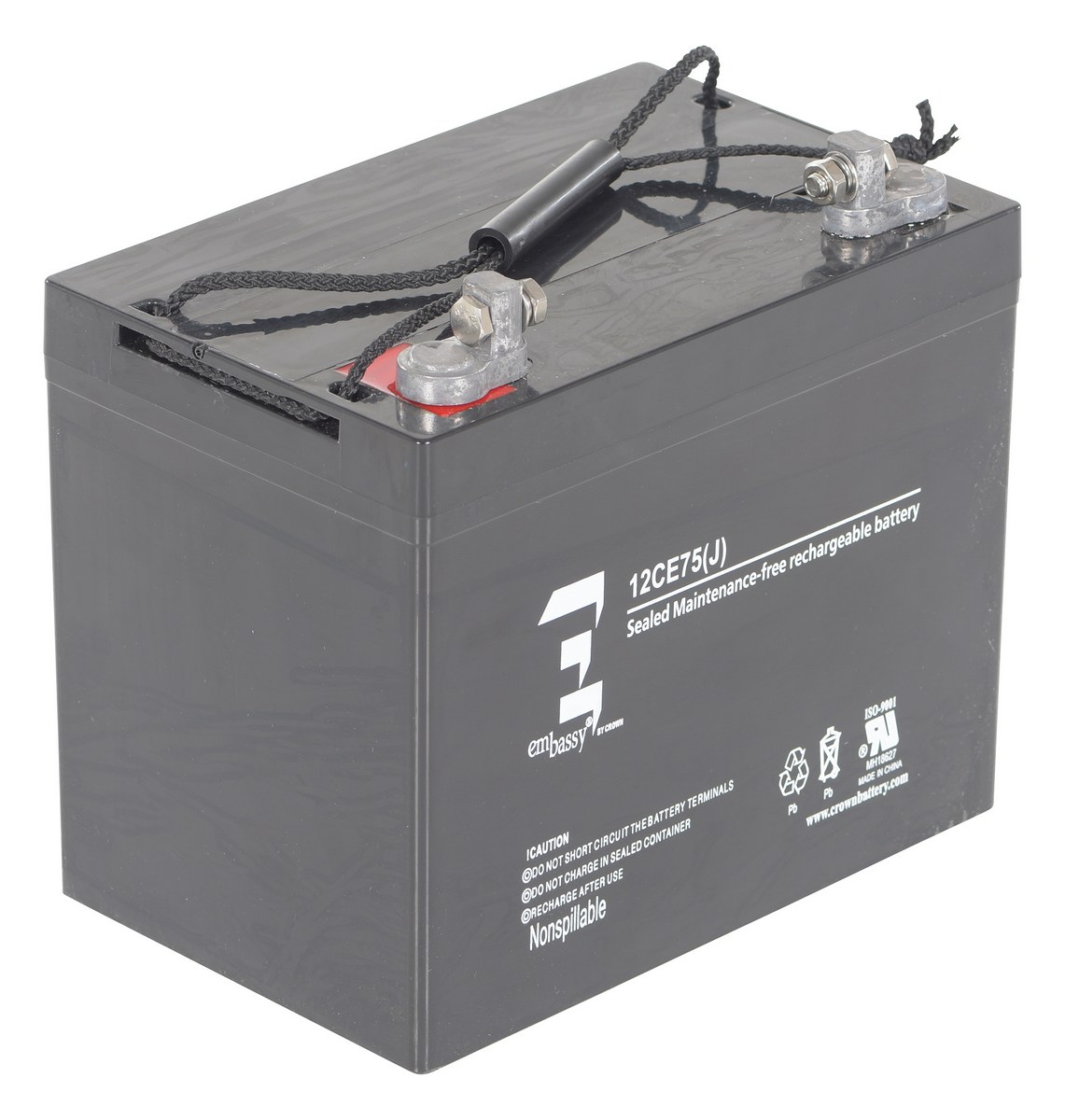

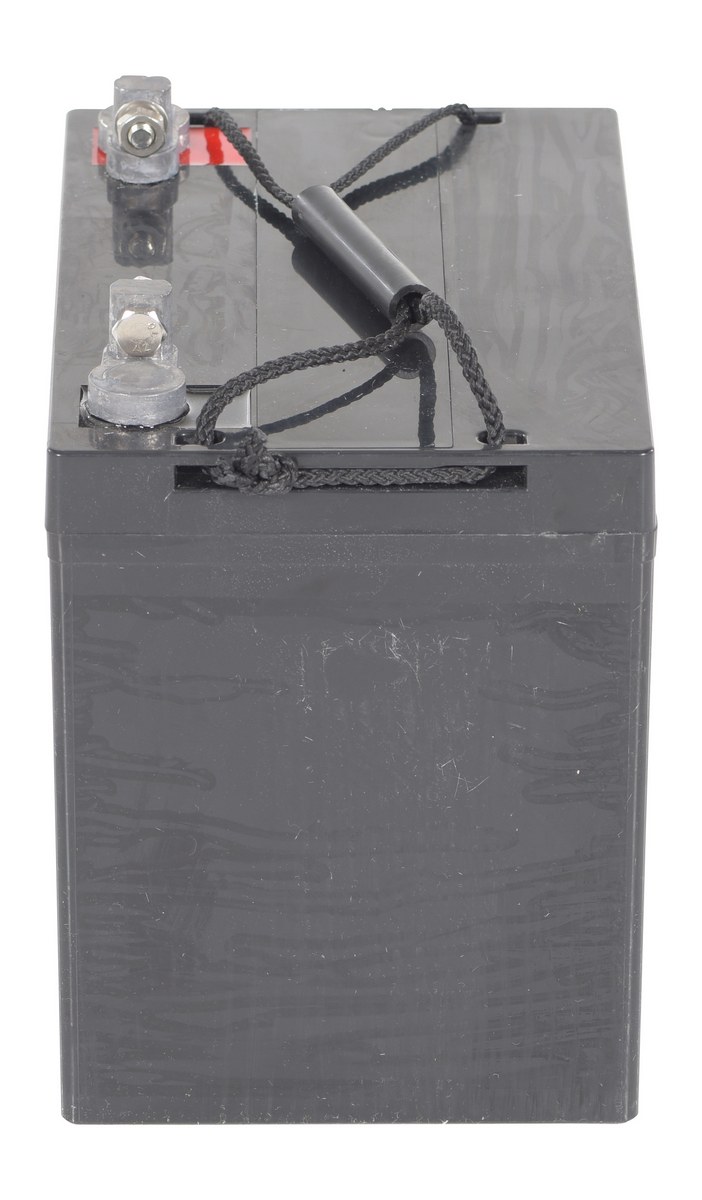

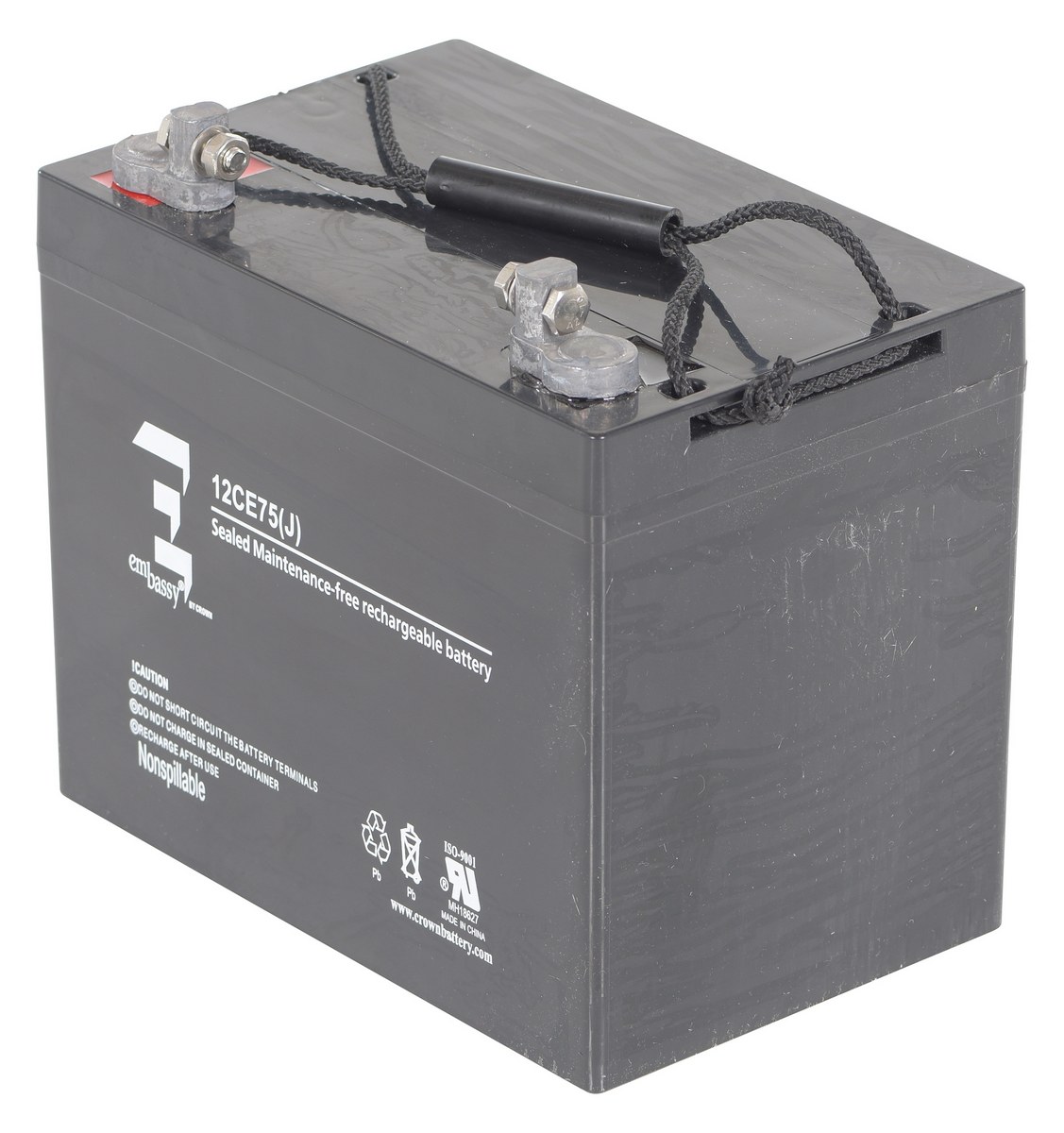

AGM-UPG-1-12V AGM-UPG-1-12V90 Days Limited WarrantyFactory Installed Lead Acid Absorbed Glass Mat (AGM) Upgrade 12 Volt 75Ah Battery Quantity 1Battery Quantity: 1
Volts: 12		60

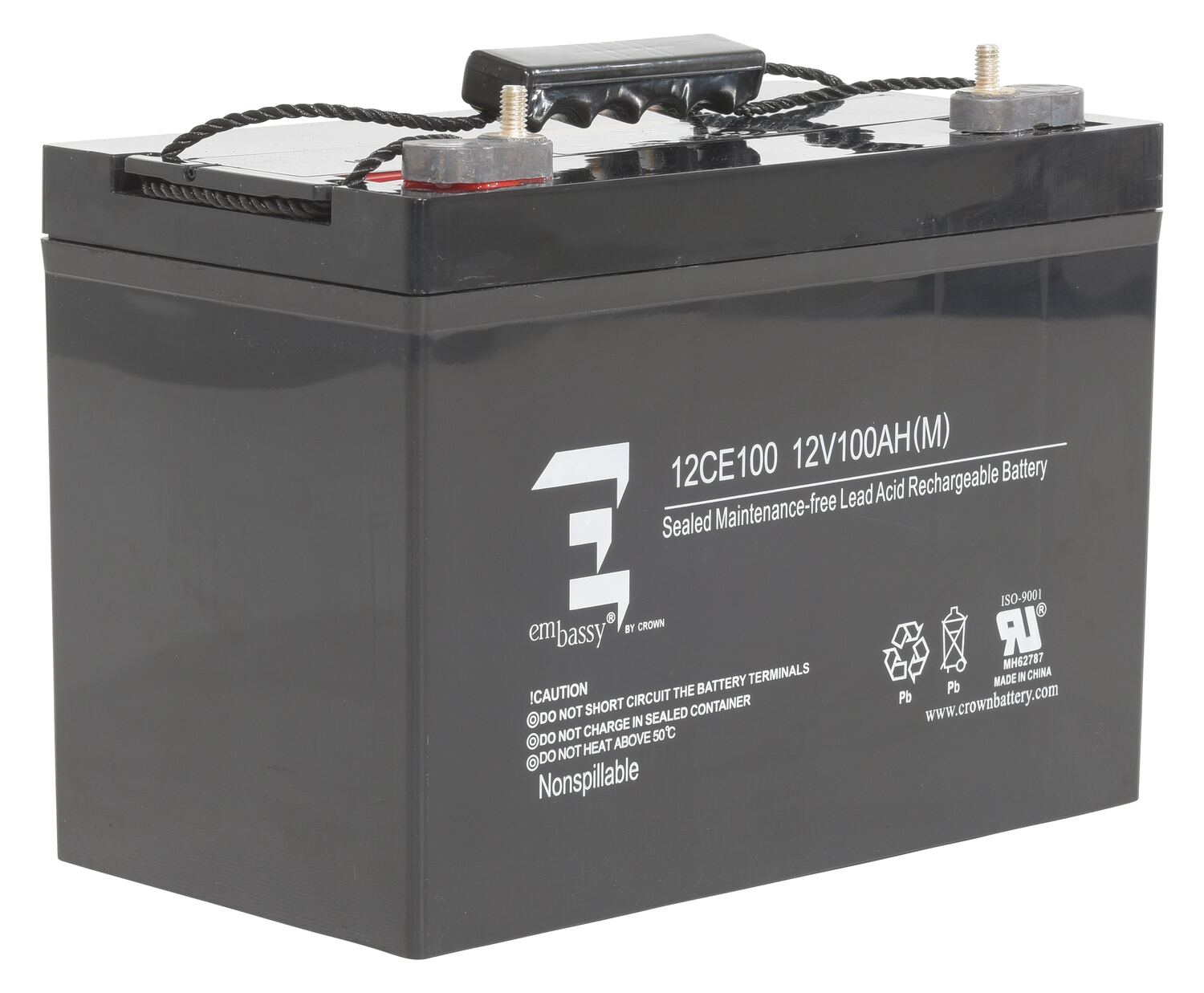

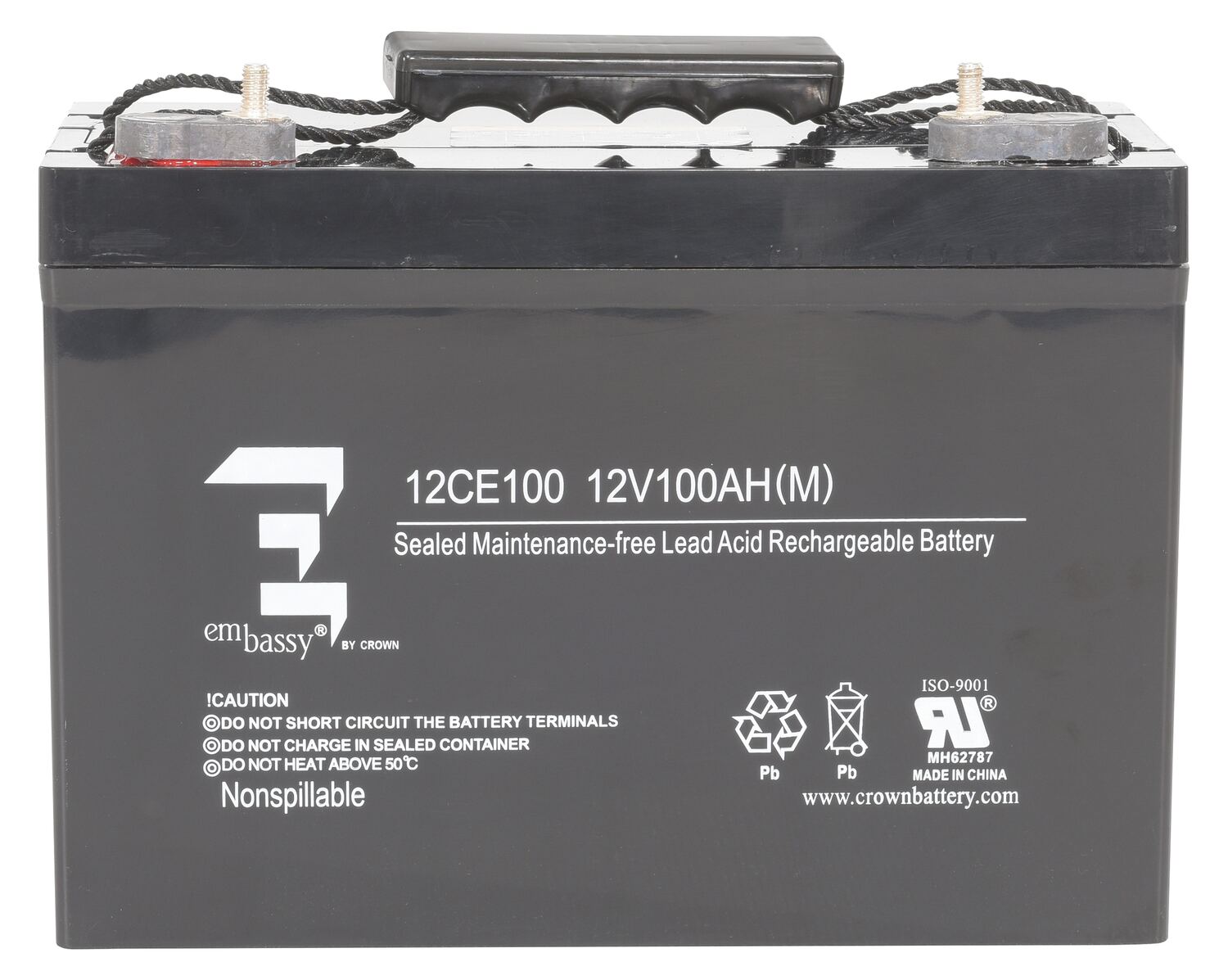

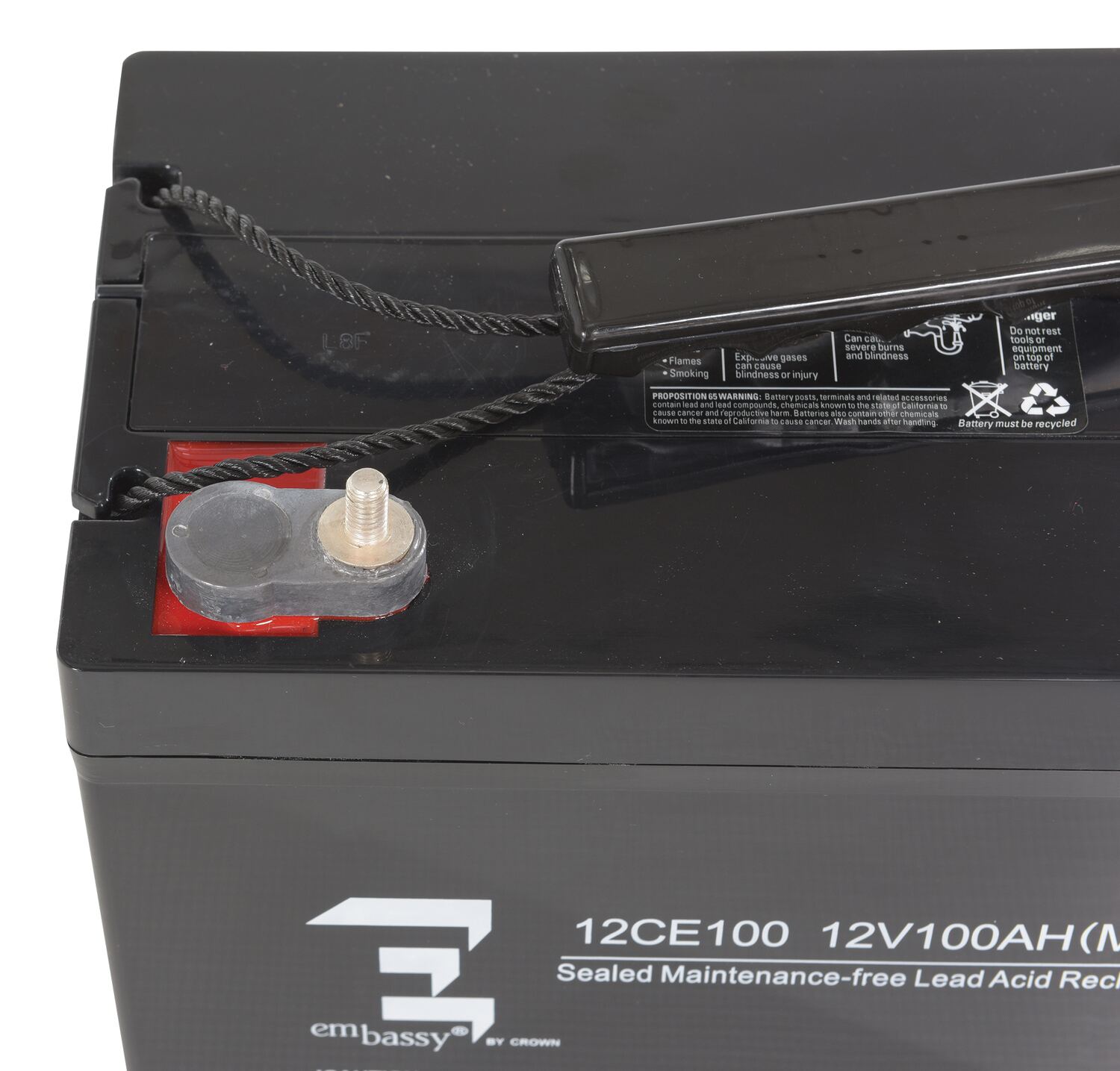

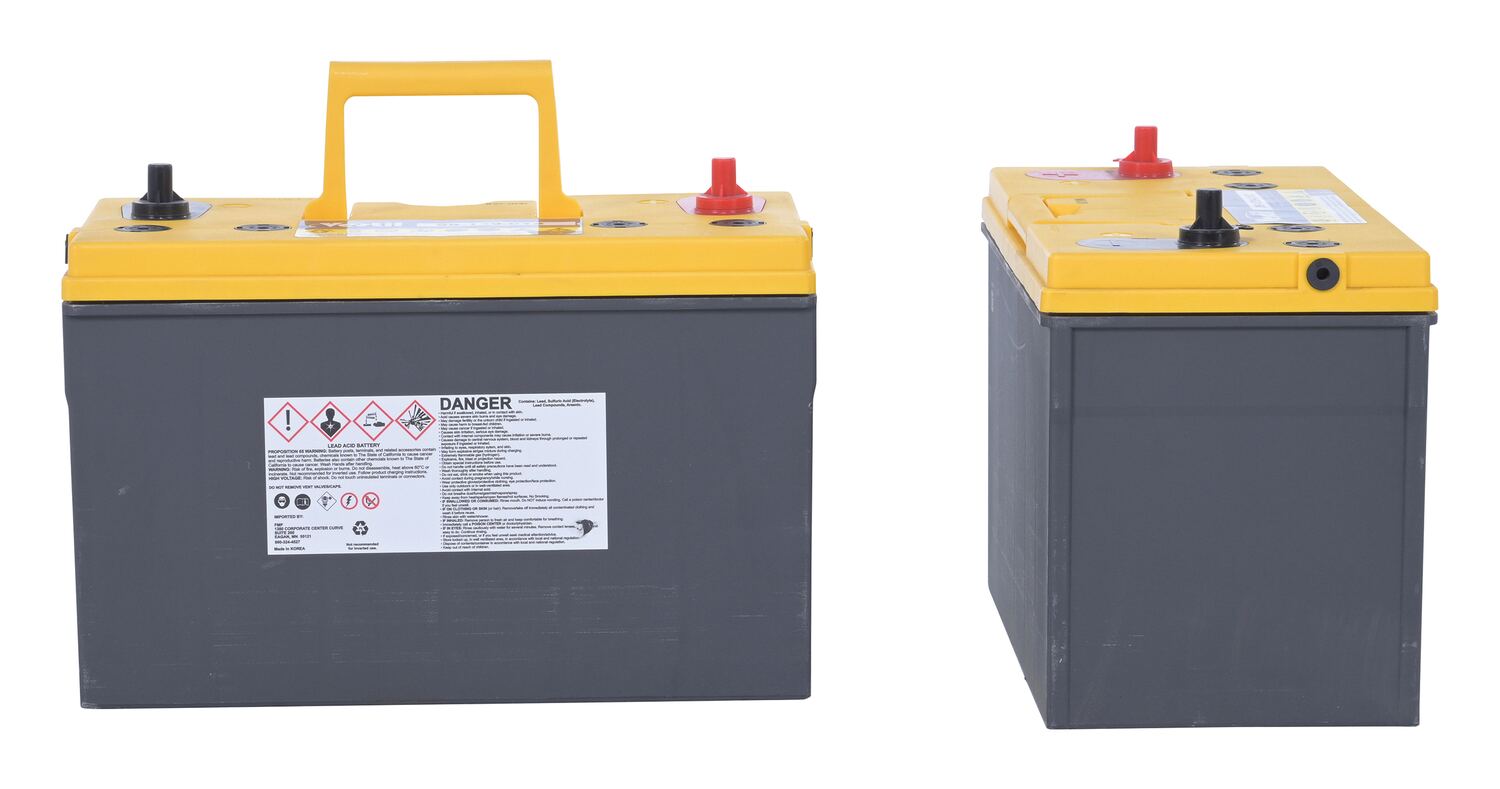

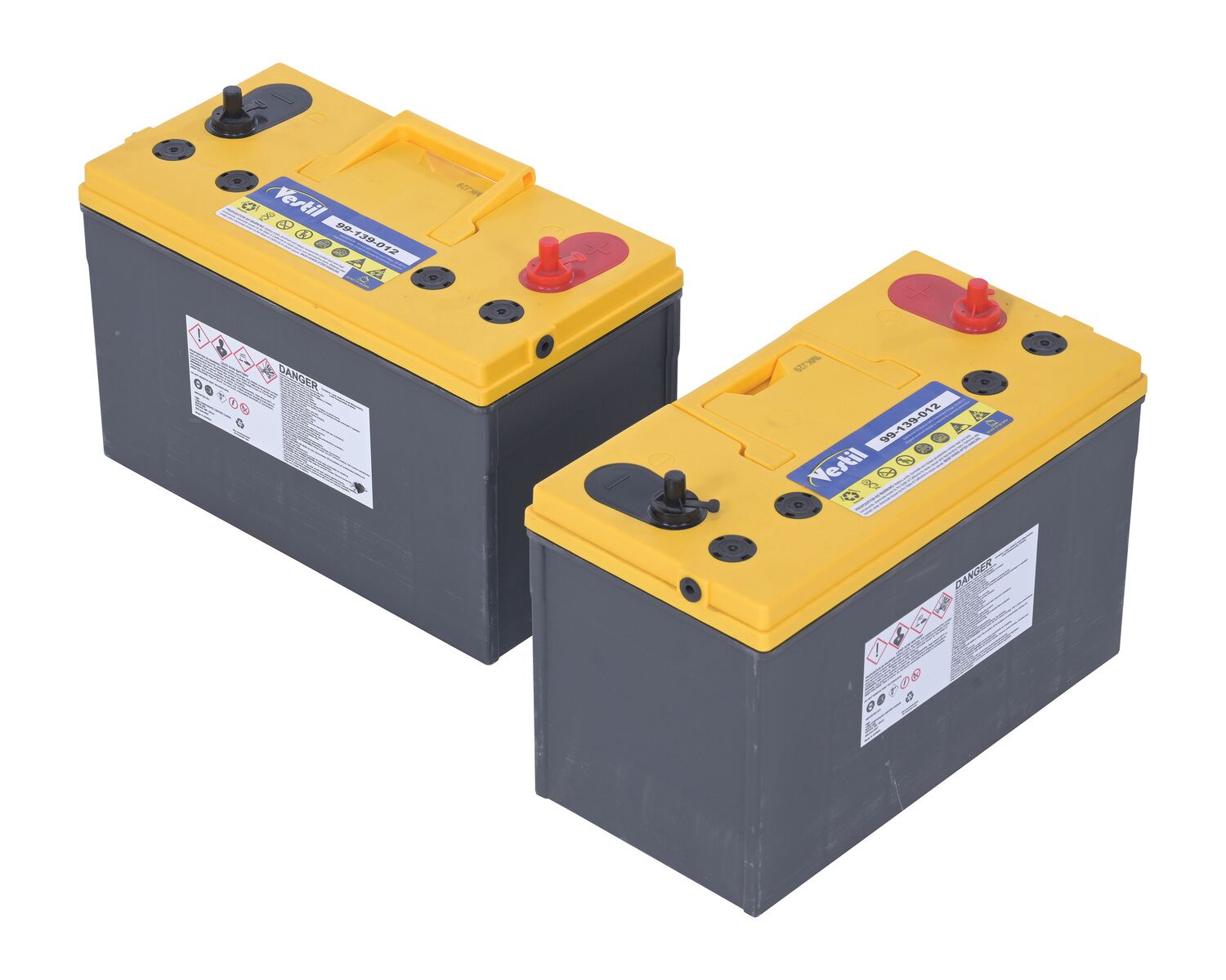

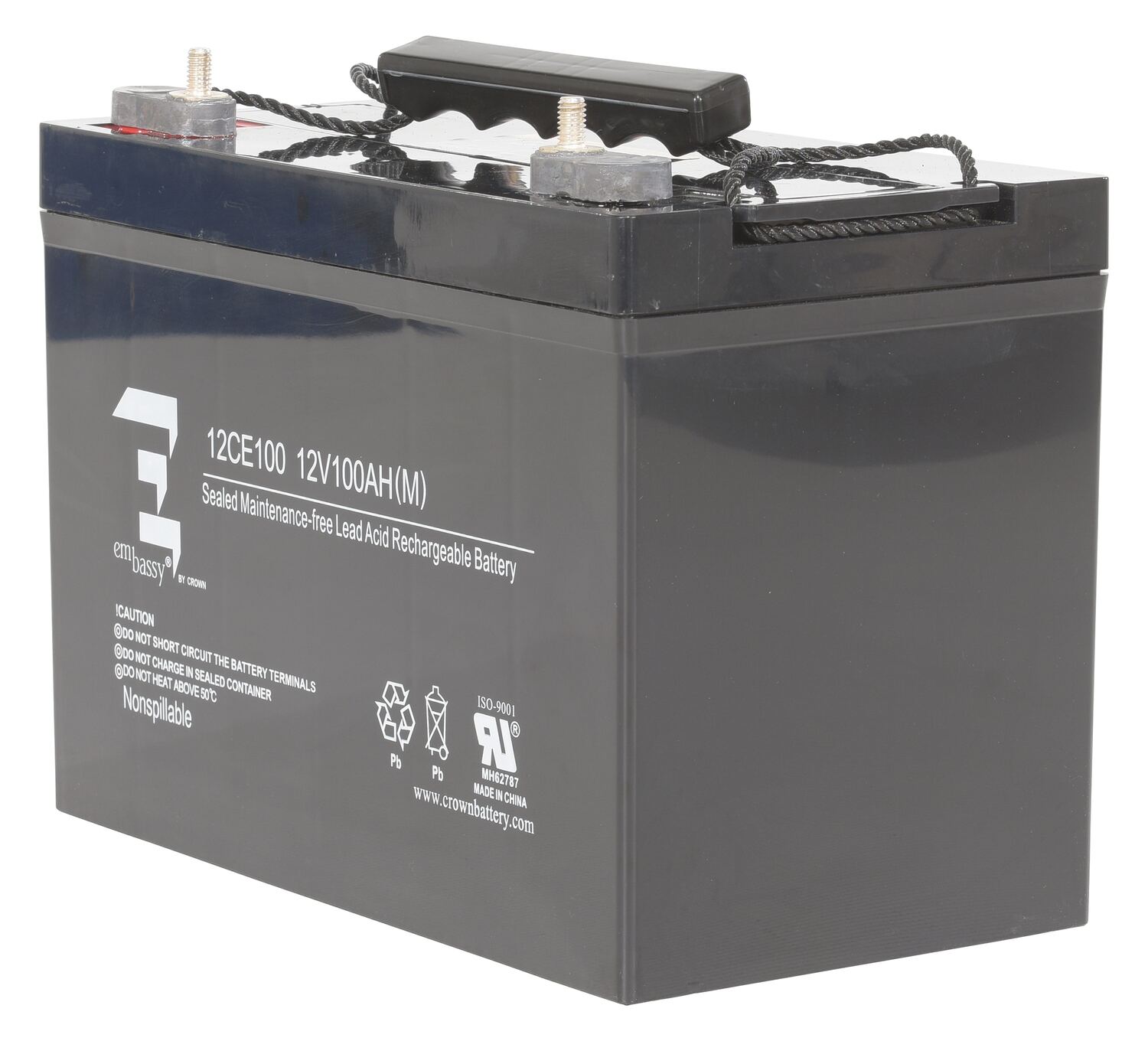

AGM-UPG-SL AGM-UPG-SL90 Days Limited WarrantyFactory Installed Lead Acid Absorbed Glass Mat (AGM) Upgrade 12 Volt 100Ah Battery Quantity 1Battery Quantity: 1
Volts: 12		68

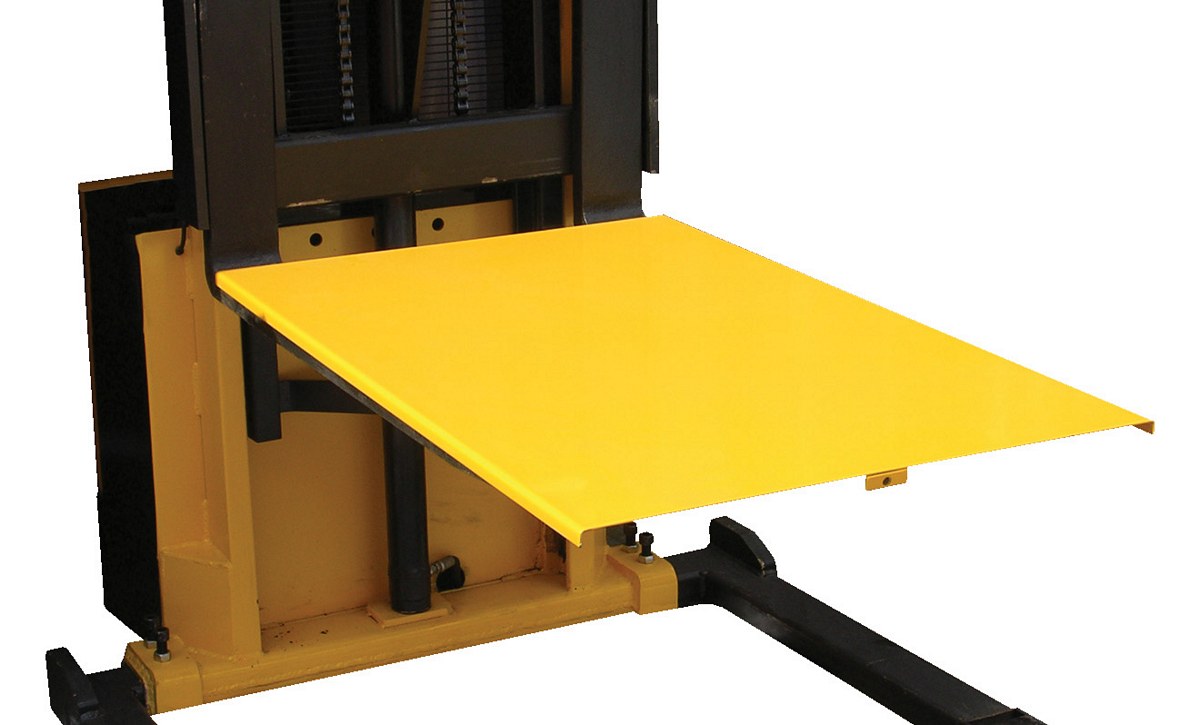

SL-DK SL-DK30 Days Limited WarrantySteel Solid Platform 45 In. x 27-3/4 In. x 3-3/4 In. 2000 Lb. Capacity For SNM Models YellowMaximum Capacity when Installed on Forks (lb.): 2,000
46

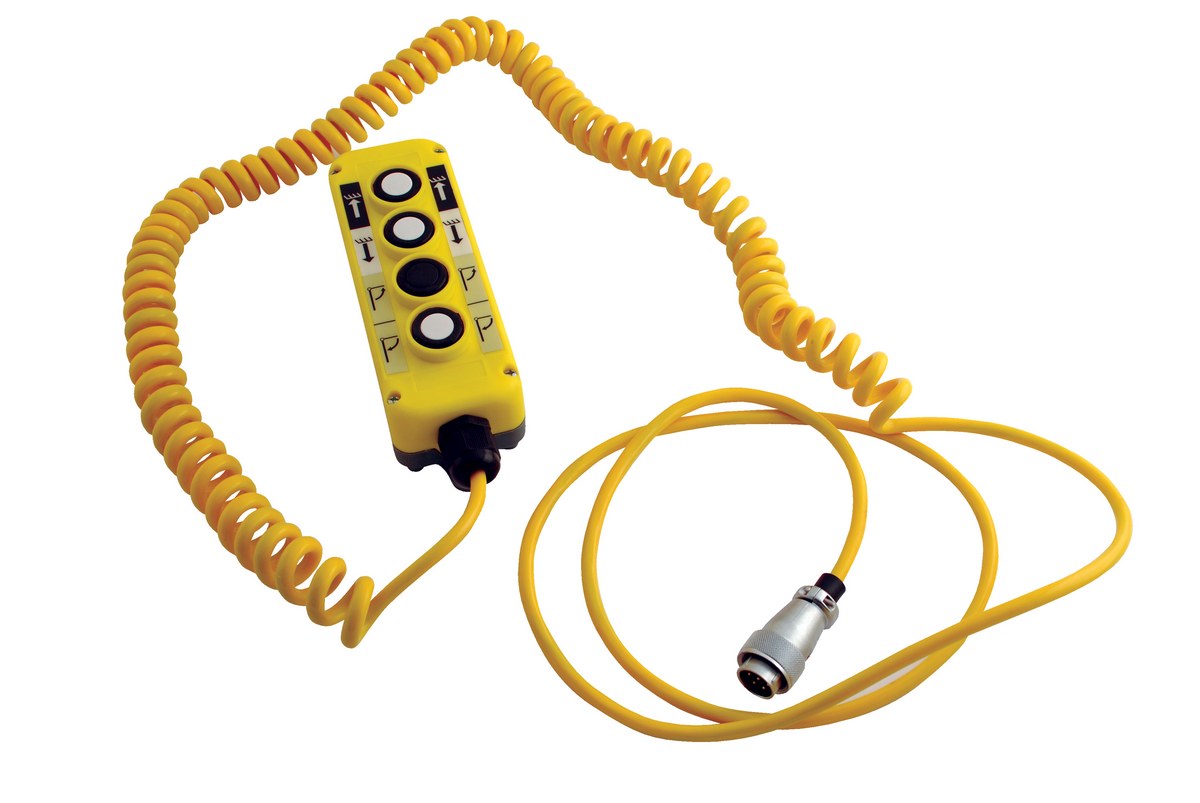

SL-HC SL-HC90 Days Limited WarrantyHand Control Pendant For Stacker Powered Lift ModelsCable Length (ft): 8
Number of Buttons: 4		3
Model Image Description Capacity Wt (lbs.)
SL-AA-DRR-FK Drum/Roll/Reel Forks 1200 140
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Stacker with Powered Lift PDF's will open in a new window when clicked.

Manuals


SL
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


SL-118-AA

SL-118-FF

SL-137-AA

SL-137-AA-PTDS

SL-150-AA

SL-63-AA

SL-63-FF

SL-DK

SL3-63-AA

Testing Certificates


SL-118-AA

SL-118-FF

SL-137-AA

SL-137-AA-PTDS

SL-150-AA

SL-63-AA

SL-63-FF

SL-DK

SL-HC

SL-PTDS

SL3-36-AA

SL3-63-AA

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-118-AA
Hydraulic Oil SDS Sheet for: SL-118-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-118-AA-PTDS
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-118-FF
Hydraulic Oil SDS Sheet for: SL-118-FF
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-118-PDGR
Hydraulic Oil SDS Sheet for: SL-118-PDGR
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-137-AA
Hydraulic Oil SDS Sheet for: SL-137-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-137-AA-PTDS
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-150-AA
Hydraulic Oil SDS Sheet for: SL-150-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL3-36-AA
Hydraulic Oil SDS Sheet for: SL3-36-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL3-63-AA
Hydraulic Oil SDS Sheet for: SL3-63-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-63-AA
Hydraulic Oil SDS Sheet for: SL-63-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-63-AA-PTDS
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-63-FF
Hydraulic Oil SDS Sheet for: SL-63-FF

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Can the forks on this unit be adjusted to move odd size pallets?

A: The SL-137-AA has adjust able forks from 8 in wide to 26 3/4 in wide.

Q: What is the 24" load center rating on the SL-63-AA?

A: 1,300 lbs. at 24" load center.




Related or Similar Products:

Combination Hand Pump and Electric Stackers
Product

Combination Hand Pump and Electric Stackers

Narrow Mast Stackers with Powered Lift
Product

Narrow Mast Stackers with Powered Lift

Electric Stackers (Pramac)
Product

Electric Stackers (Pramac)

Narrow Mast Stackers with Powered Drive and Powered Lift
Product

Narrow Mast Stackers with Powered Drive and Powered Lift

Drum Roll Reel Forks
Product

Drum Roll Reel Forks

Double Mast Stackers with Powered Drive and Powered Lift
Product

Double Mast Stackers with Powered Drive and Powered Lift

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Stacker with Powered Lift




Semi-Electric Stackers with Powered Lift will raise and lower loads quickly and easily. Manual push operation stackers are made using high quality material and parts. All models are easily maneuverable using the standard pulling handle. Stackers are highly efficient and durable. Semi-electric stackers use (1) 12V. Integral battery charger and battery level gauge. Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h. PTDS includes: Combination throttle / direction butterfly style controller, An adjustable steering yoke, An auto reverse emergency "belly switch", (1) 12V battery.


Drum Roll Reel Forks

Check Out Vestil's Other Stackers:
Stackers with Powered Drive and Powered Lift | Specialty Stackers | Pallet Master/Servers | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)


Model # Description Attributes Net Wt.
(lbs)
SL-118-AA SL-118-AASteel Adjustable Stacker with Powered Lift 118 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500		1174
SL-118-AA-PTDS SL-118-AA-PTDSSteel Adjustable Stacker with Power Traction Drive System 118 In. Raised Height 2,000 Lb. Capacity Black / YellowPower Source: Electric - Corded
Weight Capacity (lbs): 2000		1252
SL-118-FF SL-118-FFSteel Fixed Stacker with Powered Lift 118 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500		954
SL-137-AA SL-137-AASteel Adjustable Stacker with Powered Lift 137 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.) at 0-62 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500		1265
SL-137-AA-PTDS SL-137-AA-PTDSSteel Adjustable Stacker with Power Traction Drive System 137 In. Raised Height 2,000 Lb. Capacity Black / YellowPower Source: Electric - Corded
Weight Capacity (lbs): 2000		1378
SL-150-AA SL-150-AASteel Adjustable Stacker with Powered Lift 150 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500		1266
SL-63-AA SL-63-AASteel Adjustable Stacker with Powered Lift 63 In. Raised Height 2,000 Lb. Capacity Black/YellowUniform Capacity (lb.) at 0-63 (in.): 2,000
Raised Height (in.): 63		990
SL-63-AA-PTDS SL-63-AA-PTDSSteel Adjustable Stacker with Power Traction Drive System 63 In. Raised Height 2,000 Lb. Capacity Black/YellowPower Source: Electric - Corded
Weight Capacity (lbs): 2000		1094
SL-63-FF SL-63-FFSteel Fixed Stacker with Powered Lift 63 In. Raised Height 2,000 Lb. Capacity YellowUniform Capacity (lb.) at 0-63 (in.): 2,000
Raised Height (in.): 63		668
SL3-36-AA SL3-36-AASteel Adjustable Stacker with Powered Lift 36 In. Raised Height 3,000 Lb. Capacity BlackUniform Capacity (lb.): 3000
Lowered Height (in.): 2.125"		786
SL3-63-AA SL3-63-AASteel Adjustable Stacker with Powered Lift 63 In. Raised Height 3,000 Lb. Capacity BlackUniform Capacity (lb.): 3000
Lowered Height (in.): 2.125"		786

Options


Model Image Description Capacity Wt (lbs.)
SL-AA-DRR-FK Drum/Roll/Reel Forks 1200 140

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
