Product Family Overview

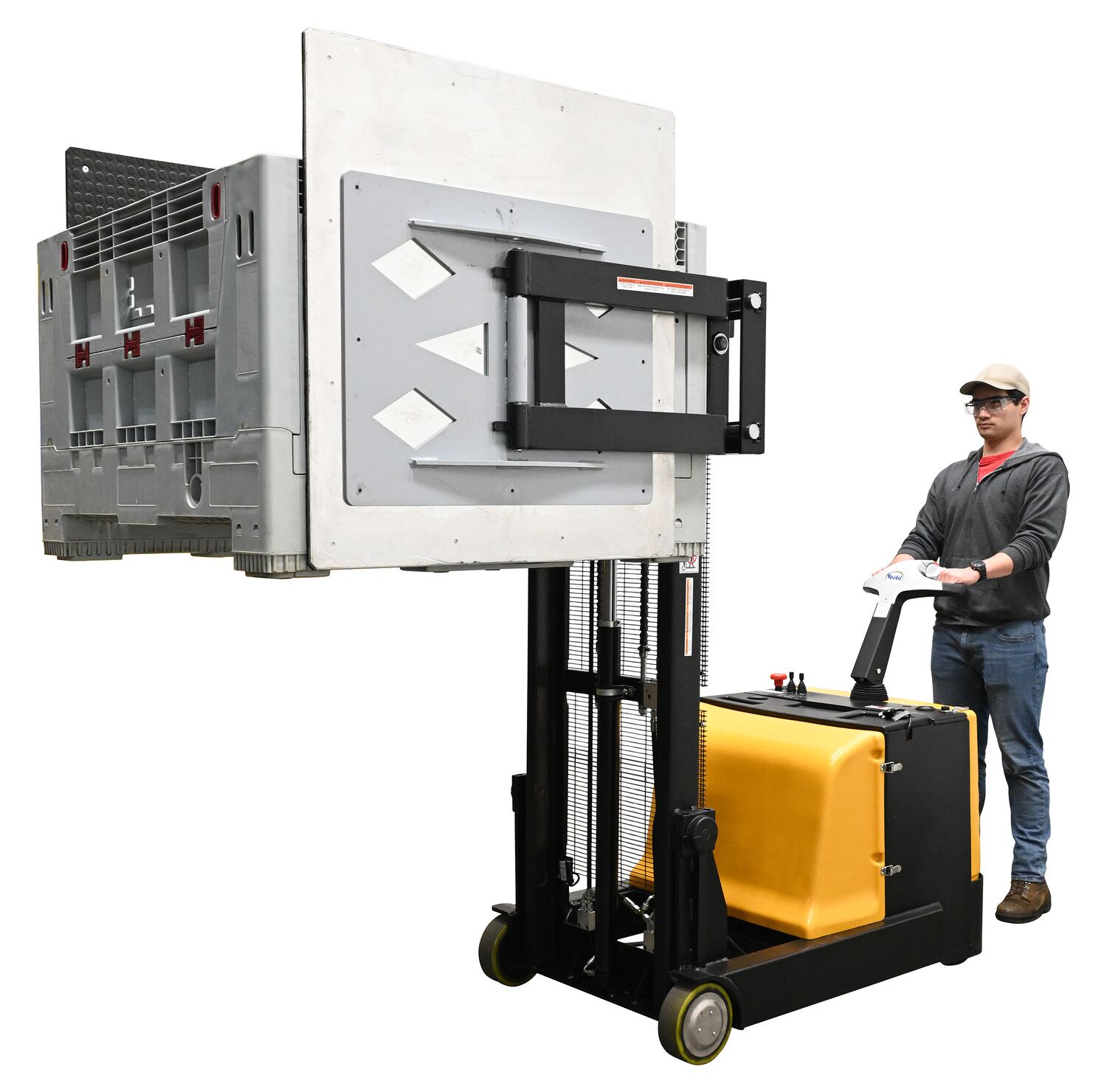

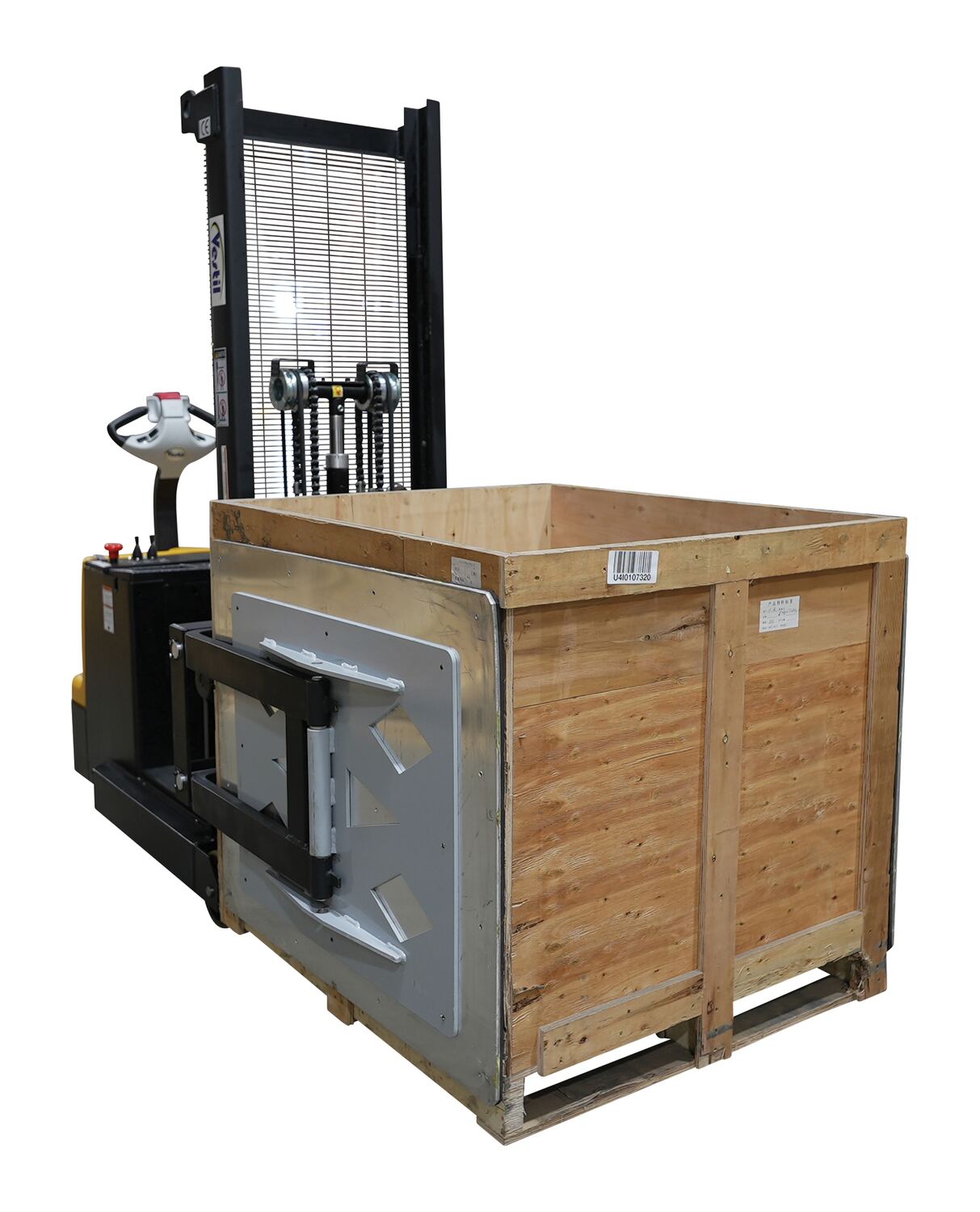

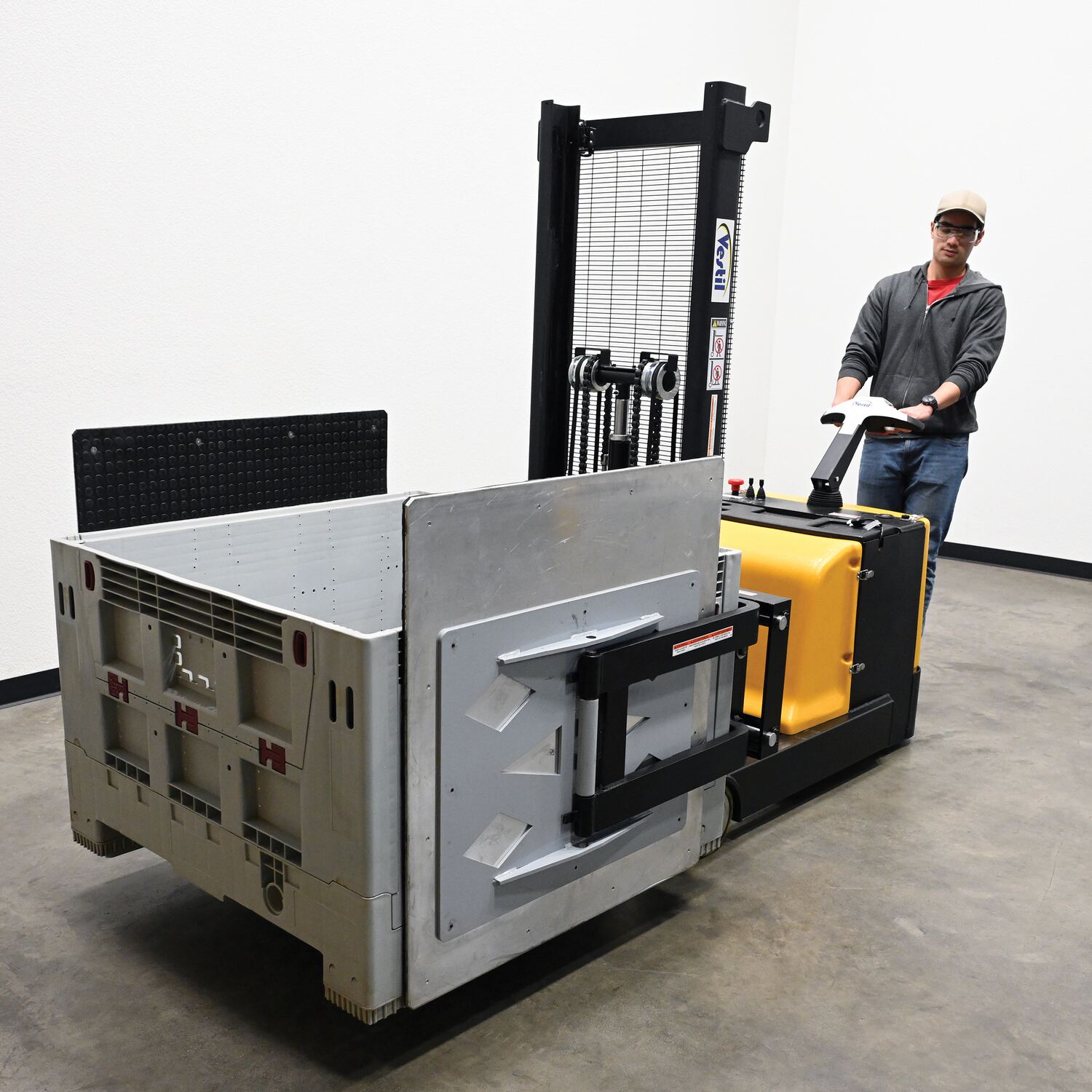

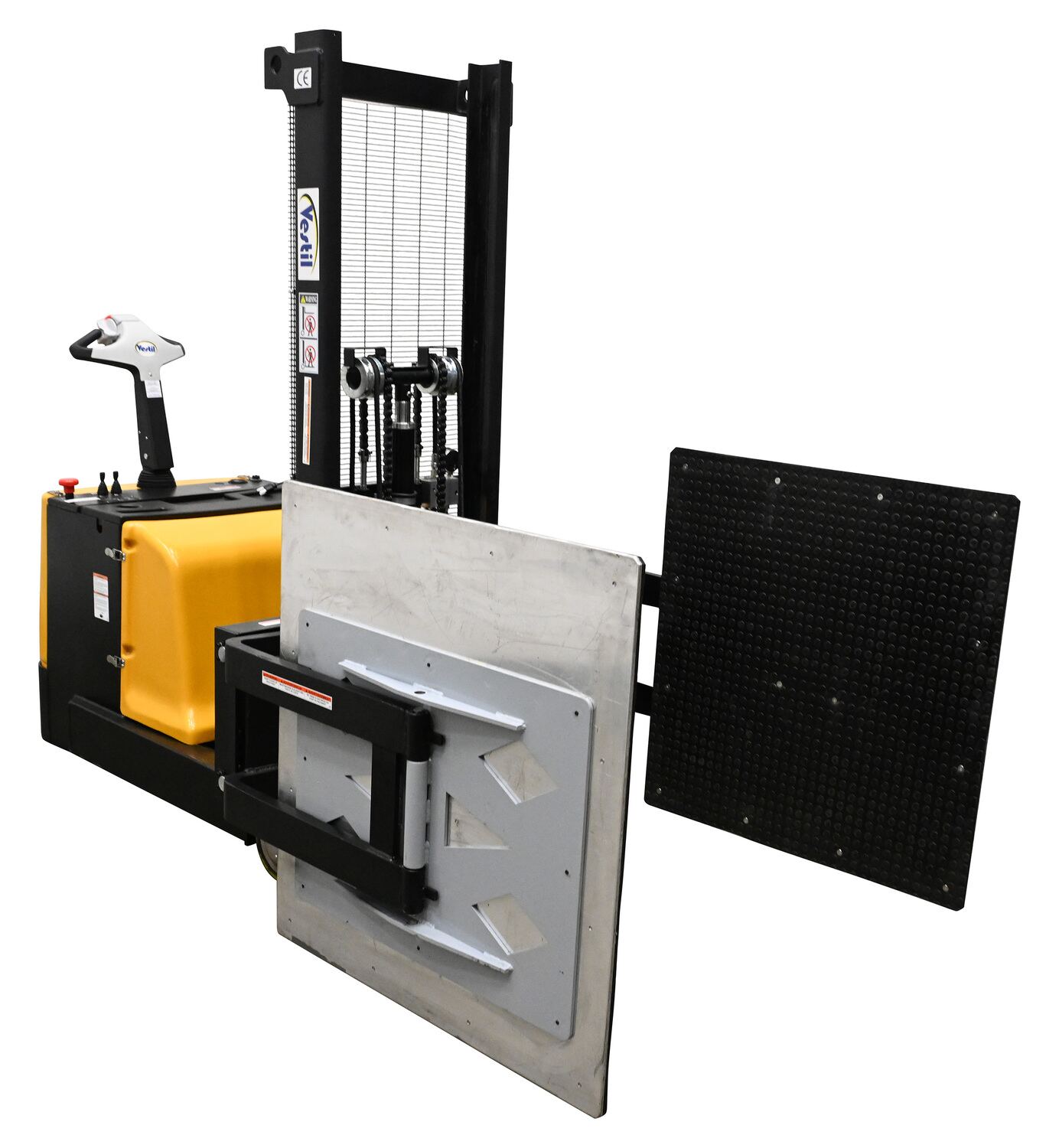

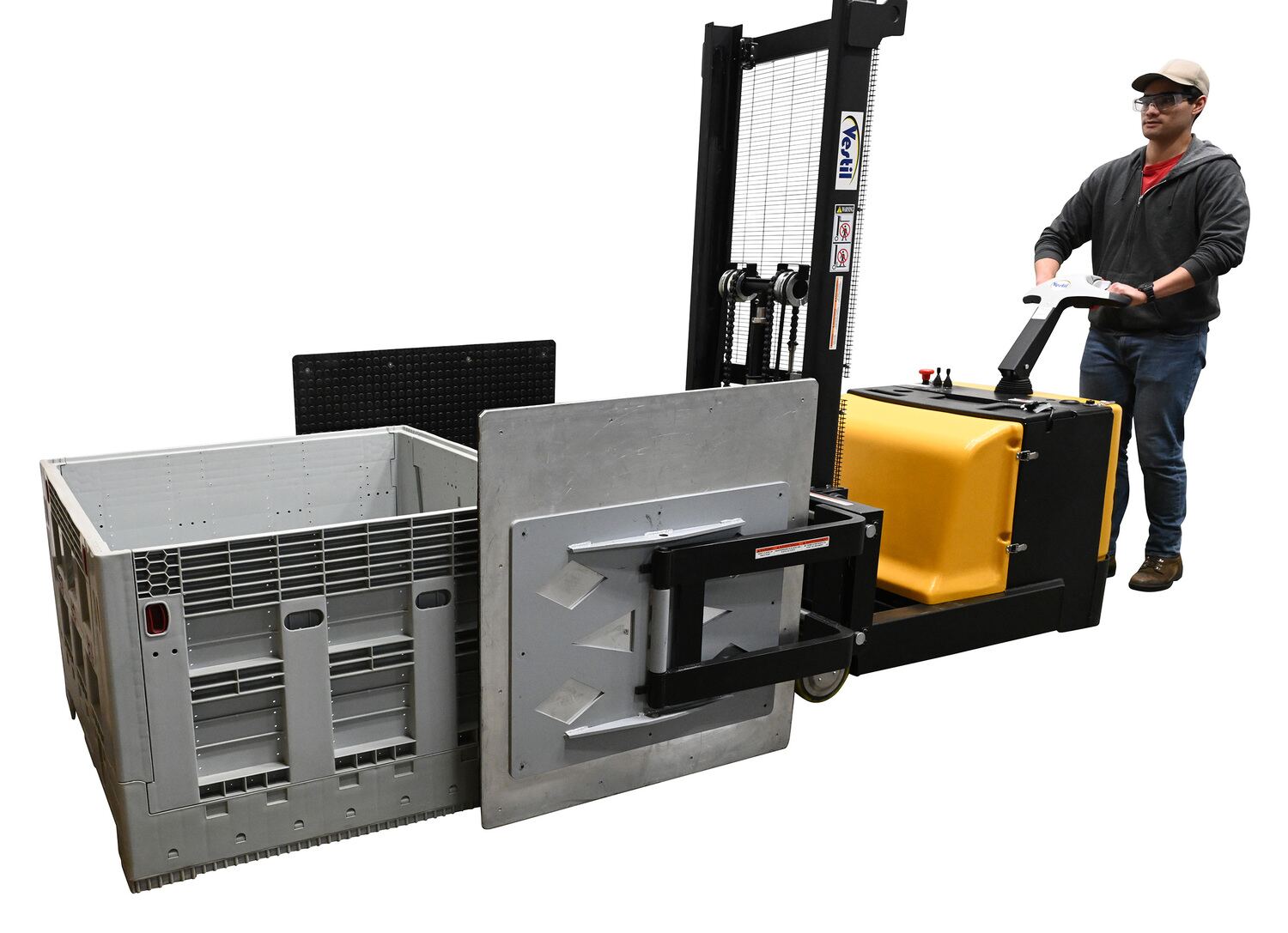

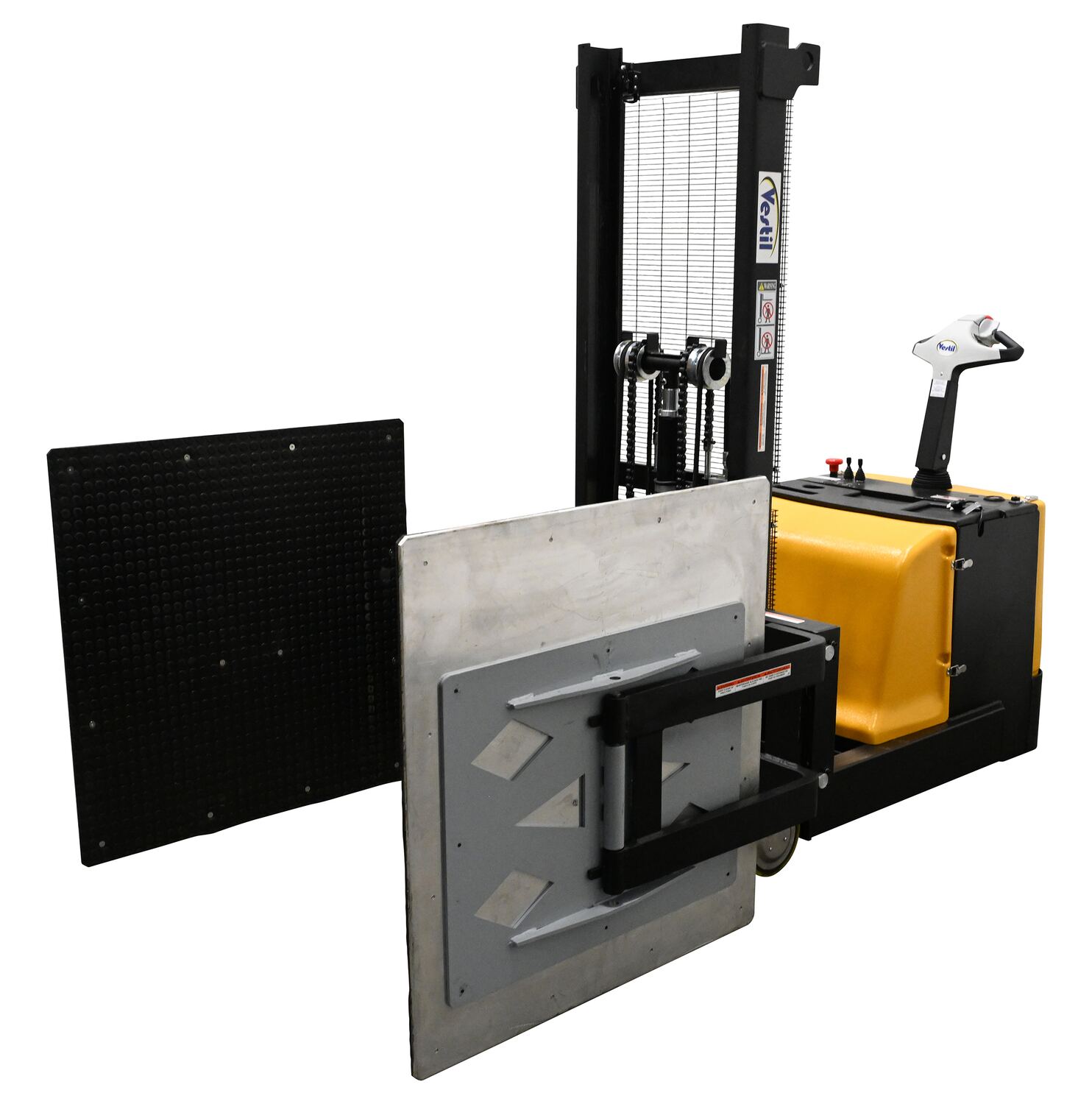

Fully Powered Bale Clamp & Lift Stackers
SERIES: S-CB-BCF

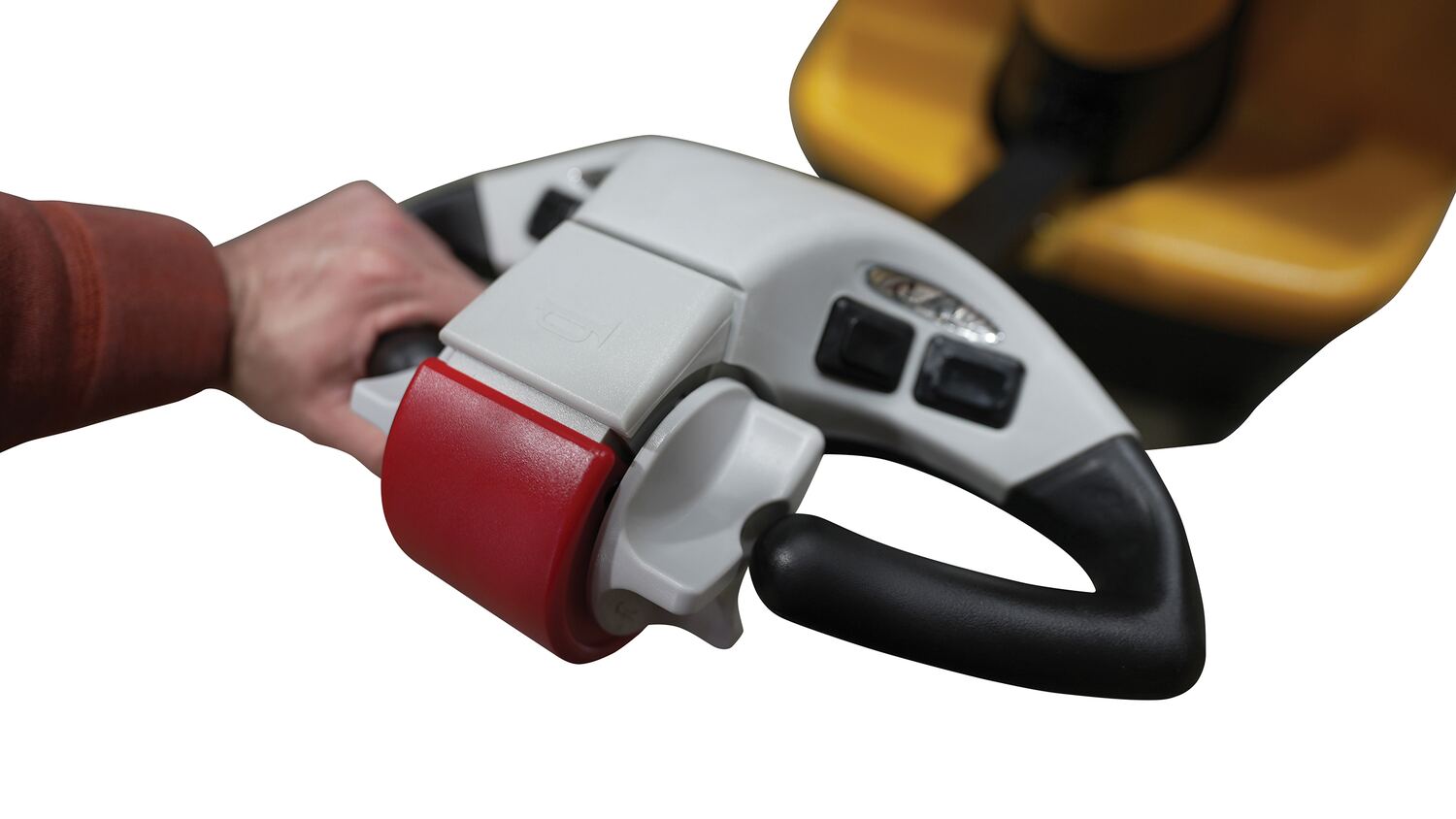

This counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. An ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls. When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

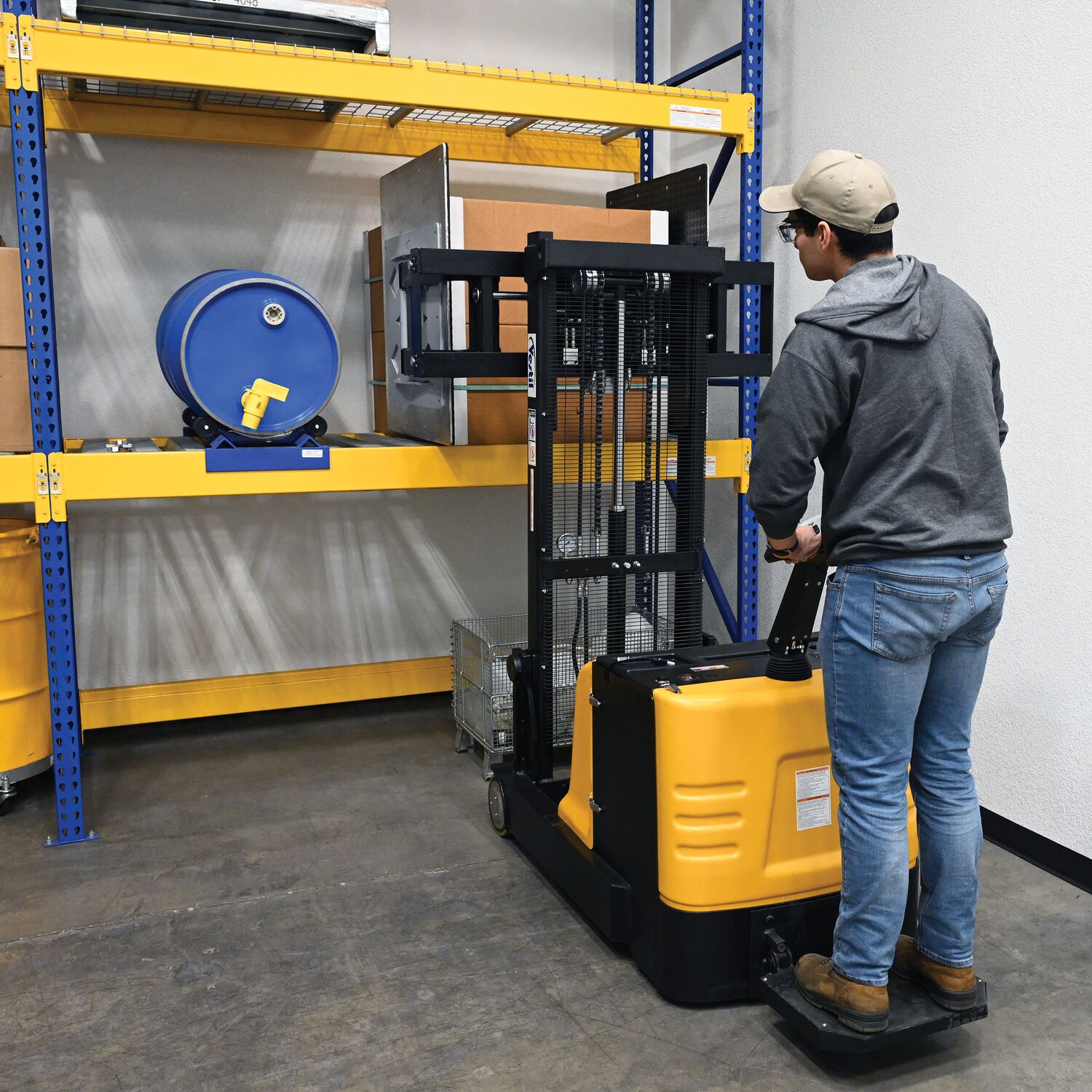

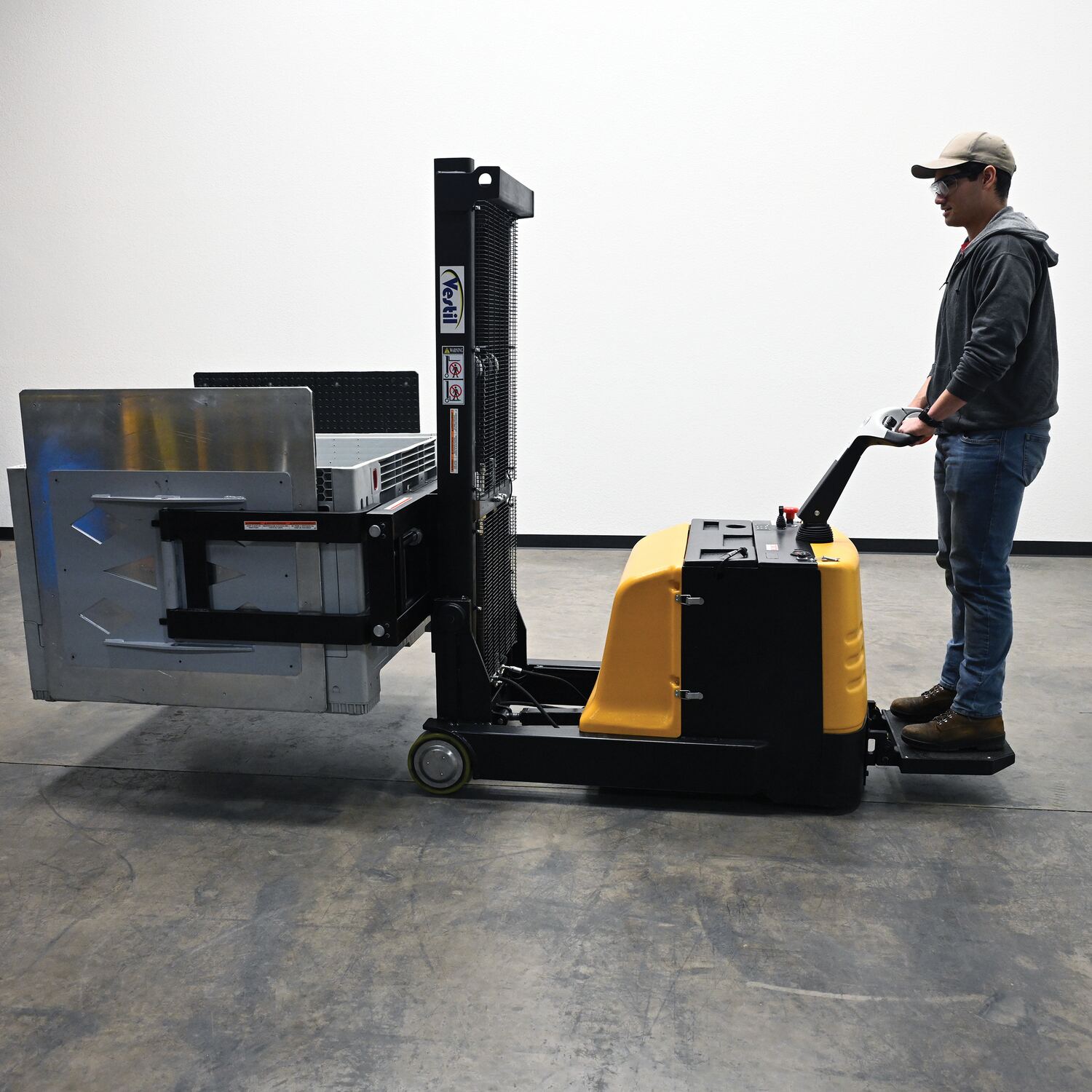

  • Ride-on Platform
  • Poly-on-steel steer and load wheels
  • Powered by two 12V lead acid batteries

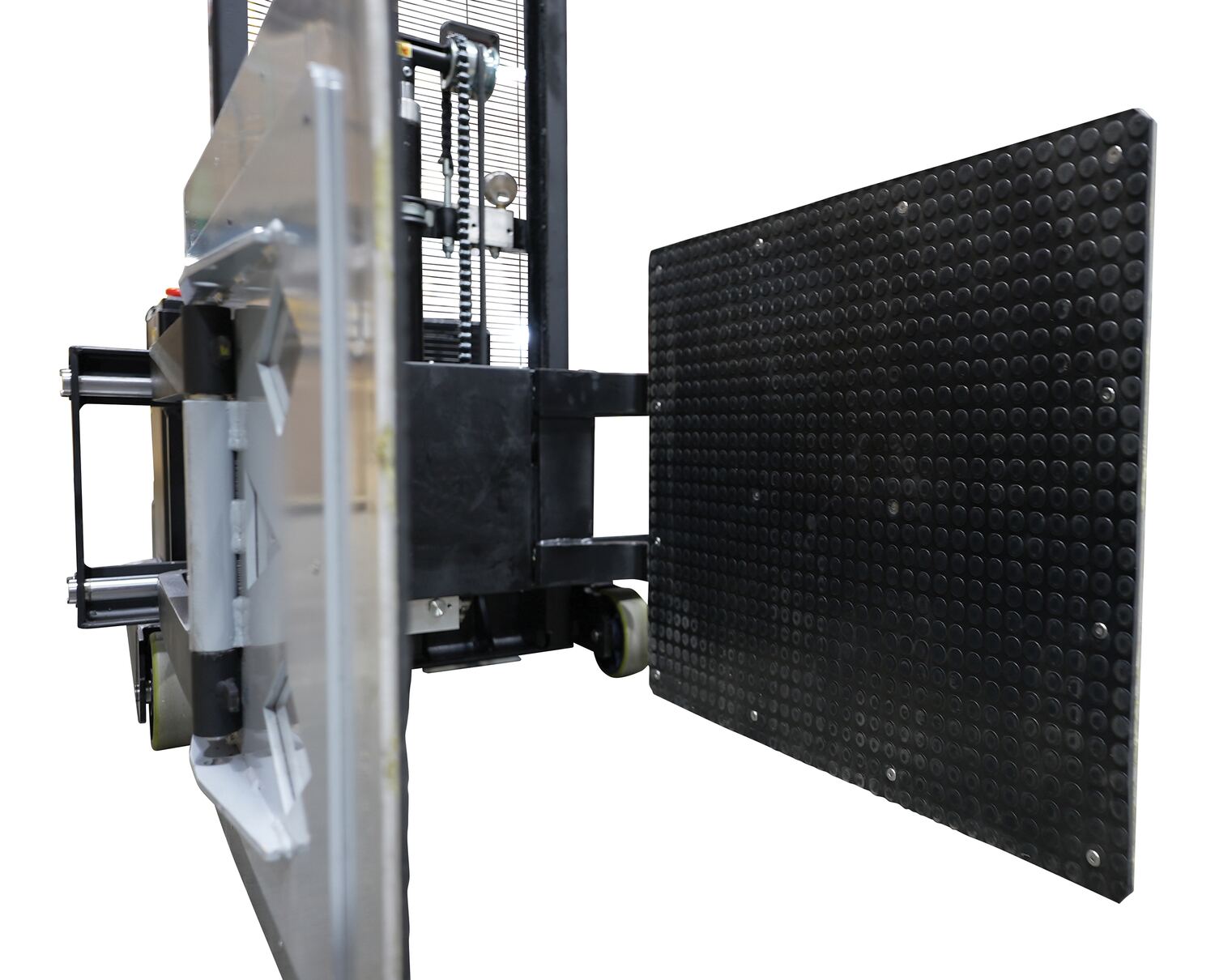

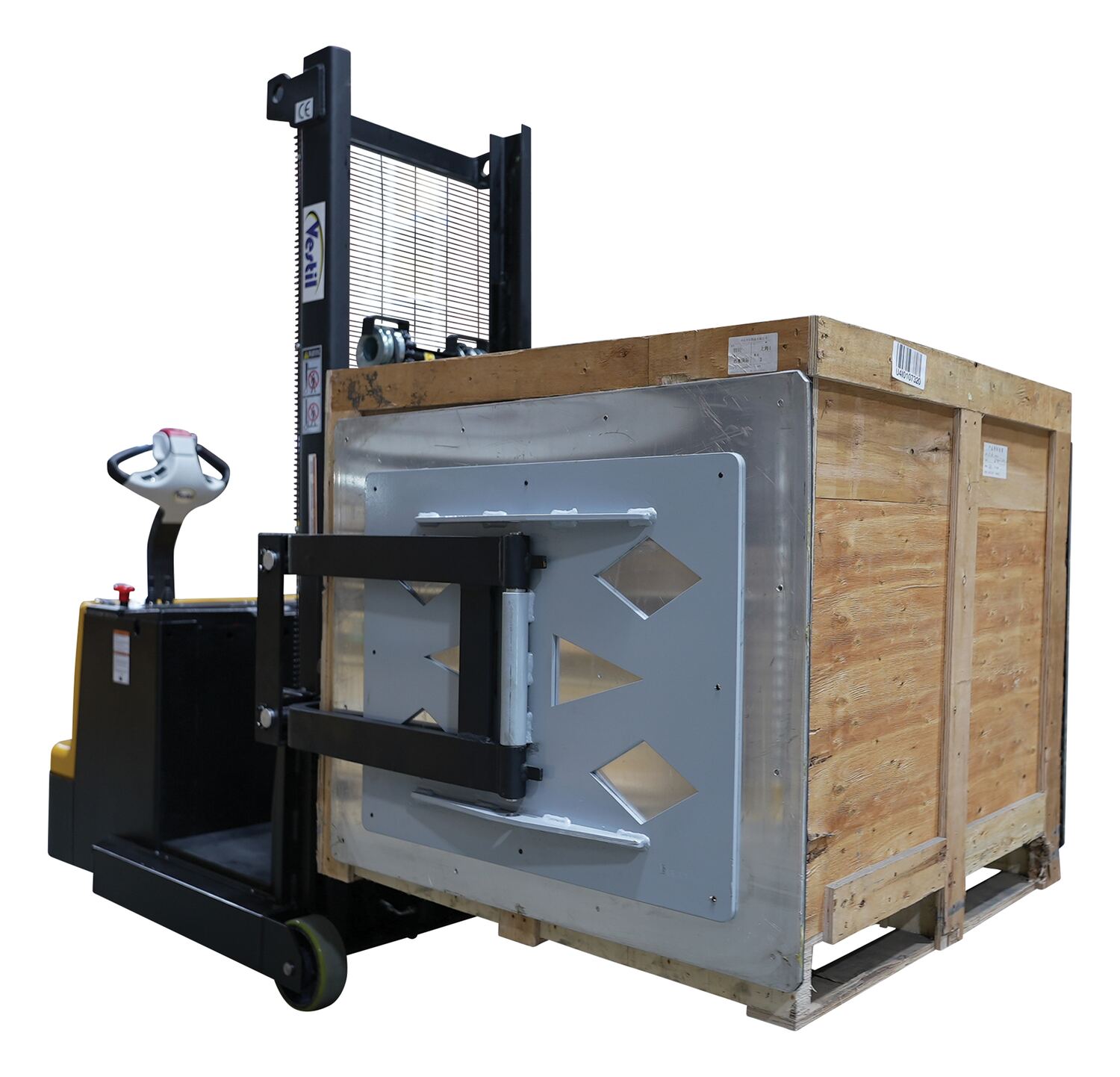

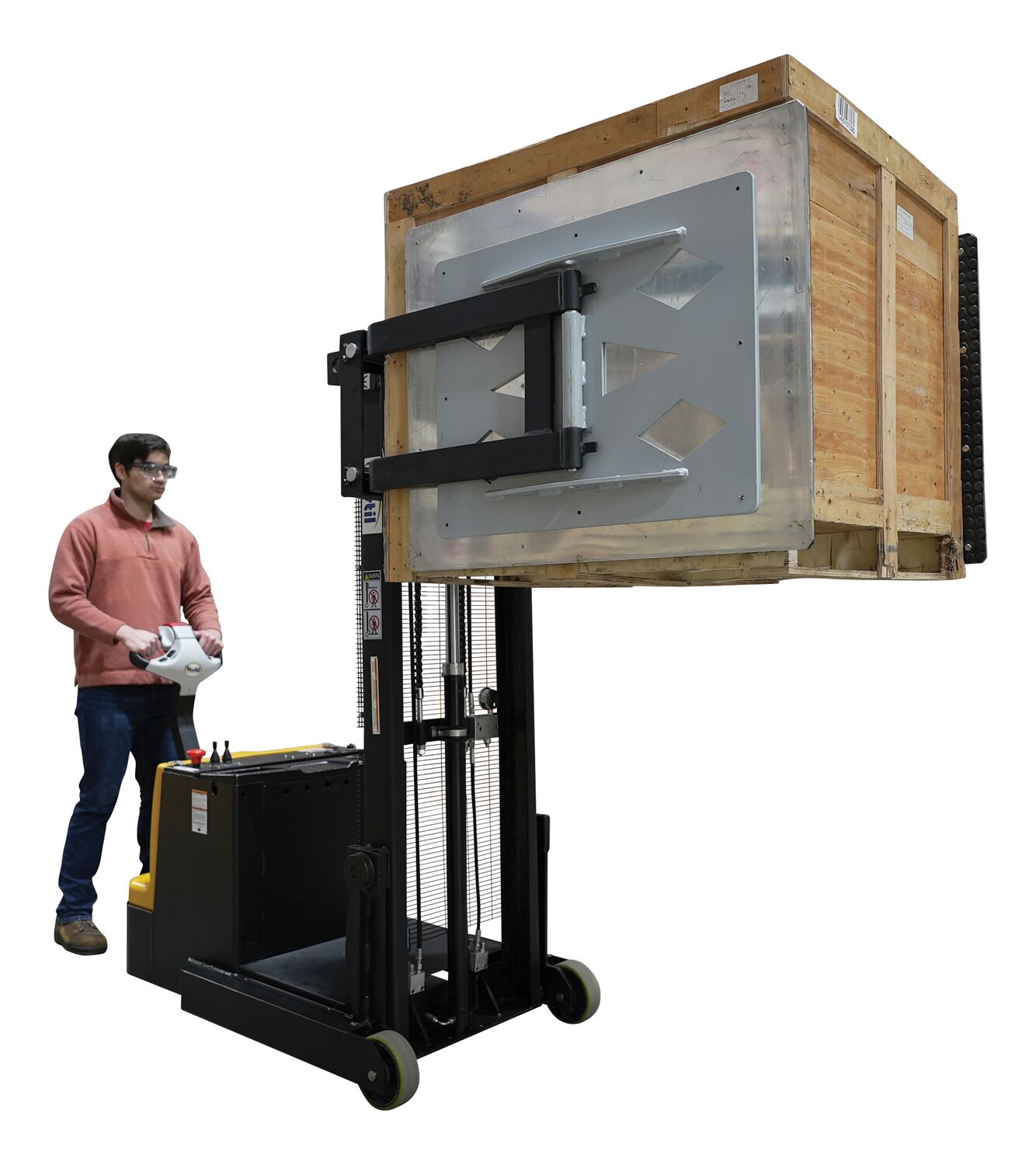

  • Bale/Box clamping range: 23"-41" & 27"-51" models available

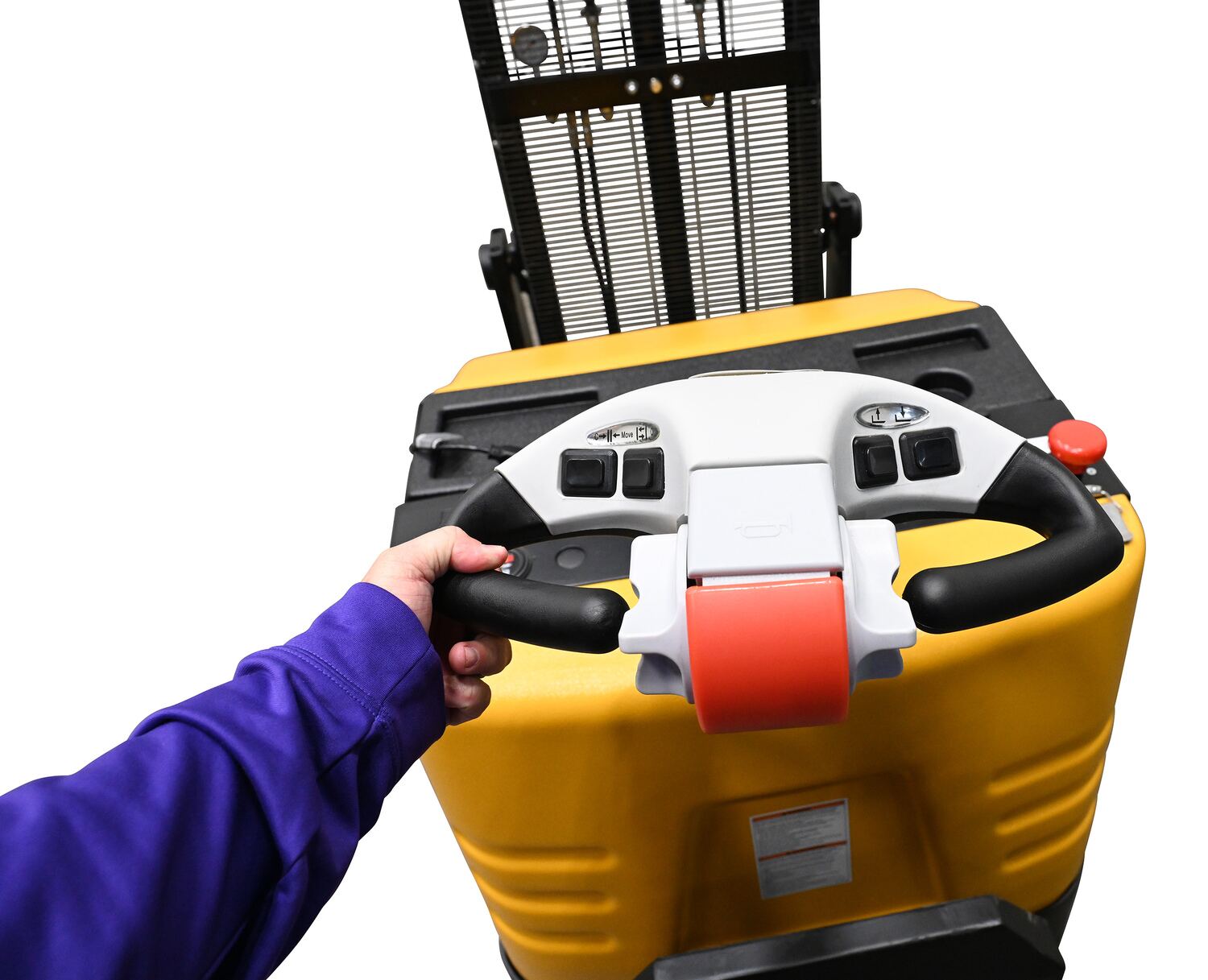

S-CB-2751-BCF_E.jpgS-CB-2751-BCF


Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)

This counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. An ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls. When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Ride-on Platform
  • Poly-on-steel steer and load wheels
  • Powered by two 12V lead acid batteries
  • Bale/Box clamping range: 23"-41" & 27"-51" models available

S-CB-2751-BCF_E.jpgS-CB-2751-BCF


Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)

Additional Models In This Family

S-CB-2341-BCF

model S-CB-2341-BCF

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
S-CB-2341-BCF NEW S-CB-2341-BCF1 Year Limited WarrantyCounter Balanced Powered 23 In. - 41 In. Bale Clamp Lifter 800 Lb. Capacity Black/YellowUniform Capacity (lbs.): 800
Minimum Clamp Width (in.): 23.625
2101
S-CB-2751-BCF NEW S-CB-2751-BCF1 Year Limited WarrantyCounter Balanced Powered 27 In. - 51 In. Bale Clamp Lifter 1200 Lb. Capacity Black/YellowUniform Capacity (lbs.): 1200
Minimum Clamp Width (in.): 27.625
2641

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

S-CB-2341-BCF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 800
Minimum Clamp Width (in.): 23.625
Uniform Capacity (lbs.): 800
Minimum Clamp Width (in.): 23.625

S-CB-2751-BCF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 1200
Minimum Clamp Width (in.): 27.625
Uniform Capacity (lbs.): 1200
Minimum Clamp Width (in.): 27.625

Fully Powered Bale Clamp & Lift Stackers PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


S-CB-2341-BCF

S-CB-2751-BCF

SDS Sheets

Hydraulic Oil SDS Sheet for: S-CB-2341-BCF
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-CB-2341-BCF
Hydraulic Oil SDS Sheet for: S-CB-2751-BCF
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-CB-2751-BCF

Other PDF's


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Fully Powered Bale Clamp &...




This counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. An ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls. When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Ride-on Platform
  • Poly-on-steel steer and load wheels
  • Powered by two 12V lead acid batteries
  • Bale/Box clamping range: 23"-41" & 27"-51" models available

S-CB-2751-BCF_E.jpgS-CB-2751-BCF


Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)



Model # Description Attributes Net Wt.
(lbs)
S-CB-2341-BCF S-CB-2341-BCFCounter Balanced Powered 23 In. - 41 In. Bale Clamp Lifter 800 Lb. Capacity Black/YellowUniform Capacity (lbs.): 800
Minimum Clamp Width (in.): 23.625
2101
S-CB-2751-BCF S-CB-2751-BCFCounter Balanced Powered 27 In. - 51 In. Bale Clamp Lifter 1200 Lb. Capacity Black/YellowUniform Capacity (lbs.): 1200
Minimum Clamp Width (in.): 27.625
2641
