Fully Powered Vertical Gripper/Rotator

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
S-MU-VDGR-64_E.jpg S-MU-VDGR-64_A.jpg S-MU-VDGR-64_B.jpg S-MU-VDGR-64_C.jpg
S-MU-VDGR-64_D.jpg S-MU-VDGR-64_1.jpg S-MU-VDGR-64_2.jpg S-MU-VDGR-64_3.jpg
Fully Powered Vertical Gripper/Rotator

model: S-MU-VDGR-64



Featured Drum Handling Equipment


Manual Cylinder Lifters
Drum Grab
Hydraulic Drum Dumpers
Portable Drum Lifter/Rotator/Transporters
Metal Bottles
Multi-Purpose Drum & Hand Trucks
Drum Clutchers
Drum Deheaders
Portable Cylinder Lifters
model chart

Product Family Overview

Print Friendly
Fully Powered Vertical Gripper/Rotator
SERIES: S-MU

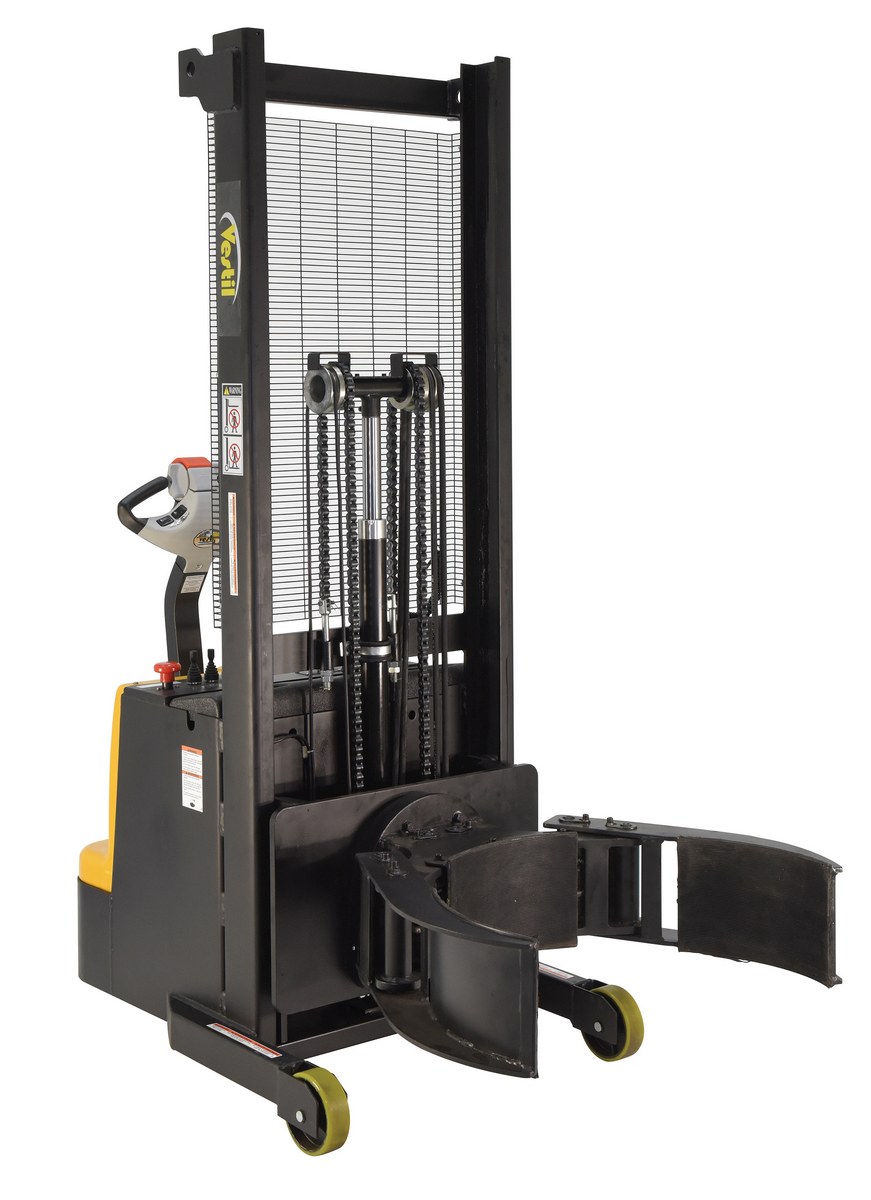

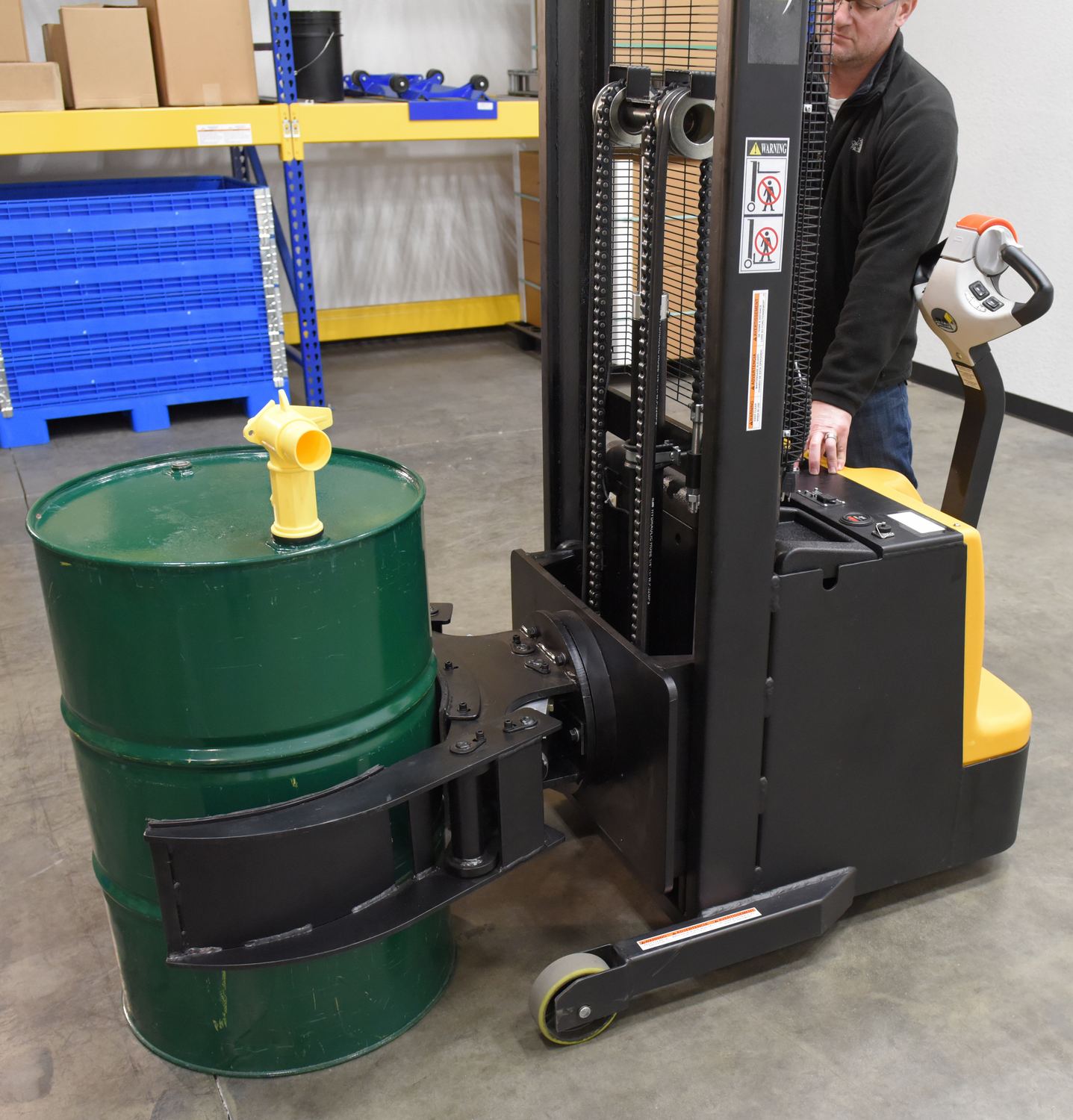

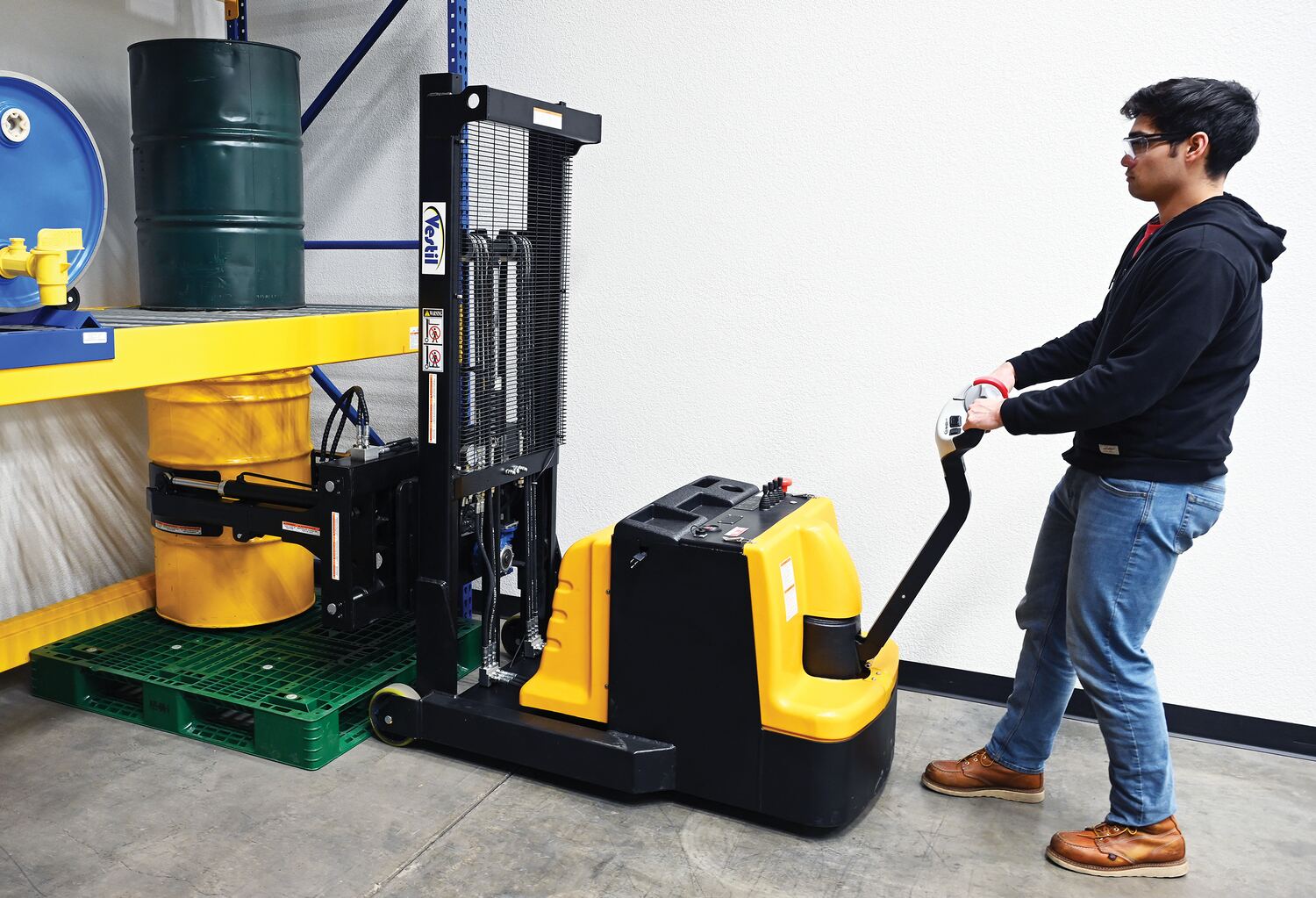

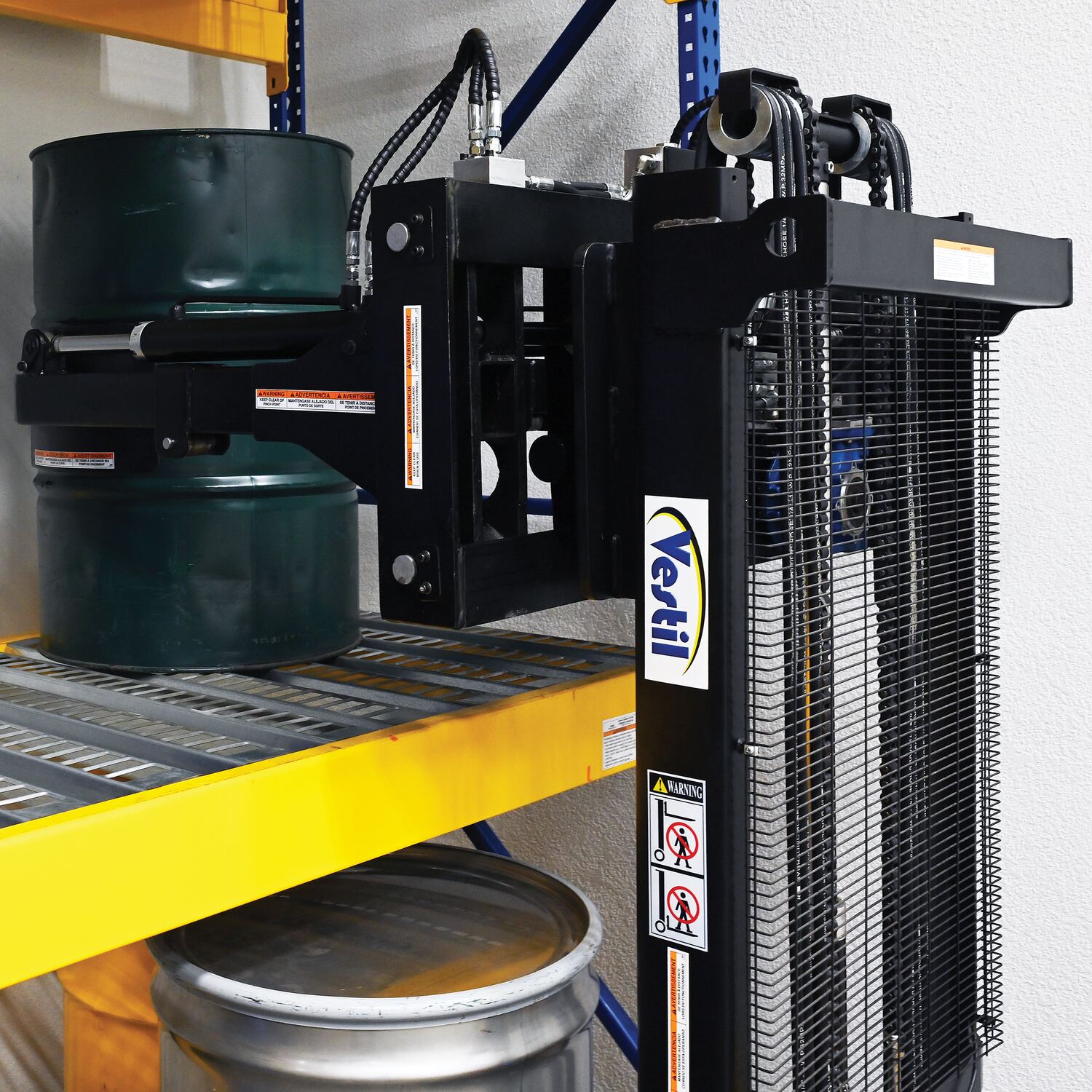

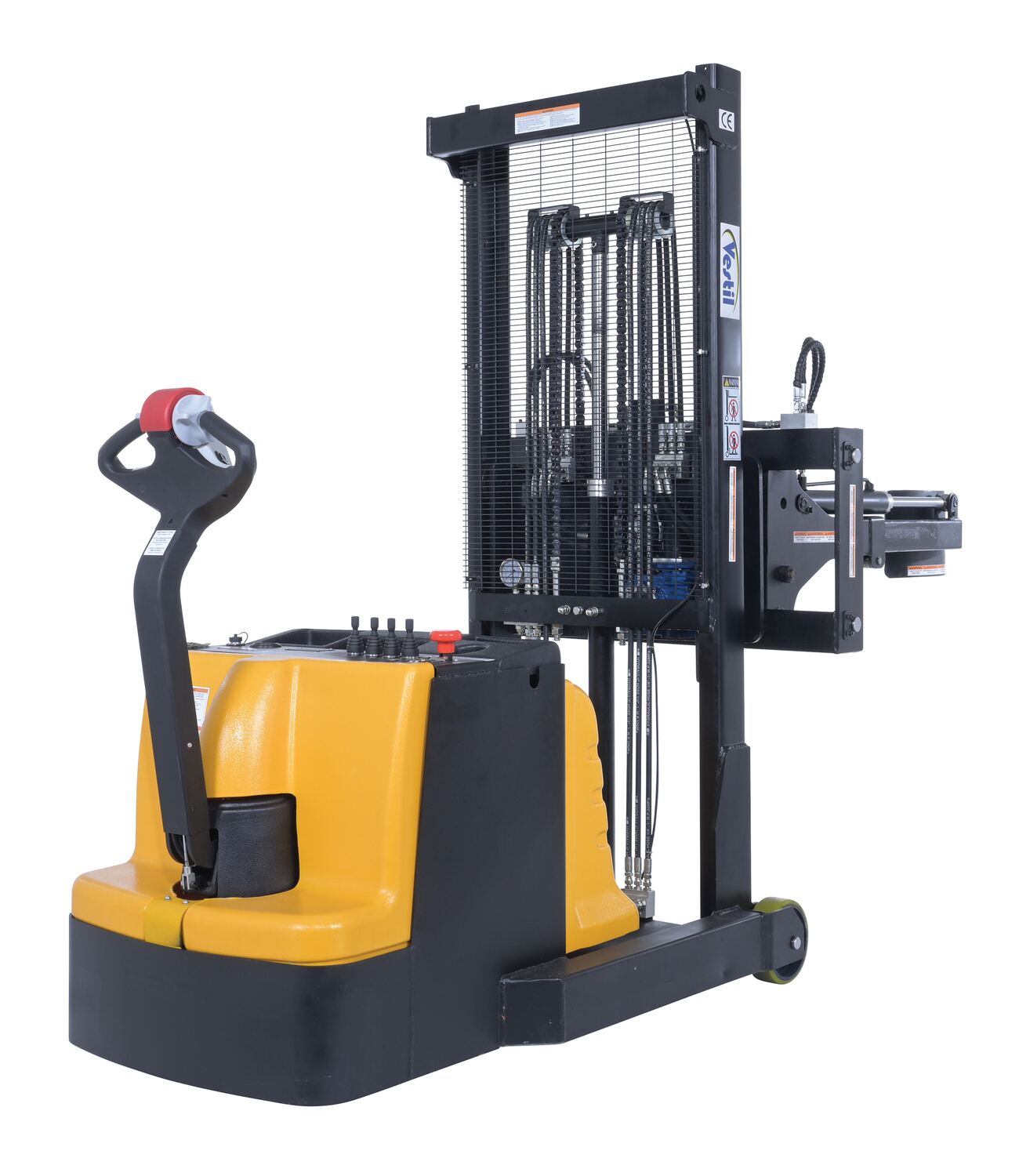

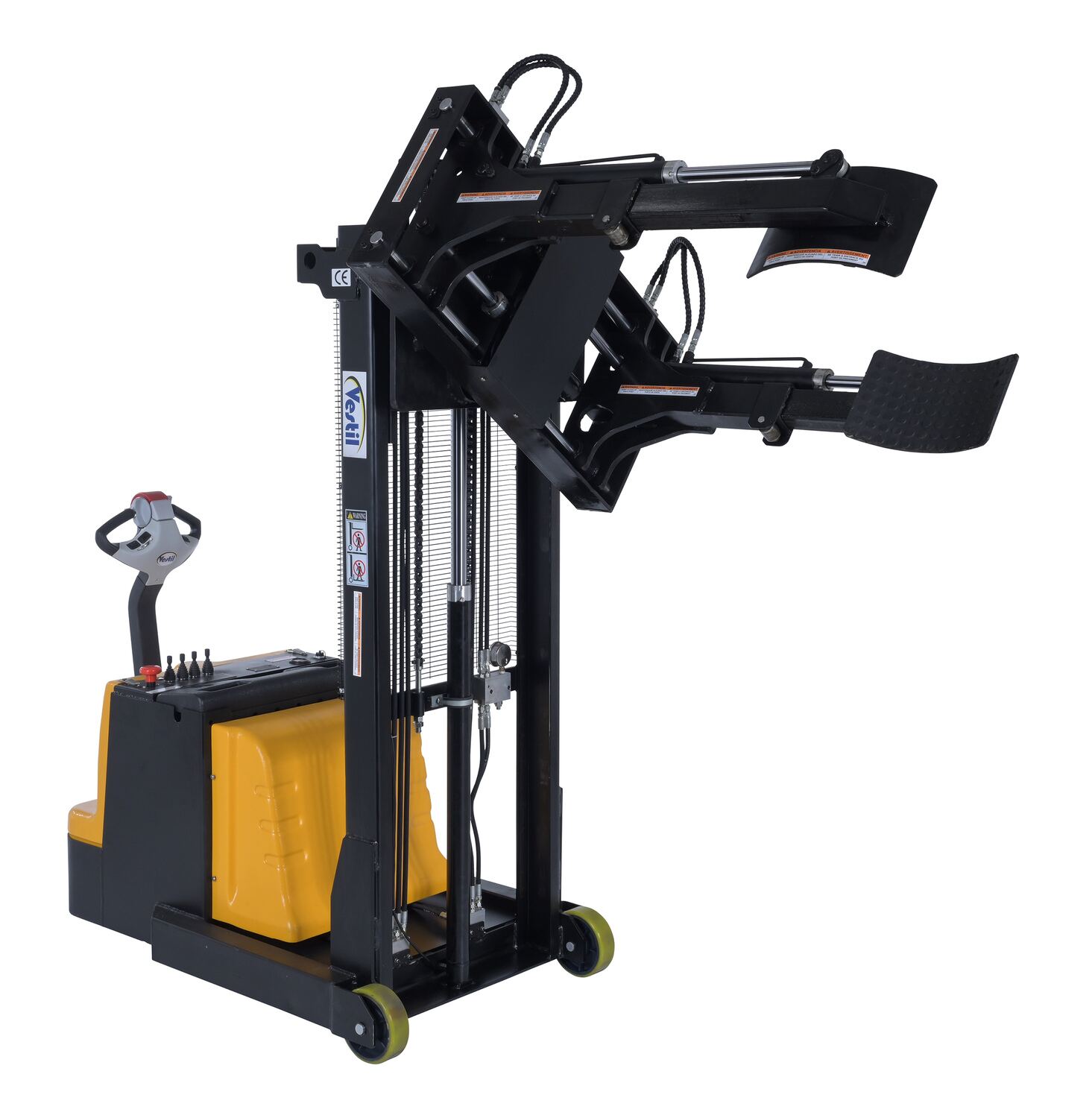

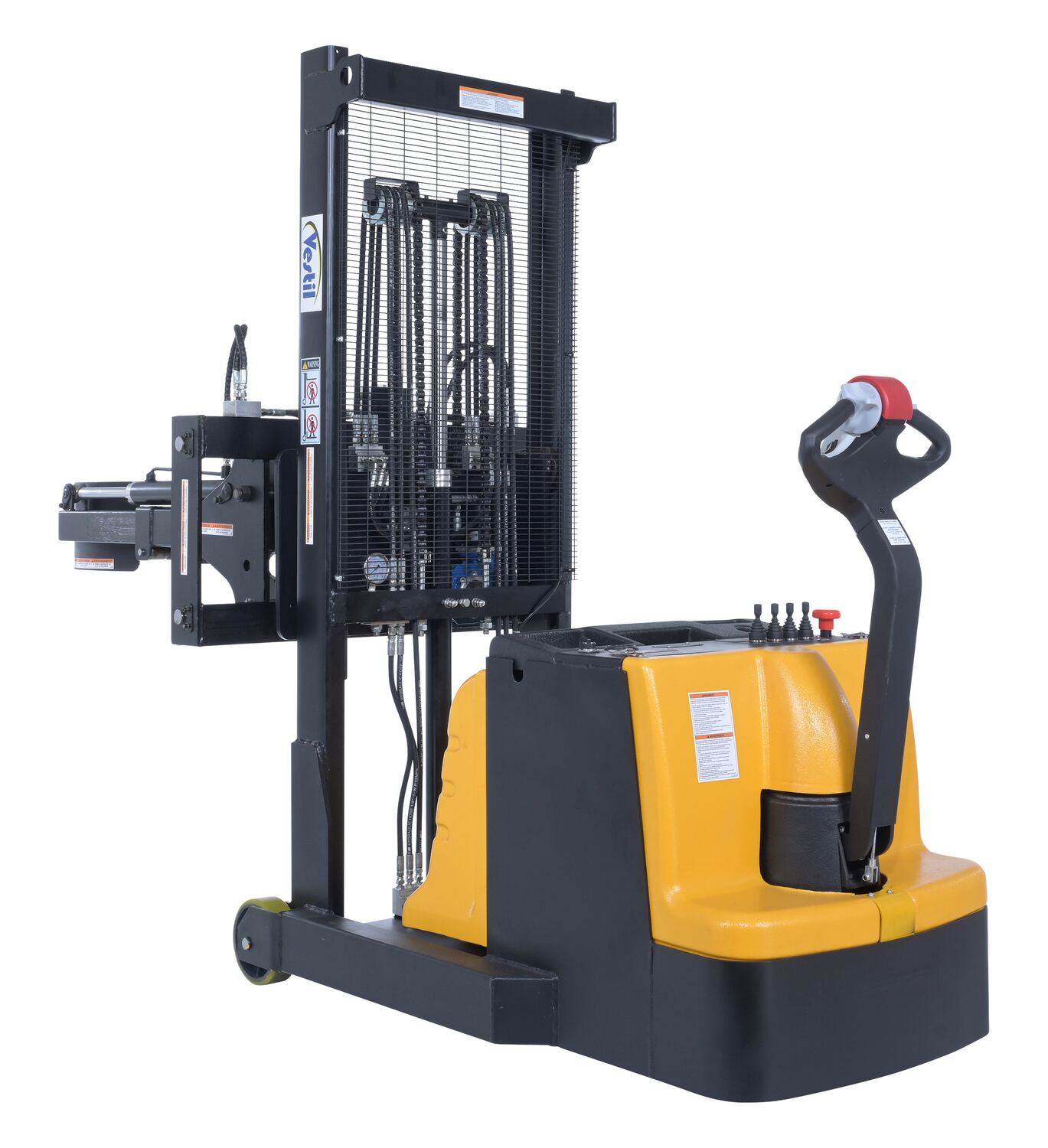

S-MU-VDGR-64 (for Drums)

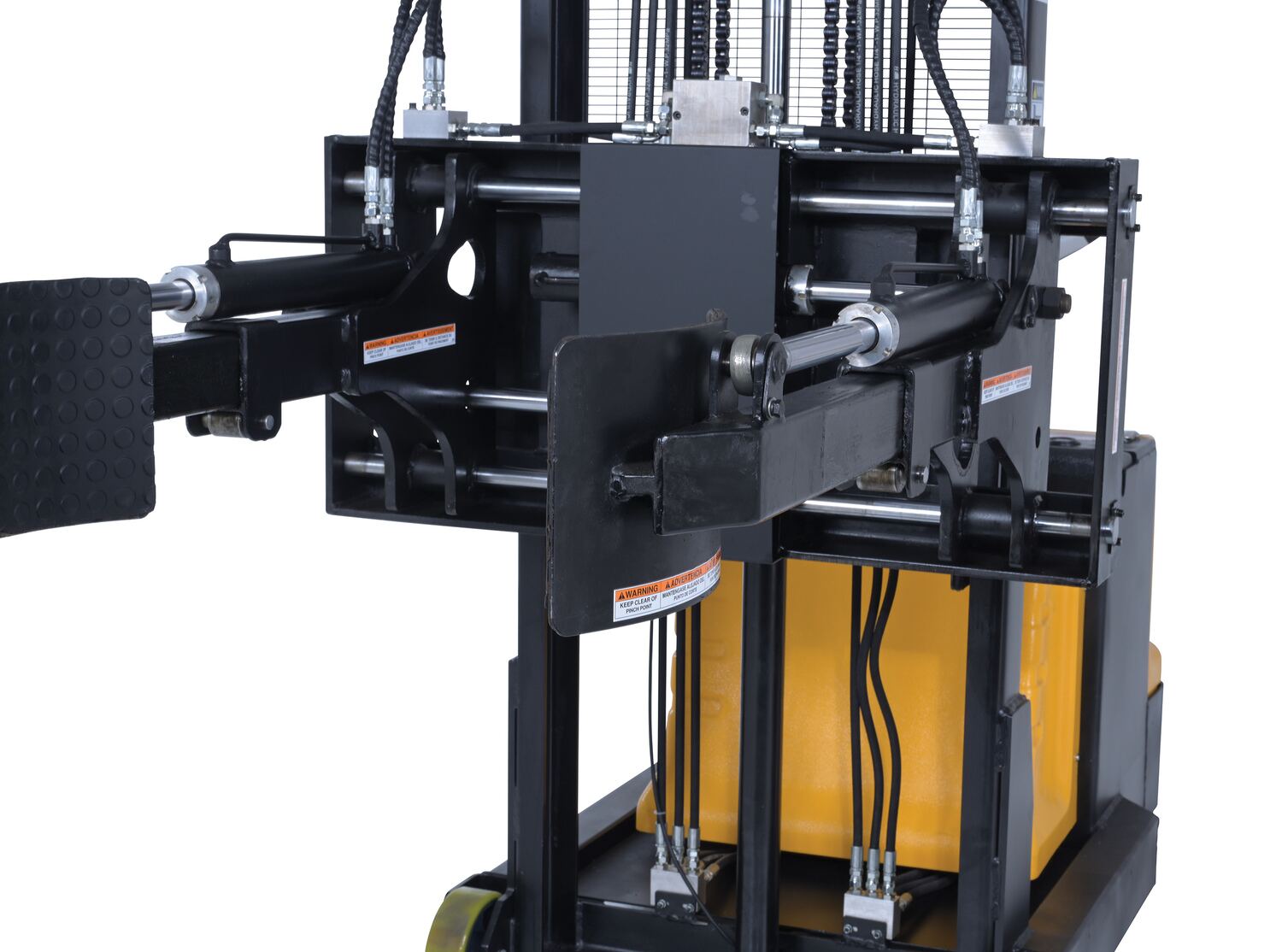

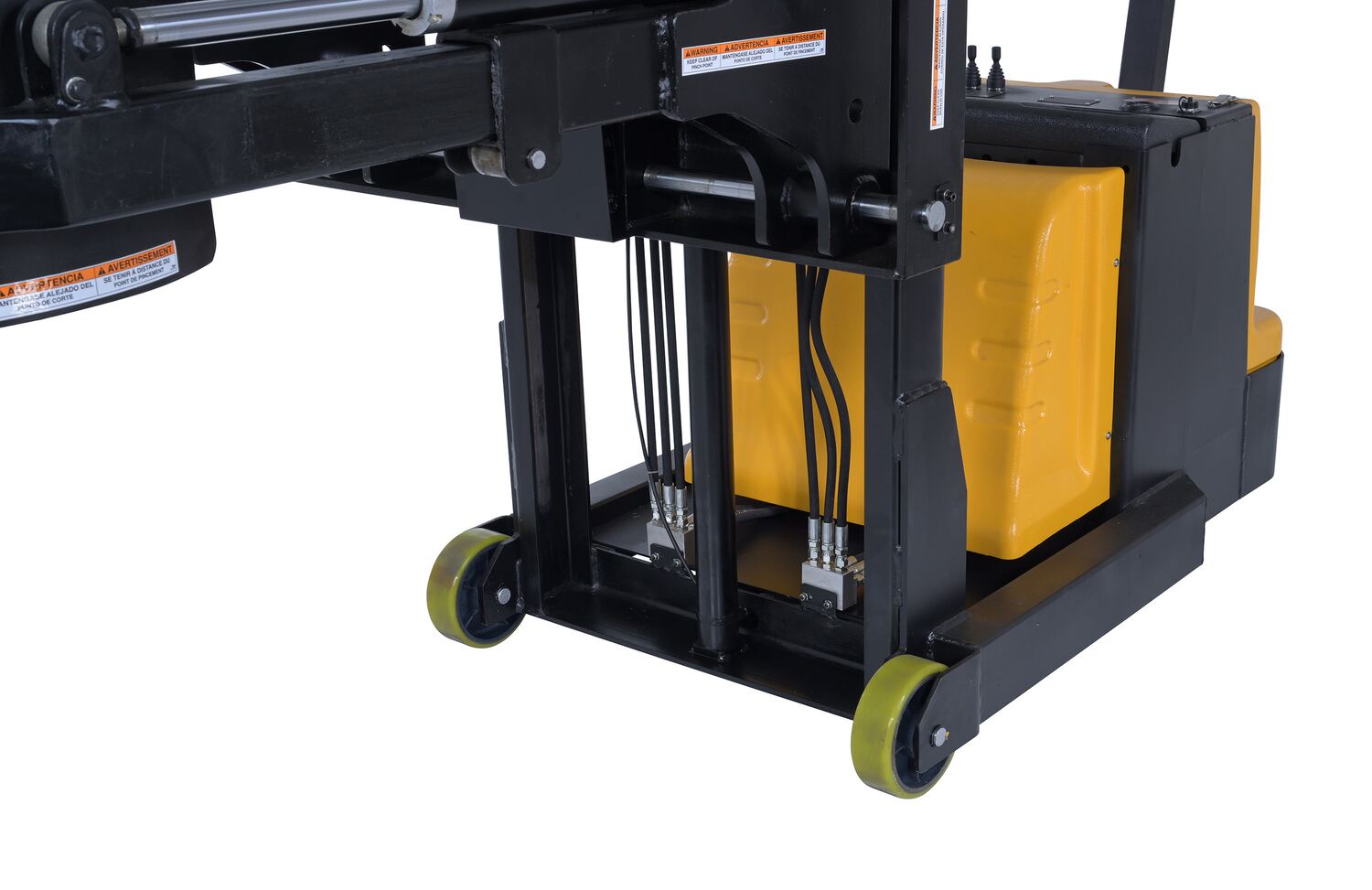

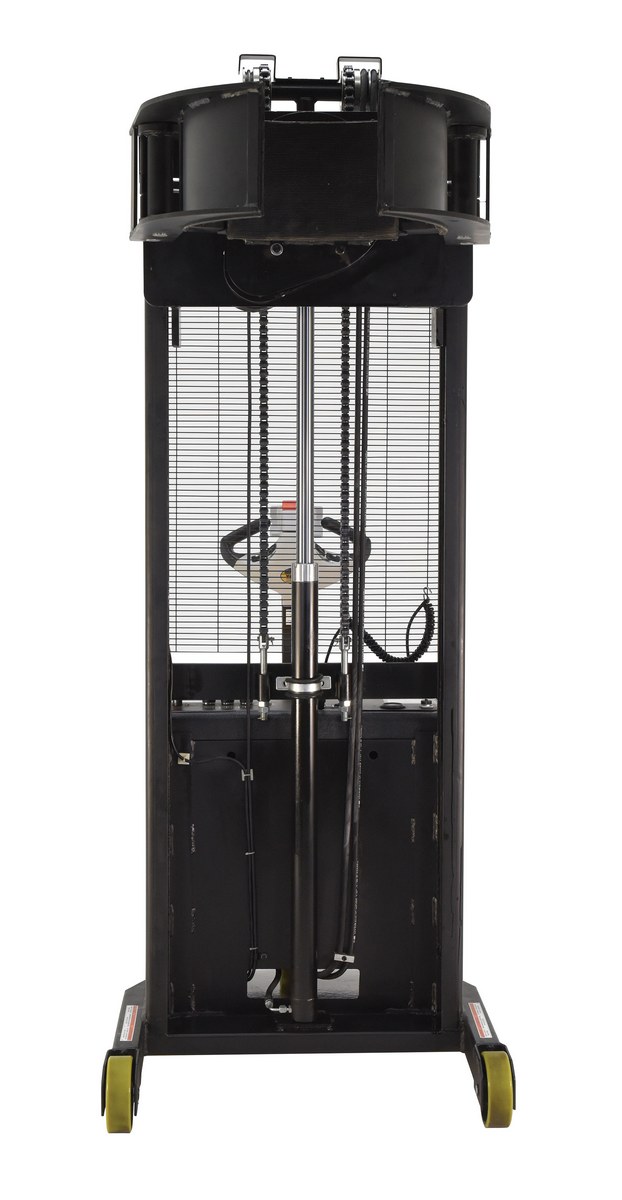

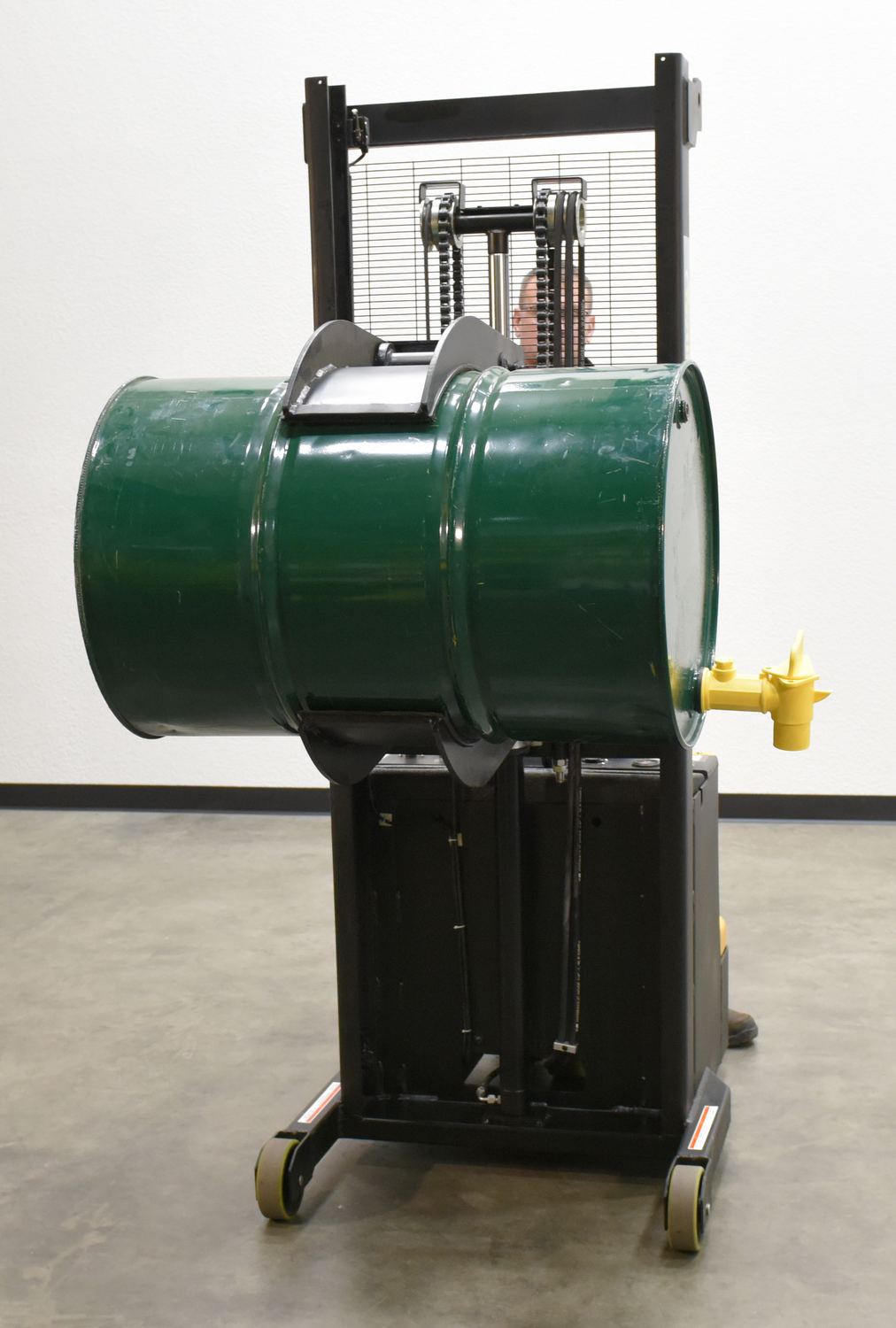

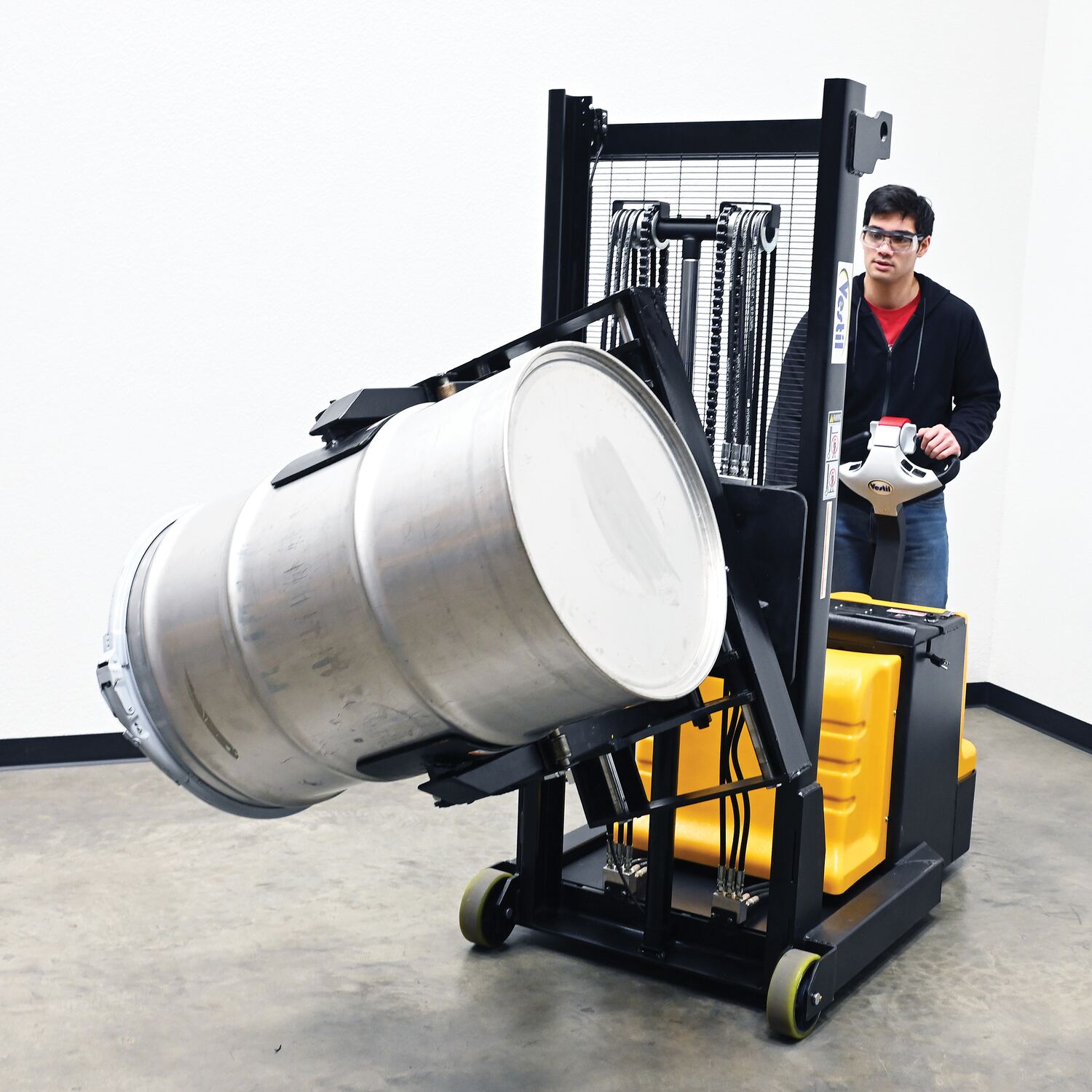

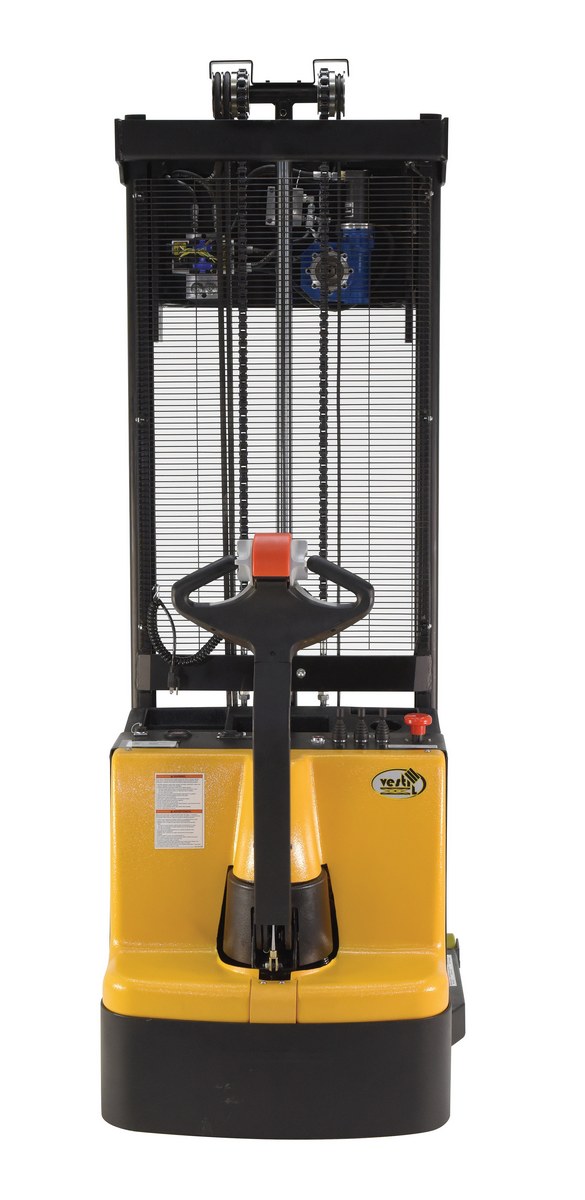

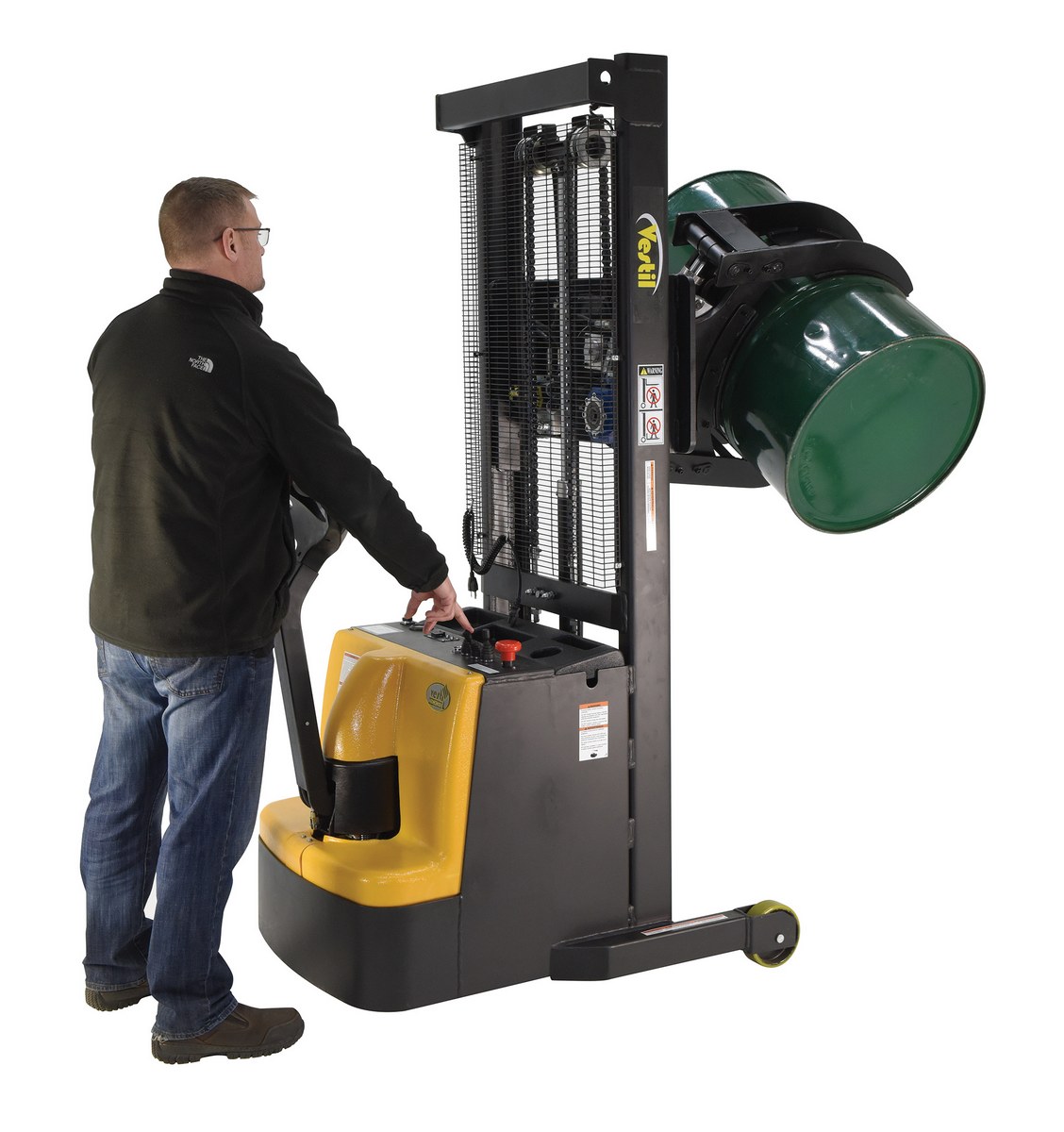

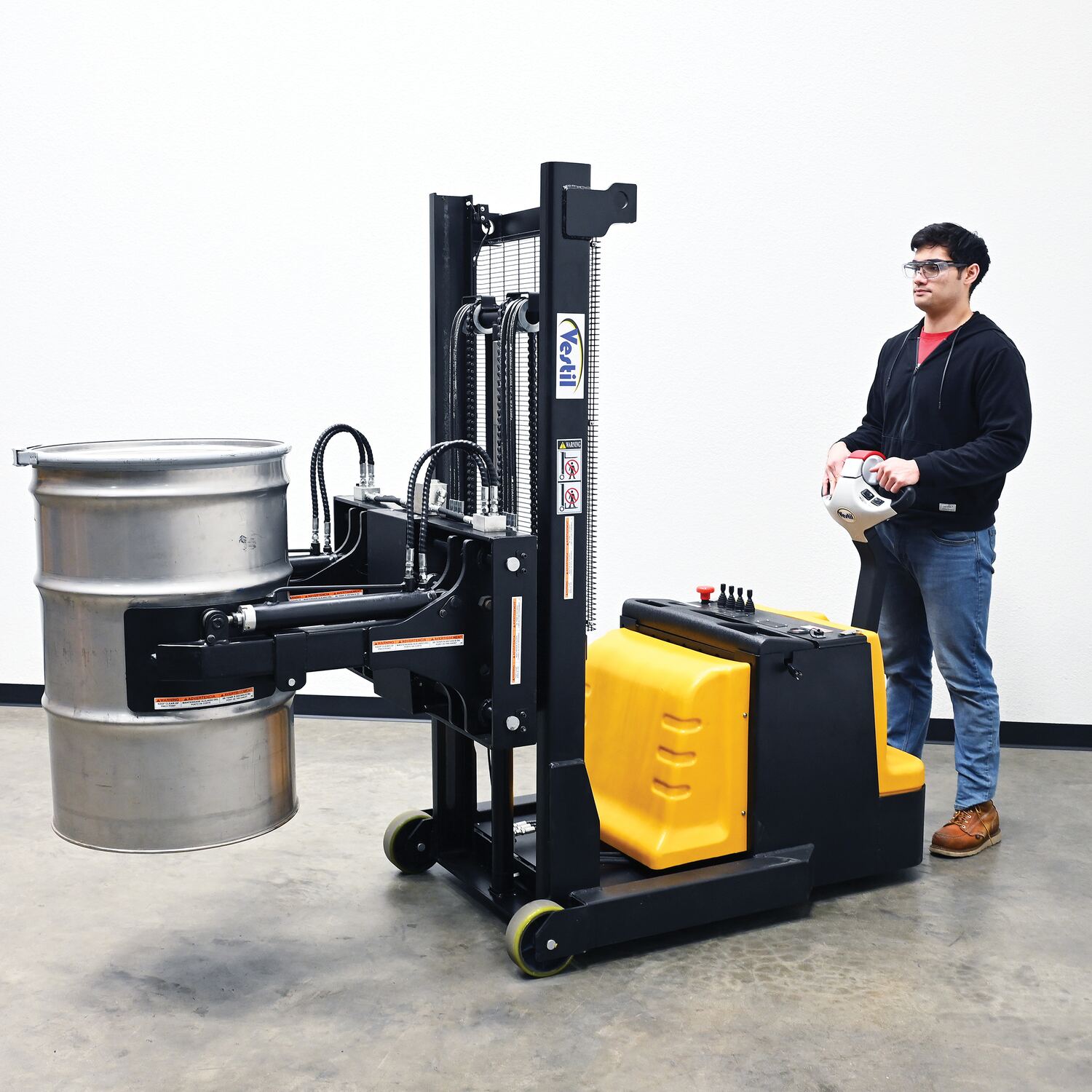

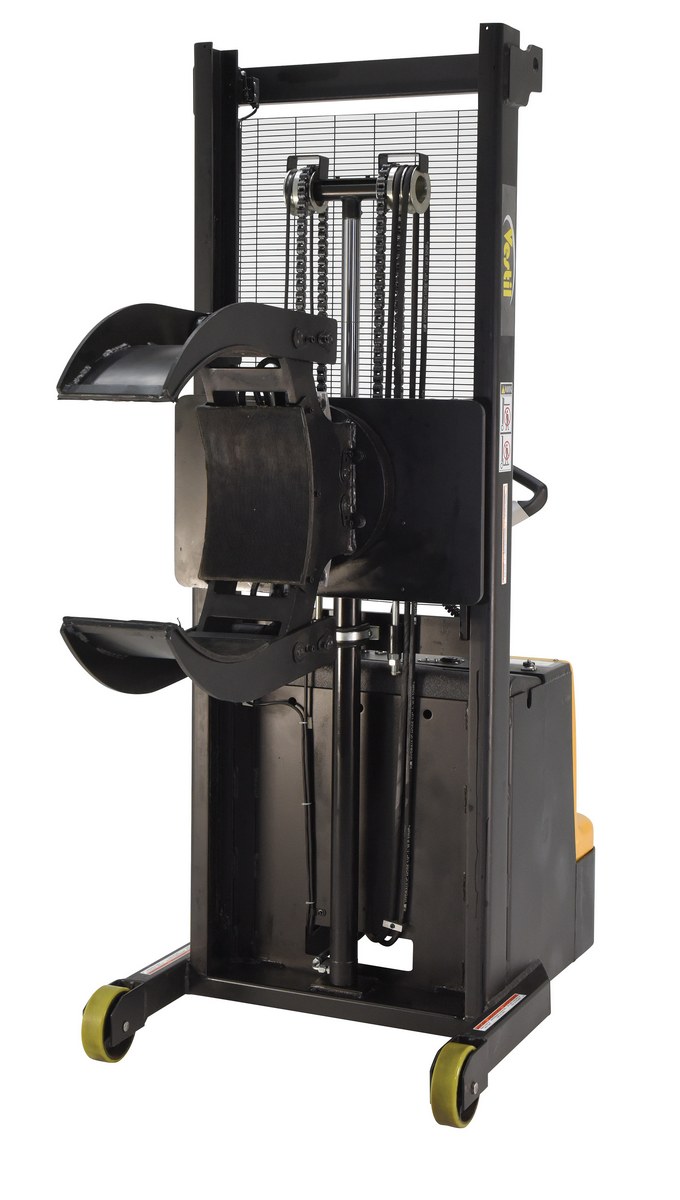

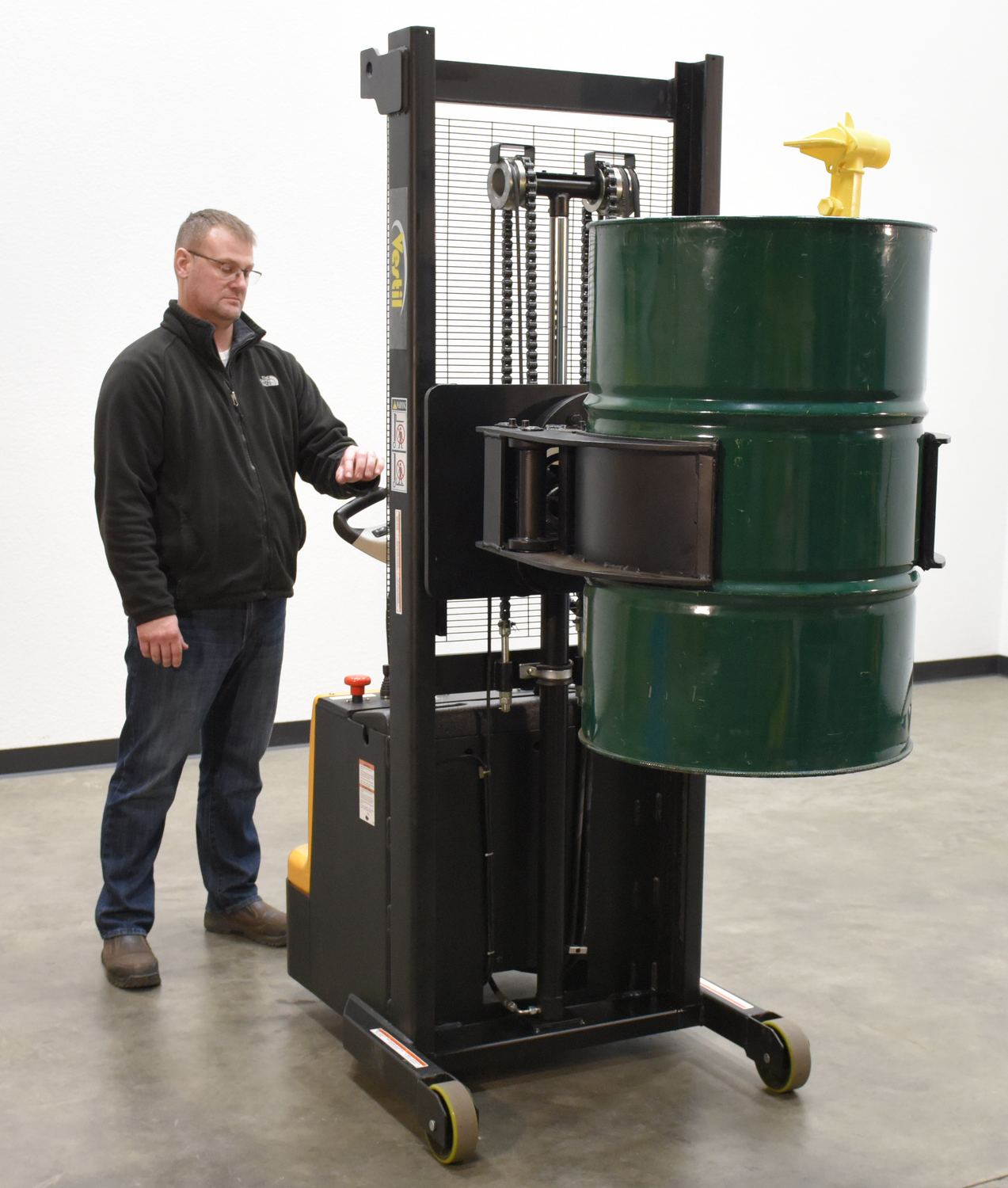

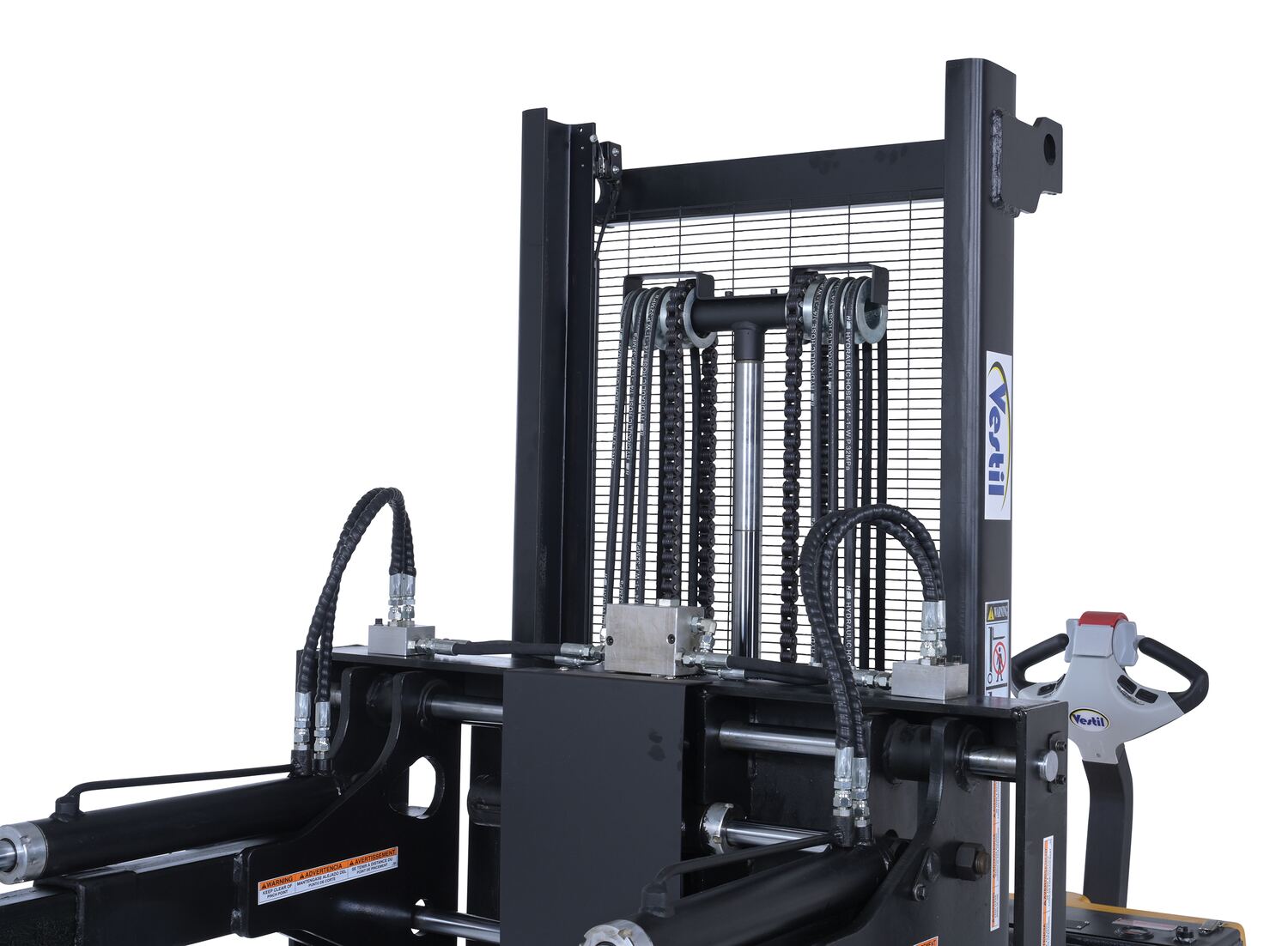

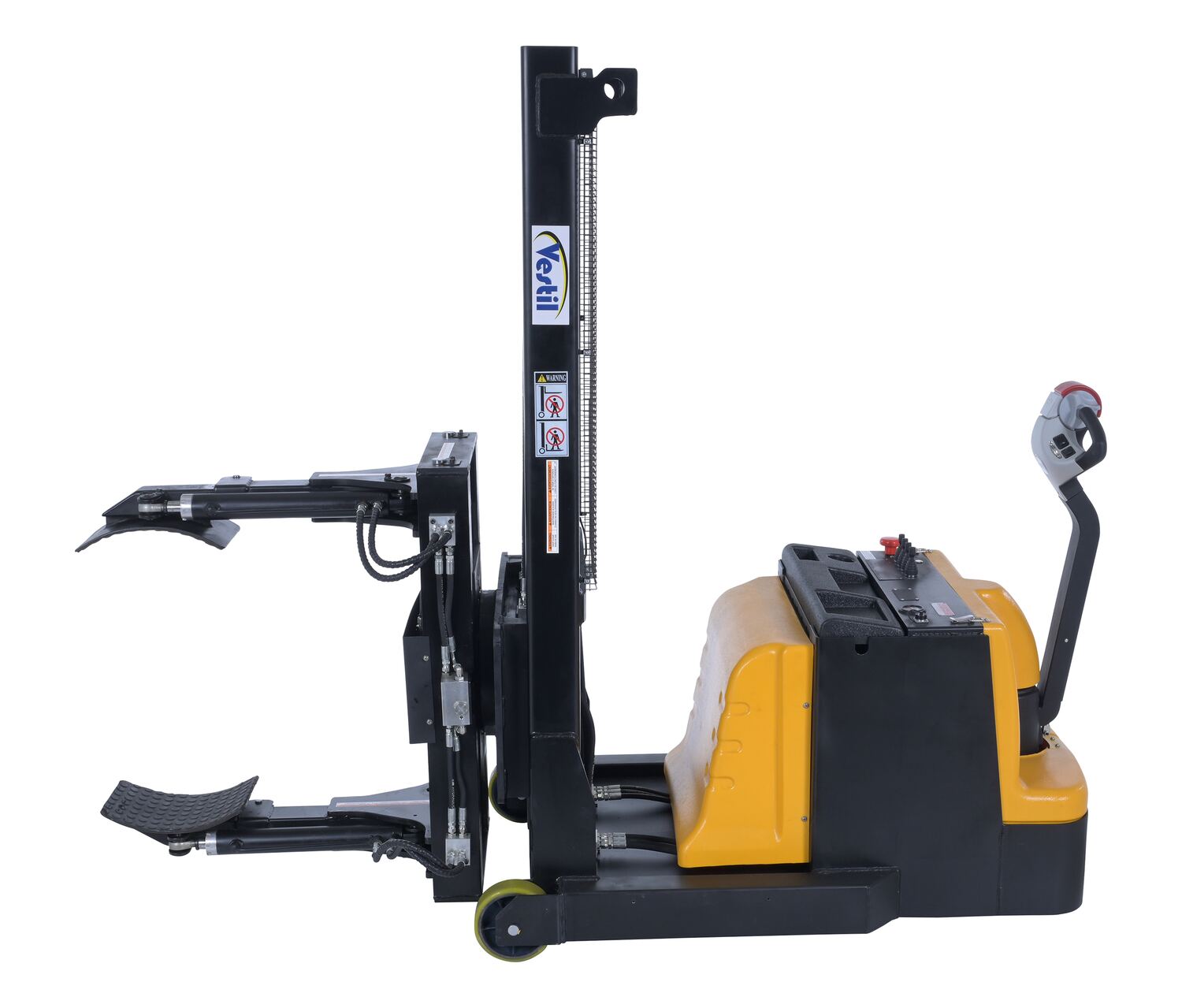

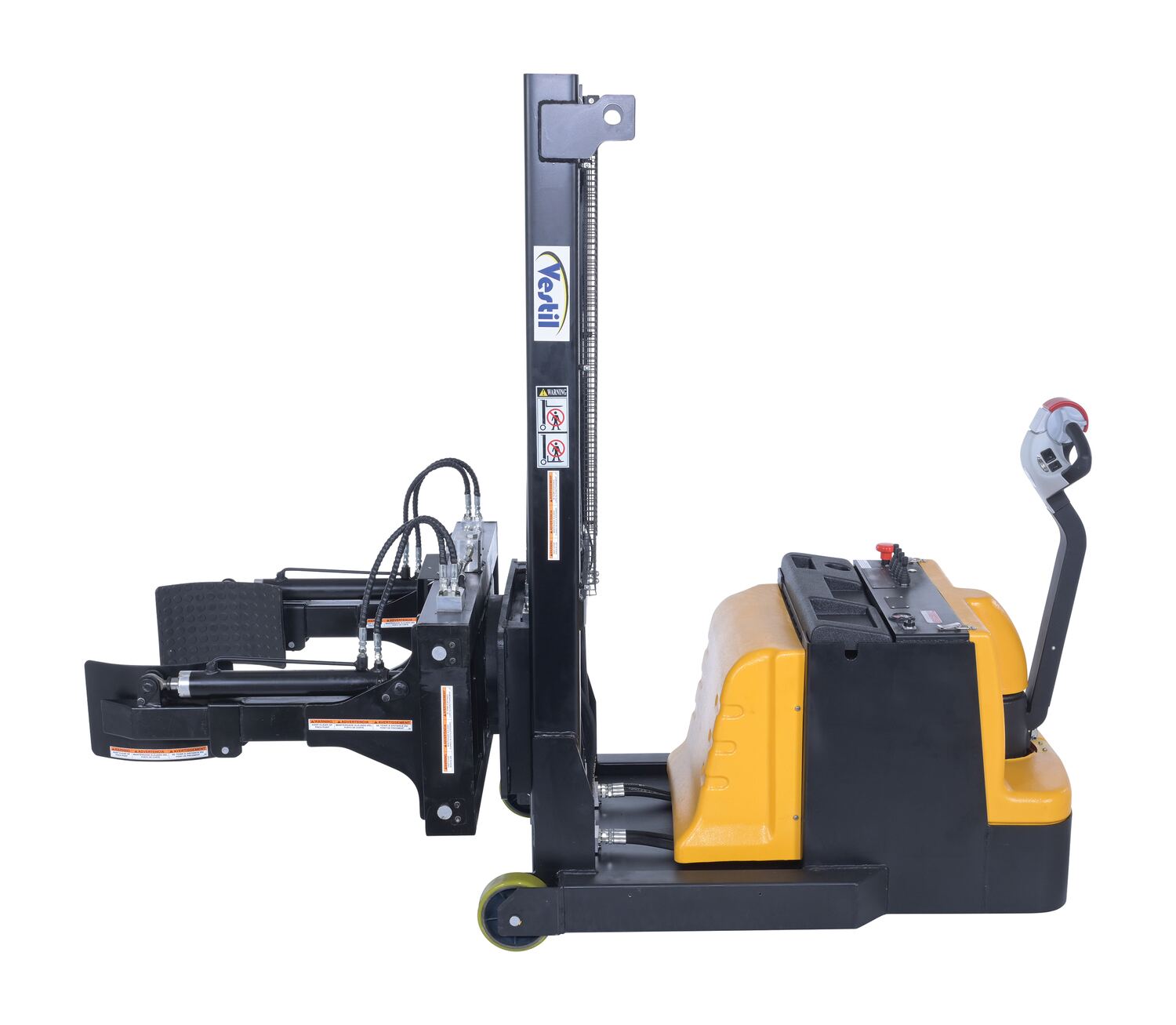

The fully powered vertical drum gripper/rotator is a great asset for the manufacturing and distributing industries. A walk behind design with a max unloaded speed of over 3 mph and a single handle control makes maneuvering into the desired position easy. The shortened length allows the unit to get into very tight areas where other lifting devices can't reach. An 800 lb. lifting capacity lets users transfer more material in fewer trips, maximizing efficiency. Long term battery charge allows for constant daily use without needless downtime. Two (2) 12V lead acid batteries. Integral battery charger and level gauge included.

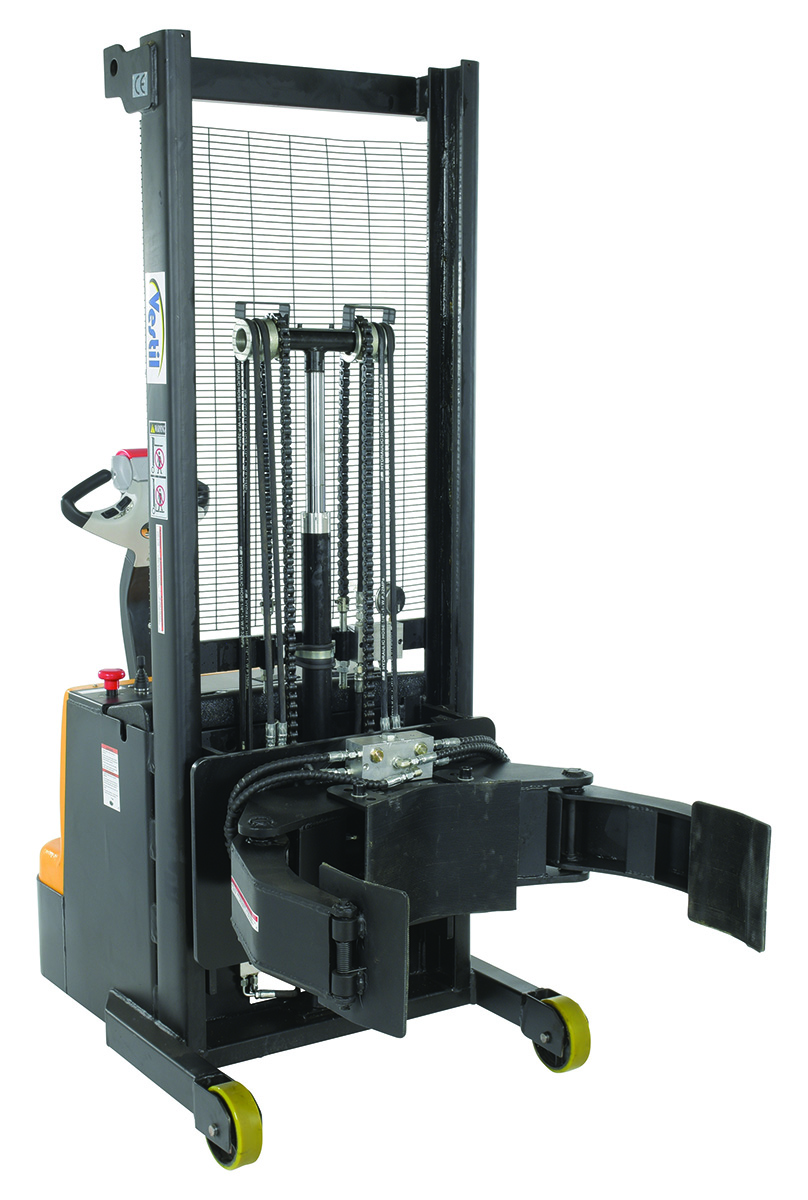

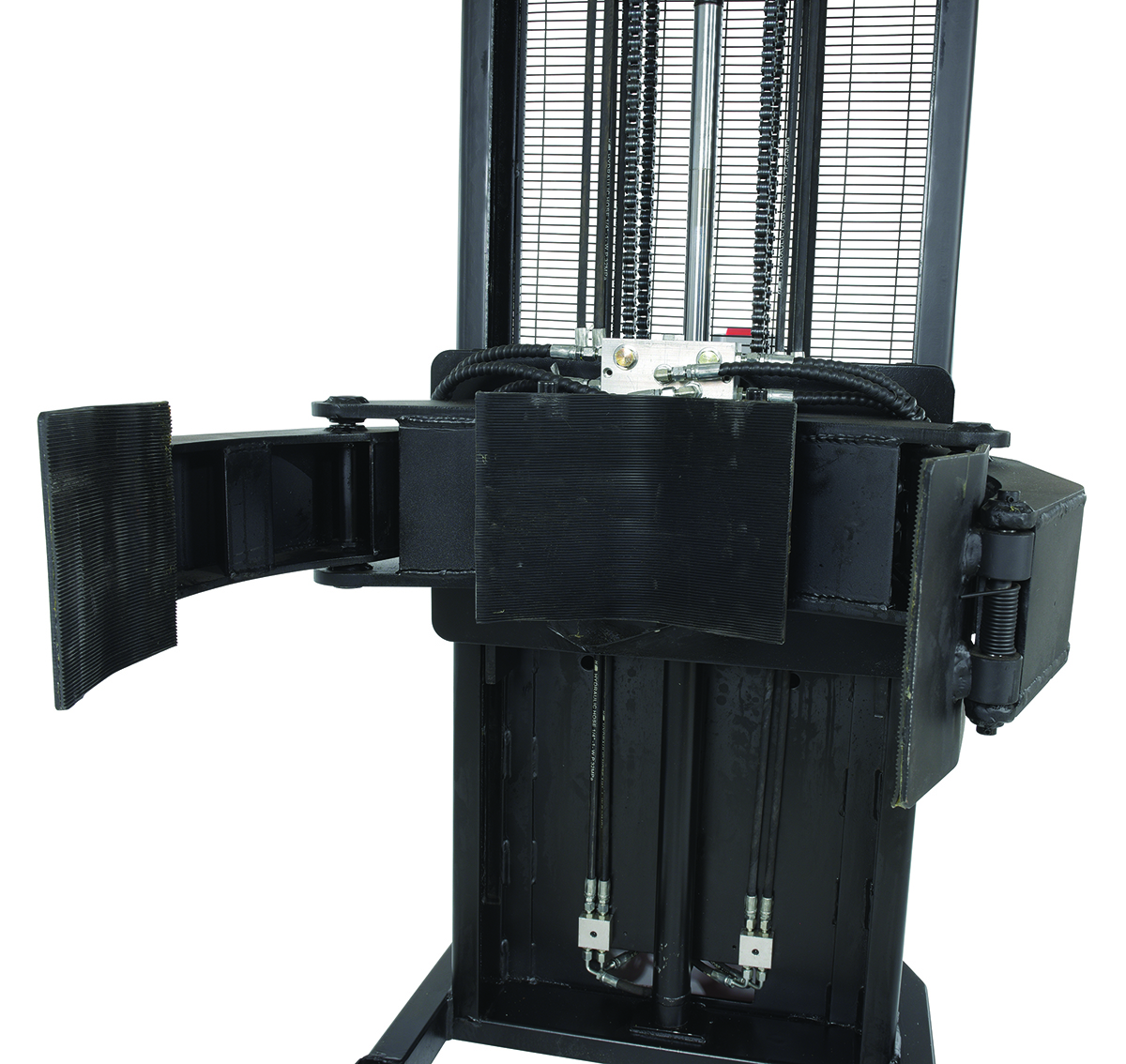

S-MU-VDGR-64S-MU-VRGR-72 (for Vertical Rolls)

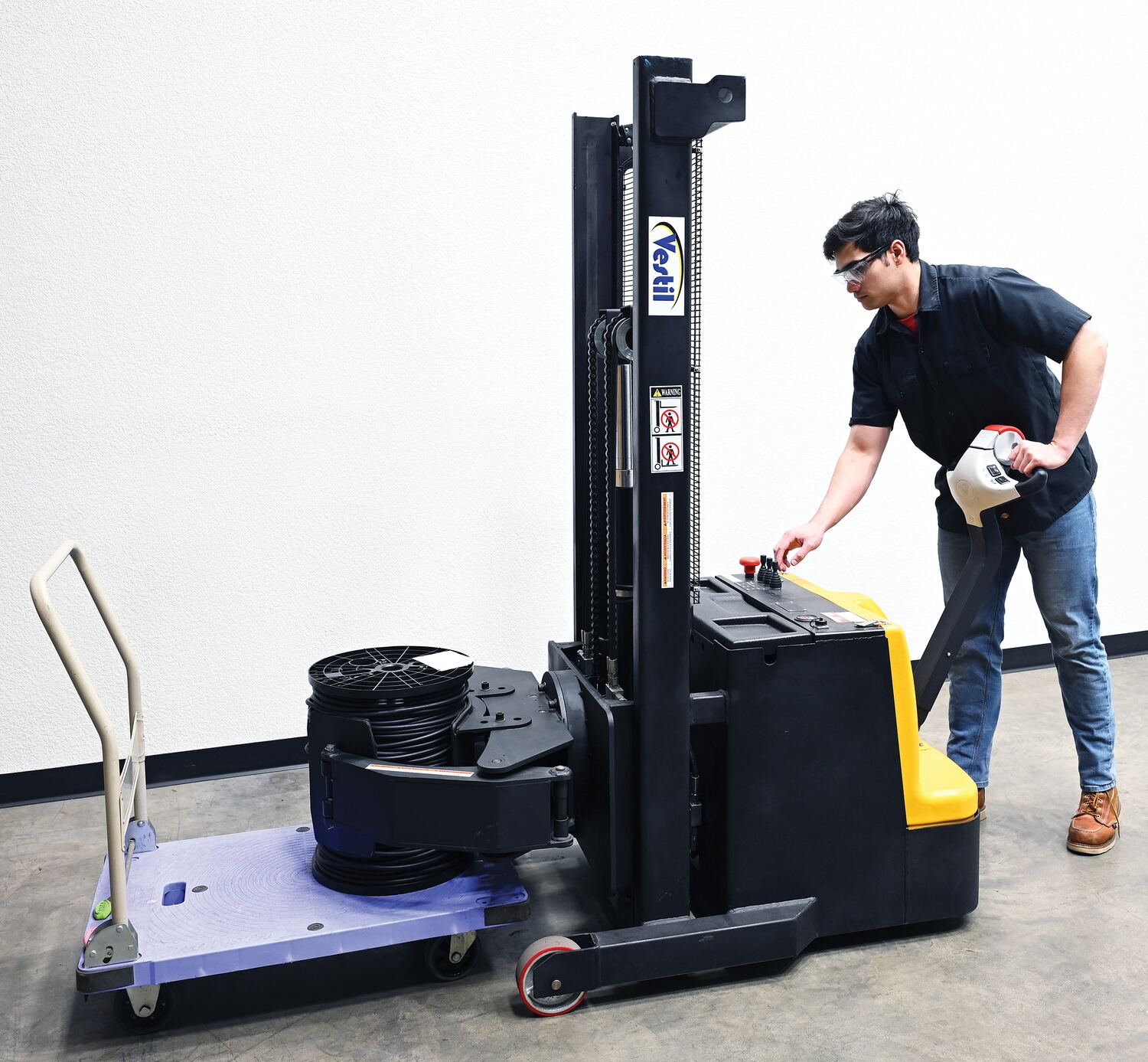

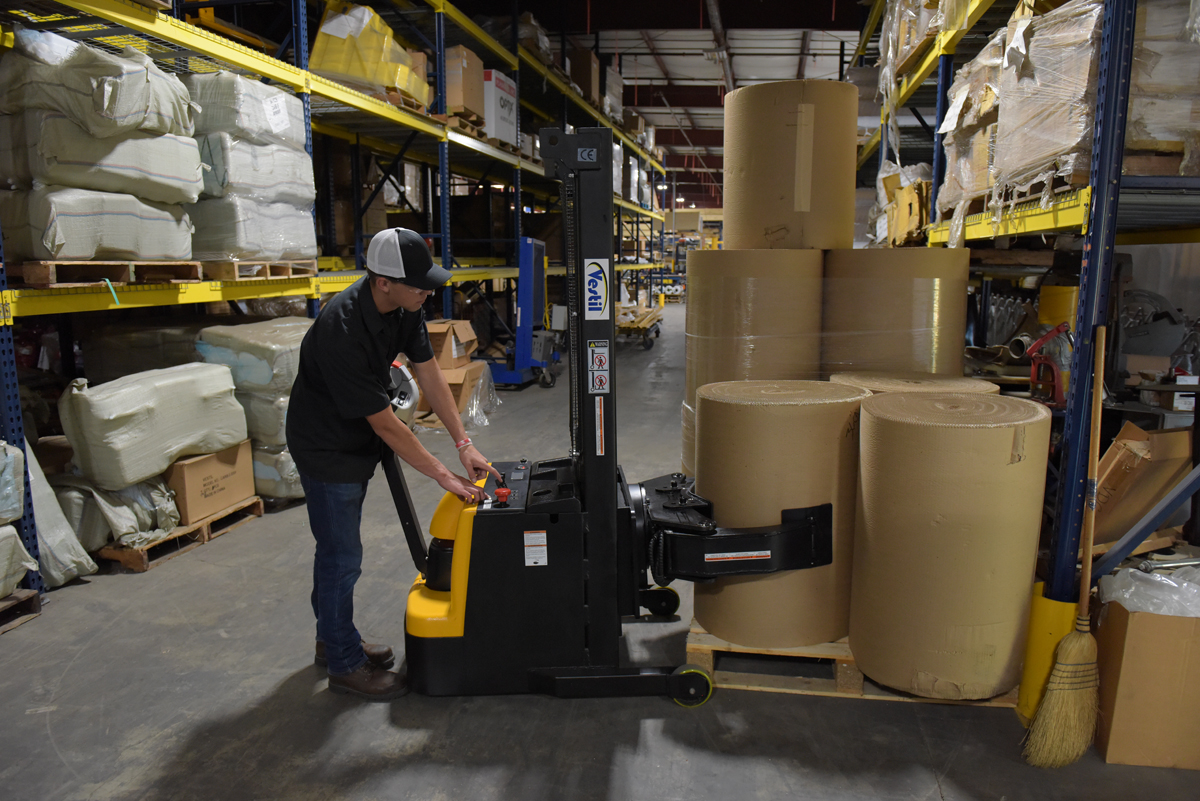

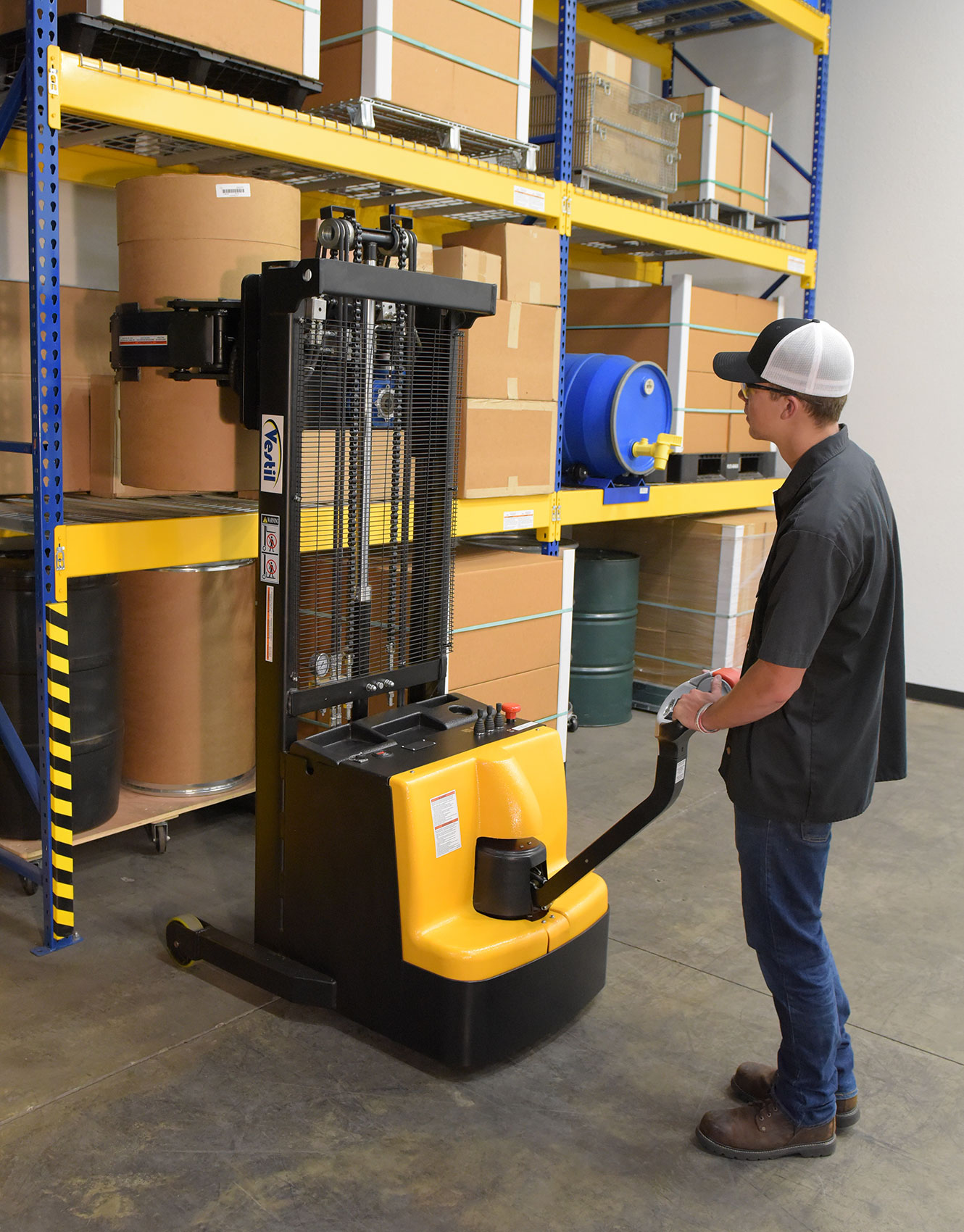

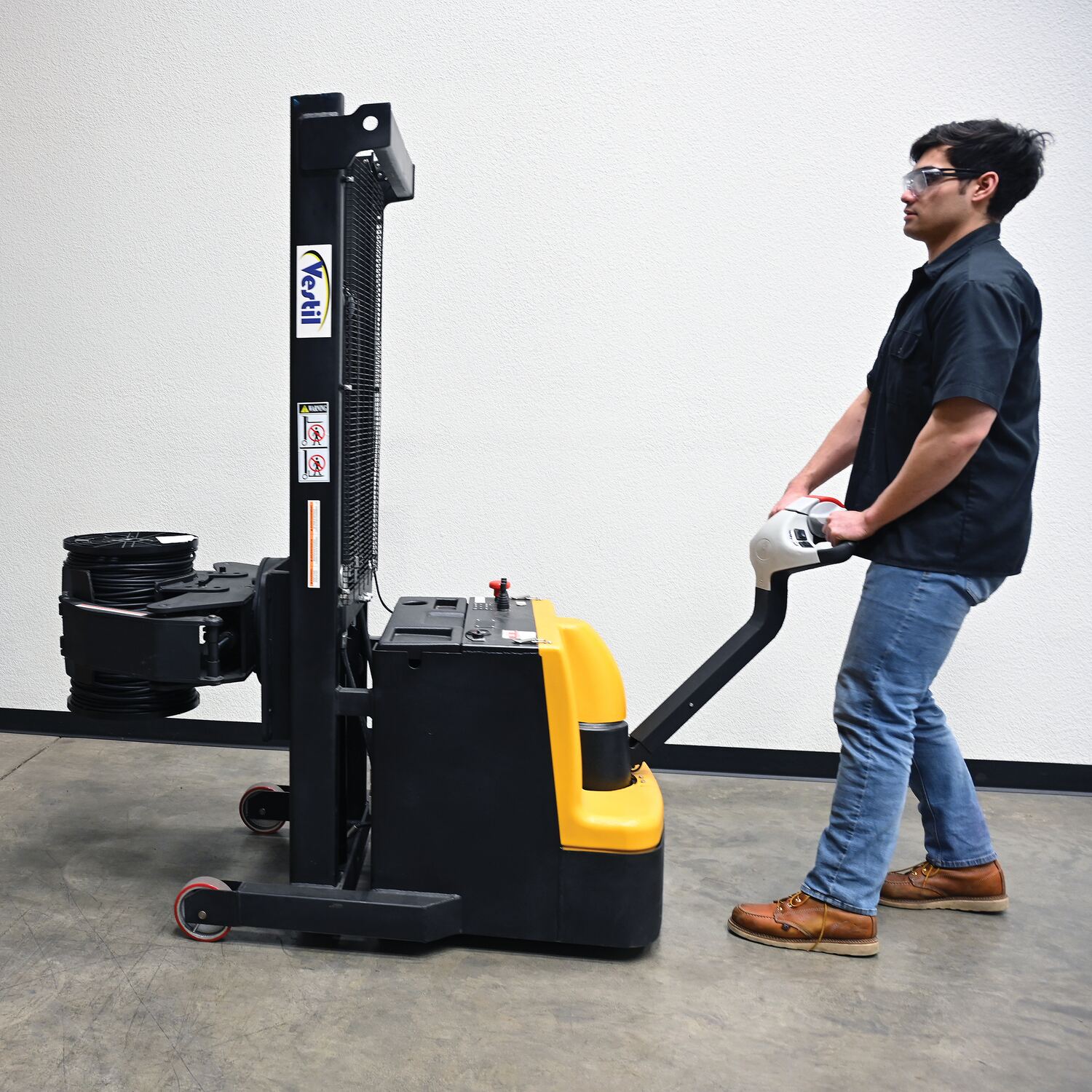

A vertical roll gripper/rotator is perfect for the manufacturing and distributing industries. A walk behind design with a single handle control makes maneuvering into the desired position easy. The compact design allows the unit to get into small areas where other lifting devices can't reach. A robust lifting capacity lets users transfer more rolls in fewer trips, maximizing efficiency. Long term battery charge allows for constant daily use without needless downtime. Powder coated finish for added baked in toughness.

  • Expansive lift height for use in an array of areas
  • Battery powered for consistent use
  • Secure grip during positioning

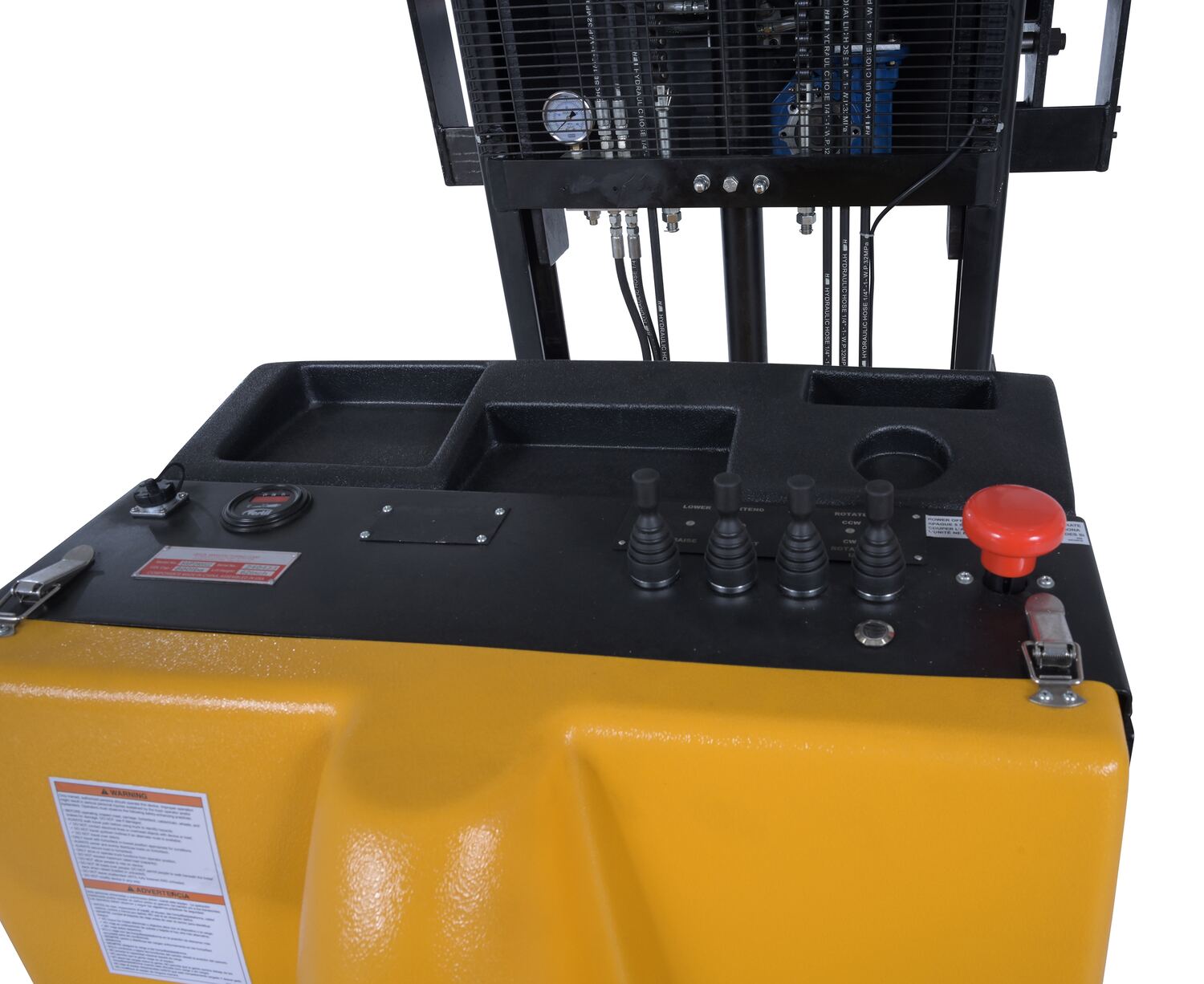

  • Full controls on handle and around steering area

Optional Hand Control (as shown in video above) is sold seperately in Options below

S-MU-VDGR-64 (for Drums)
The fully powered vertical drum gripper/rotator is a great asset for the manufacturing and distributing industries. A walk behind design with a max unloaded speed of over 3 mph and a single handle control makes maneuvering into the desired position easy. The shortened length allows the unit to get into very tight areas where other lifting devices can't reach. An 800 lb. lifting capacity lets users transfer more material in fewer trips, maximizing efficiency. Long term battery charge allows for constant daily use without needless downtime. Two (2) 12V lead acid batteries. Integral battery charger and level gauge included.

S-MU-VDGR-64S-MU-VRGR-72 (for Vertical Rolls)
A vertical roll gripper/rotator is perfect for the manufacturing and distributing industries. A walk behind design with a single handle control makes maneuvering into the desired position easy. The compact design allows the unit to get into small areas where other lifting devices can't reach. A robust lifting capacity lets users transfer more rolls in fewer trips, maximizing efficiency. Long term battery charge allows for constant daily use without needless downtime. Powder coated finish for added baked in toughness.

  • Expansive lift height for use in an array of areas
  • Battery powered for consistent use
  • Secure grip during positioning
  • Full controls on handle and around steering area

Optional Hand Control (as shown in video above) is sold seperately in Options below

Other Drum Transporters, Trucks, Carts & Jacks

 Pallet Straddling Drum Truck Portable Drum Lifter/Rotator/Transporters Economical Drum Transporters Semi-Electric Powered Drum Gripper

Additional Models In This Family
view entire Image Gallery

S-MU-VRGR-72

S-MU-VRGR-72

S-MU-VRGR-72

S-MU-VRGR-72

S-MU-VDGR-64

S-MU-VDGR-64

S-MU-VDGR-64

S-MU-VDGR-64

S-MU-VRGR-72

S-MU-VRGR-72

S-MU-VRGR-72

S-MU-VRGR-72

S-MU-VDGR-PDRM-30

S-MU-VDGR-PDRM-30

S-MU-VRGR-72

S-MU-VRGR-72

S-MU-VDGR-64

S-MU-VDGR-64

S-MU-VRGR-72

S-MU-VRGR-72

S-MU-VRGR-72

S-MU-VRGR-72

S-MU-VRGR-72

S-MU-VRGR-72

S-MU-VDGR-64

S-MU-VDGR-64

S-MU-VRGR-72

S-MU-VRGR-72

S-MU-VRGR-72

S-MU-VRGR-72

Applications



Warehouses

Do It Yourself

Farming and Agriculture

Maintenance Yards

Recycling Areas
model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
S-MU-VDGR-64 POPULAR
S-MU-VDGR-641 Year Limited WarrantySteel Vertical Drum Gripper/Rotator Stacker 64 In. Dispensing Height 800 Lb. Capacity Black / YellowUniform Capacity (lb.): 800
Continuous usage (Hours): 3-4		1502
S-MU-VRGR-72
S-MU-VRGR-721 Year Limited WarrantySteel Vertical Roll Gripper/Rotator 72 In. Raised Height 800 Lb. Capacity Black/YellowUniform Capacity (lb.): 800
Power: 24V/DC		1435

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

S-MU-VDGR-64
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Continuous usage (Hours): 3-4
Uniform Capacity (lb.): 800
Continuous usage (Hours): 3-4

S-MU-VRGR-72
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Power: 24V/DC
Uniform Capacity (lb.): 800
Power: 24V/DC
For More Details of the Option Click the Red Model Button

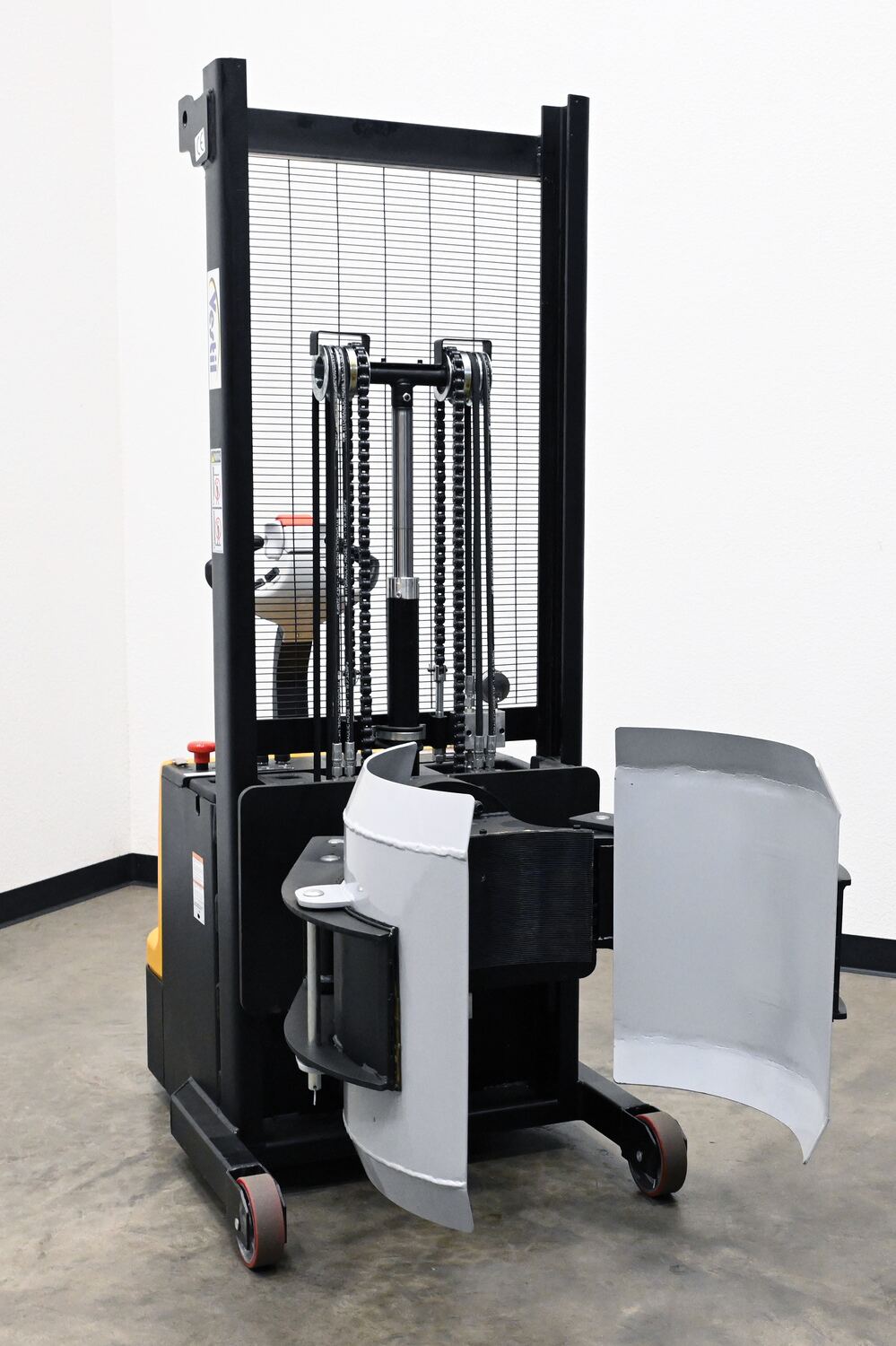

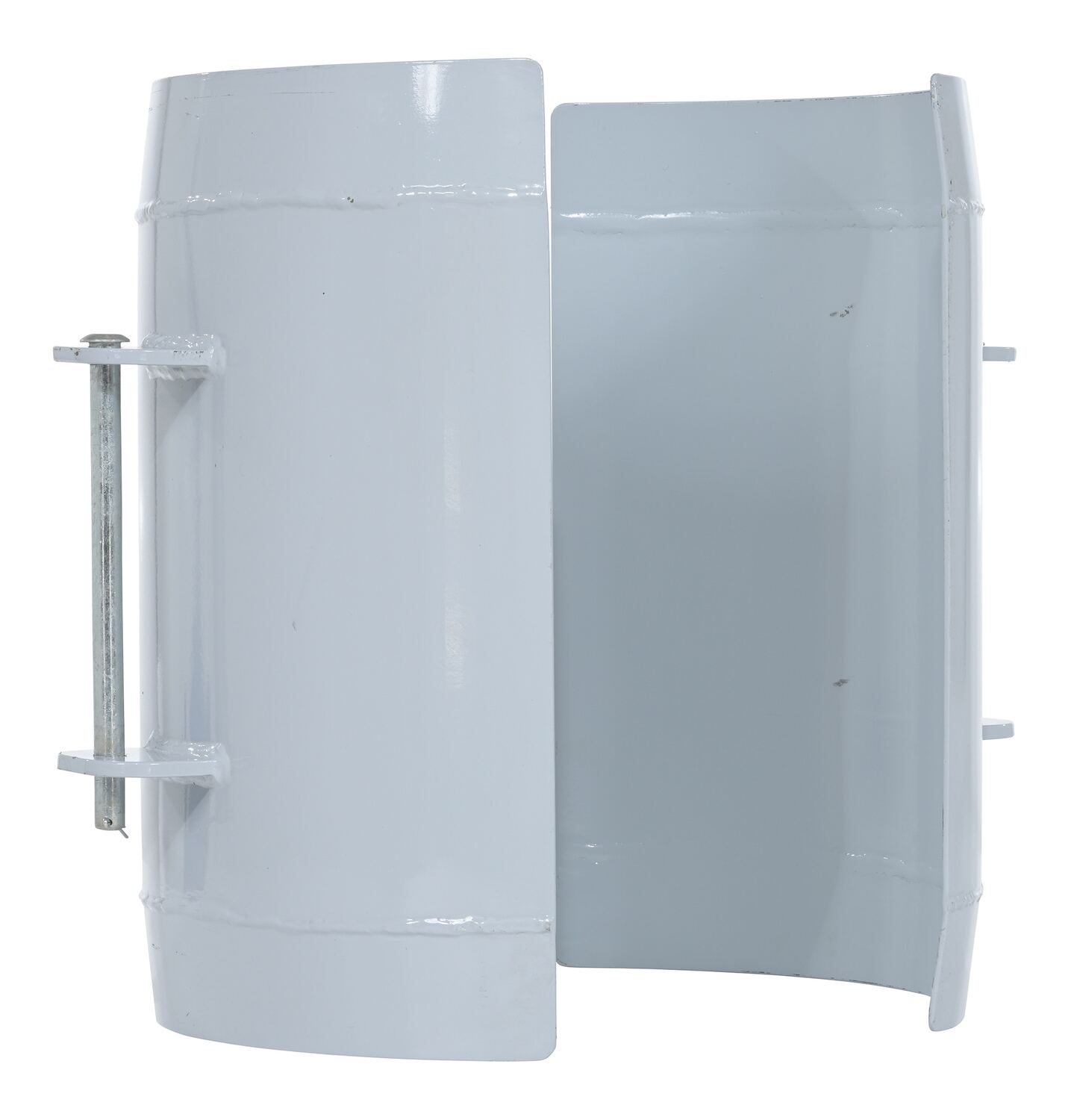

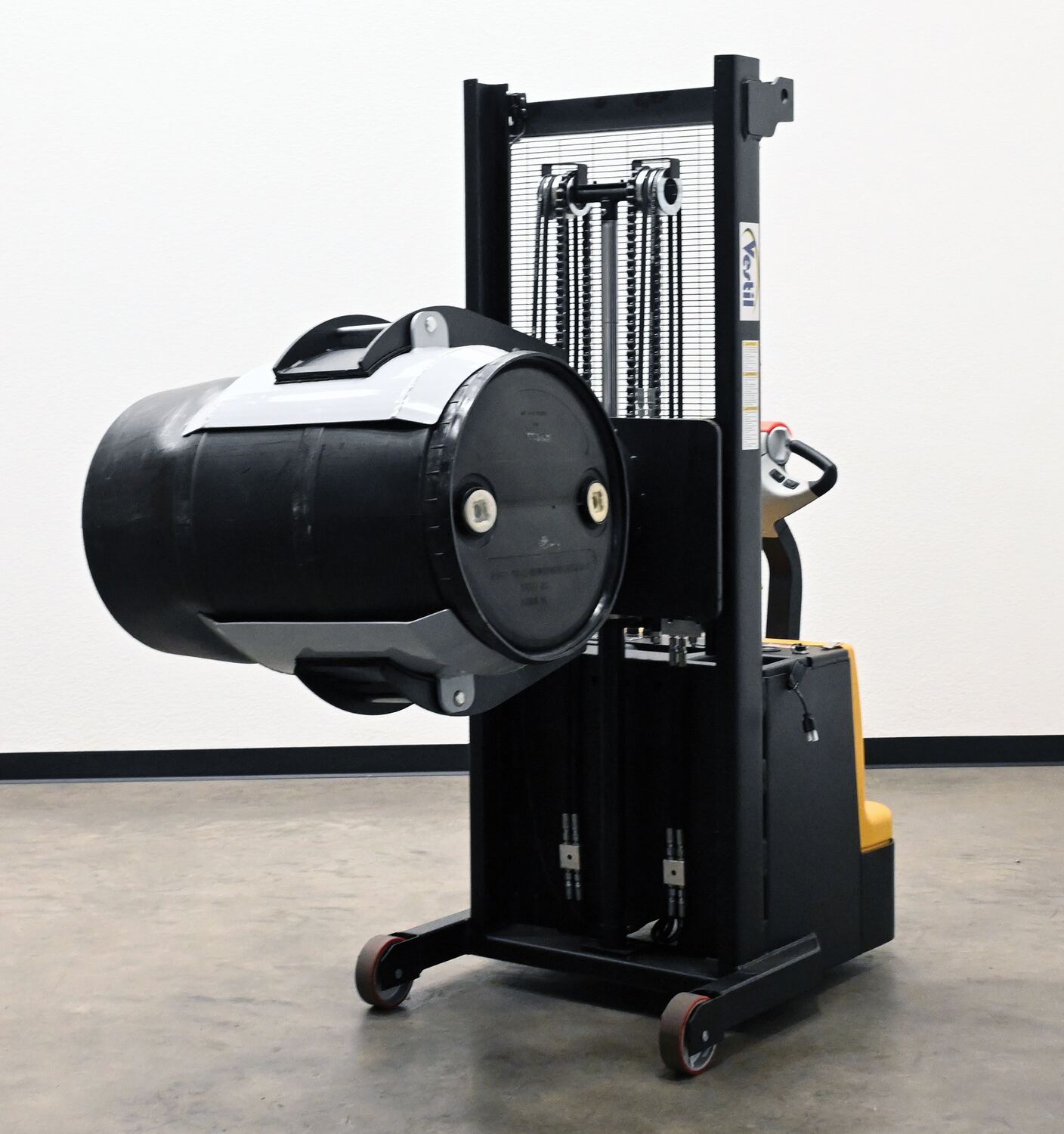

S-MU-VDGR-PDRM-30 NEW S-MU-VDGR-PDRM-301 Year Limited WarrantySteel Poly Drum Gripper Option 30 GallonUniform Capacity (Lbs.): 800
Drum Size (Gal): 30		73

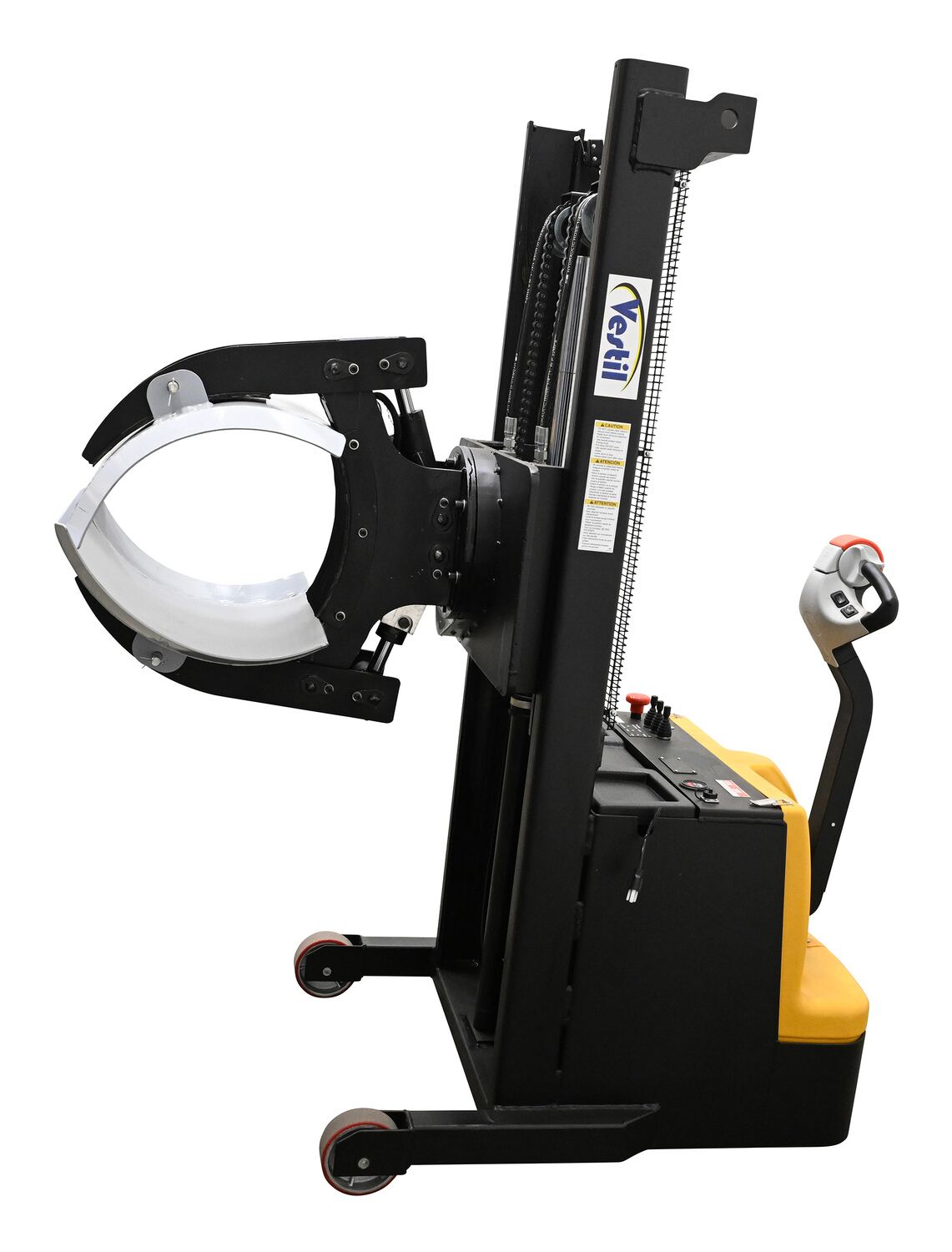

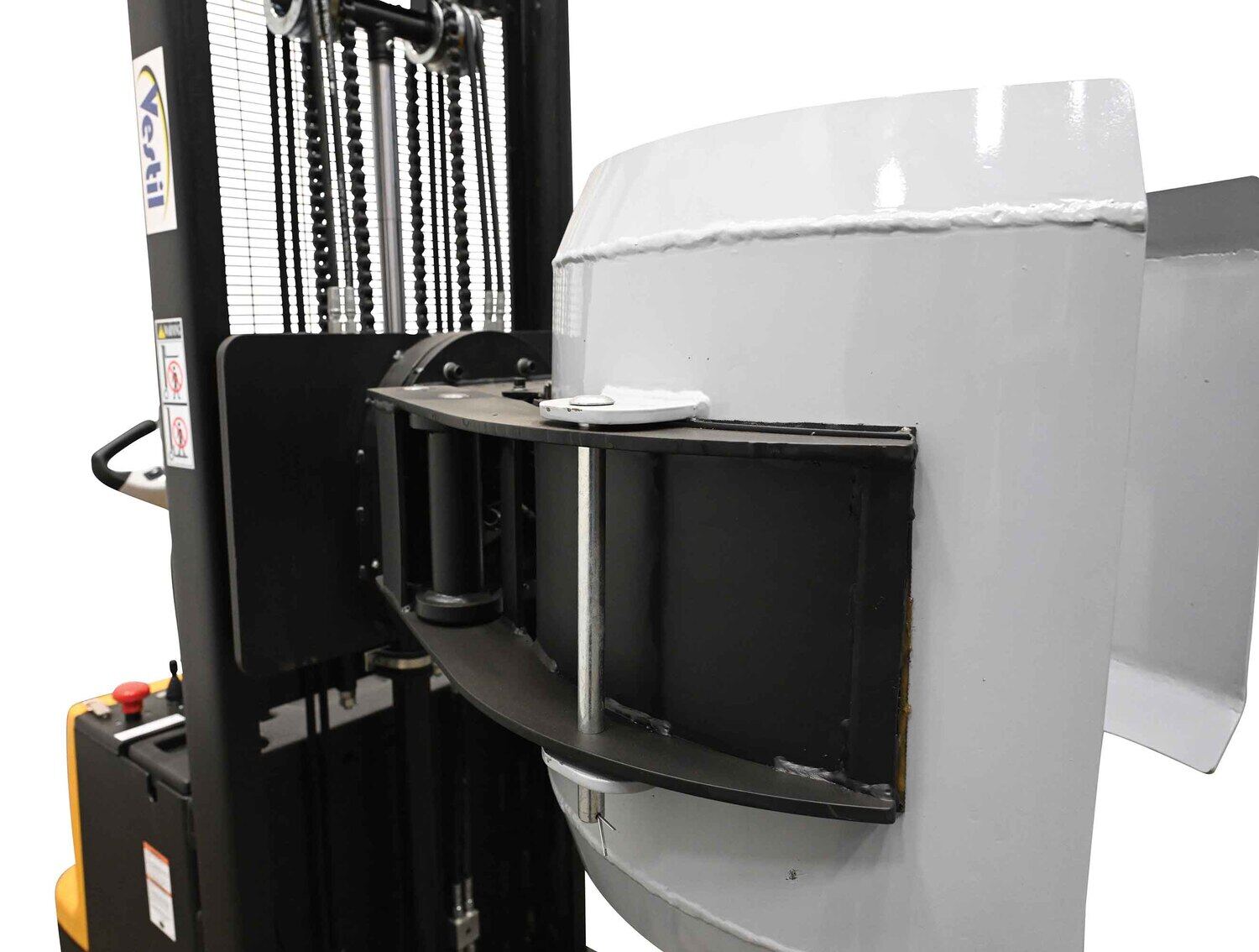

S-MU-VDGR-PDRM-55 NEW S-MU-VDGR-PDRM-551 Year Limited WarrantySteel Poly Drum Gripper Option 55 GallonUniform Capacity (Lbs.): 800
Drum Size (Gal): 55		81
Model Image PDFs Description Wt (lbs.)
SL-HC Warranty PDFCompliance Certificate Hand Control 3
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Fully Powered Vertical Gripper/Rotator PDF's will open in a new window when clicked.

Manuals


S-MU-VDGR-64
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


S-MU-VDGR-64

S-MU-VRGR-72

Testing Certificates


S-MU-VDGR-64

S-MU-VDGR-PDRM-30

S-MU-VDGR-PDRM-55

S-MU-VRGR-72

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-MU-VDGR-64
Hydraulic Oil SDS Sheet for: S-MU-VDGR-64

Other PDF's


Powered Drum Stacker Mailing Brochure		 Modex
MODEX Powered Drum Stacker Brochure

Vertical Gripper/Rotator Mailing Brochure		 Modex
Poly Drum Adapters Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What size diameter can this gripper lift?

A: The gripper can accommodate 16"-30" rolls (outside diameter).

Q: Will the S-MU-VDGR-64 work with 30 gallon drums?

A: Yes this will work with 30 gallon standard steel or stainless steel drums.

Q: What is the degree of rotation for the gripper?

A: The rotation is 360.

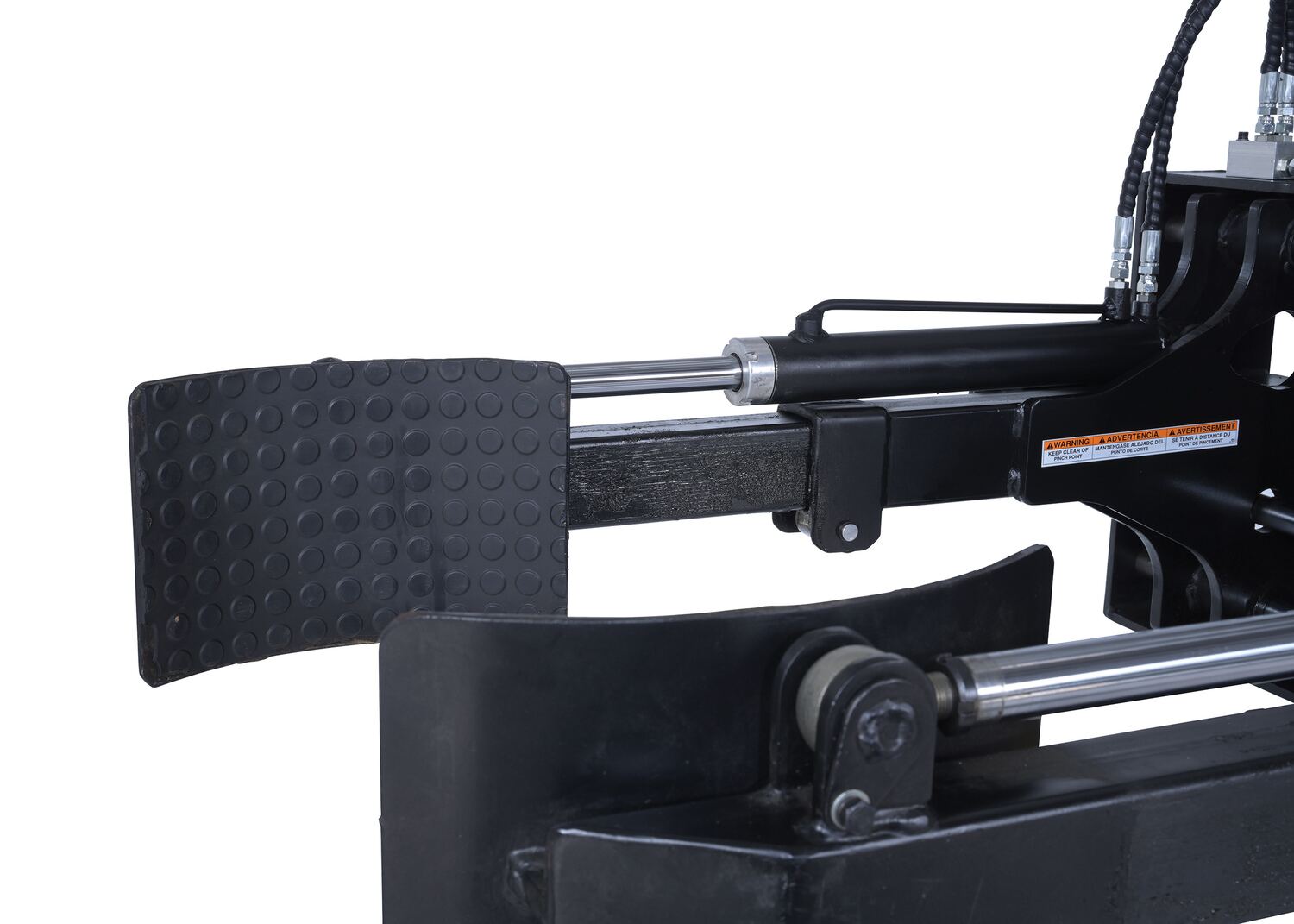

Q: Do the clamp pads have rubber on them?

A: Yes the clamp pads have rubber protection.
