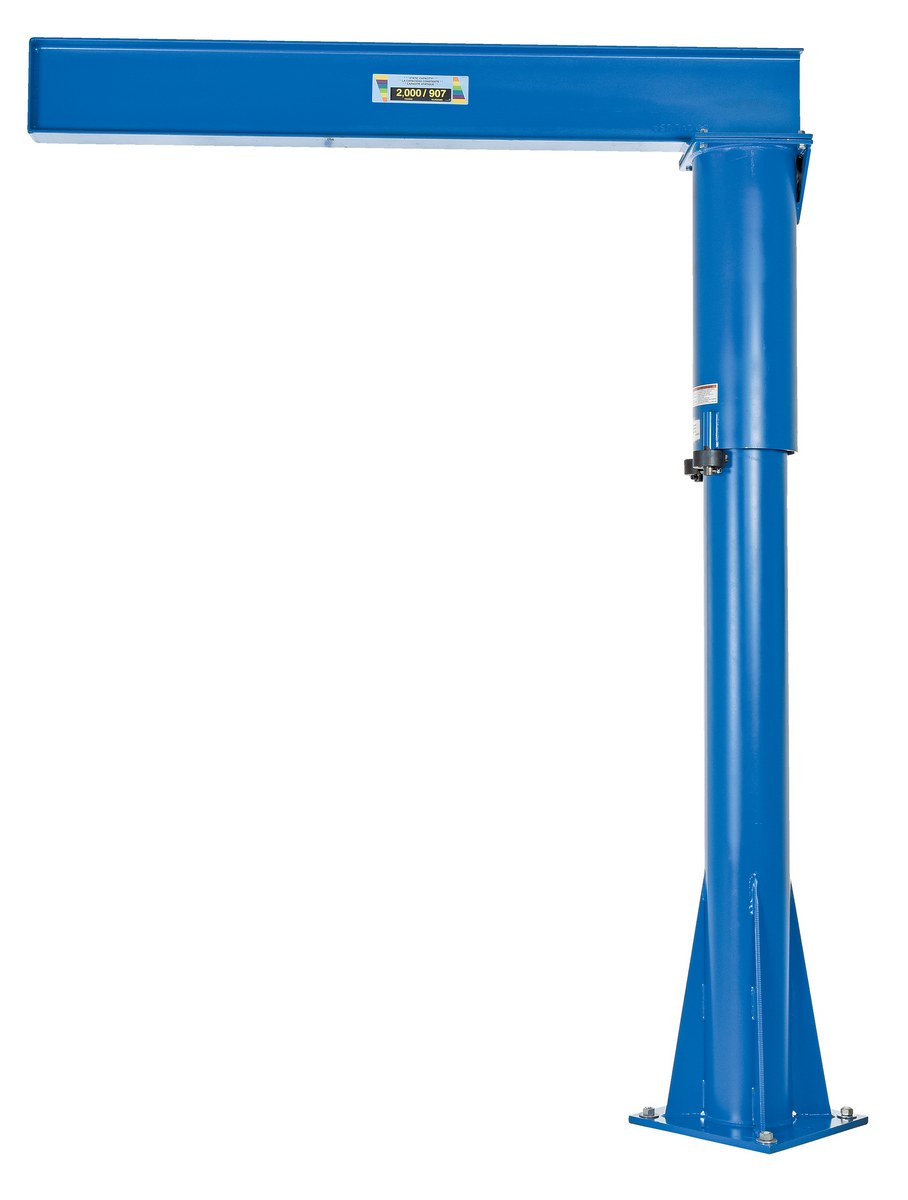

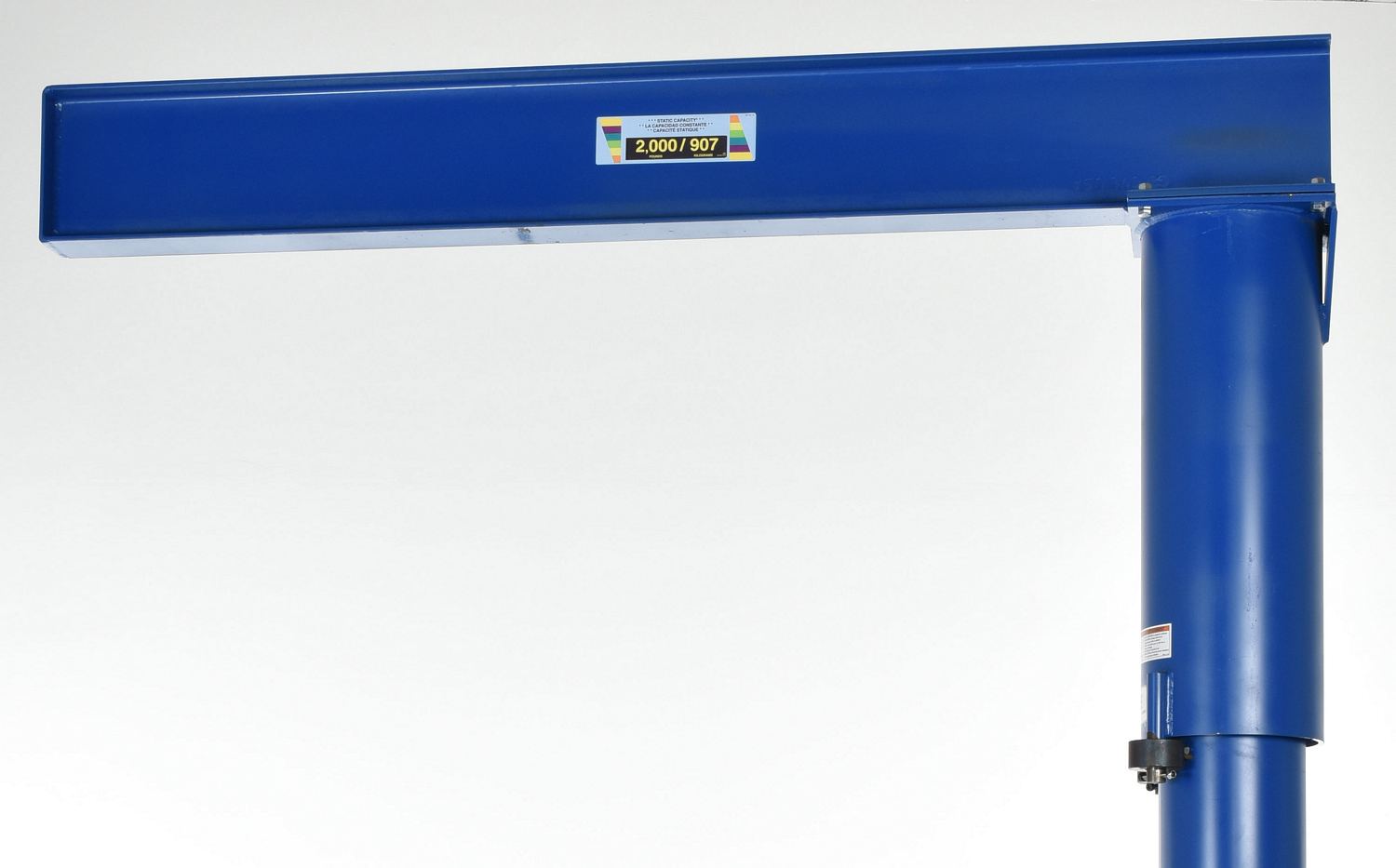

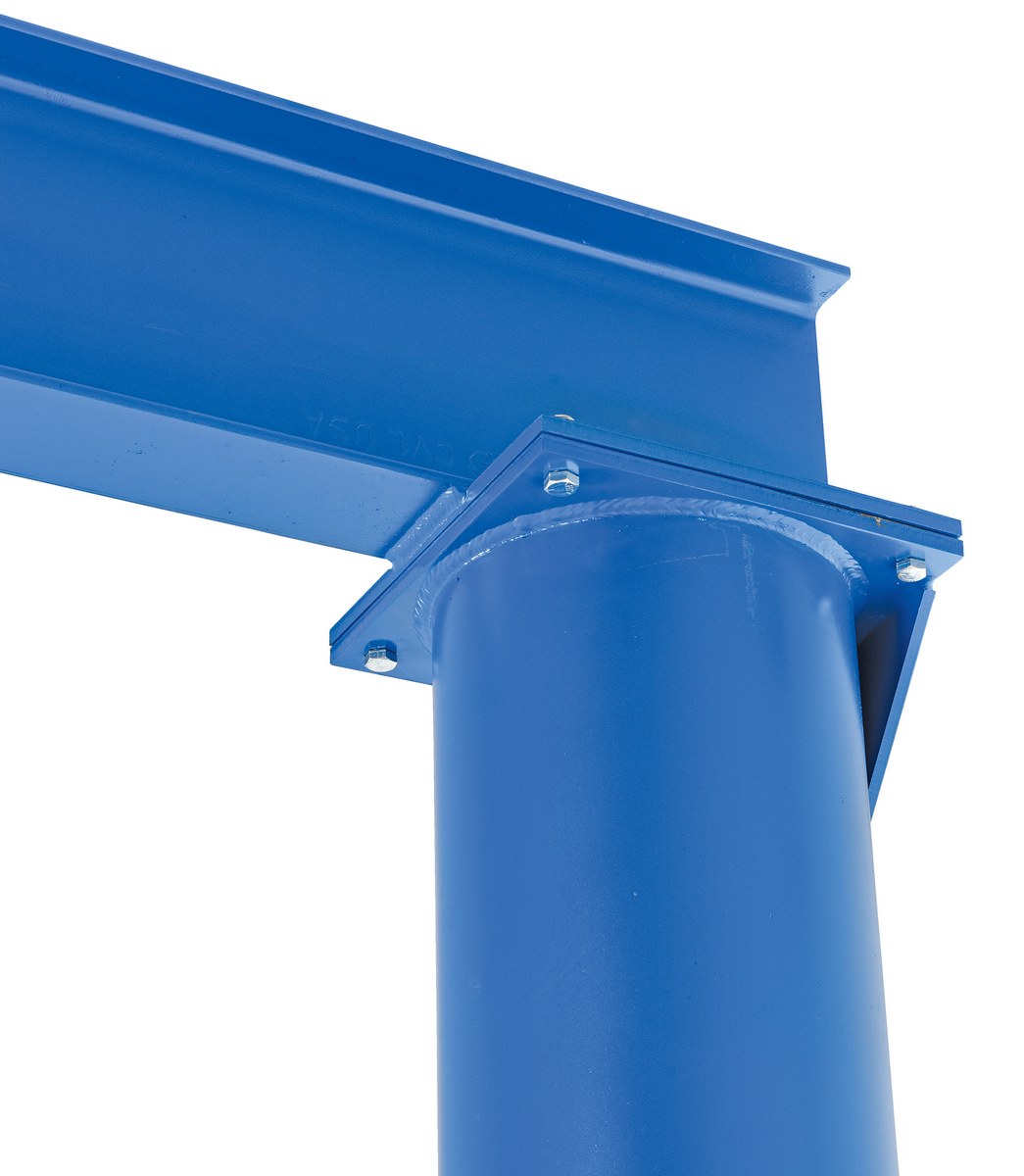

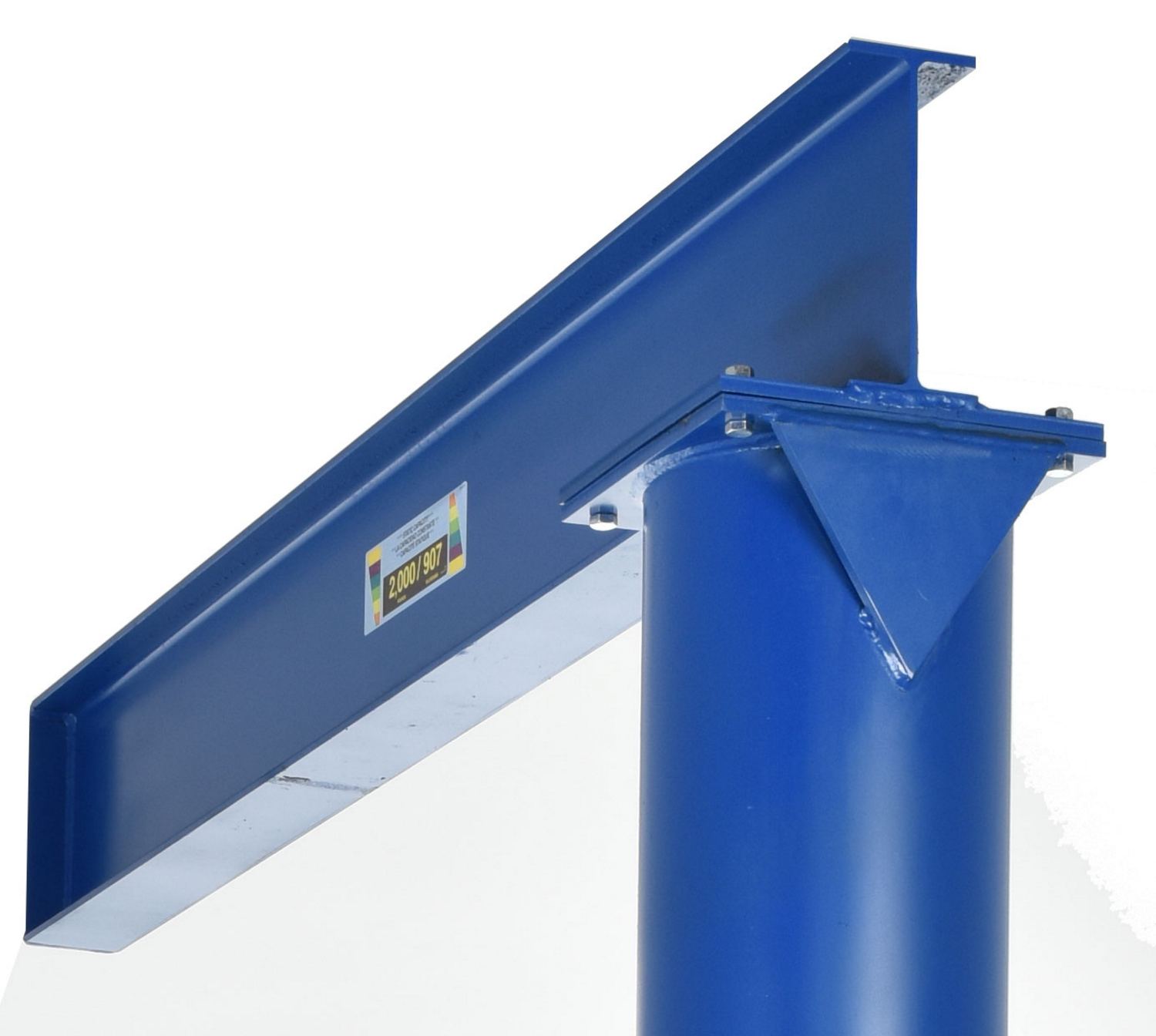

Floor Mounted Jibs
SERIES: JIB-FM

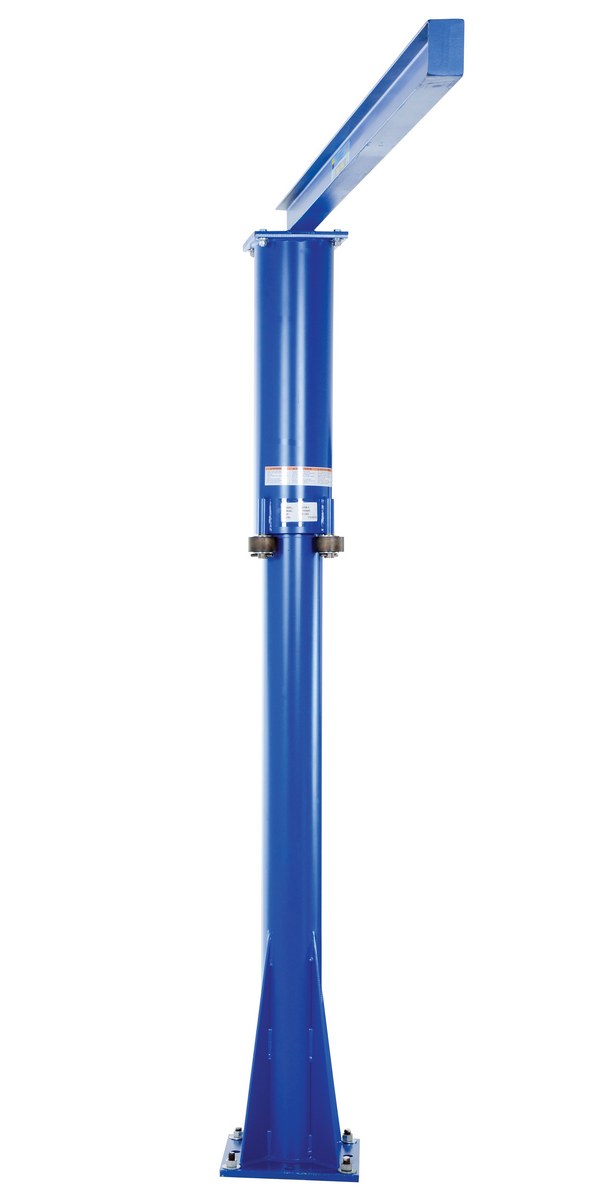

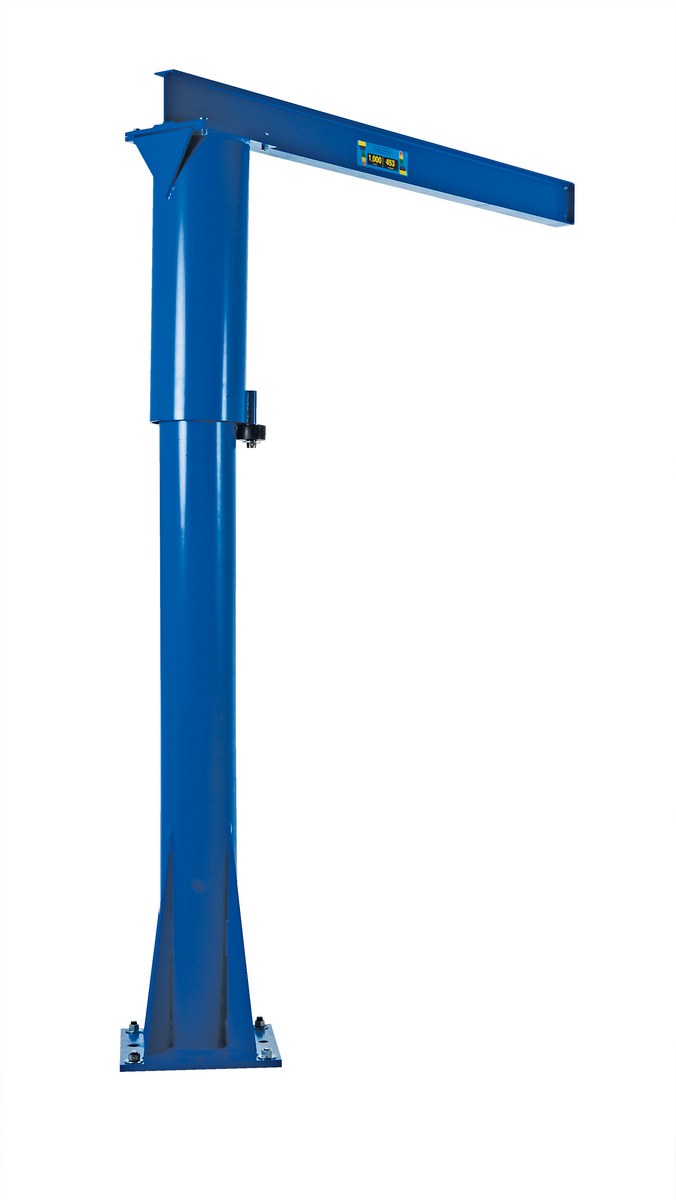

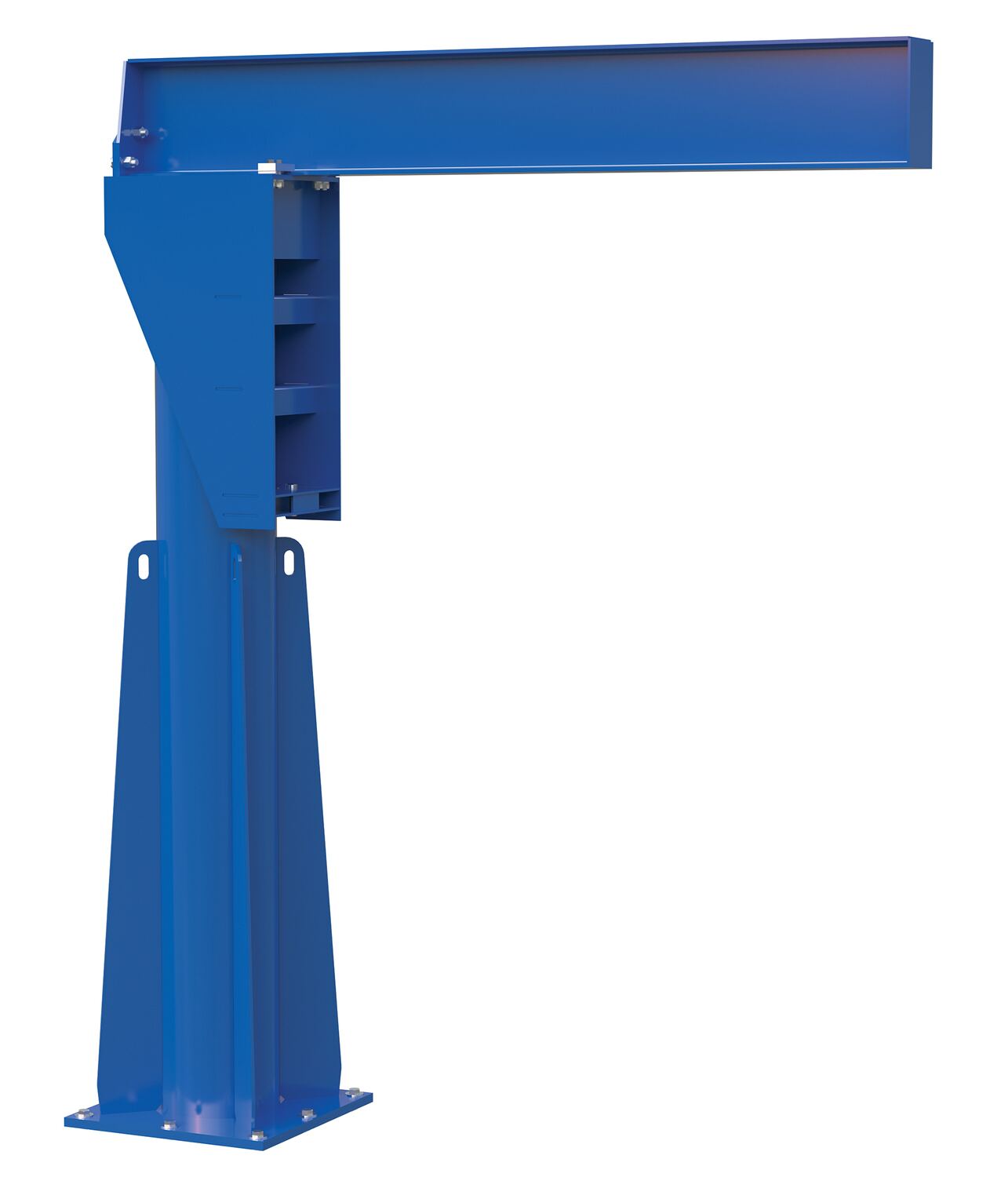

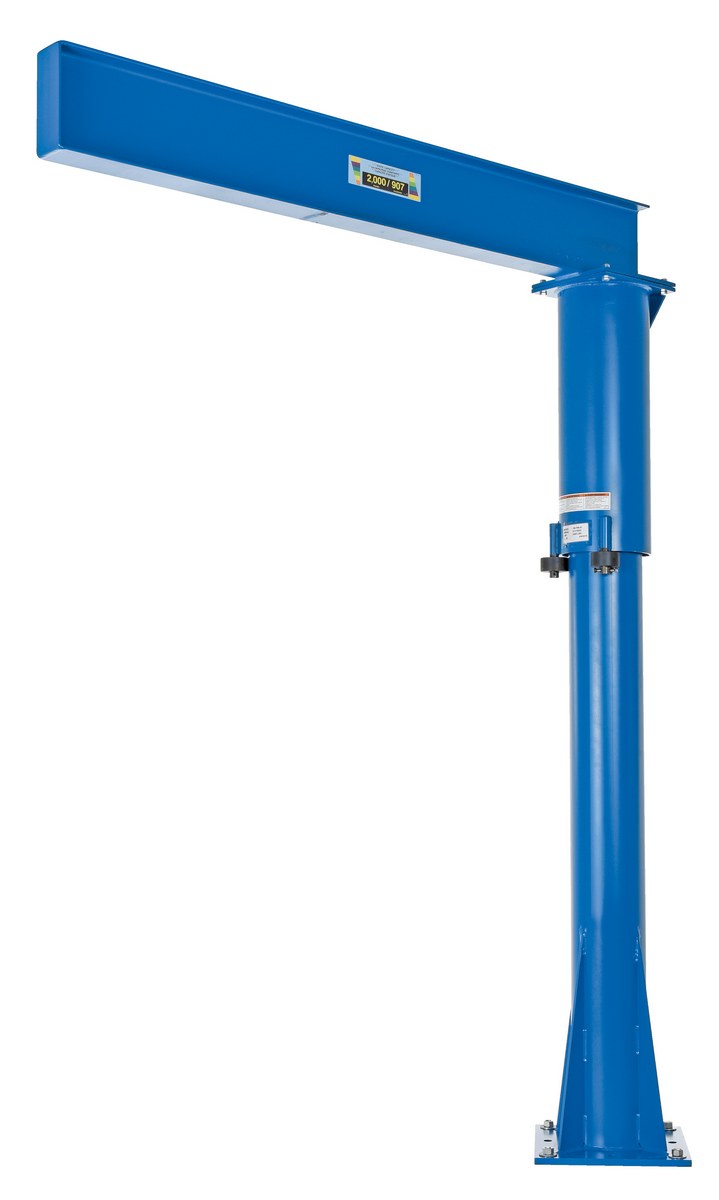

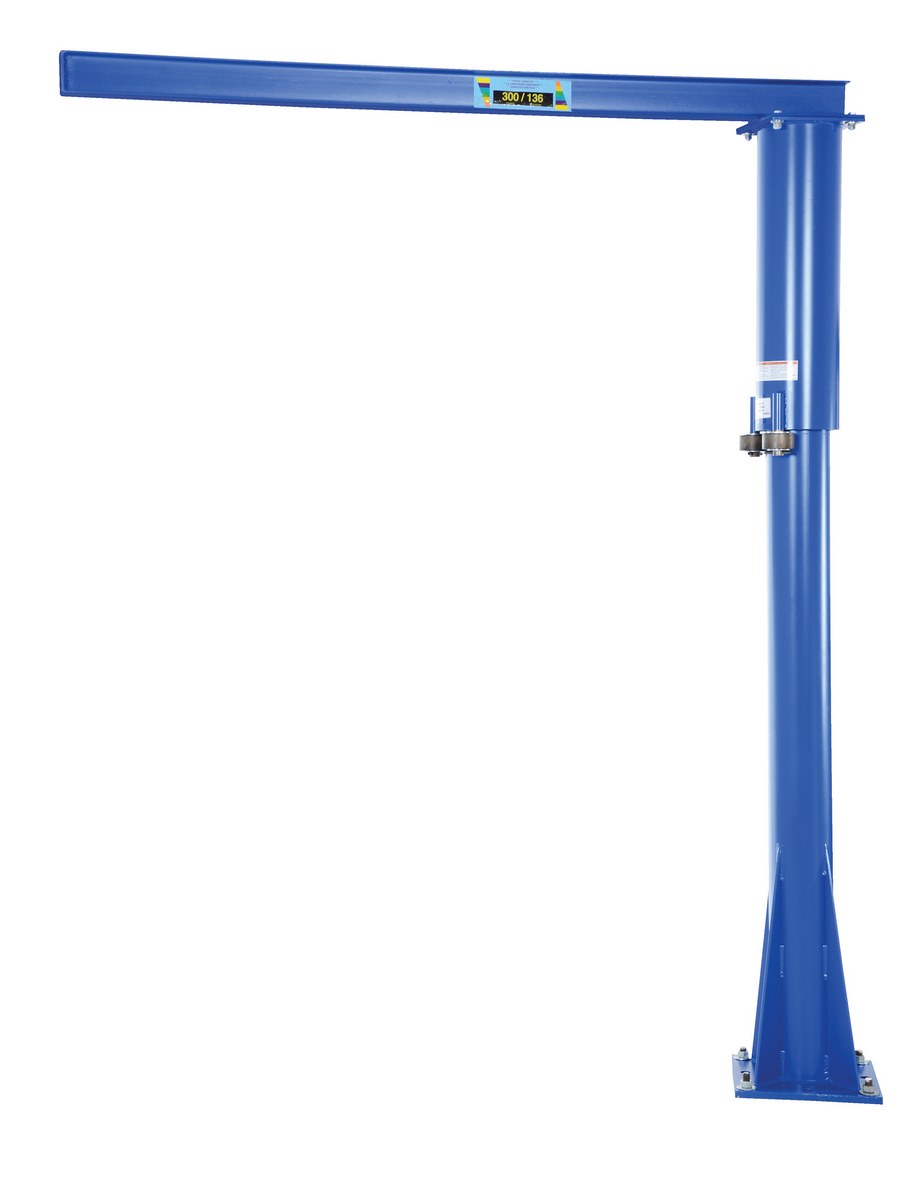

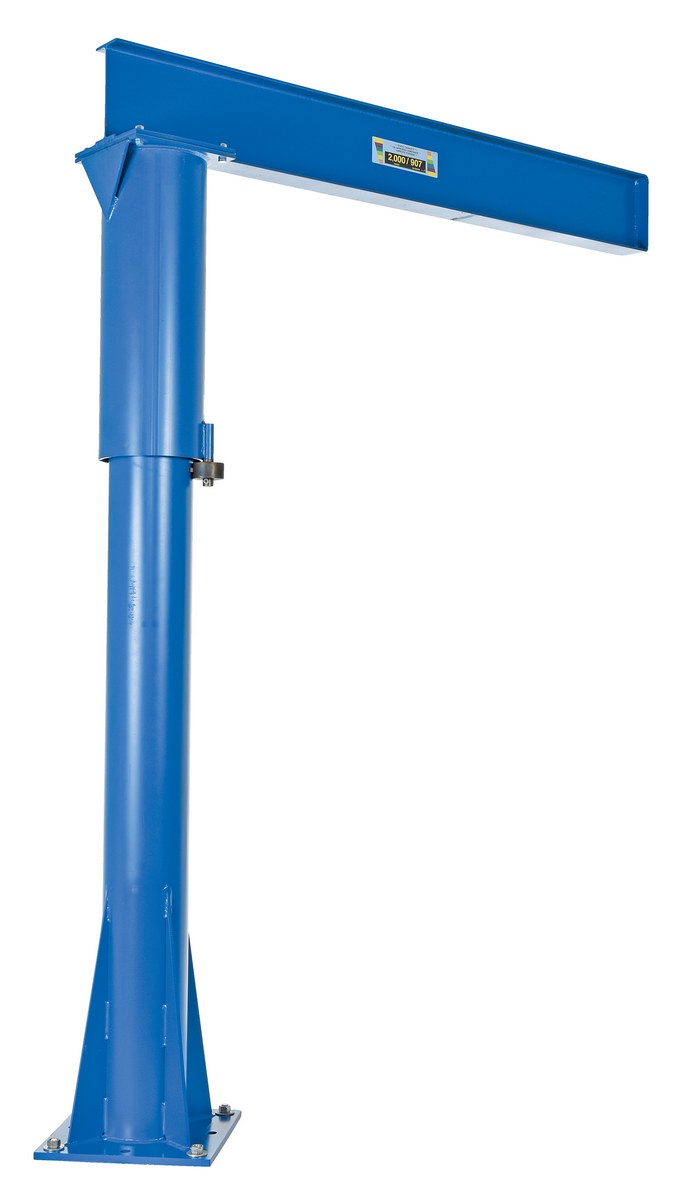

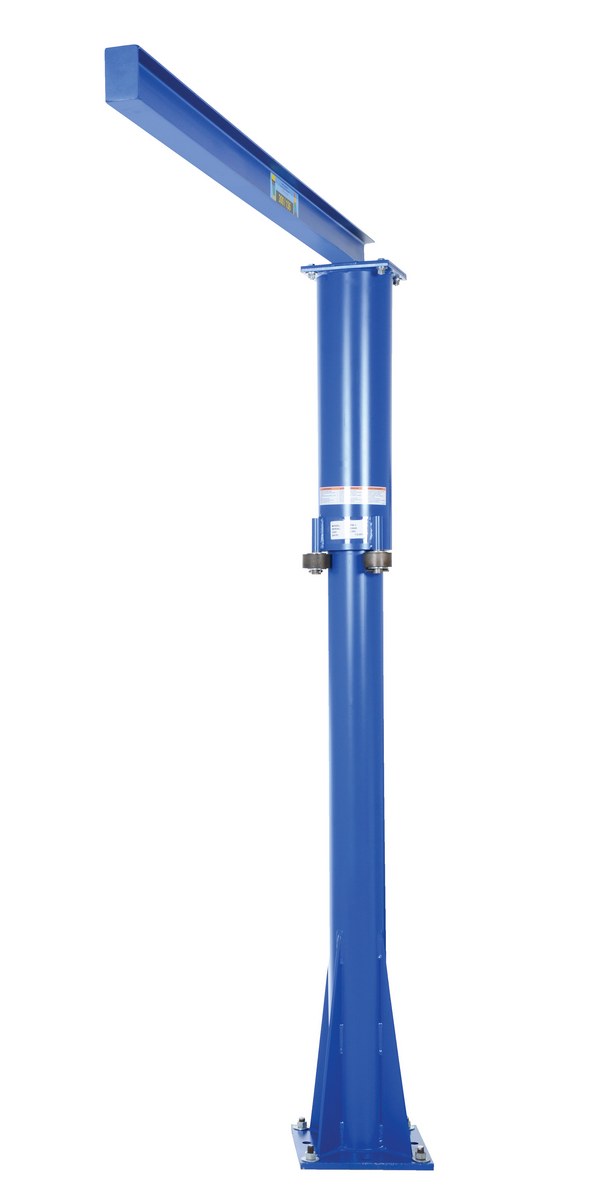

This floor mounted jib adapts well to a variety of applications. With the unique design, the job is functional in any direction or complete customization of the work station. Solid steel construction will assist workers in lifting awkward material. The overall I-beam length is 80", except for model JIB-FM-40 which has an I-beam length of 80-3/8". Hoists & Trollies can be ordered seperately.

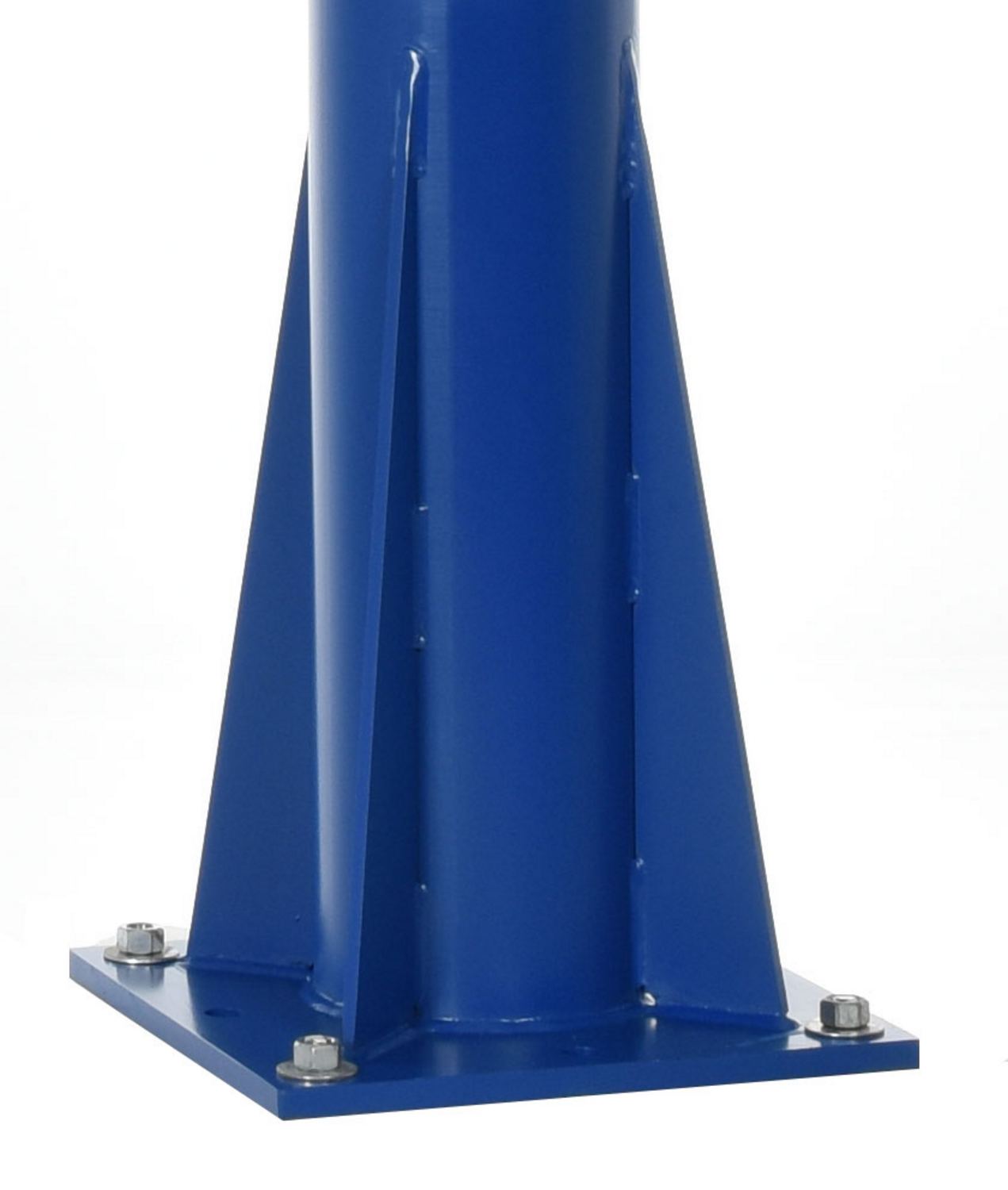

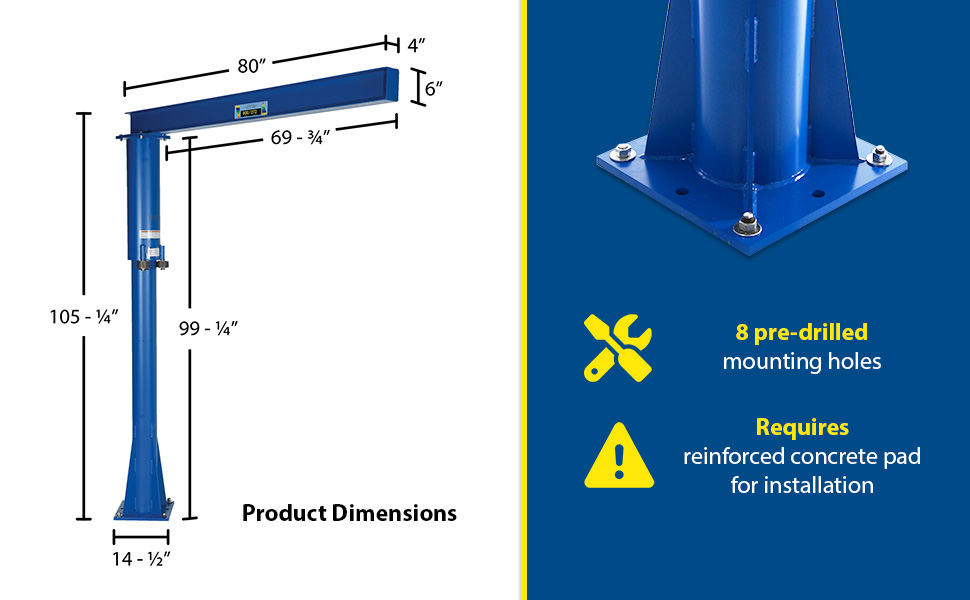

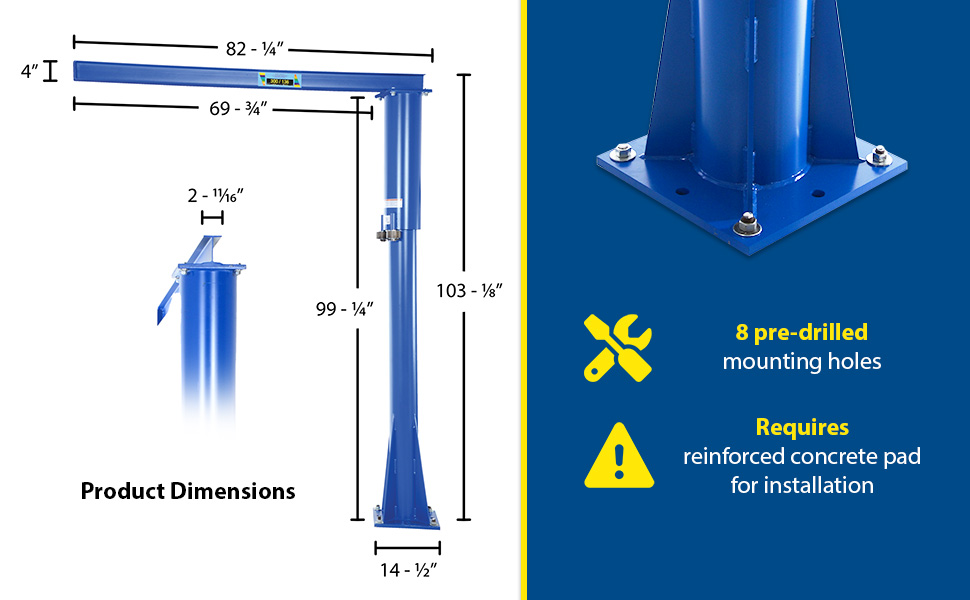

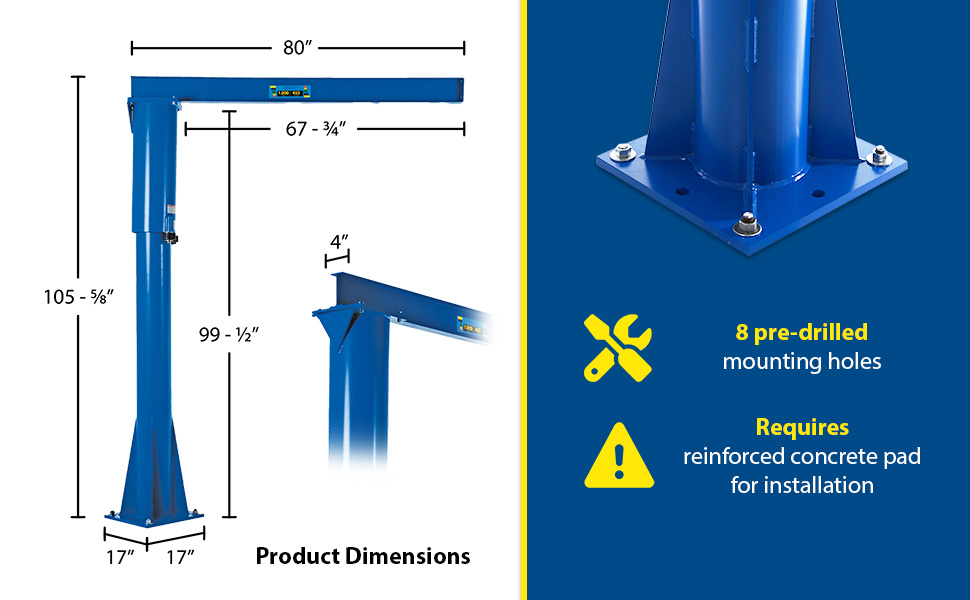

  • Eight (8) pre-drilled mounting holes
  • Full 360 degree rotation
  • Requires reinforced concrete pad for installation
  • Fixed height design provides workplace consistency

This floor mounted jib adapts well to a variety of applications. With the unique design, the job is functional in any direction or complete customization of the work station. Solid steel construction will assist workers in lifting awkward material. The overall I-beam length is 80", except for model JIB-FM-40 which has an I-beam length of 80-3/8". Hoists & Trollies can be ordered seperately.

  • Eight (8) pre-drilled mounting holes
  • Full 360 degree rotation
  • Requires reinforced concrete pad for installation
  • Fixed height design provides workplace consistency

Other Jib Cranes

 Extra Travel Tri-Post Jibs Portable Jib Cranes Multi-Station Transportable Jib Cranes Tripod Hoist Stands

Additional Models In This Family
view entire Image Gallery

JIB-FM-3

model JIB-FM-3

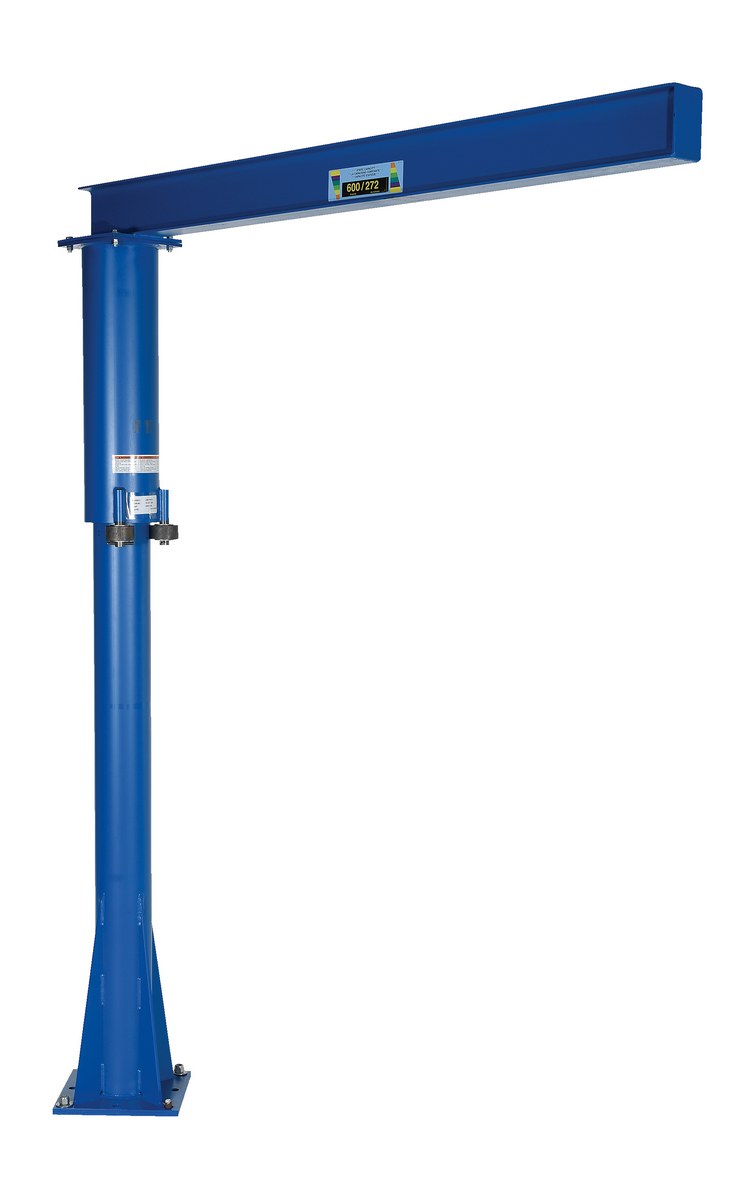

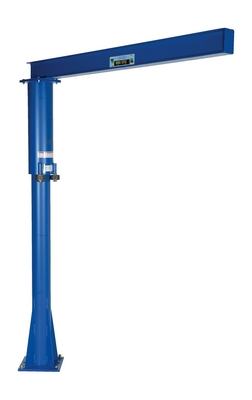

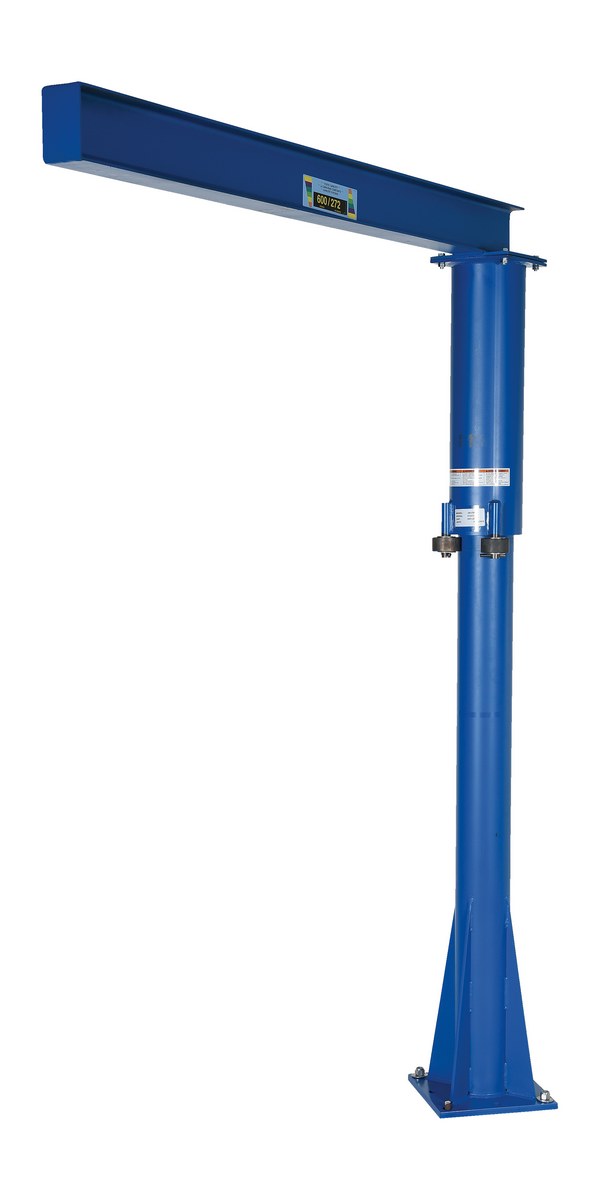

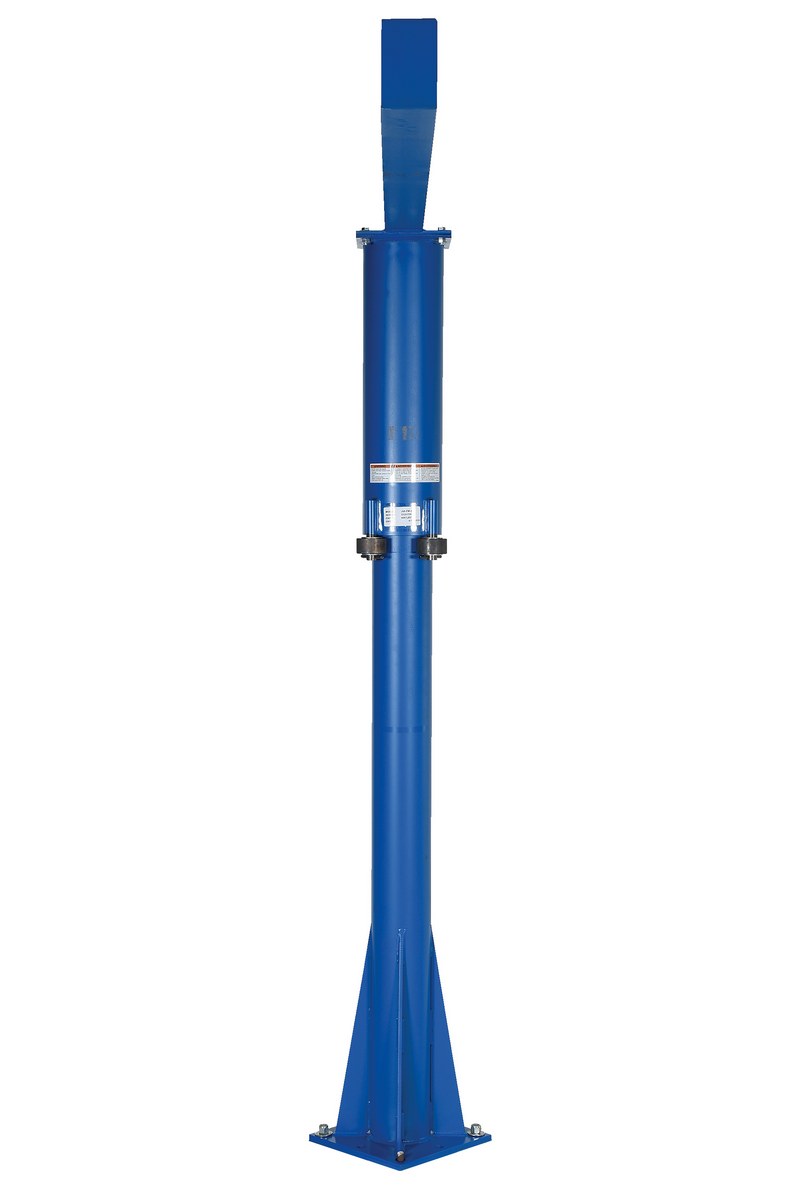

JIB-FM-6

model JIB-FM-6

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
JIB-FM-10 JIB-FM-101 Year Limited WarrantySteel Floor Mounted Jib 80 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Under I-Beam to Ground Length (in.): 99-1/2		610
JIB-FM-20 JIB-FM-201 Year Limited WarrantySteel Floor Mounted Jib 80 In. I-Beam 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Under I-Beam to Ground Length (in.): 99-1/2		651
JIB-FM-3 JIB-FM-31 Year Limited WarrantySteel Floor Mounted Jib 80 In. I-Beam 300 Lb. Capacity BlueUniform Capacity (lb.): 300
Under I-Beam to Ground Length (in.): 99-1/4		428
JIB-FM-40 JIB-FM-401 Year Limited WarrantySteel Floor Mounted Jib 80-3/8 In. I-Beam 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Under I-Beam to Ground Length (in.): 99-1/4		783
JIB-FM-6 POPULAR JIB-FM-61 Year Limited WarrantySteel Floor Mounted Jib 80 In. I-Beam 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Under I-Beam to Ground Length (in.): 99-1/4		454

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
