Stockpicker Work Platforms

Print Friendly

Model Chart
PDF's
Options
Image Gallery
FEATURED Stockpicker Work Platforms

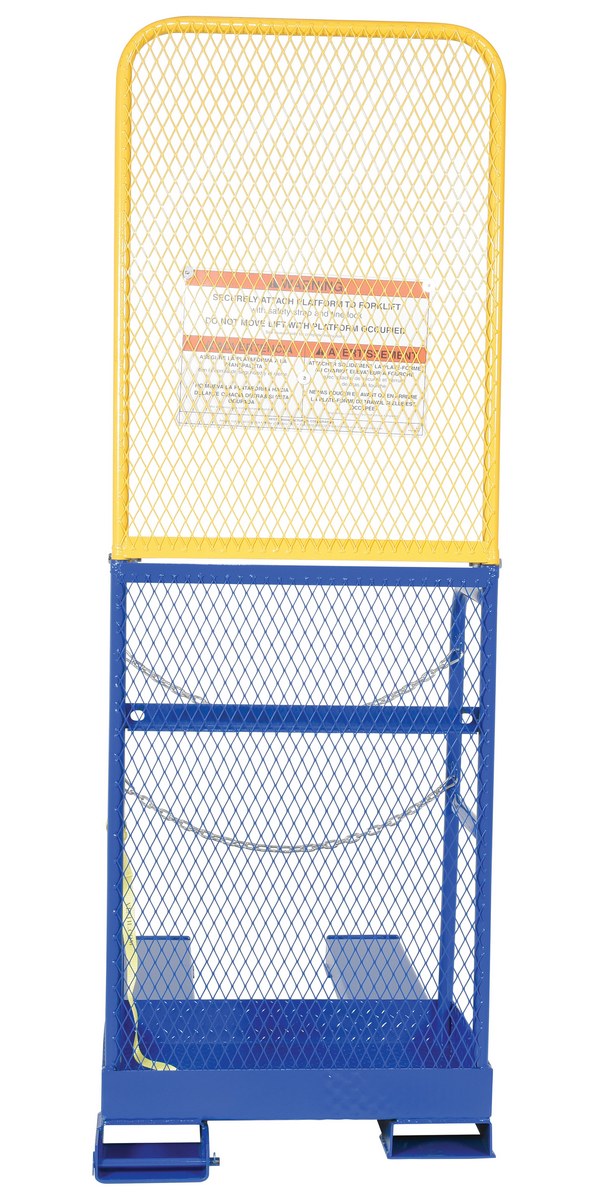

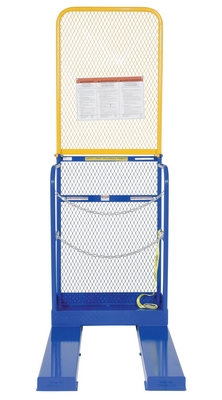

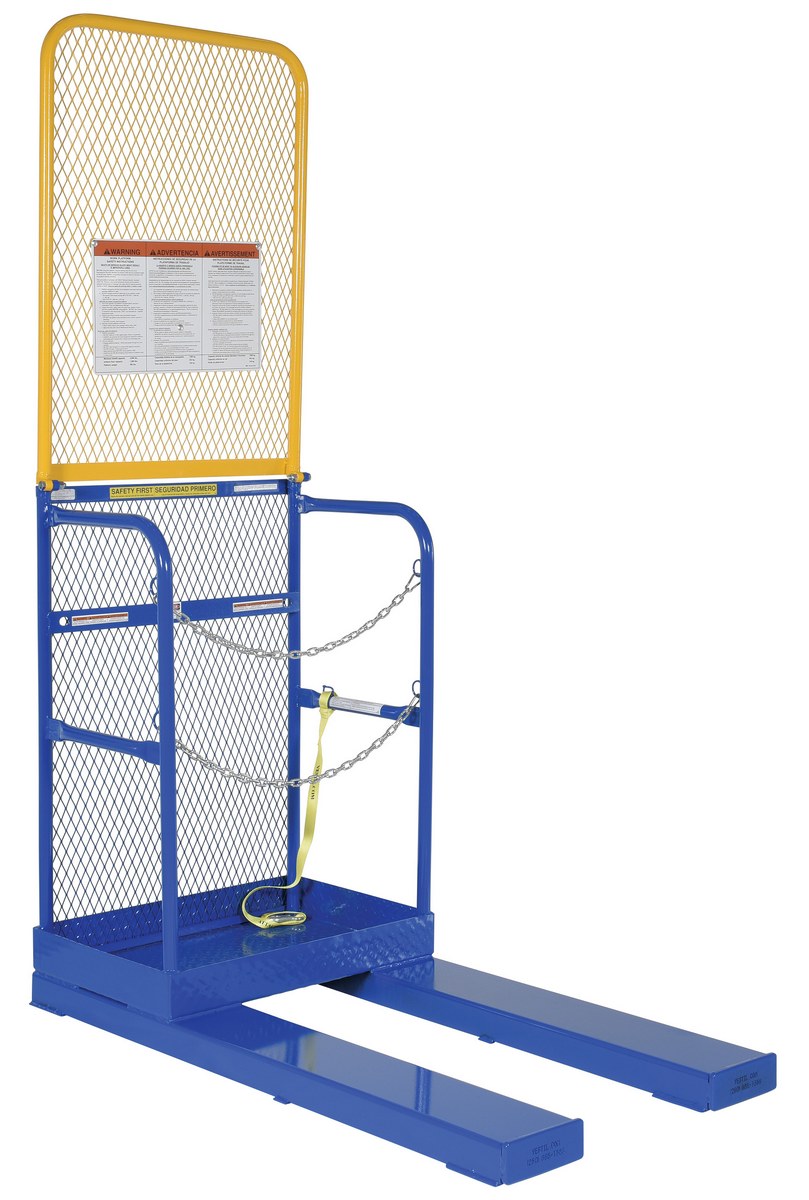

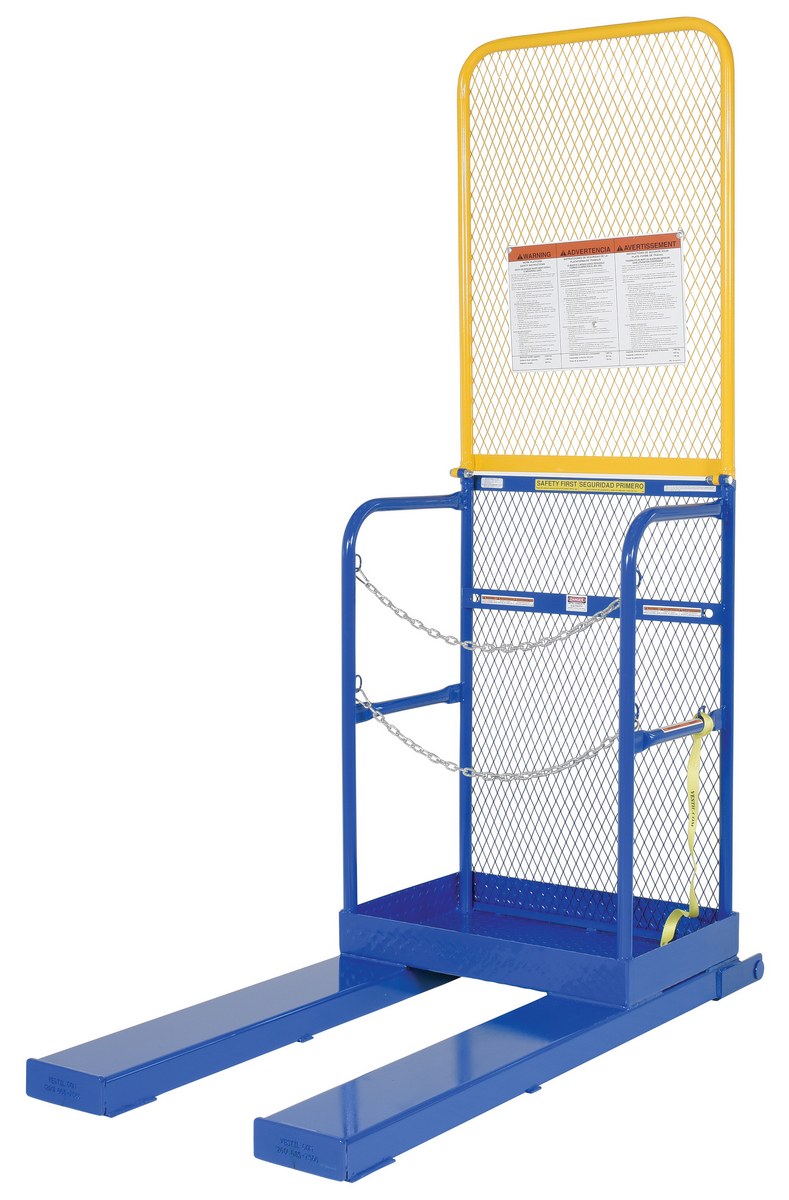

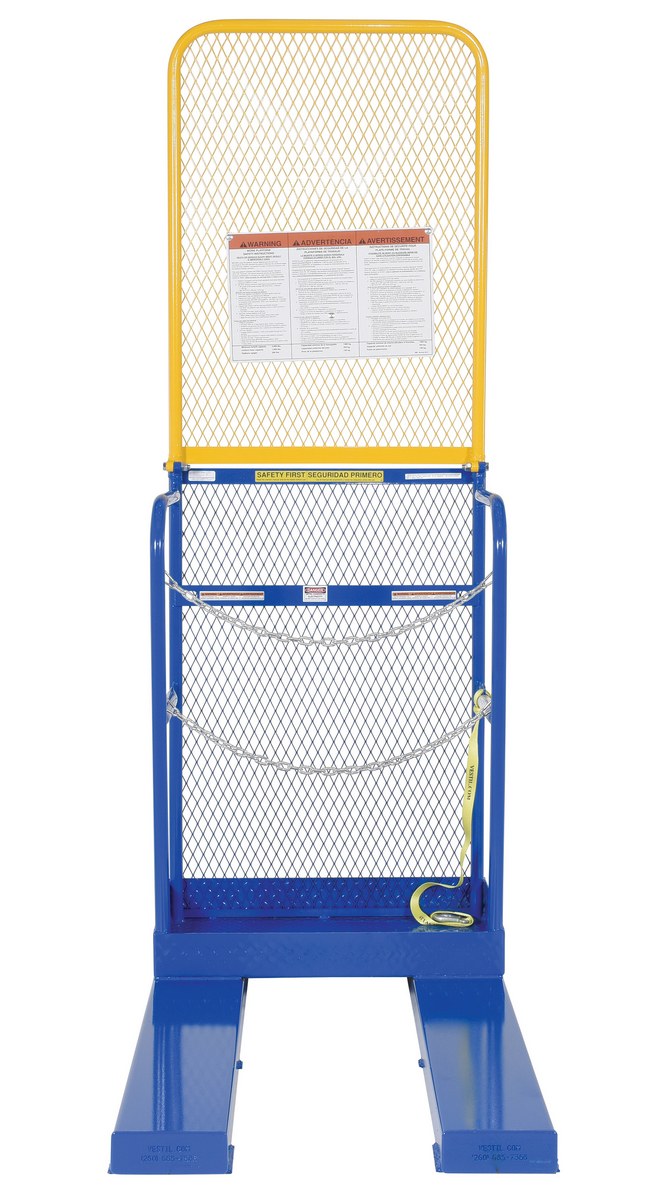

model: SP-175-84B

SP-175-84B_A.jpg SP-175-84B_B.jpg SP-175-84B_C.jpg SP-175-84B_D.jpg More Images +
Stockpicker Work Platforms
SERIES: SP   2Products 1Options
Powder Coat Quick Ship Custom Fabrication

Forklift Stock Picker Platforms for Elevated Rack and Shelf Access

Stock picker work platforms provide a fork truck mounted solution for elevating personnel and palletized loads to overhead racks, shelving, and storage locations. Designed for warehouses, distribution centers, inventory rooms, manufacturing plants, and maintenance operations, these platforms help improve access to elevated materials while supporting efficient order picking, stocking, and inspection tasks.

Personnel and Pallet Access

The platform is designed to accommodate one person and a pallet for overhead material handling applications. Fork pockets allow the unit to be mounted to a compatible fork truck, while a pin type tine lock and safety restraint with hook help secure the platform to the truck during use.

Guarding and Work Surface

A diamond floor plate platform provides a durable standing surface, while 42 inch high handrails with 21 inch mid-rails help define the work area. The expanded metal backing on the fourth side helps protect the operator and load, with 60 inch and 84 inch back height configurations available.

Capacities and Safety Options

This family supports up to 4,000 lb. maximum uniform capacity, with 1,000 lb. basket capacity and 3,000 lb. platform capacity. Optional lanyards with safety harnesses are available in multiple sizes, providing additional fall protection options for elevated stock picking applications.

Stockpicker Work Platforms

model: SP-175-84B

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
SP-175
SP-175-84B
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.
Lanyard with Safety Harness or Safety Belt
Model Image PDF Description Capacity
(lbs)		 Length of Lanyard Wt.
(lbs)
WP-LH-S Warranty PDFCompliance Certificate Harness Small 350 6ft. 5
WP-LH-M Warranty PDFCompliance Certificate Harness Medium 350 6ft. 5
WP-LH-L Warranty PDFCompliance Certificate Harness Large 350 6ft. 5
WP-LH-XL Warranty PDFCompliance Certificate Harness X-Large 350 6ft. 5
WP-LH-XXL Warranty PDFCompliance Certificate Harness XX-Large 350 6ft. 5
WP-LH-XXXL Warranty PDFCompliance Certificate

Harness XXX-Large

*Note: Customer's Completion of this waiver form mandatory for this item

 350 6ft. 7
Harness Sizing Chart
Height - 34"-36" 38"-40" 42"-44" 46"-48" 50"-54" 56"-60"
Small (5'4-5'7") - Small Small Medium Large X-Large XX-Large
Reg (5'8"-5'11") - Small Medium Large X-Large XX-Large XXX-Large
Tall (6'0"- 6'3") - Medium Medium Large X-Large XX-Large XXX-Large
X-Tall (6'3"-Plus) - Large Large X-Large X-Large XX-Large XXX-Large
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Owner's Manuals

2
WP, manual
Open Manual
WP-LH, MANUAL
Open Manual

Survey Sheets

1
SP-175
Open Survey

Approval Drawings

2
SP-175
Open Drawing
SP-175-84B
Open Drawing

Testing Certificates

2
SP-175
Open Certificate
SP-175-84B
Open Certificate

SDS Sheets

0
No SDS sheets for this product family.

Label Page PDFs

2
SP-175
SP-175
Open Label PDF
SP-175-84B
SP-175
Open Label PDF

Other PDFs

0
No other PDFs for this product family.

Related or Similar Products:

More From Work Platforms





Stockpicker Work Platforms




Forklift Stock Picker Platforms for Elevated Rack and Shelf Access

Stock picker work platforms provide a fork truck mounted solution for elevating personnel and palletized loads to overhead racks, shelving, and storage locations. Designed for warehouses, distribution centers, inventory rooms, manufacturing plants, and maintenance operations, these platforms help improve access to elevated materials while supporting efficient order picking, stocking, and inspection tasks.

Personnel and Pallet Access

The platform is designed to accommodate one person and a pallet for overhead material handling applications. Fork pockets allow the unit to be mounted to a compatible fork truck, while a pin type tine lock and safety restraint with hook help secure the platform to the truck during use.

Guarding and Work Surface

A diamond floor plate platform provides a durable standing surface, while 42 inch high handrails with 21 inch mid-rails help define the work area. The expanded metal backing on the fourth side helps protect the operator and load, with 60 inch and 84 inch back height configurations available.

Capacities and Safety Options

This family supports up to 4,000 lb. maximum uniform capacity, with 1,000 lb. basket capacity and 3,000 lb. platform capacity. Optional lanyards with safety harnesses are available in multiple sizes, providing additional fall protection options for elevated stock picking applications.


Model # Description Attributes Net Wt.
(lbs)

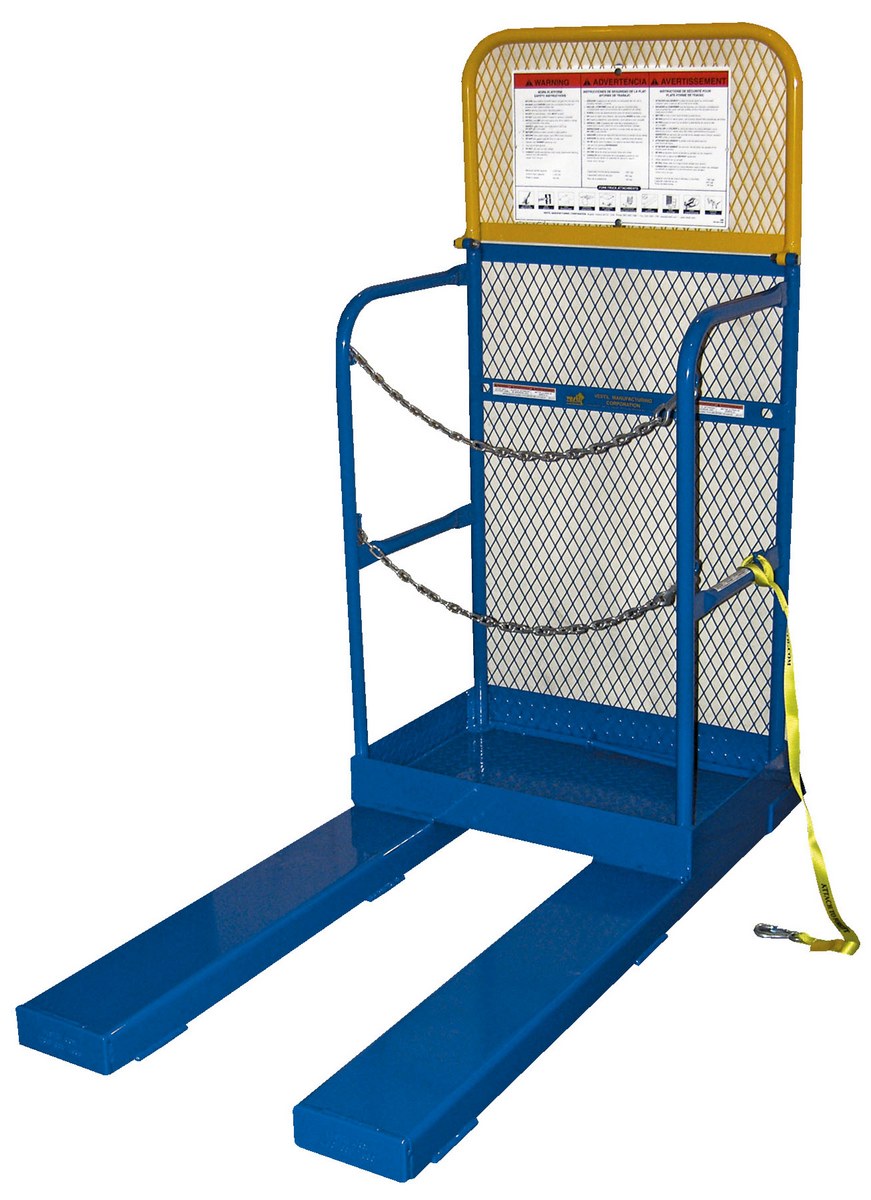

SP-175 SP-175Steel Stock Picker Work Platform 60 In. Expanded Metal Back Height 4,000 Lb. Capacity Blue / YellowMaximum Uniform Capacity (lb.): 4,000
Uniform Basket Capacity (lb.): 1,000		174
SP-175-84B SP-175-84BSteel Stock Picker Work Platform 84 In. Expanded Metal Back Height 4,000 Lb. Capacity Blue / YellowMaximum Uniform Capacity (lb.): 4,000
Uniform Basket Capacity (lb.): 1,000		210

Options


Lanyard with Safety Harness or Safety Belt
Model Image PDF Description Capacity
(lbs)		 Length of Lanyard Wt.
(lbs)
WP-LH-S Warranty PDFCompliance Certificate Harness Small 350 6ft. 5
WP-LH-M Warranty PDFCompliance Certificate Harness Medium 350 6ft. 5
WP-LH-L Warranty PDFCompliance Certificate Harness Large 350 6ft. 5
WP-LH-XL Warranty PDFCompliance Certificate Harness X-Large 350 6ft. 5
WP-LH-XXL Warranty PDFCompliance Certificate Harness XX-Large 350 6ft. 5
WP-LH-XXXL Warranty PDFCompliance Certificate

Harness XXX-Large

*Note: Customer's Completion of this waiver form mandatory for this item

 350 6ft. 7
Harness Sizing Chart
Height - 34"-36" 38"-40" 42"-44" 46"-48" 50"-54" 56"-60"
Small (5'4-5'7") - Small Small Medium Large X-Large XX-Large
Reg (5'8"-5'11") - Small Medium Large X-Large XX-Large XXX-Large
Tall (6'0"- 6'3") - Medium Medium Large X-Large XX-Large XXX-Large
X-Tall (6'3"-Plus) - Large Large X-Large X-Large XX-Large XXX-Large
