All Terrain Pallet Trucks

model: ALL-T-2


All Terrain Pallet Trucks
SERIES: ALL-T   4Products 1Options
Best Seller Quick Ship

All Terrain Pallet Jacks for Rough Surface and Outdoor Material Handling

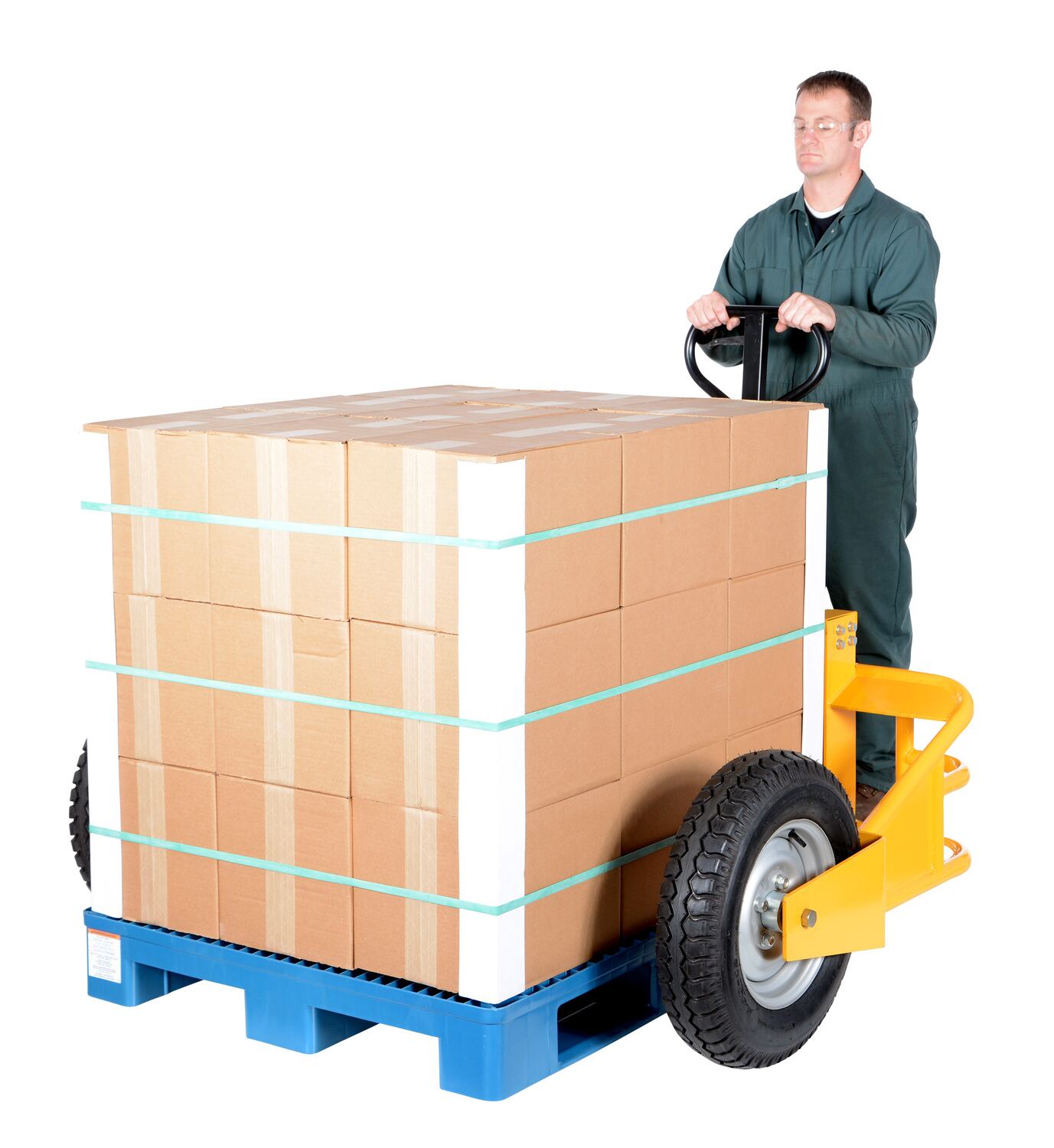

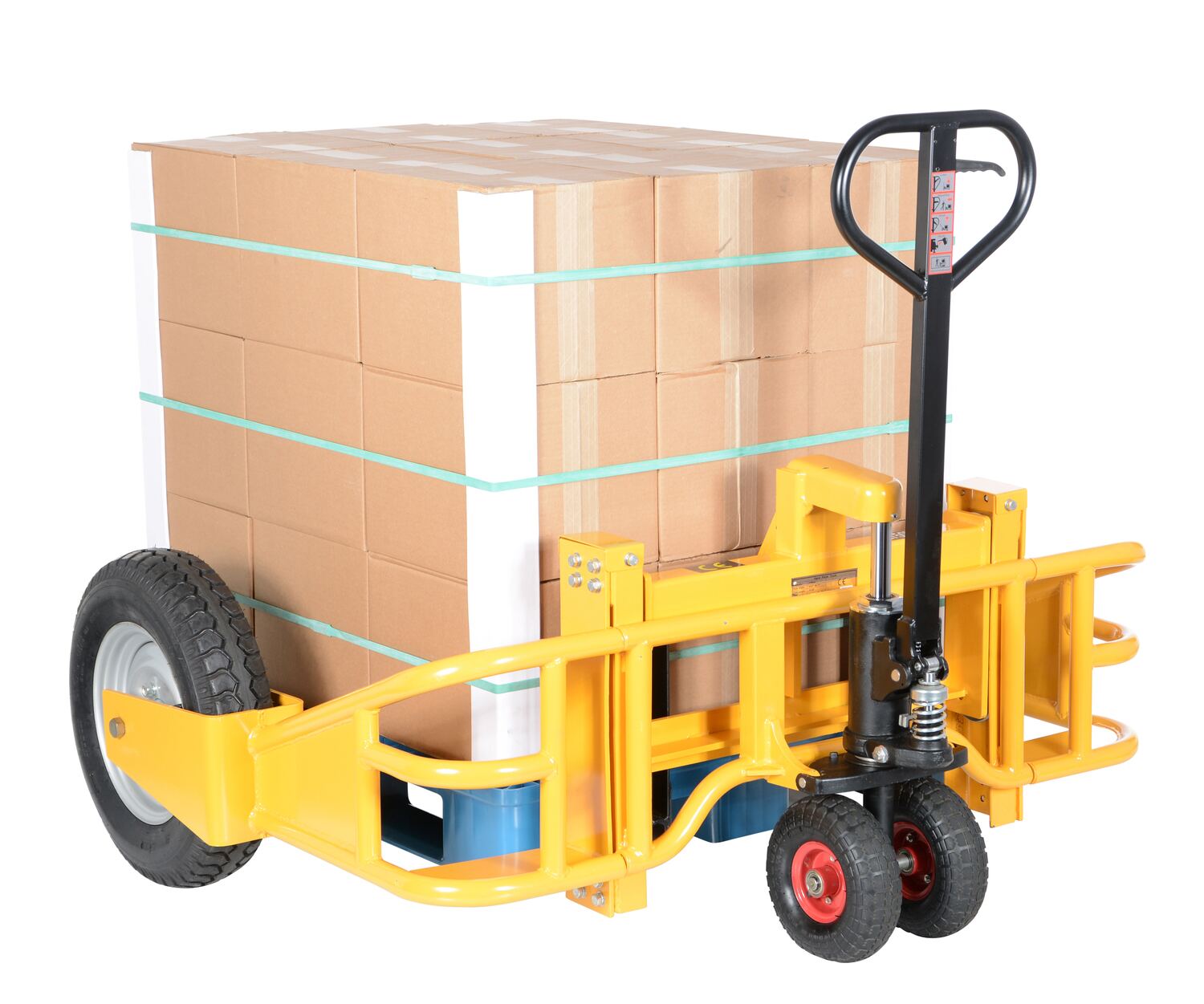

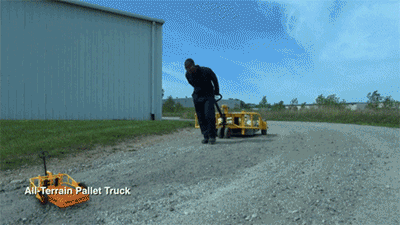

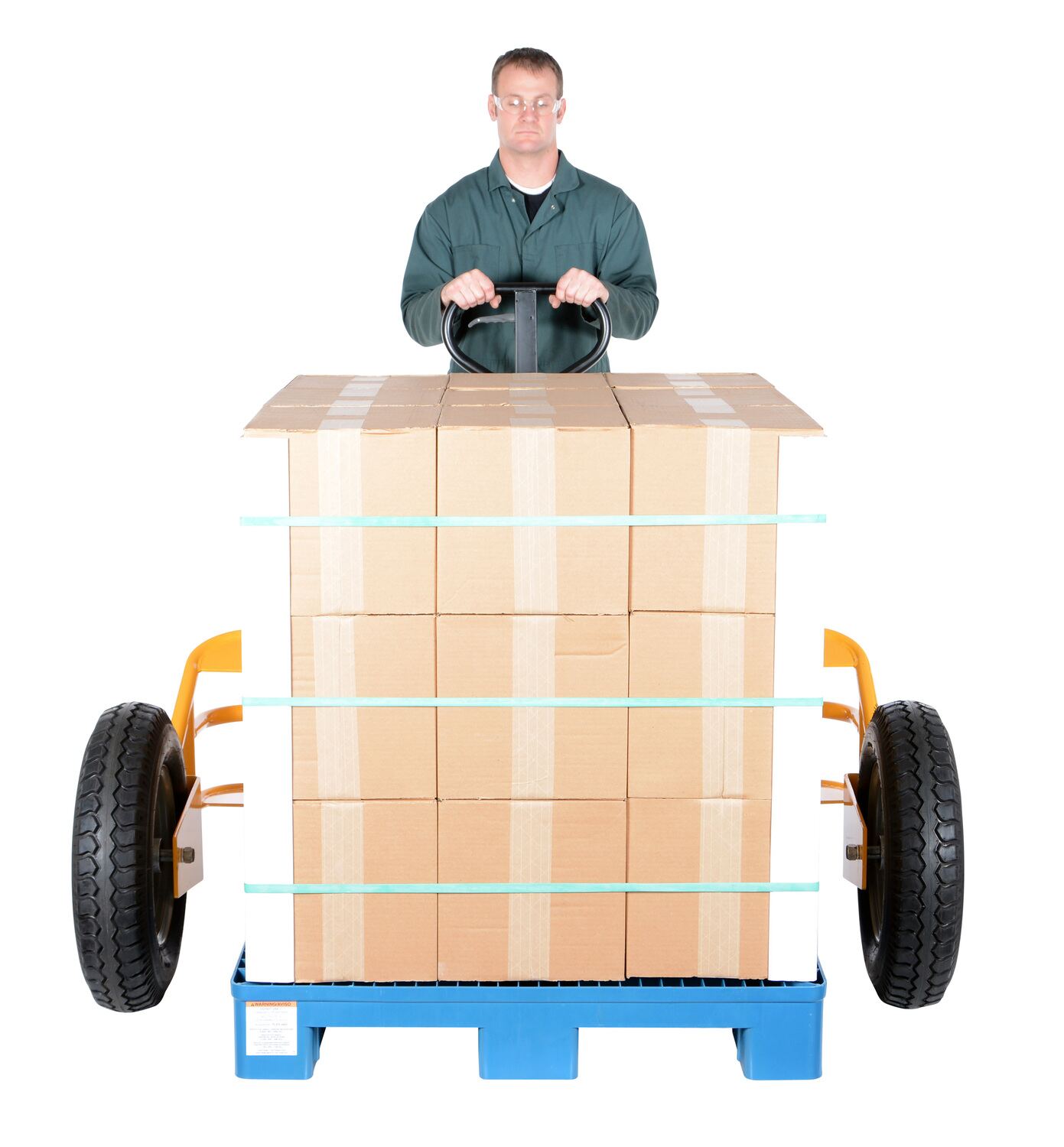

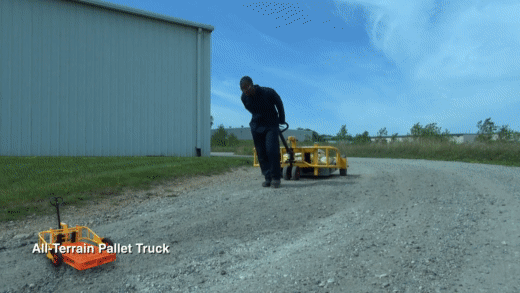

All terrain pallet trucks are designed to transport palletized loads across rough, uneven, and outdoor surfaces where standard pallet jacks cannot operate effectively. Ideal for construction sites, nurseries, gravel yards, farms, and industrial job sites, these rugged pallet jacks combine maneuverability with heavy-duty performance to improve material handling efficiency in demanding environments.

Key Features & Benefits

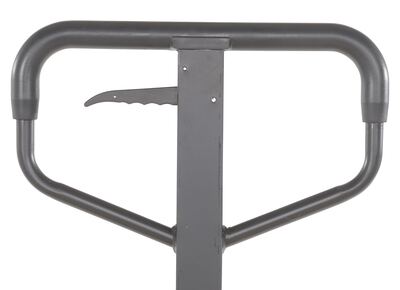

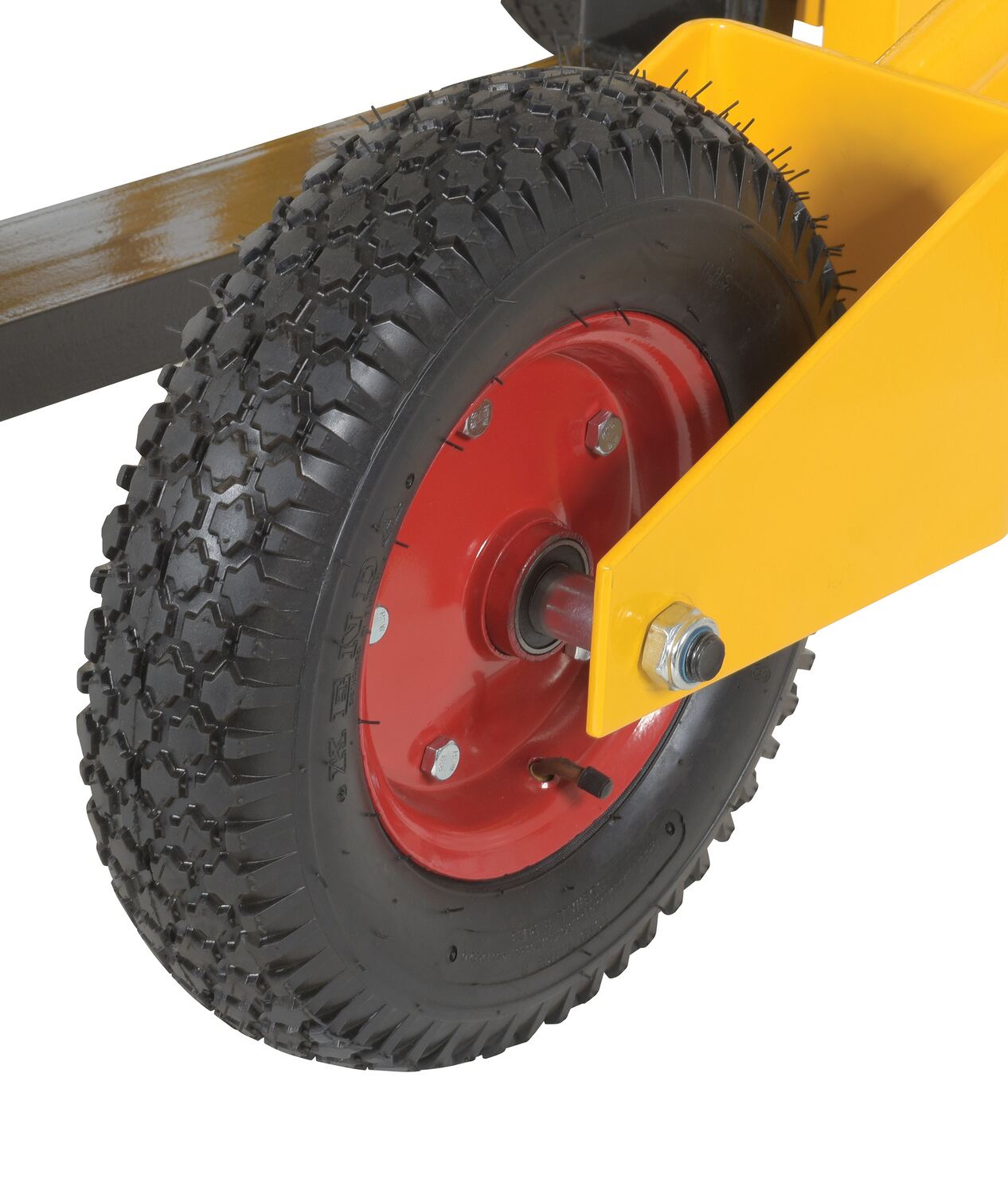

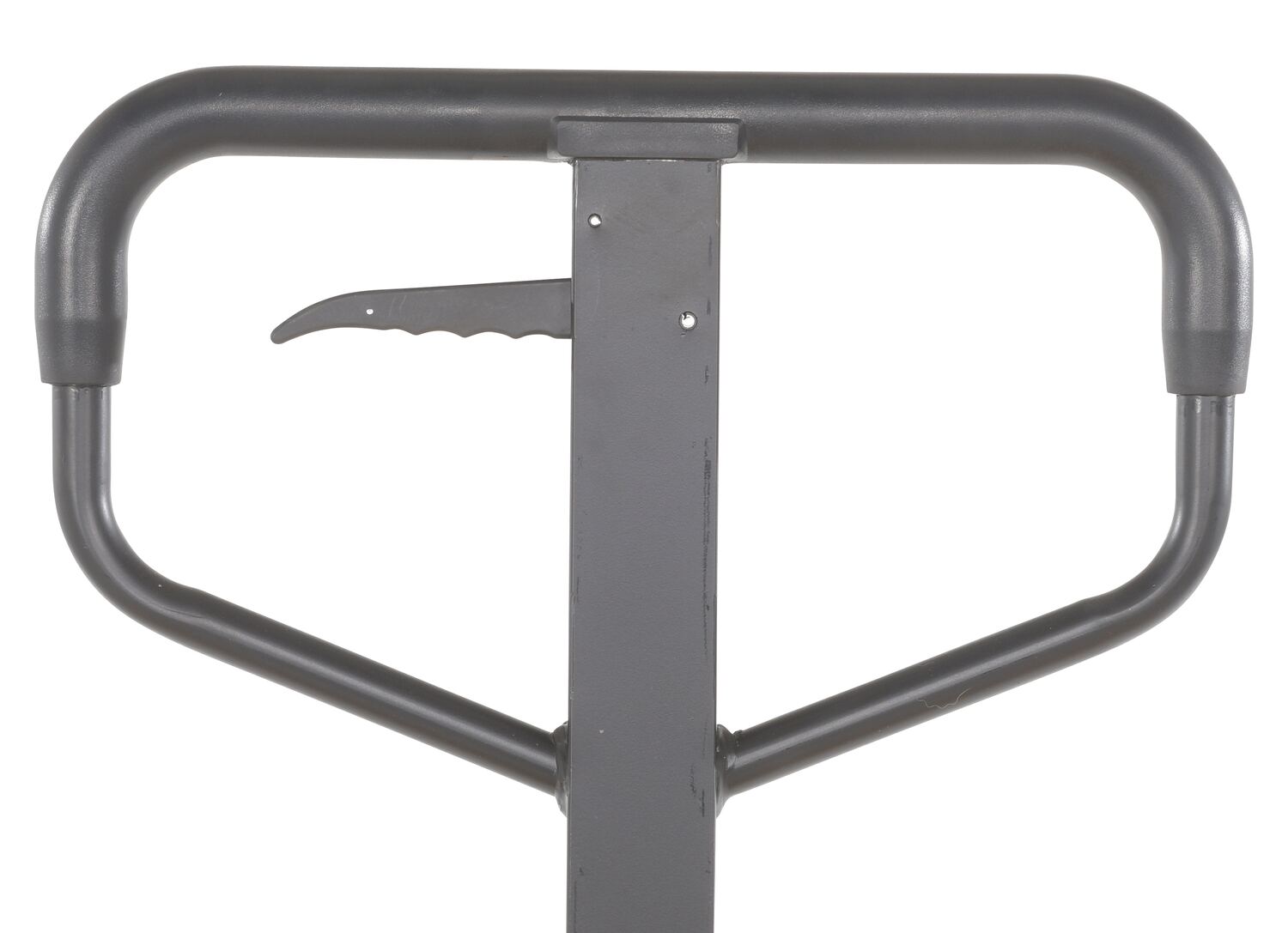

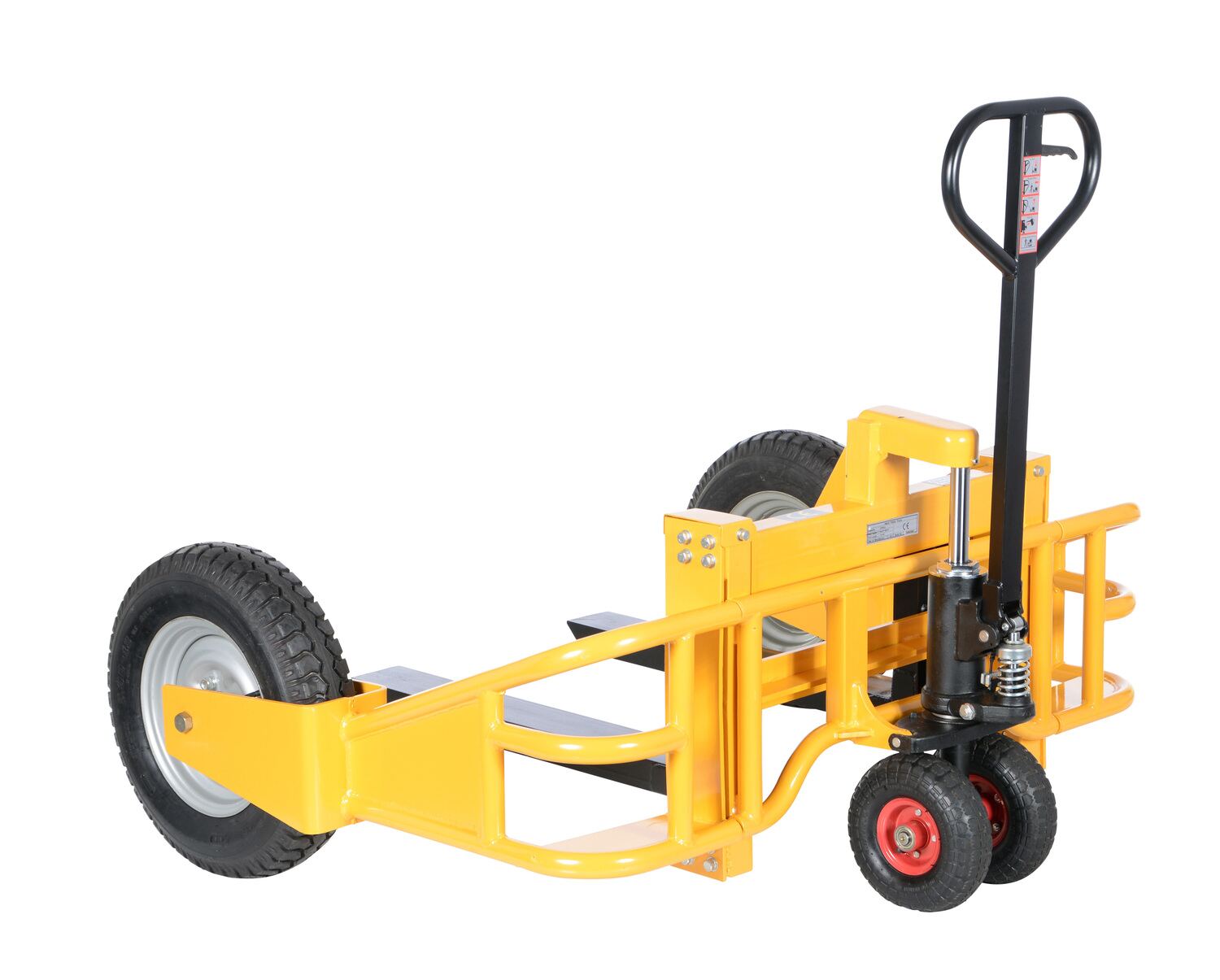

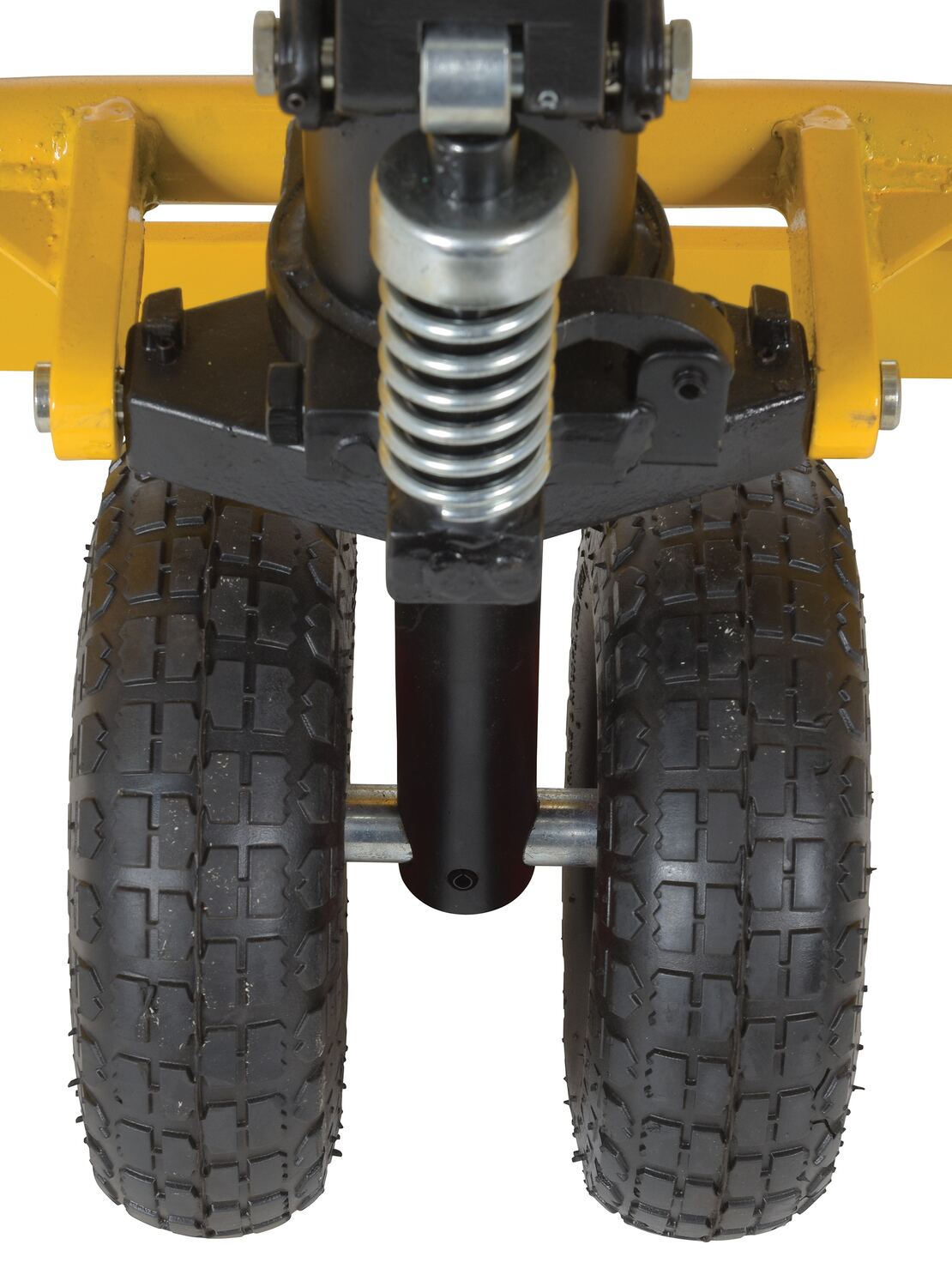

Built with a durable welded steel tubular frame, these rough terrain pallet jacks feature large pneumatic front tires and pneumatic steering wheels for smooth movement over gravel, dirt, grass, and uneven ground. Adjustable fork widths accommodate a variety of pallet sizes, while sealed bearing wheels provide added dust protection and long service life. The easy-to-use three-position handle allows precise lifting, lowering, and neutral positioning for improved operator control and productivity.

Applications & Configurations

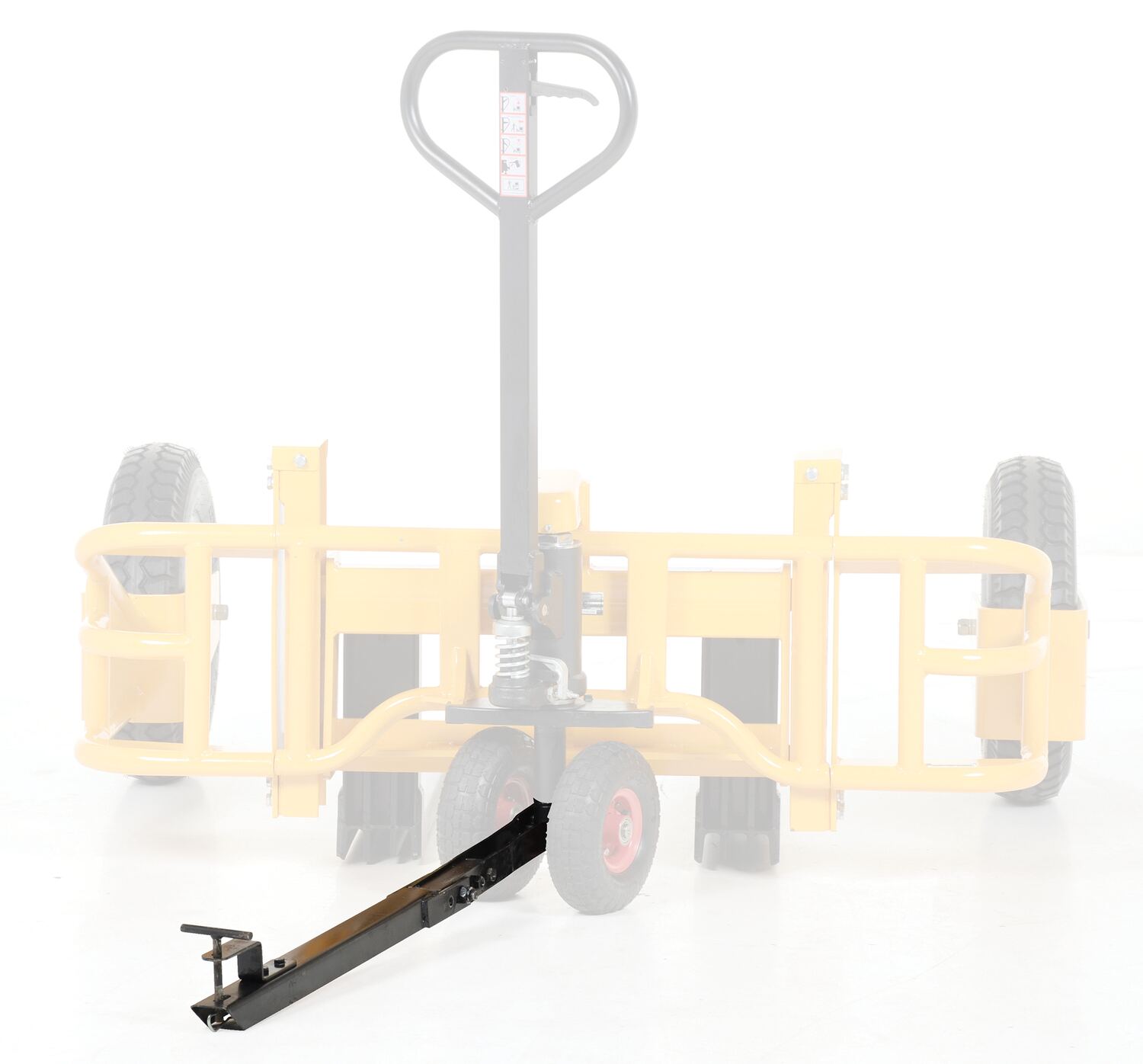

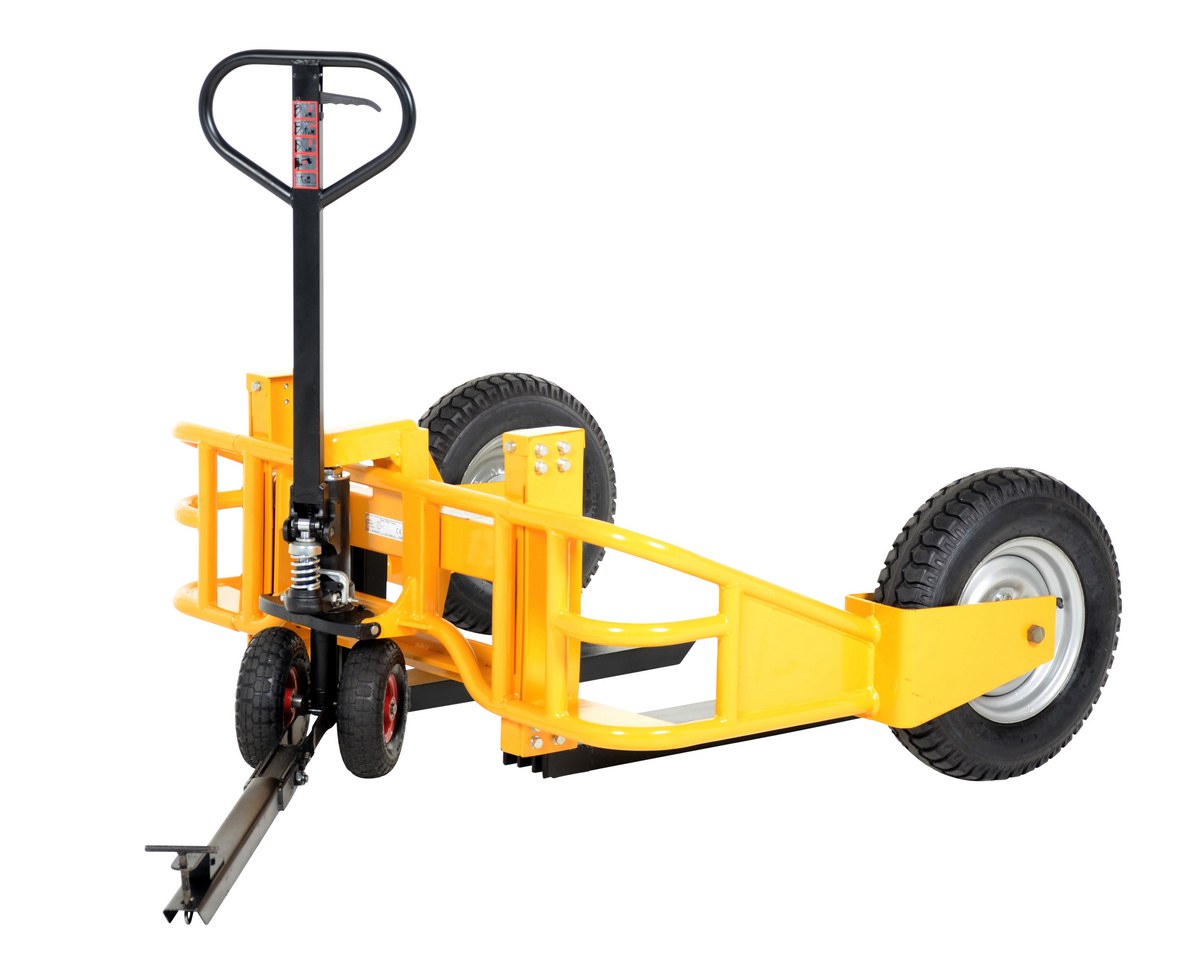

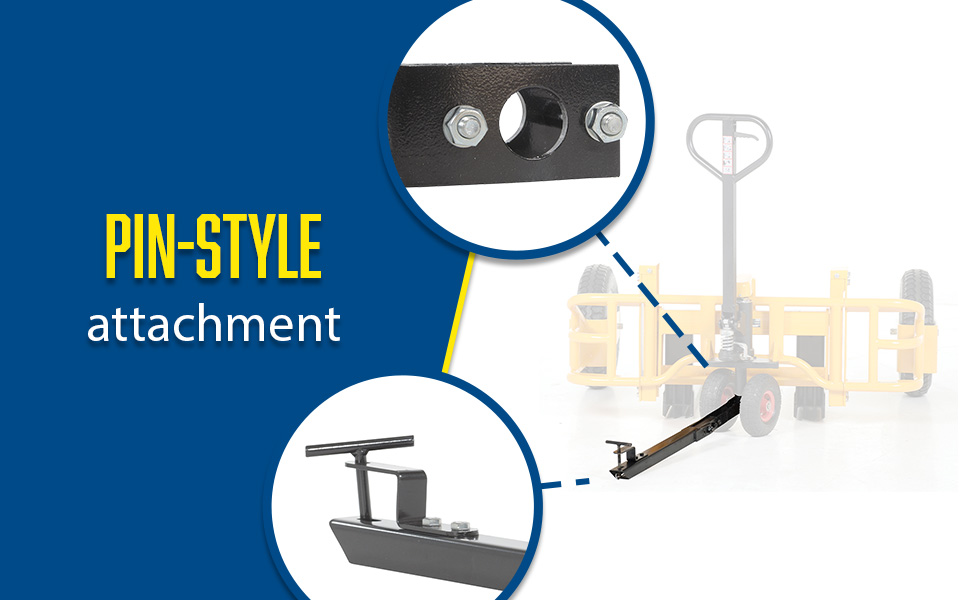

Available in multiple fork lengths, adjustable width ranges, and load capacities, these outdoor pallet trucks support a wide range of material handling applications. Heavy-duty models provide increased lifting capability for larger loads, while optional tow bar packages allow units to be pulled by ATVs or utility tractors for easier transport across large facilities and outdoor work areas.  Optional Tow Bar package allows unit to be towed by an ATV or small utility tractor. Designed for pulling in either loaded or unloaded position.  For model ALL-T-2, the recommended PSI for the large front tires is 36. The Steering Tires have a 30 PSI recommendation.

All Terrain Pallet Trucks

model: ALL-T-2

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

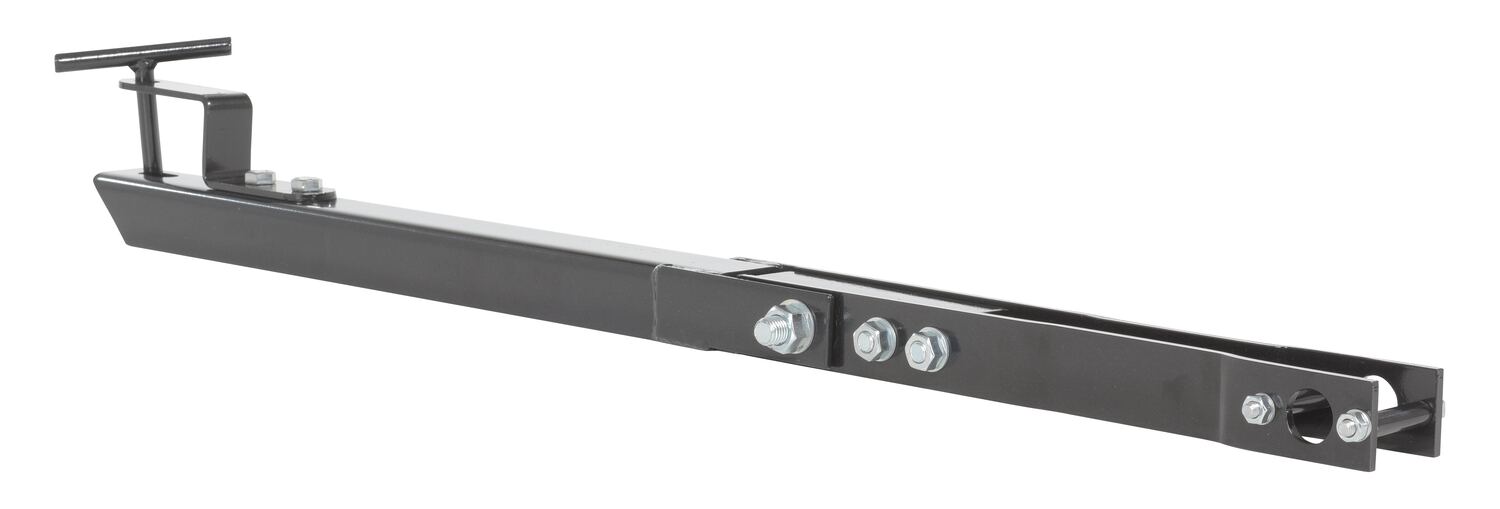

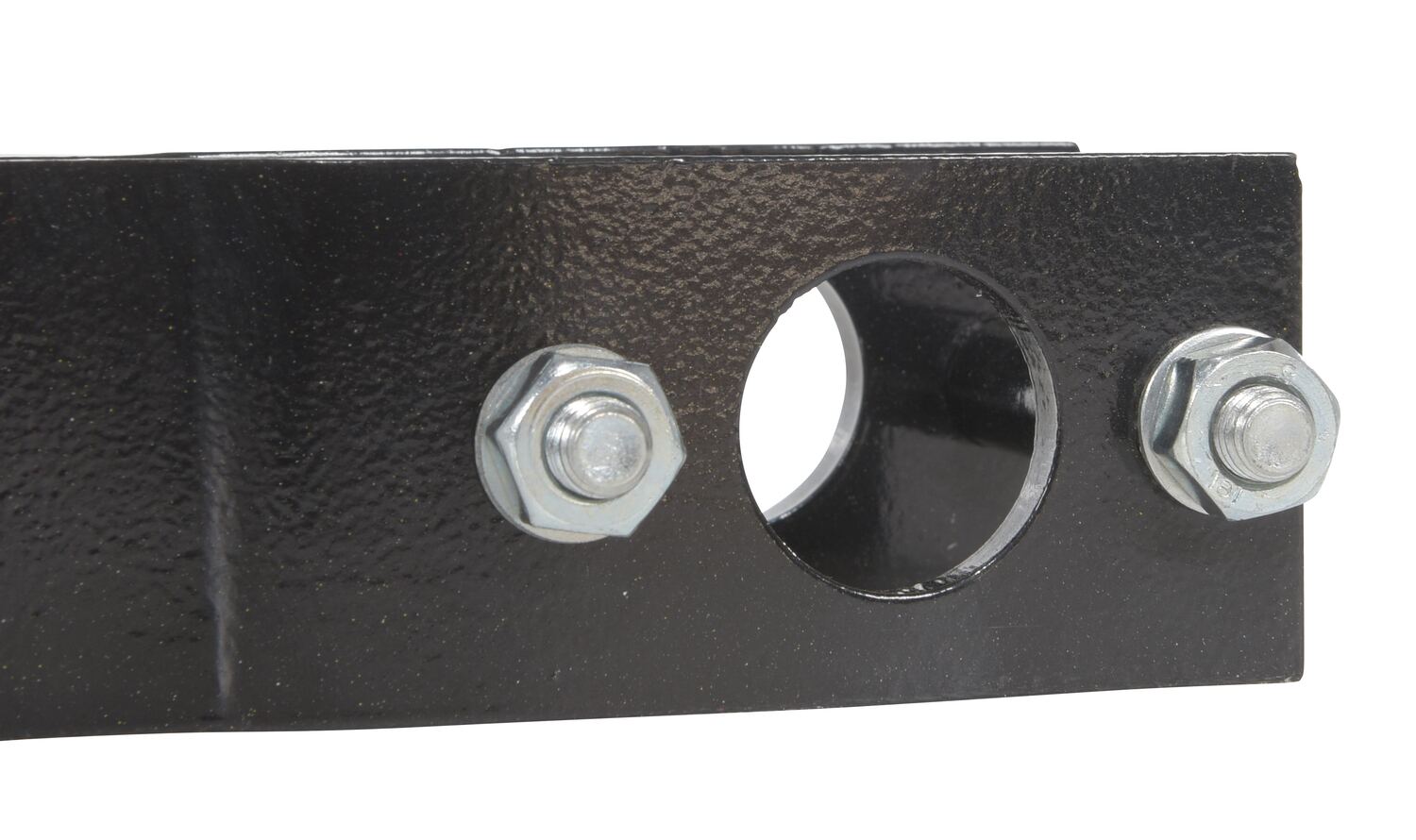

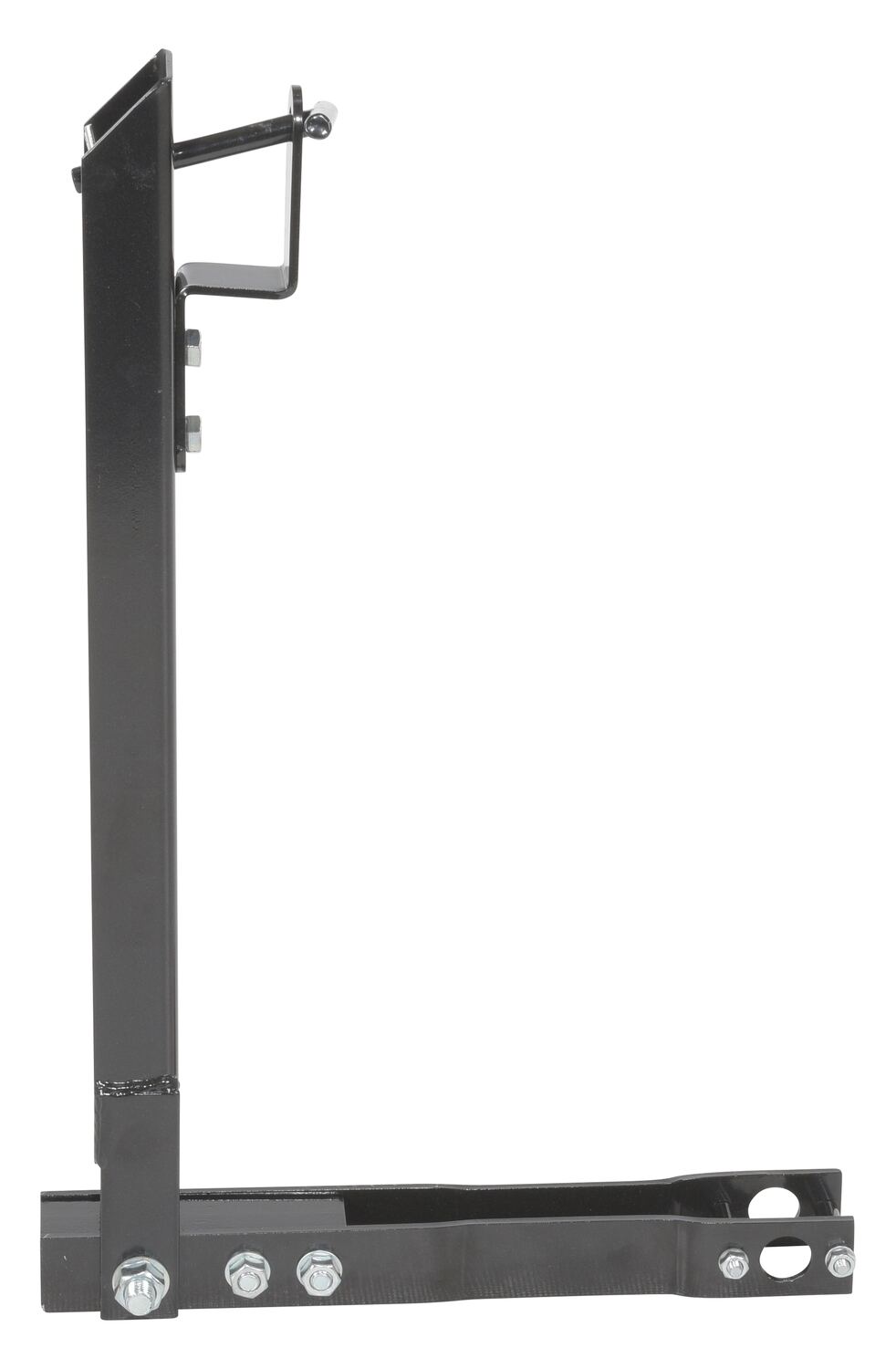

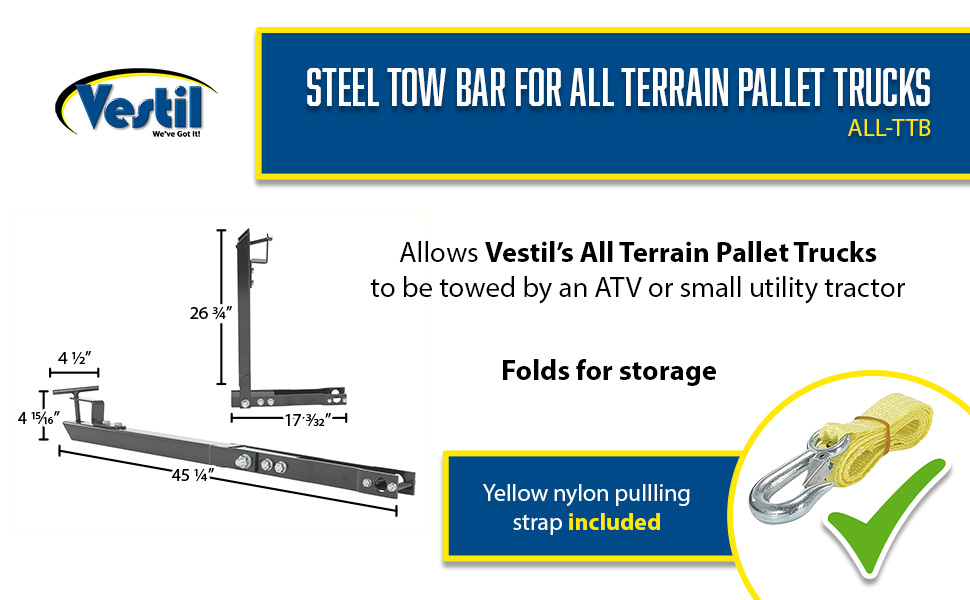

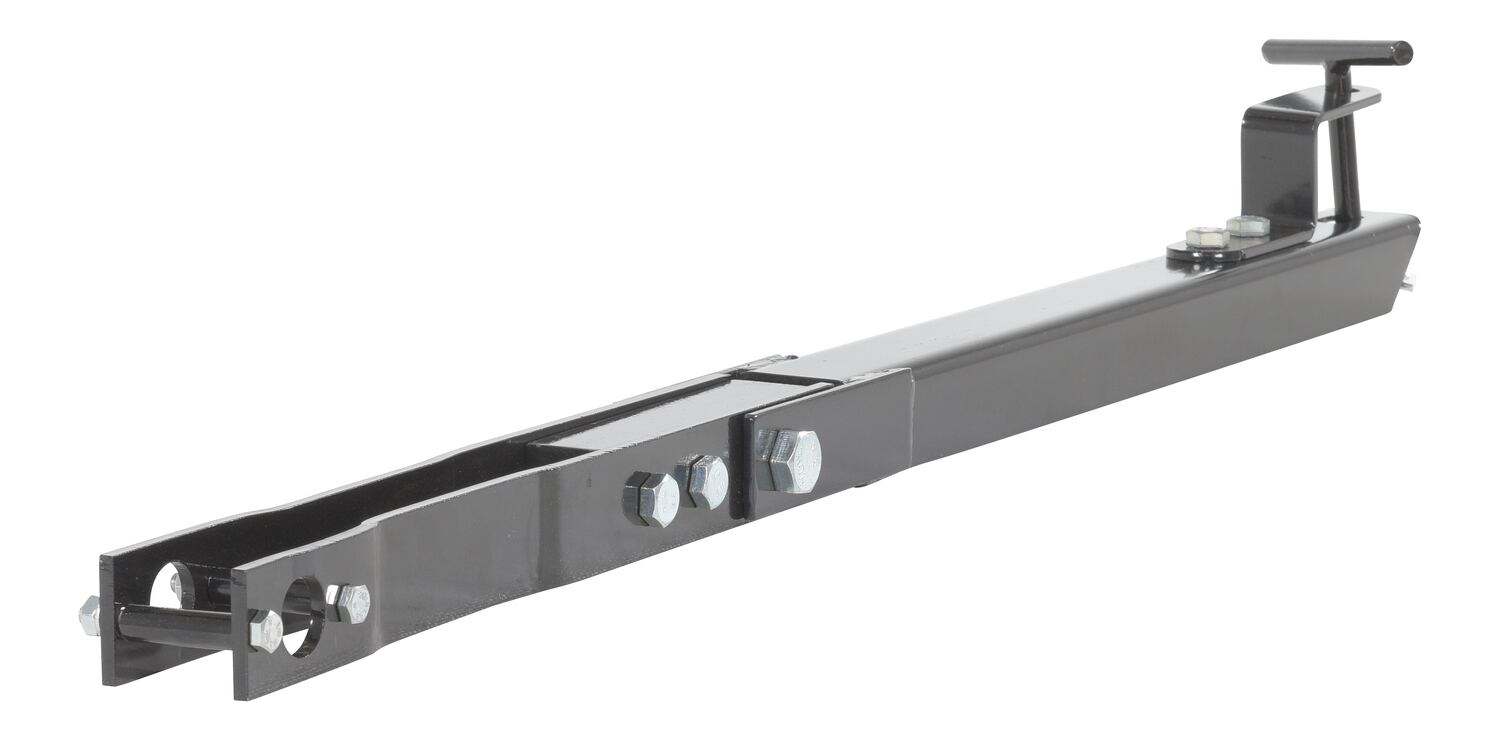

ALL-TTB ALL-TTB Steel Tow Bar Package For All Terrain Pallet Trucks Black 30 Days Limited Warranty 16

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

Testing Certificates

SDS Sheets


Hydraulic Oil
ALL-T-2 SDS


Hydraulic Oil
ALL-T-2-48 SDS


Hydraulic Oil
ALL-T-HD SDS

Other PDFs

Enhanced Product Content

ALL-TTB
ALL-TTB ALL-TTB A+ Content - 3
ALL-TTB ALL-TTB A+ Content - 2
ALL-TTB ALL-TTB A+ Content - 1

Applications



Construction Projects

Farming and Agriculture

Municipalities

Warehouses

Warehouses






All Terrain Pallet Trucks




All Terrain Pallet Jacks for Rough Surface and Outdoor Material Handling

All terrain pallet trucks are designed to transport palletized loads across rough, uneven, and outdoor surfaces where standard pallet jacks cannot operate effectively. Ideal for construction sites, nurseries, gravel yards, farms, and industrial job sites, these rugged pallet jacks combine maneuverability with heavy-duty performance to improve material handling efficiency in demanding environments.

Key Features & Benefits

Built with a durable welded steel tubular frame, these rough terrain pallet jacks feature large pneumatic front tires and pneumatic steering wheels for smooth movement over gravel, dirt, grass, and uneven ground. Adjustable fork widths accommodate a variety of pallet sizes, while sealed bearing wheels provide added dust protection and long service life. The easy-to-use three-position handle allows precise lifting, lowering, and neutral positioning for improved operator control and productivity.

Applications & Configurations

Available in multiple fork lengths, adjustable width ranges, and load capacities, these outdoor pallet trucks support a wide range of material handling applications. Heavy-duty models provide increased lifting capability for larger loads, while optional tow bar packages allow units to be pulled by ATVs or utility tractors for easier transport across large facilities and outdoor work areas.  Optional Tow Bar package allows unit to be towed by an ATV or small utility tractor. Designed for pulling in either loaded or unloaded position.  For model ALL-T-2, the recommended PSI for the large front tires is 36. The Steering Tires have a 30 PSI recommendation.



Model # Description Attributes Net Wt.
(lbs)

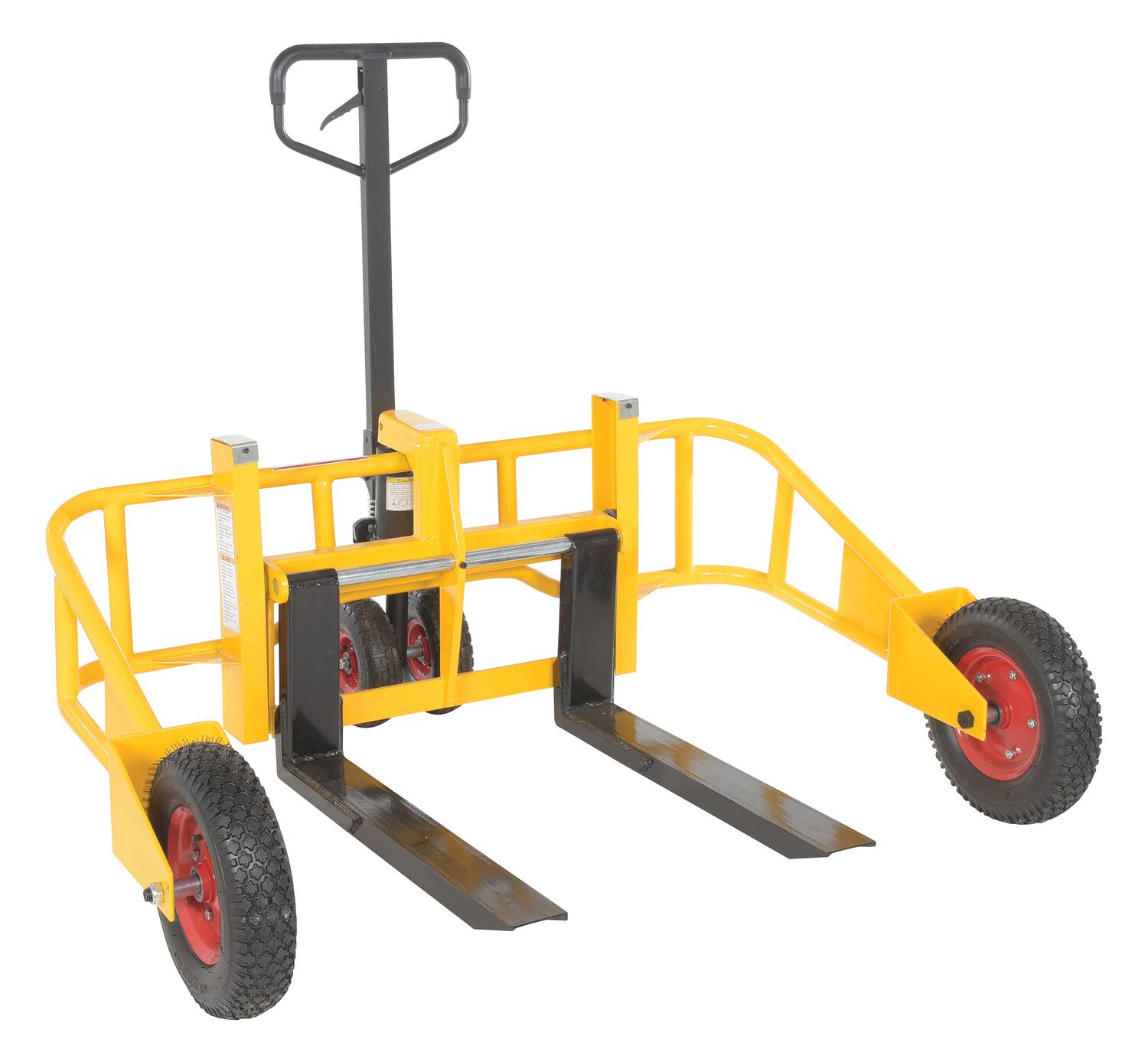

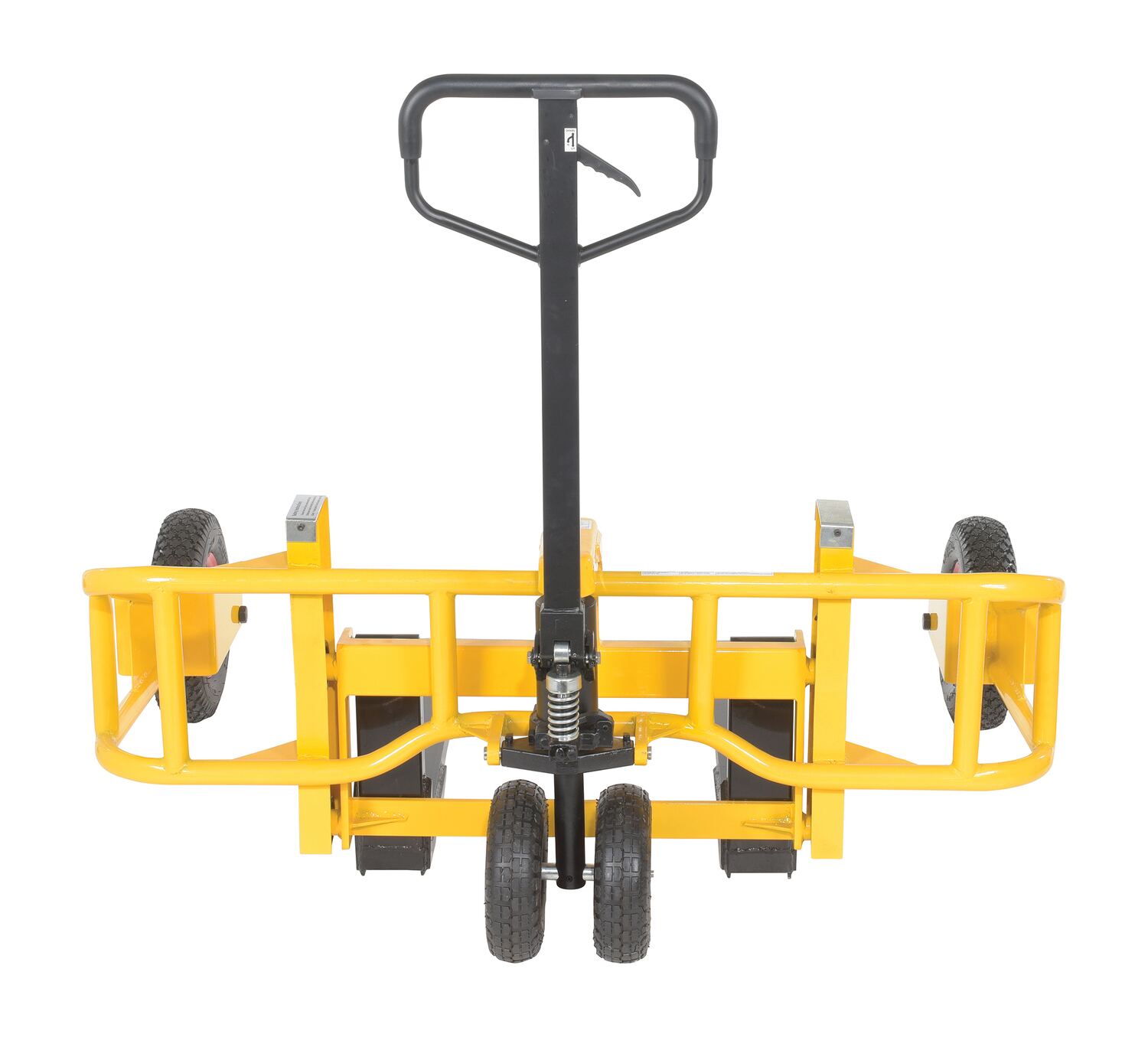

ALL-T-2 ALL-T-2Steel Manual All-Terrain Pallet Truck 32 In. Long Adjustable Width Forks 2,000 Lb. Capacity YellowUniform Capacity (lb.) at 12 (in.) Horizontal Load Center: 2,000
Uniform Capacity (lb.) at 15 (in.) Horizontal Load Center: 1,500
328

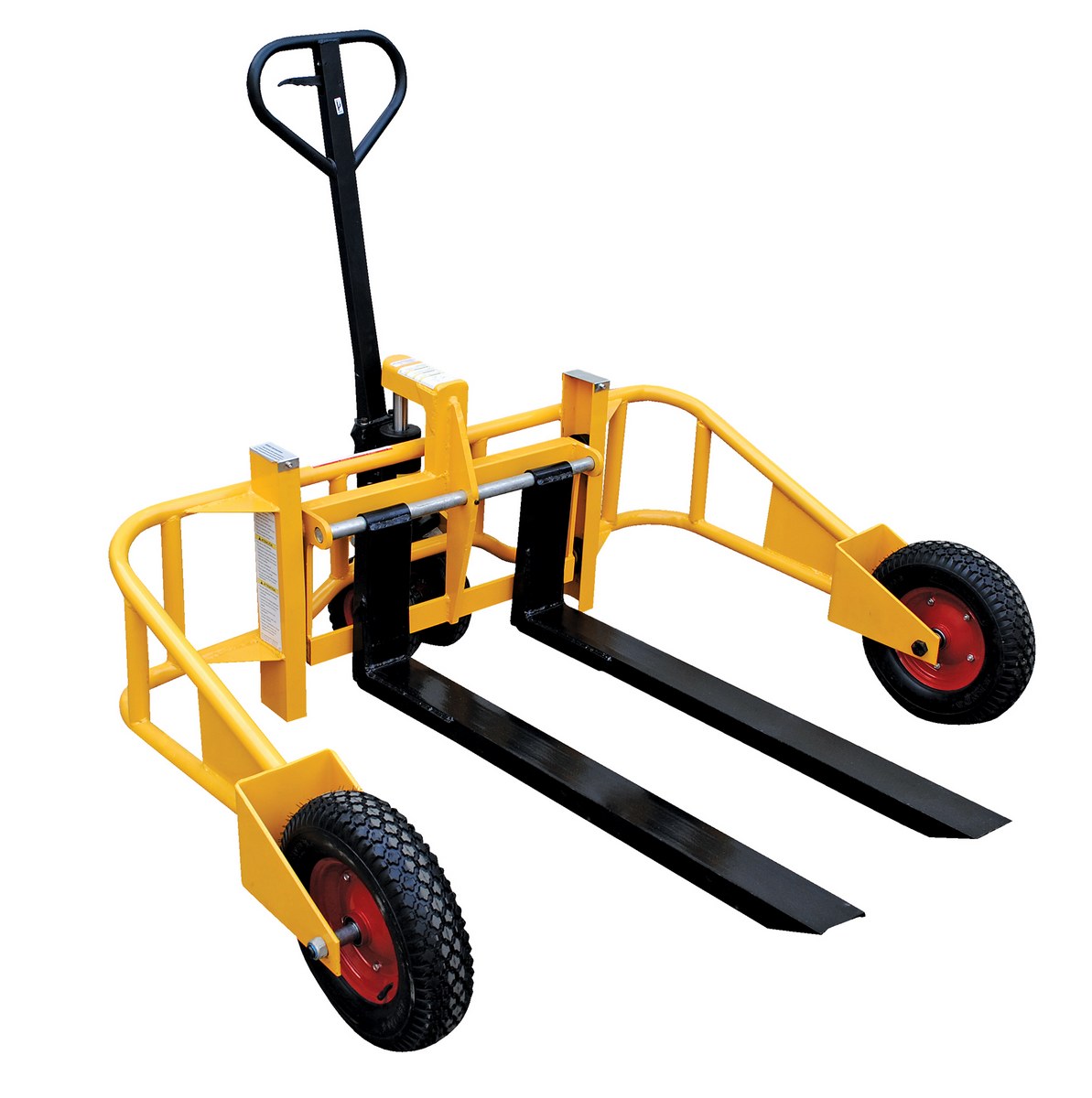

ALL-T-2-48 ALL-T-2-48Steel Manual All-Terrain Pallet Truck 48 In. Long Adjustable Width Forks 2,000 Lb. Capacity YellowUniform Capacity (lb.) at 24 (in.) Horizontal Load Center: 2,000
Uniform Capacity (lb.) at 27 (in.) Horizontal Load Center: 1,500
328

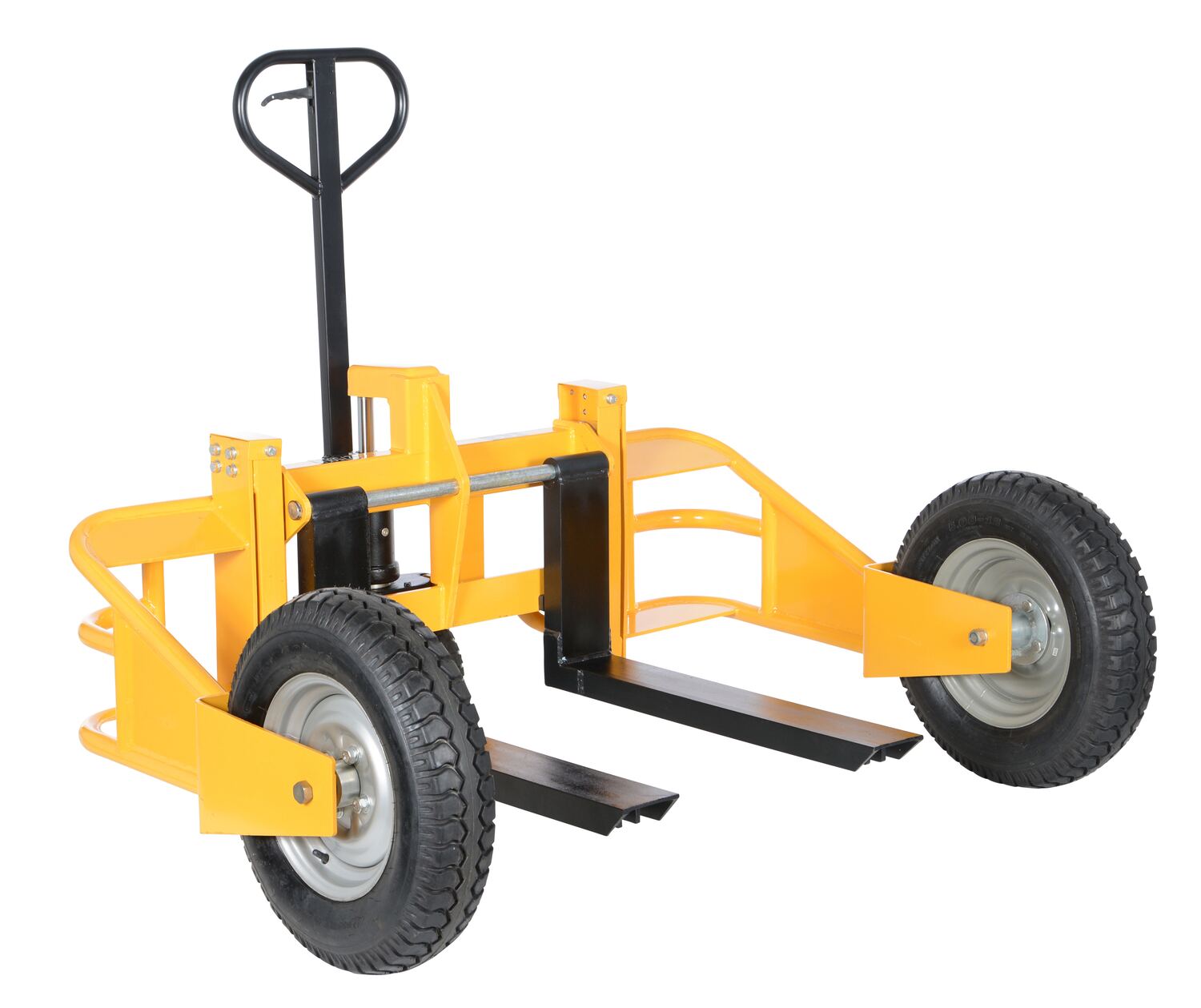

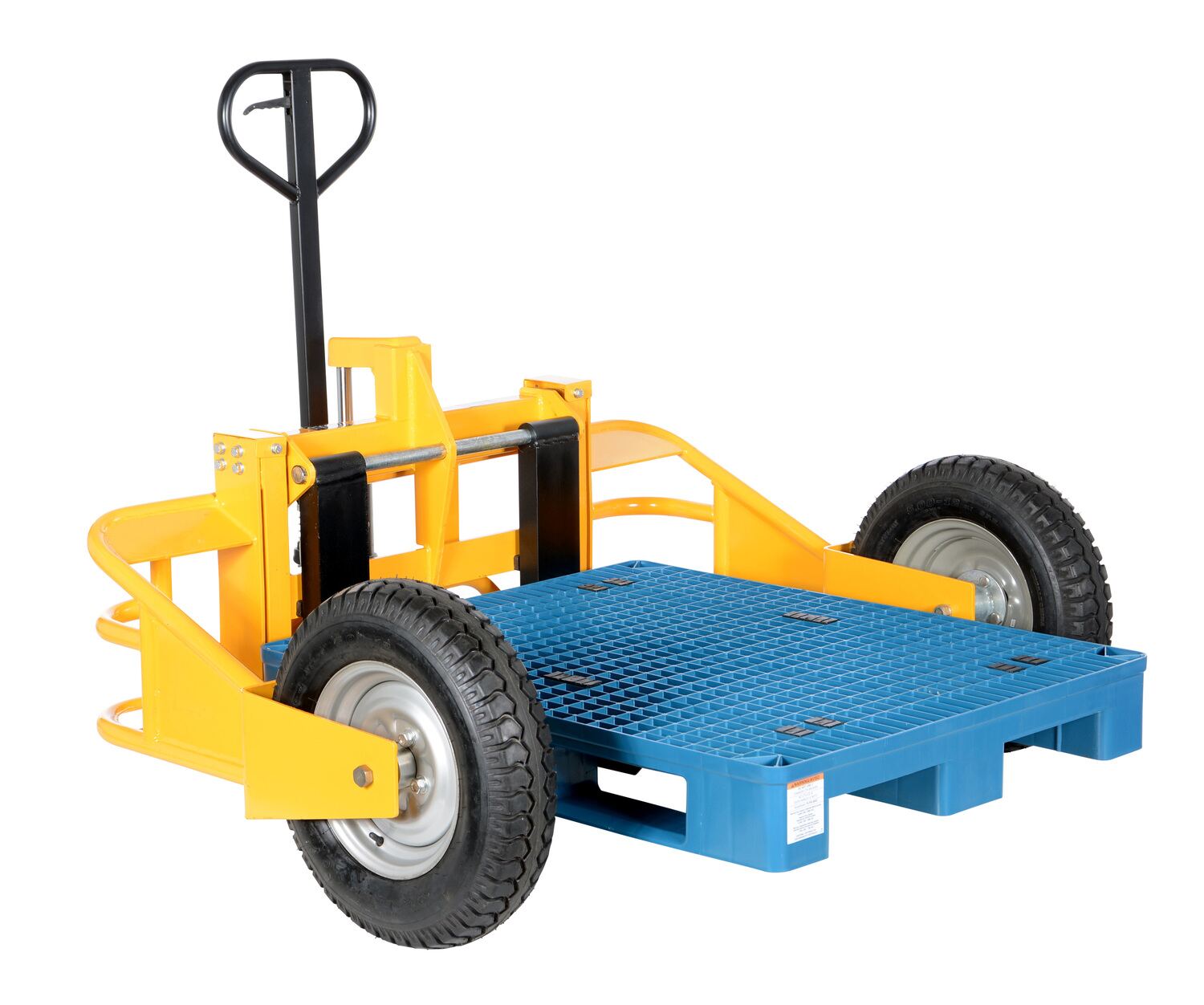

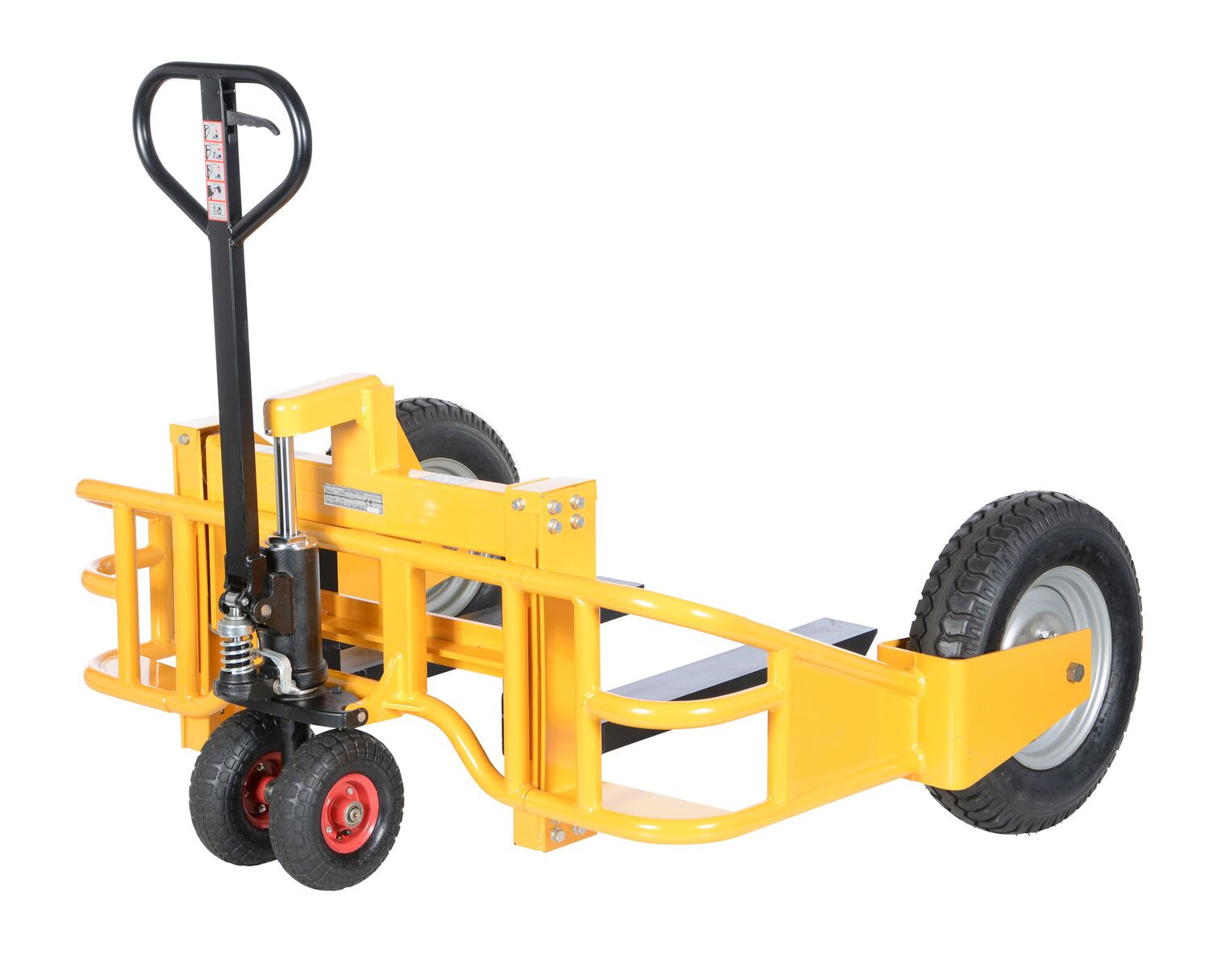

ALL-T-HD ALL-T-HDSteel All-Terrain Pallet Truck 32 In. Fork Length 2500 Lb. Capacity YellowUniform Capacity (lb.) at 12 (in.) Horizontal Load Center: 2,500
Uniform Capacity (lb.) at 15 (in.) Horizontal Load Center: 2,000
546
