FEATURED Multi-Purpose Tote Dumpers

model: JMD-1000-72


Multi-Purpose Tote Dumpers
SERIES: JMD   5Products 3Options
Quick Ship Custom Fabrication

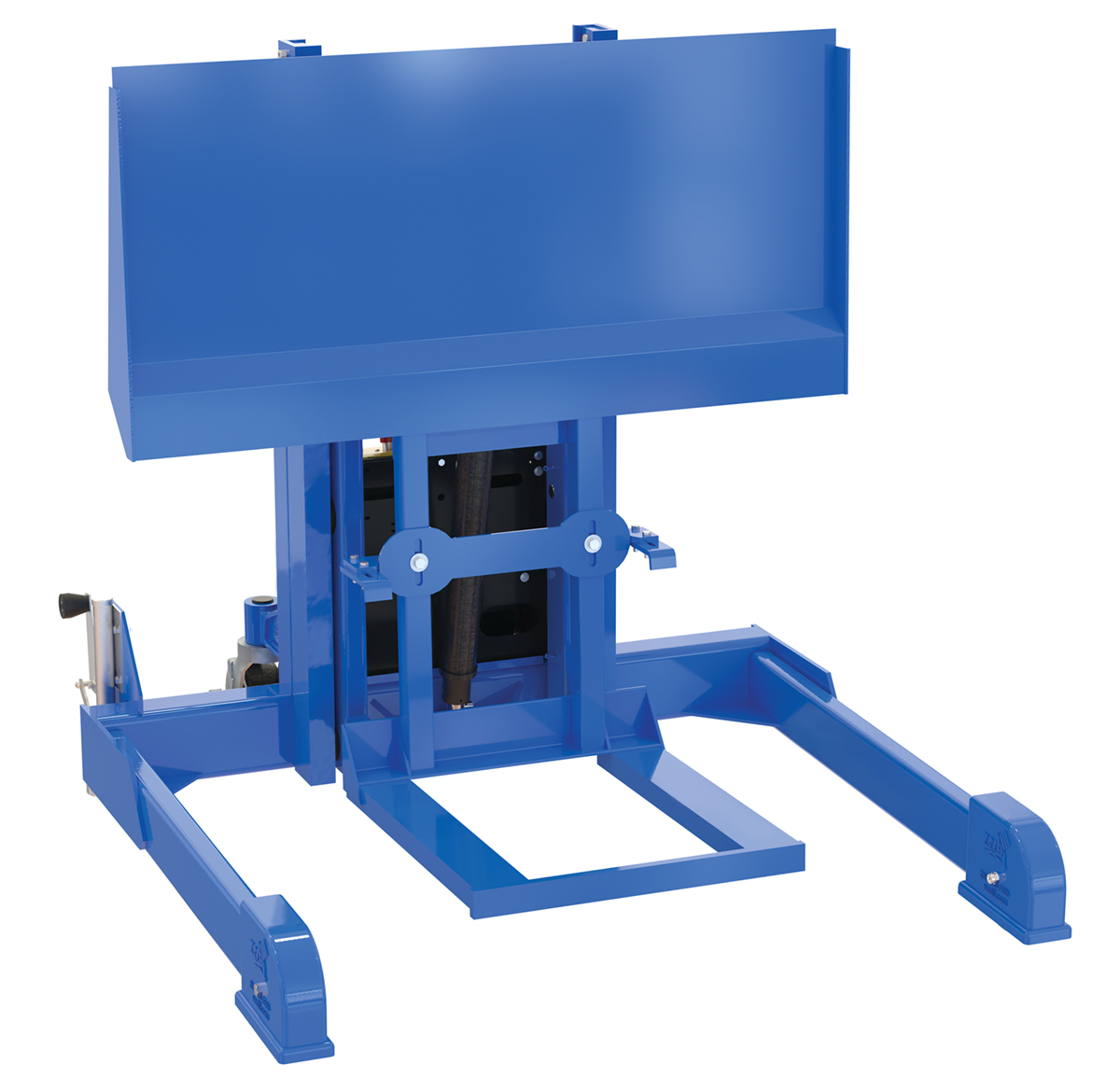

Powered Tote Dumpers for Controlled Material Collection and Discharge

Multi-purpose tote dumpers provide an efficient way to collect, transport, lift, and dump bulk materials from polyethylene totes. Designed for schools, hospitals, commercial facilities, warehouses, manufacturing plants, and industrial work areas, these powered tote dumpers help one operator empty loaded totes with less manual lifting, tipping, and strain.

One-Person Dumping Operation

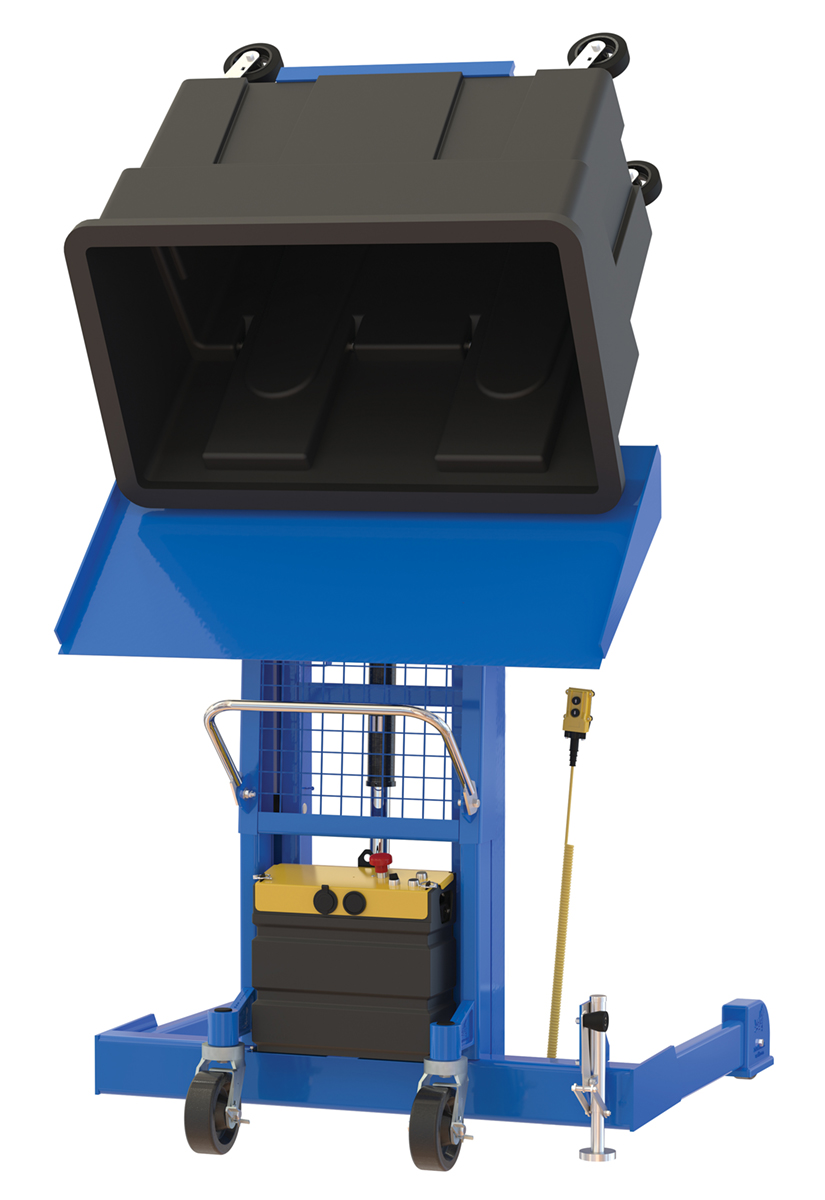

To use the dumper, the operator rolls the tote into position, secures it in place, and activates the hand pendant control. The tote rotates up to 135 degrees to discharge contents in approximately 25 seconds, supporting faster material transfer and improved productivity during repetitive dumping tasks.

Built-In Handling Features

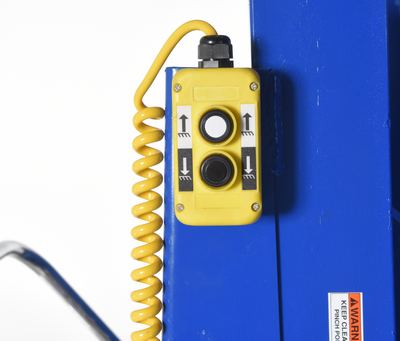

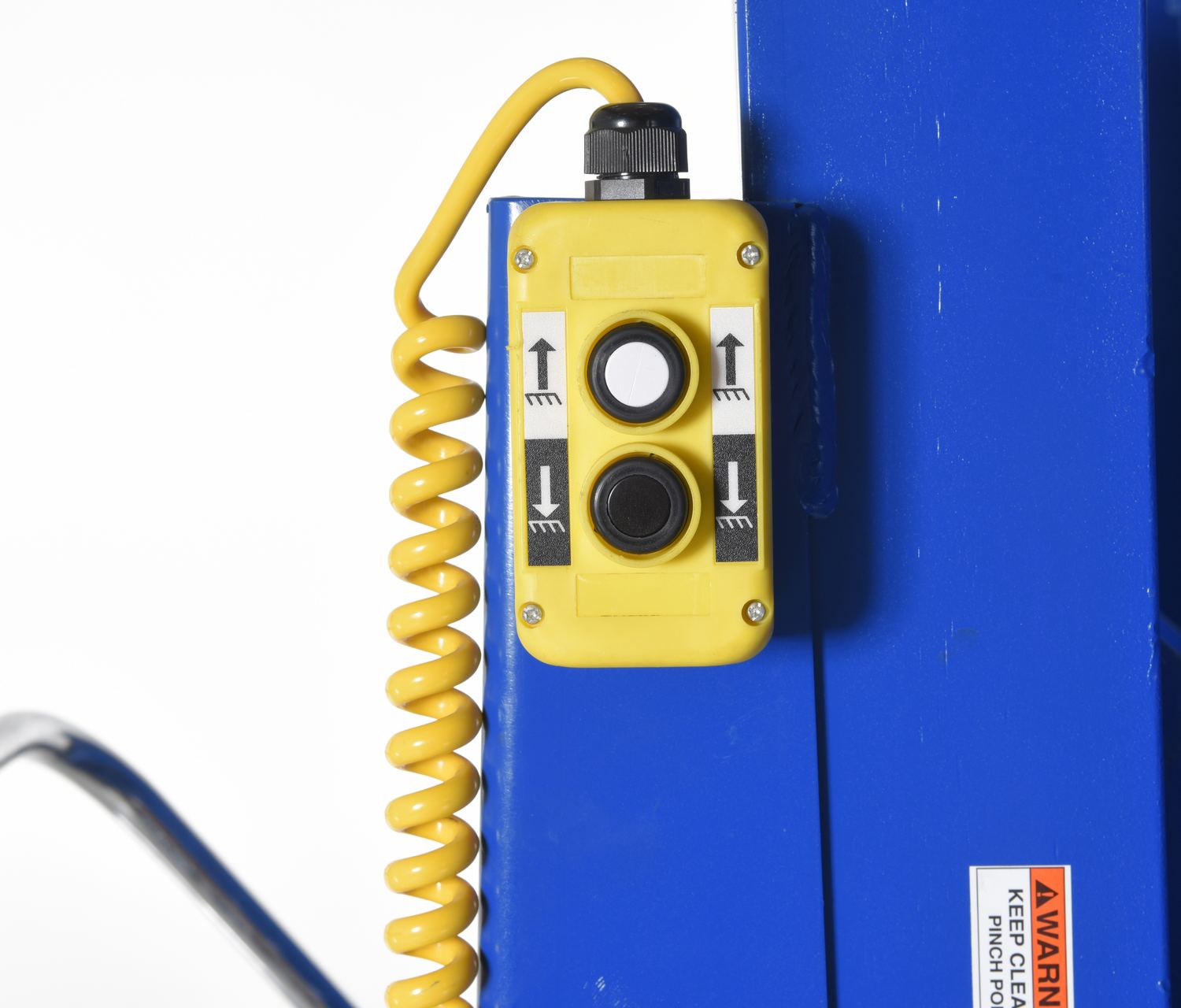

Standard features include a floor lock for positioning, hand pendant control with an 8 foot coil cord, and one MPT-2 polyethylene tote. The steel frame and durable blue finish support long-term use in demanding commercial and industrial environments.

Dump Heights and Tote Options

This family includes 48 inch, 60 inch, and 72 inch dump height models with 600 lb. capacity. Capacity may be limited by the tote being used. Additional polyethylene totes and an optional hand control pedestal are available for facilities that need added flexibility in material handling, waste collection, or process dumping applications.

Multi-Purpose Tote Dumpers

model: JMD-1000-72

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

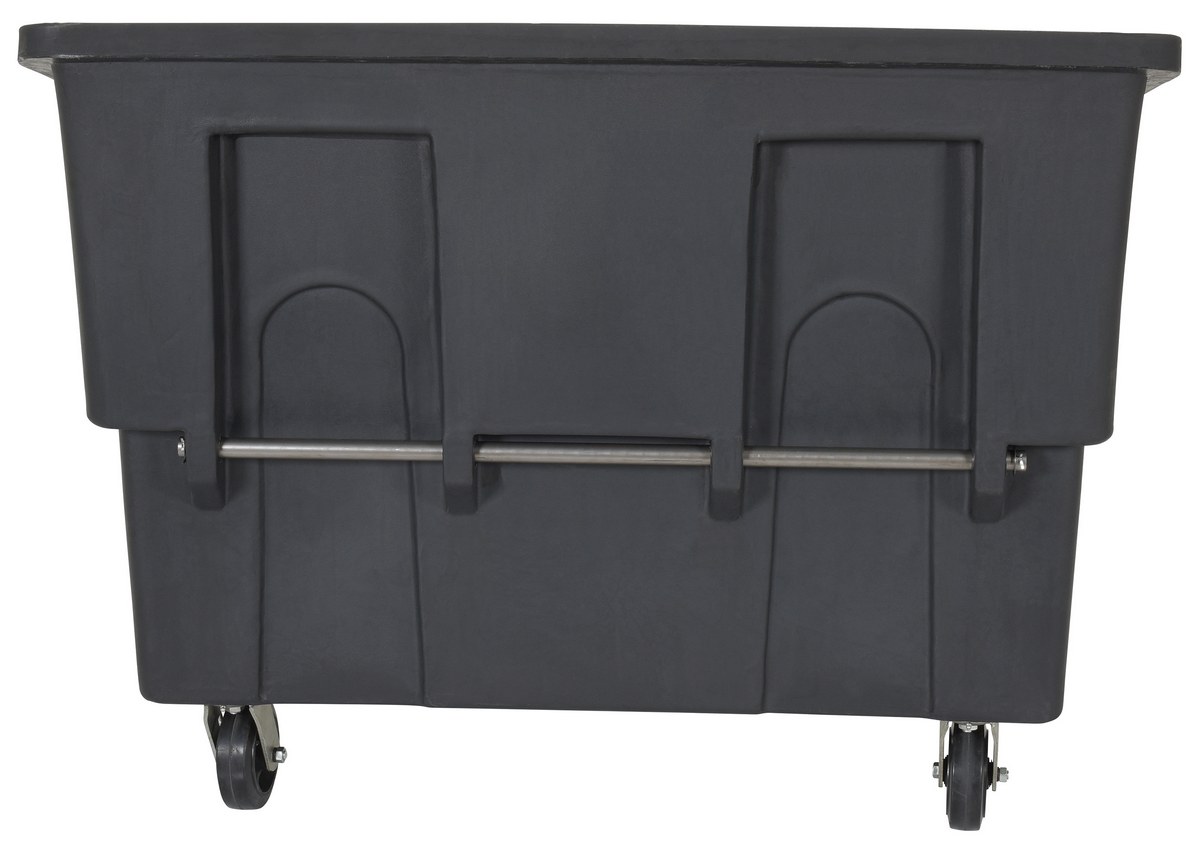

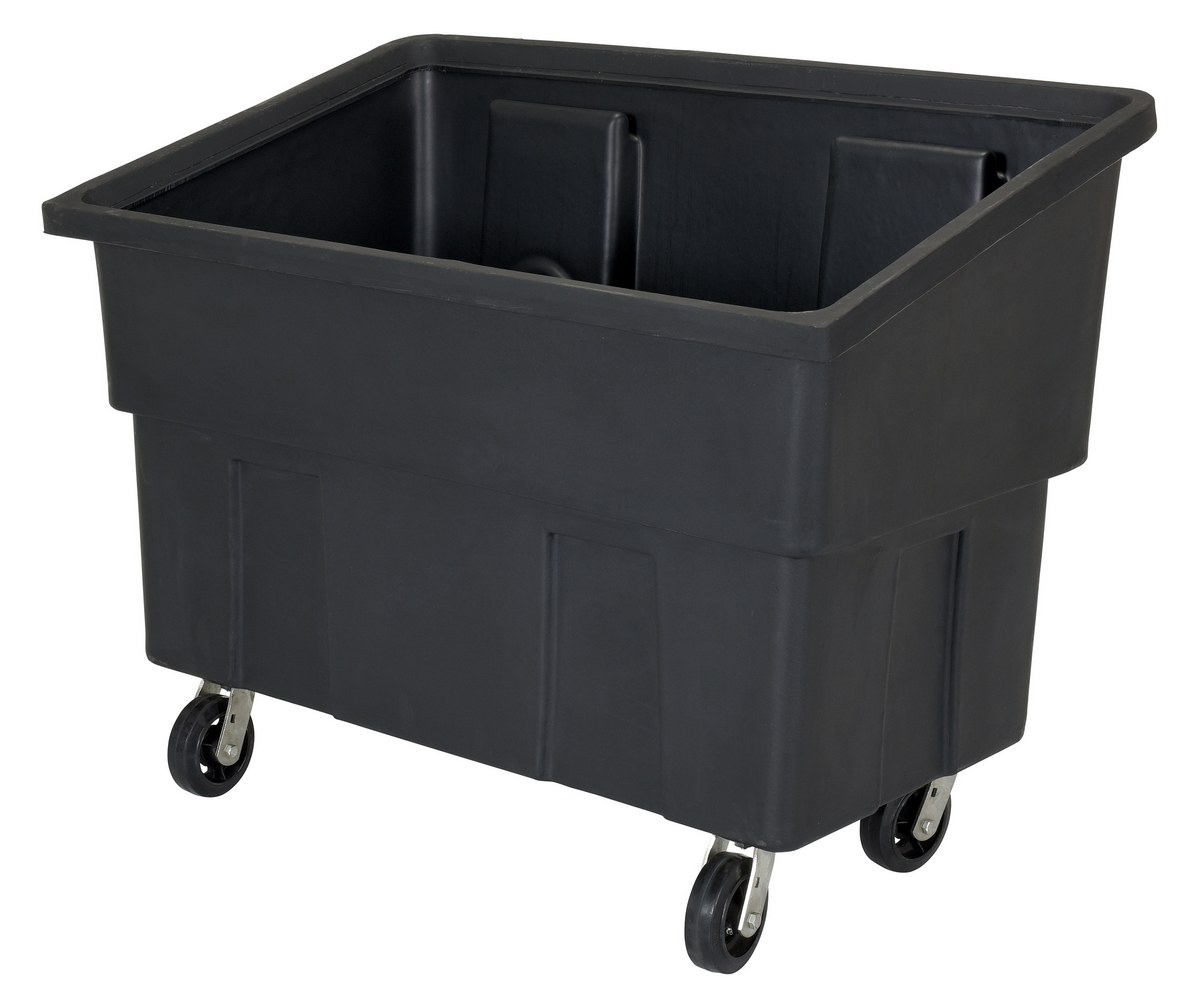

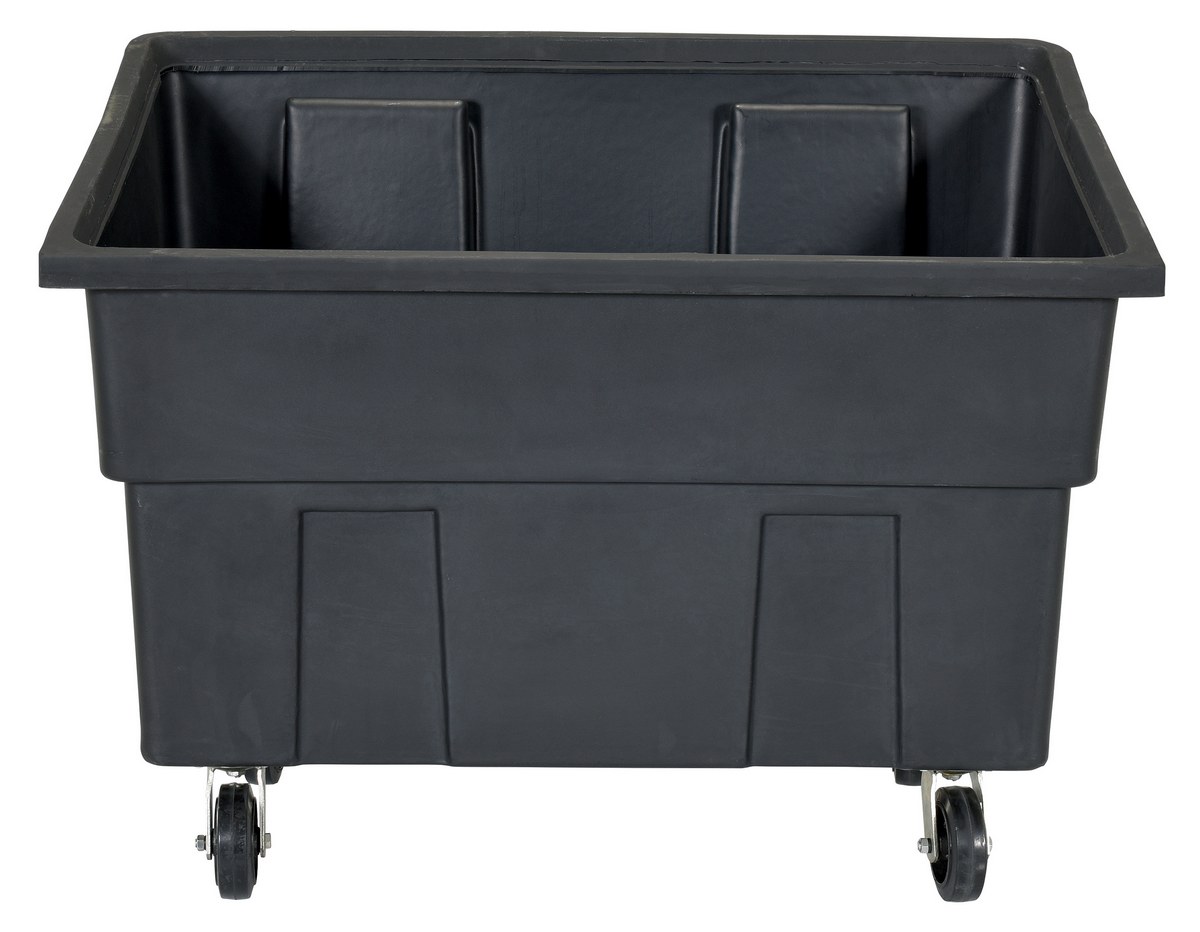

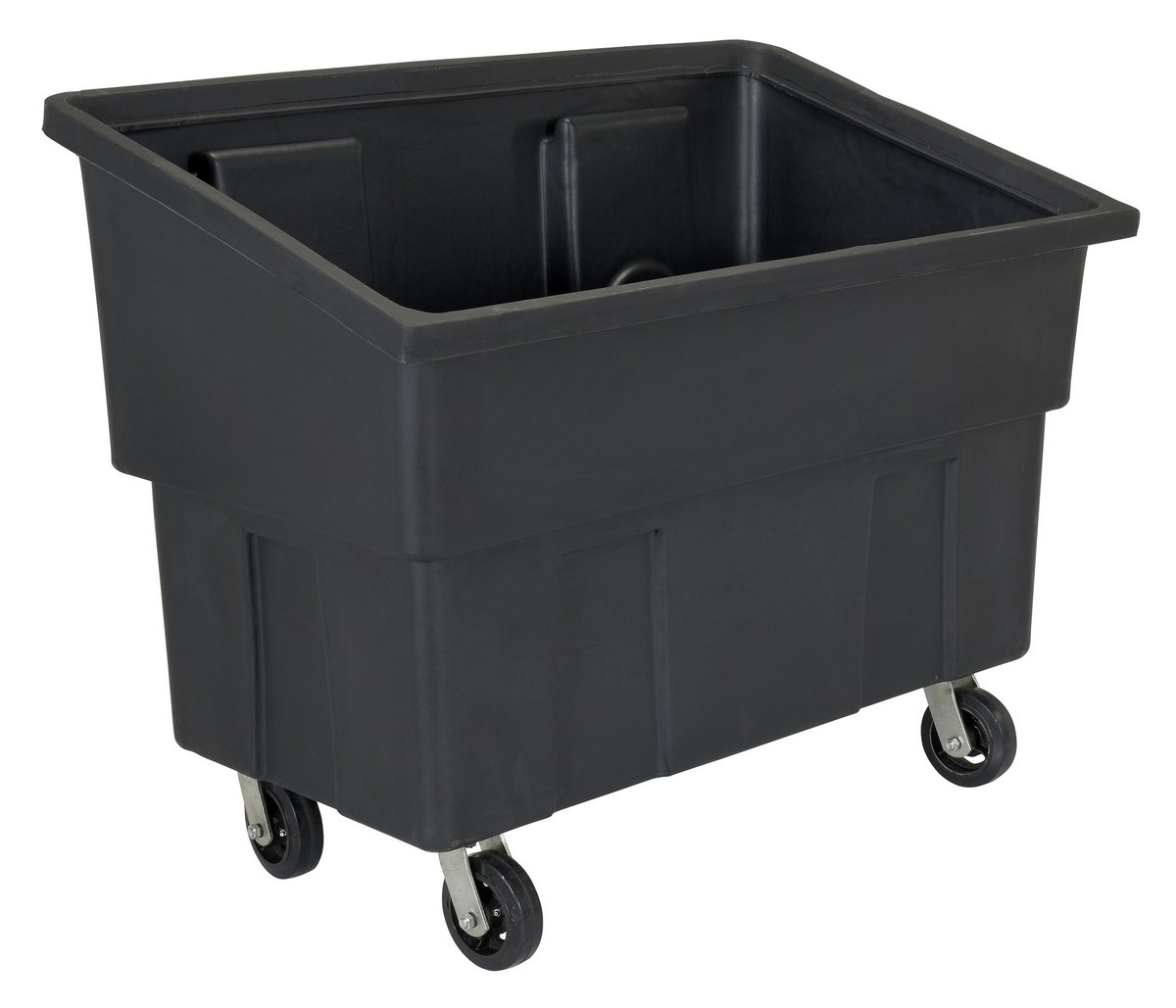

MPT-1 MPT-1 Polyethylene Totes 30-3/4 In. x 52-1/2 In. x 41-13/16 In. 20… 90 Days Limited Warranty 98

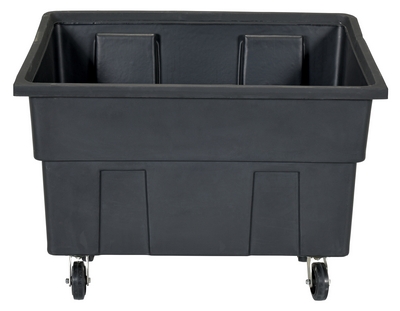

MPT-2 MPT-2 Polyethylene Totes 30-3/4 In. x 52-1/2 In. x 42-5/16 In. 600… 90 Days Limited Warranty 136
HCP-2642 HCP-2642 Optional Hand Control Pedestal
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Owner's Manuals

1

Survey Sheets

0
No survey sheets for this product family.

SDS Sheets

0
No SDS sheets for this product family.

Other PDFs

0
No other PDFs for this product family.






Multi-Purpose Tote Dumpers




Powered Tote Dumpers for Controlled Material Collection and Discharge

Multi-purpose tote dumpers provide an efficient way to collect, transport, lift, and dump bulk materials from polyethylene totes. Designed for schools, hospitals, commercial facilities, warehouses, manufacturing plants, and industrial work areas, these powered tote dumpers help one operator empty loaded totes with less manual lifting, tipping, and strain.

One-Person Dumping Operation

To use the dumper, the operator rolls the tote into position, secures it in place, and activates the hand pendant control. The tote rotates up to 135 degrees to discharge contents in approximately 25 seconds, supporting faster material transfer and improved productivity during repetitive dumping tasks.

Built-In Handling Features

Standard features include a floor lock for positioning, hand pendant control with an 8 foot coil cord, and one MPT-2 polyethylene tote. The steel frame and durable blue finish support long-term use in demanding commercial and industrial environments.

Dump Heights and Tote Options

This family includes 48 inch, 60 inch, and 72 inch dump height models with 600 lb. capacity. Capacity may be limited by the tote being used. Additional polyethylene totes and an optional hand control pedestal are available for facilities that need added flexibility in material handling, waste collection, or process dumping applications.



Model # Description Attributes Net Wt.
(lbs)

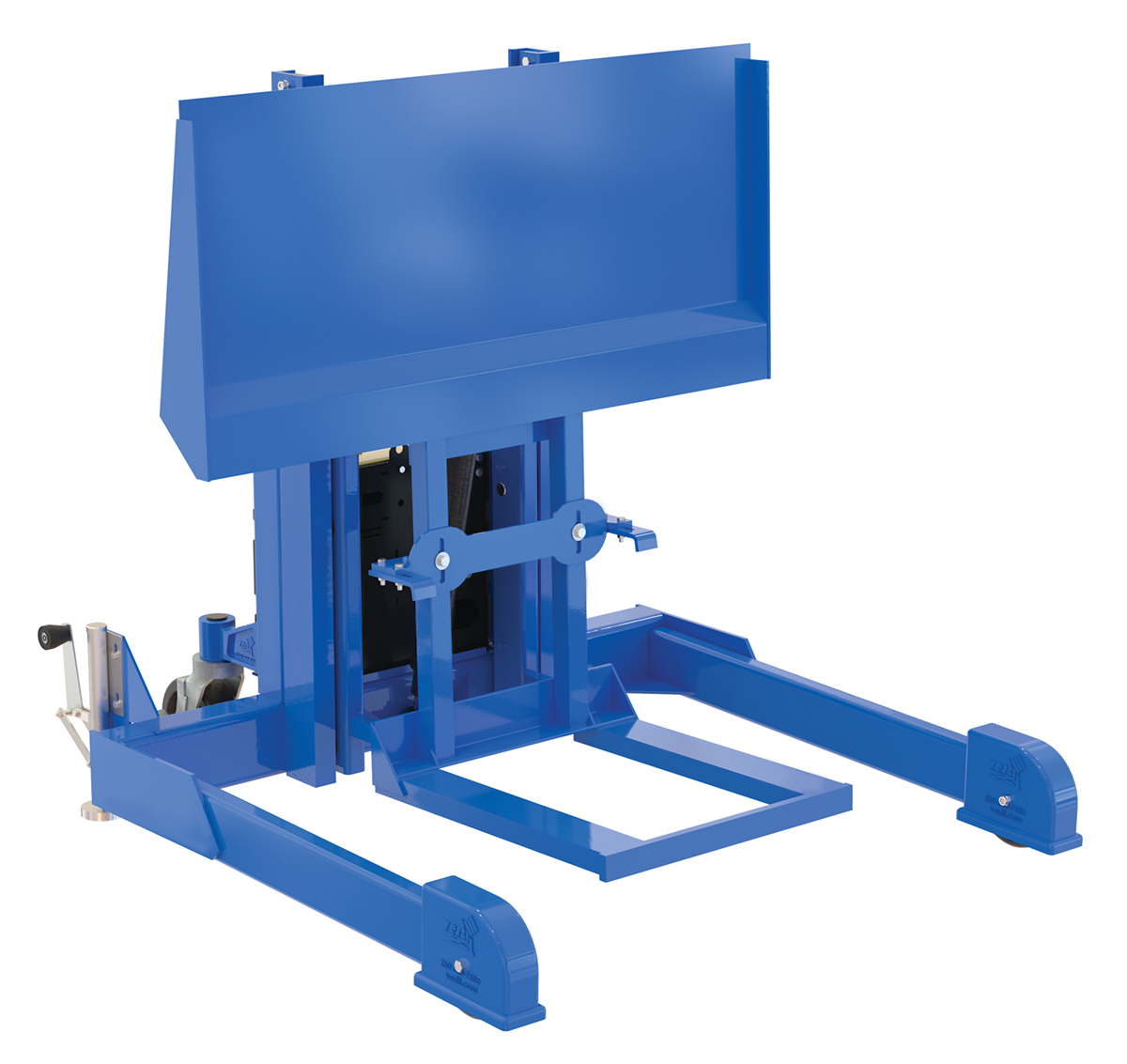

JMD-1000-48 JMD-1000-48Steel Multi Purpose Tote Dumper 48 In. Dump Height 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Rotated Height (in.): 106-3/8
1049

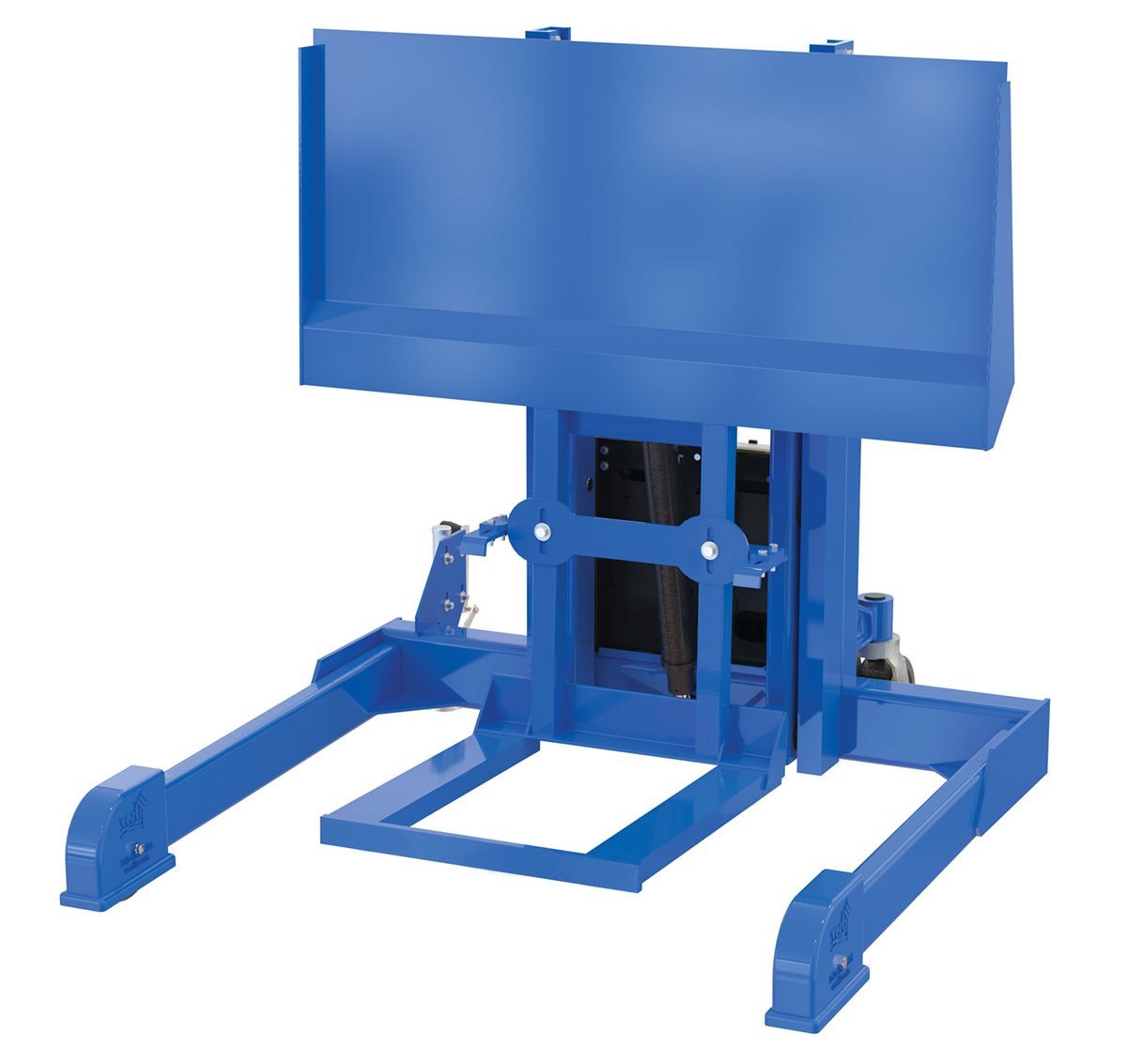

JMD-1000-60 JMD-1000-60Steel Multi Purpose Tote Dumper 60 In. Dump Height 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Rotated Height (in.): 117-3/4
1065

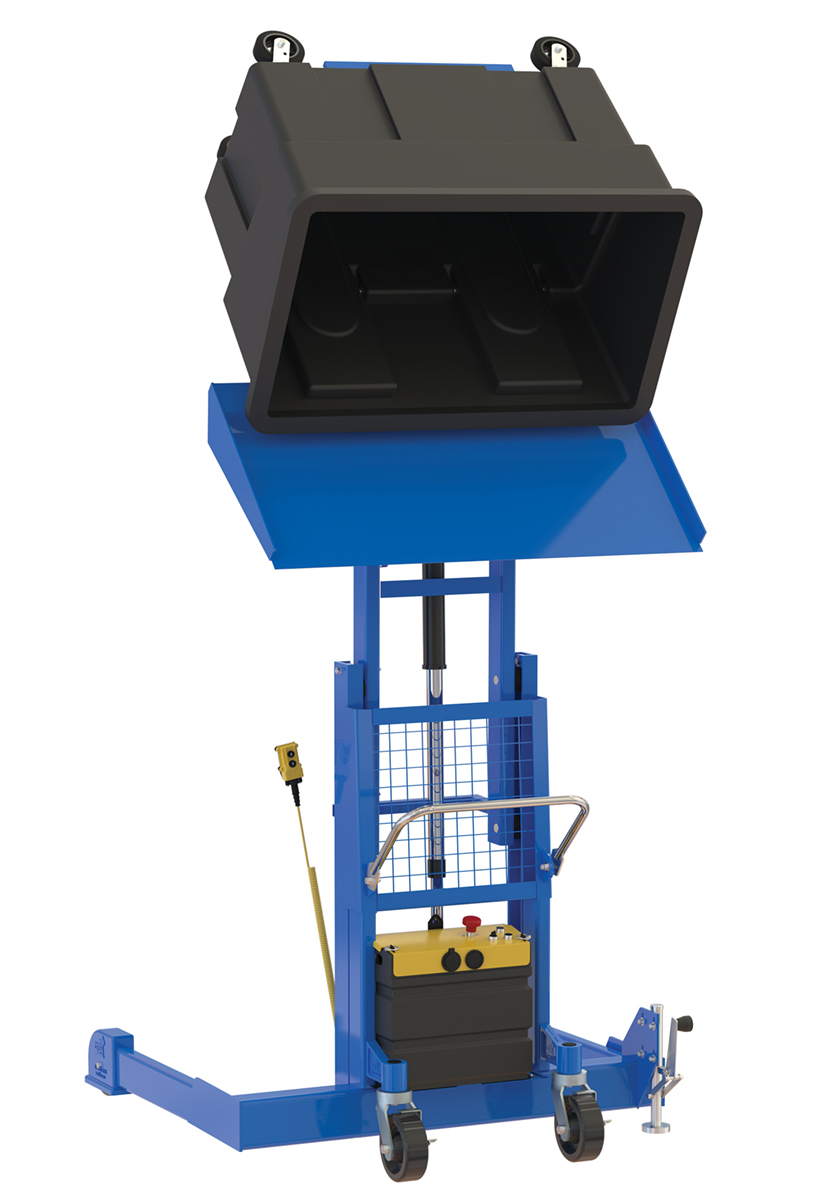

JMD-1000-72 JMD-1000-72Steel Multi Purpose Tote Dumper 72 In. Dump Height 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Rotated Height (in.): 129-3/4
1081

Options


HCP-2642 HCP-2642 Optional Hand Control Pedestal
