Low-Profile Hydraulic Toe Jacks for Lifting Heavy Machinery

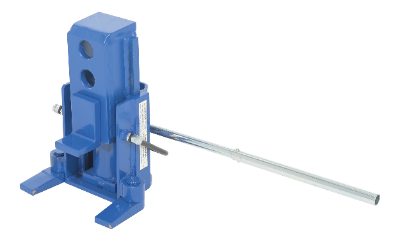

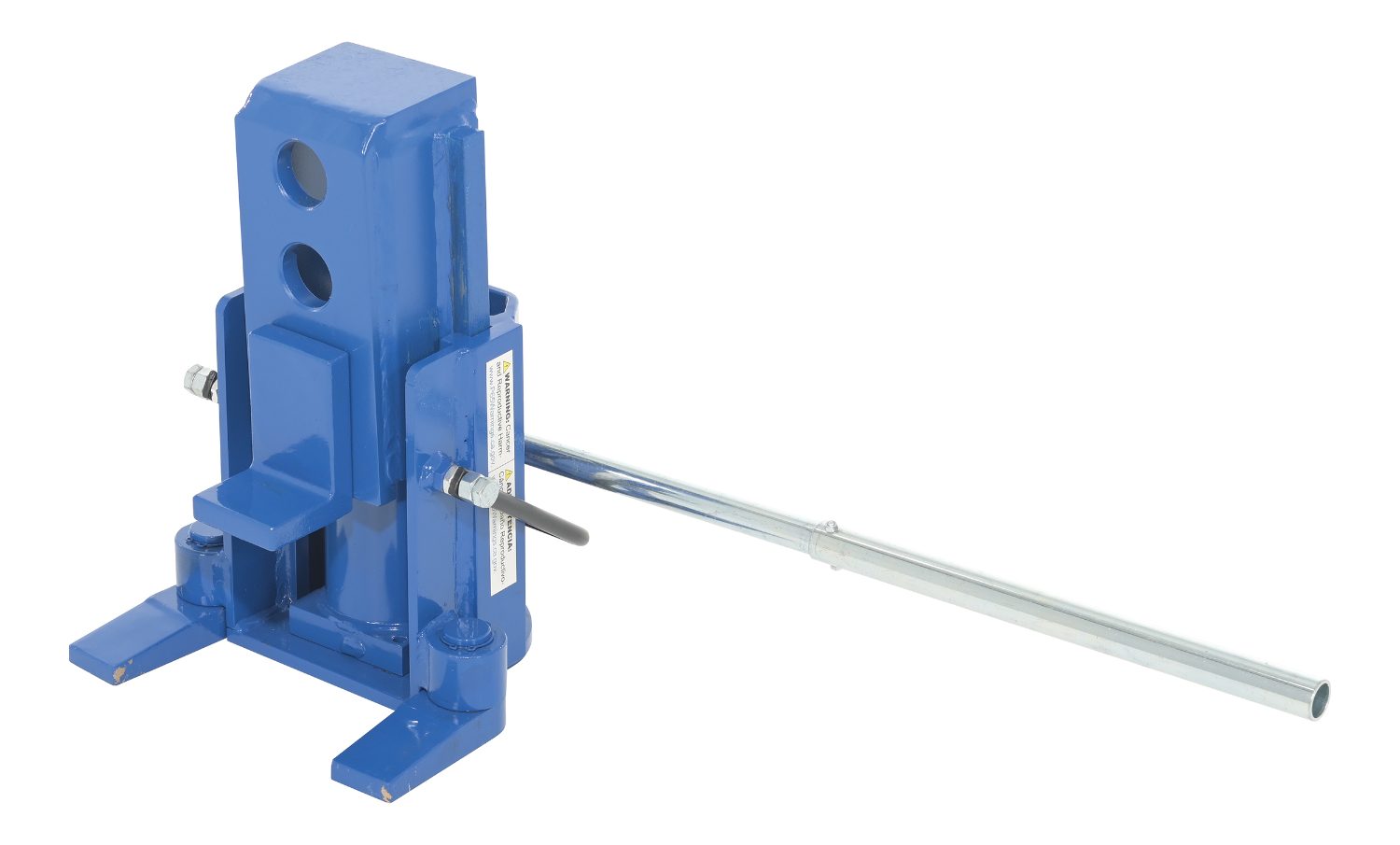

Hydraulic machinery toe jacks provide compact lifting access beneath heavy equipment when clearance is too limited for a conventional jack. Designed for industrial machinery, equipment positioning, and field or warehouse use, these hand-pump jacks allow a load to be raised from either the low-profile toe or the upper jack head.
Toe and Head Lifting Positions

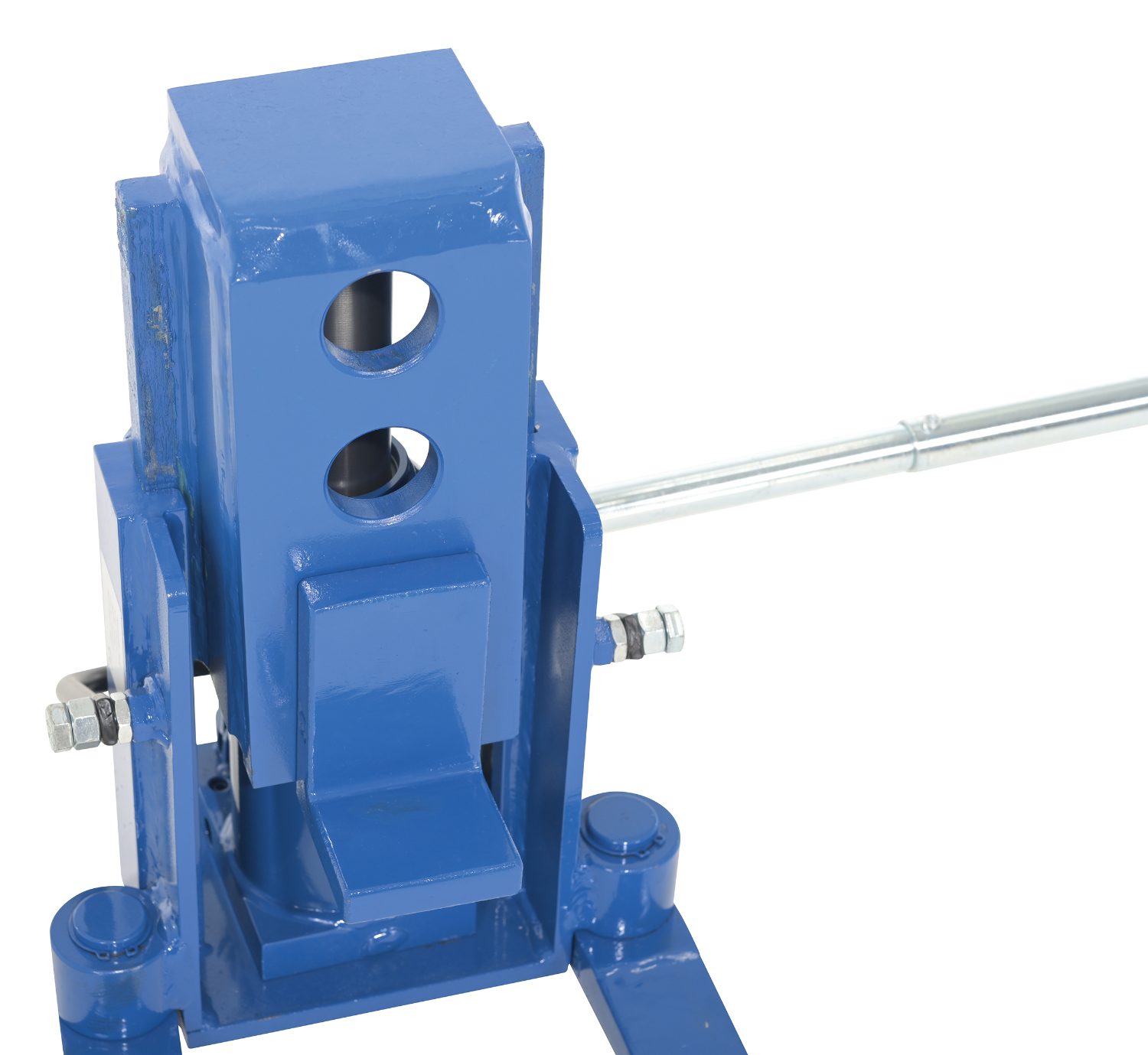

The adjustable lifting claw provides three toe positions for matching the jack to the available clearance. Toe service ranges extend from as low as 5/8 inch to 5-1/2 inches, depending on model. For applications with higher contact points, the jack head provides service ranges from 9-1/2 inches up to 17 inches. The required contact height should be confirmed before selecting a model.
Three-Ton and Eight-Ton Models

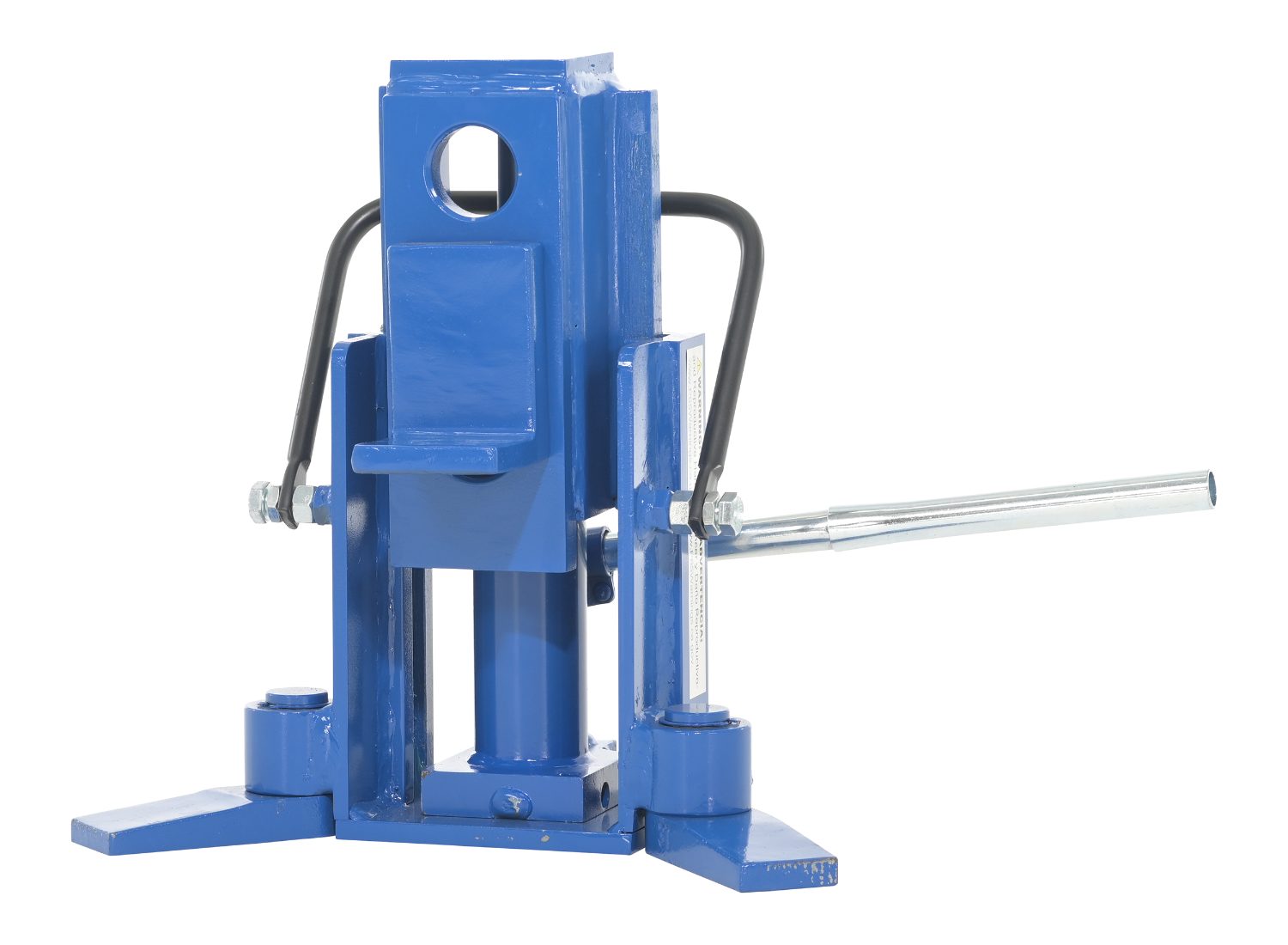

The 3-ton model supports lower-capacity machinery lifting while maintaining the family’s compact footprint. The 8-ton model provides additional capacity for heavier industrial equipment. Both configurations use a manual hydraulic pump, allowing operation without an external power source.
Built for Controlled Industrial Lifting

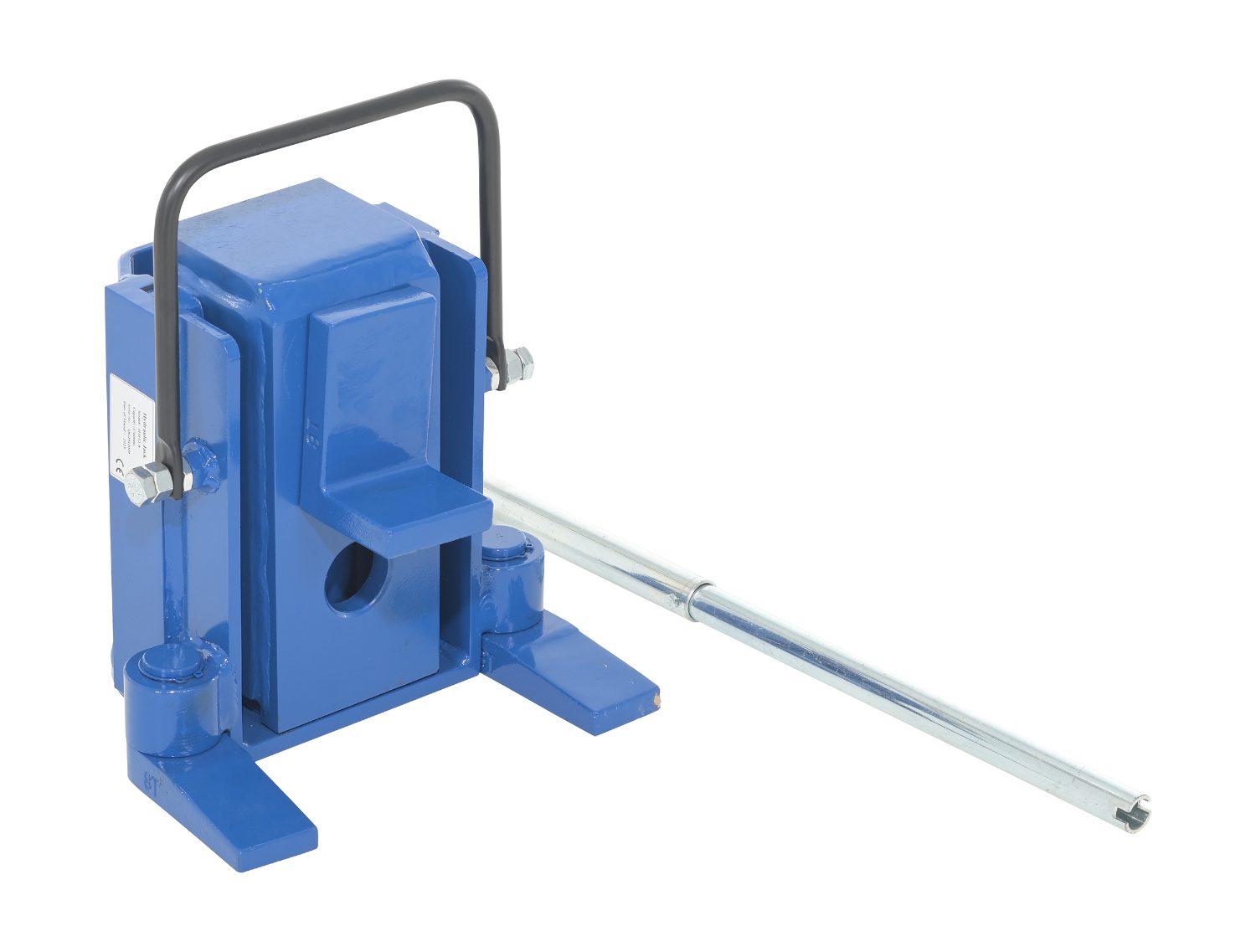

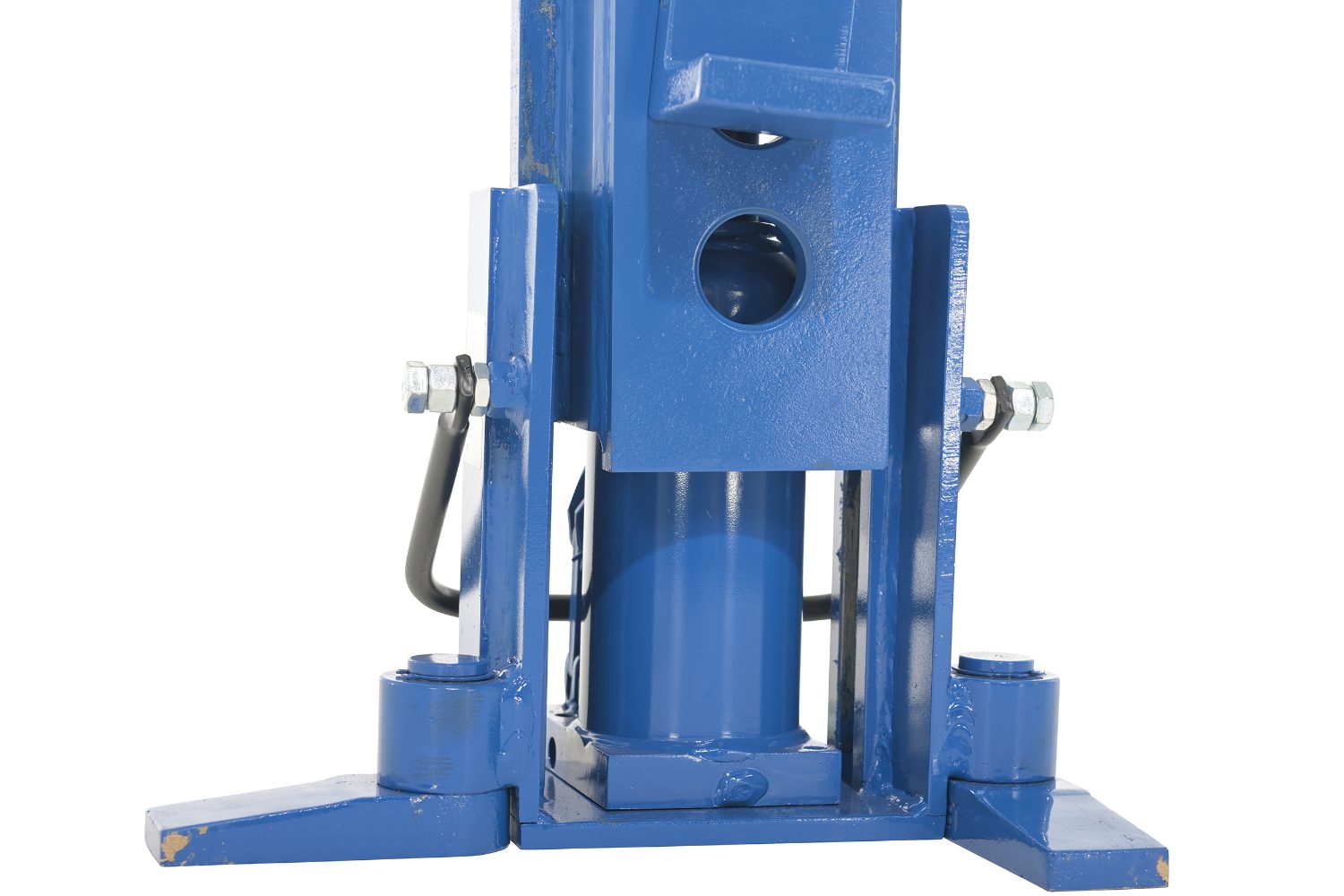

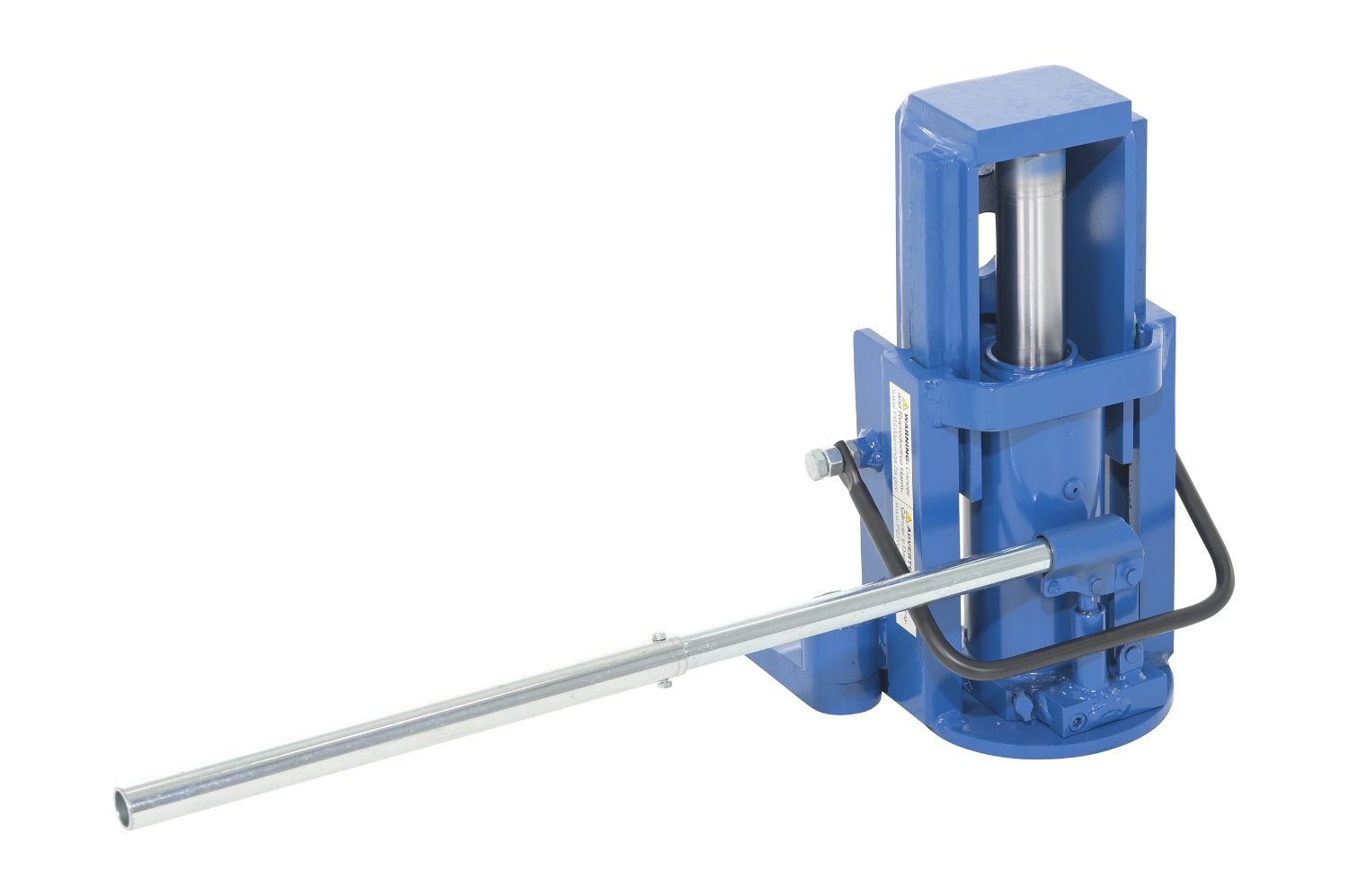

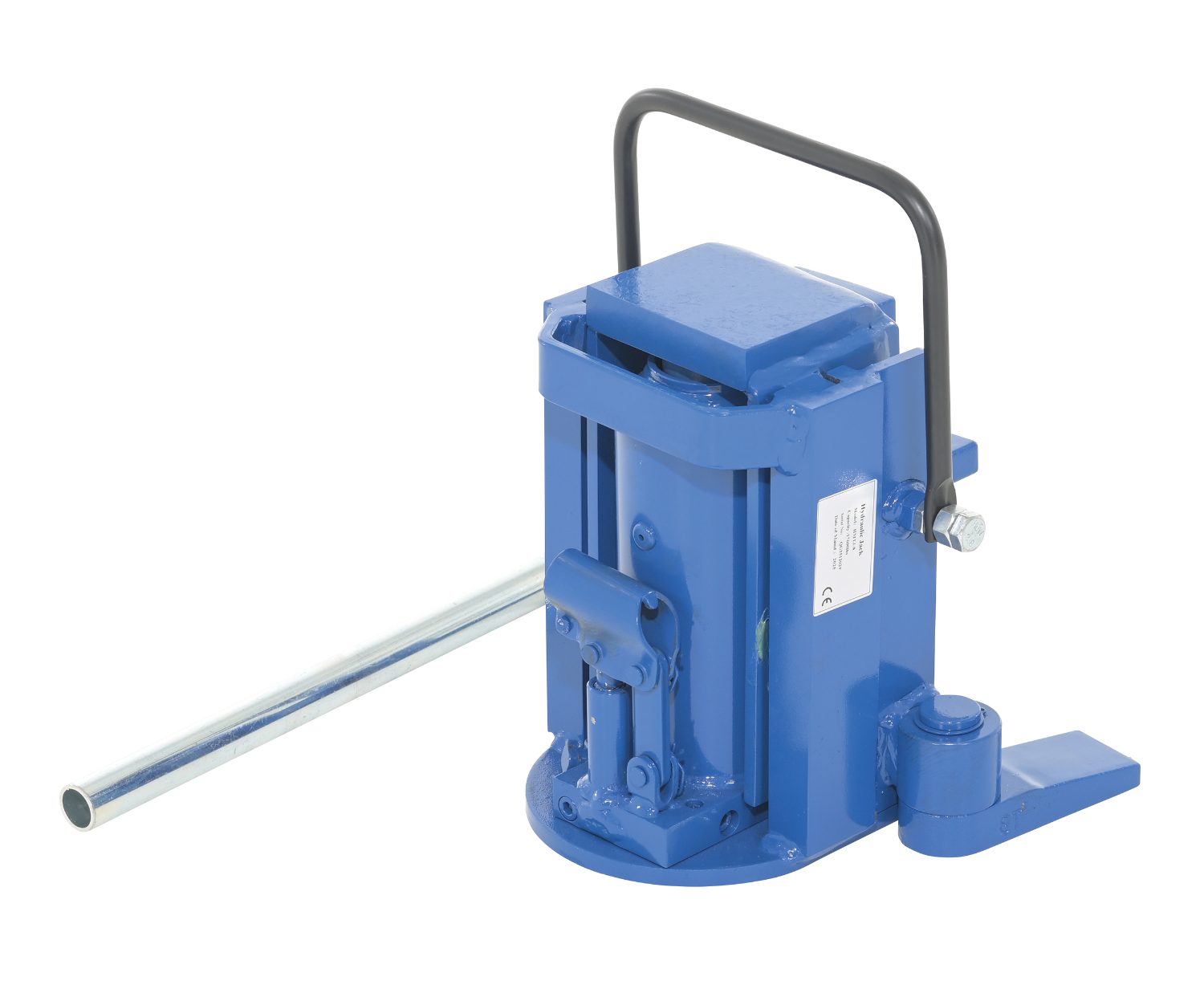

Steel construction, a high-strength steel-alloy lifting toe, rotating footrests, and built-in overload protection support demanding lifting tasks. The long pump handle provides added leverage during operation, while the compact design and carrying handle simplify movement between work areas and storage in service vehicles.
